In modern industrial logistics and precision manufacturing supply chains, packaging has long transcended its mere function as a container, evolving into a key technological component that ensures product safety, enhances distribution efficiency and facilitates green recycling. Particularly in sectors such as automotive components, aerospace, precision electronics and heavy machinery, packaging made from a single material often struggles to meet the dual requirements of load-bearing protection and surface protection. Consequently, the combination of metal packaging containers and specialised liners has emerged as the mainstream solution for high-end industrial packaging. This systematic approach—which combines rigidity on the outside with flexibility on the inside—not only harnesses the high strength and recyclability of metal containers but also achieves precise cushioning and positioning through liner materials such as foam blocks, thermoformed trays and fabric divider bags, collectively forming an impenetrable defence line for logistics.

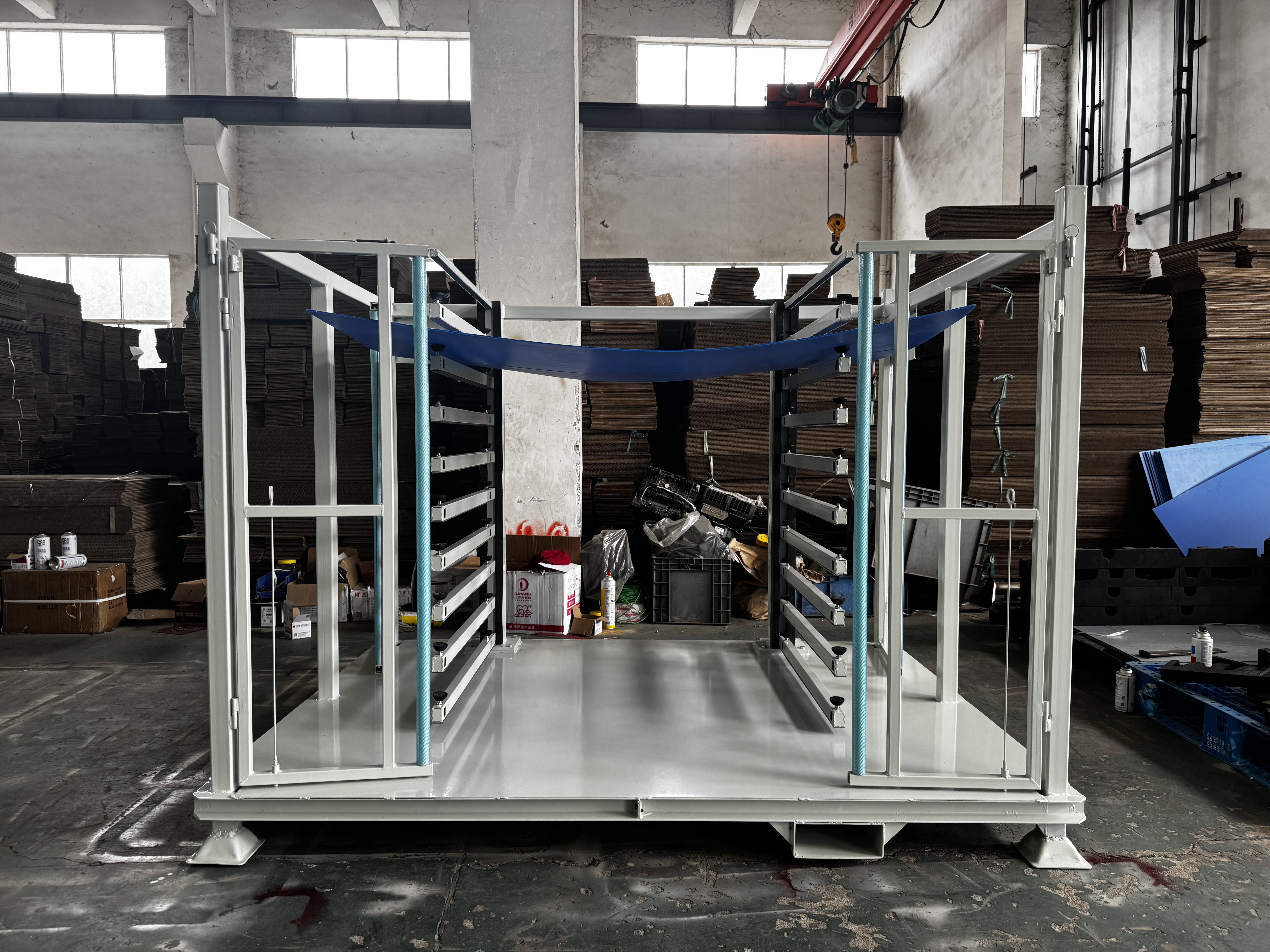

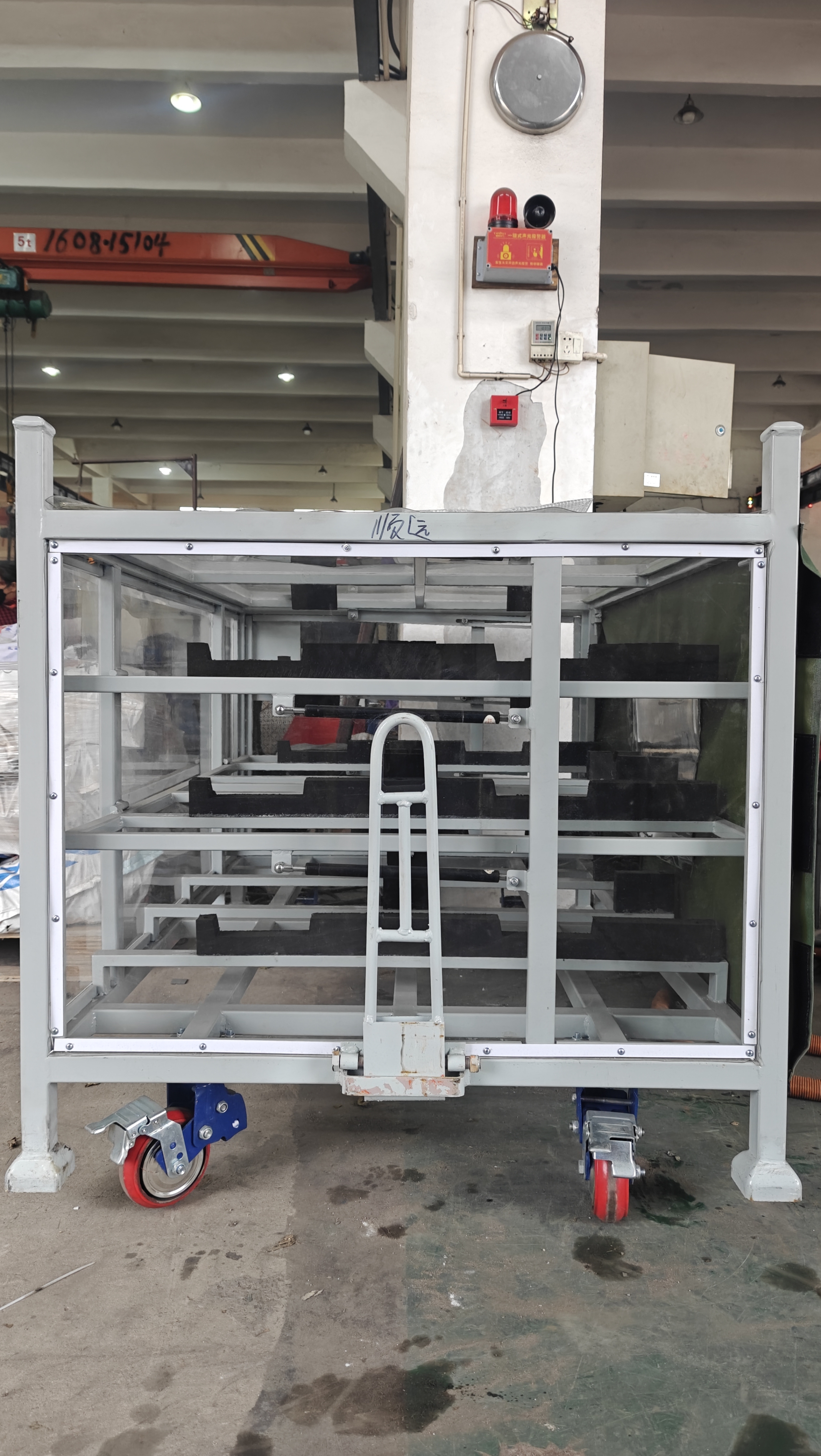

Metal racks are the most standardised form of metal packaging. Typically fabricated by welding square tubes, round tubes or sheet metal components, they feature a standardised base fork structure and top stacking corners. Their key advantages lie in their extremely high space utilisation and load-bearing capacity. Among automotive OEMs and Tier 1 suppliers, metal racks serve as the fundamental carrier for Just-In-Time (JIT) delivery. They can be folded or nested, significantly reducing reverse logistics costs when empty containers are returned. Furthermore, metal racks can easily be fitted with towing devices and castors, enabling seamless integration with automated high-bay warehouses and AGV handling systems; they serve as a key interface for achieving automated internal factory logistics.

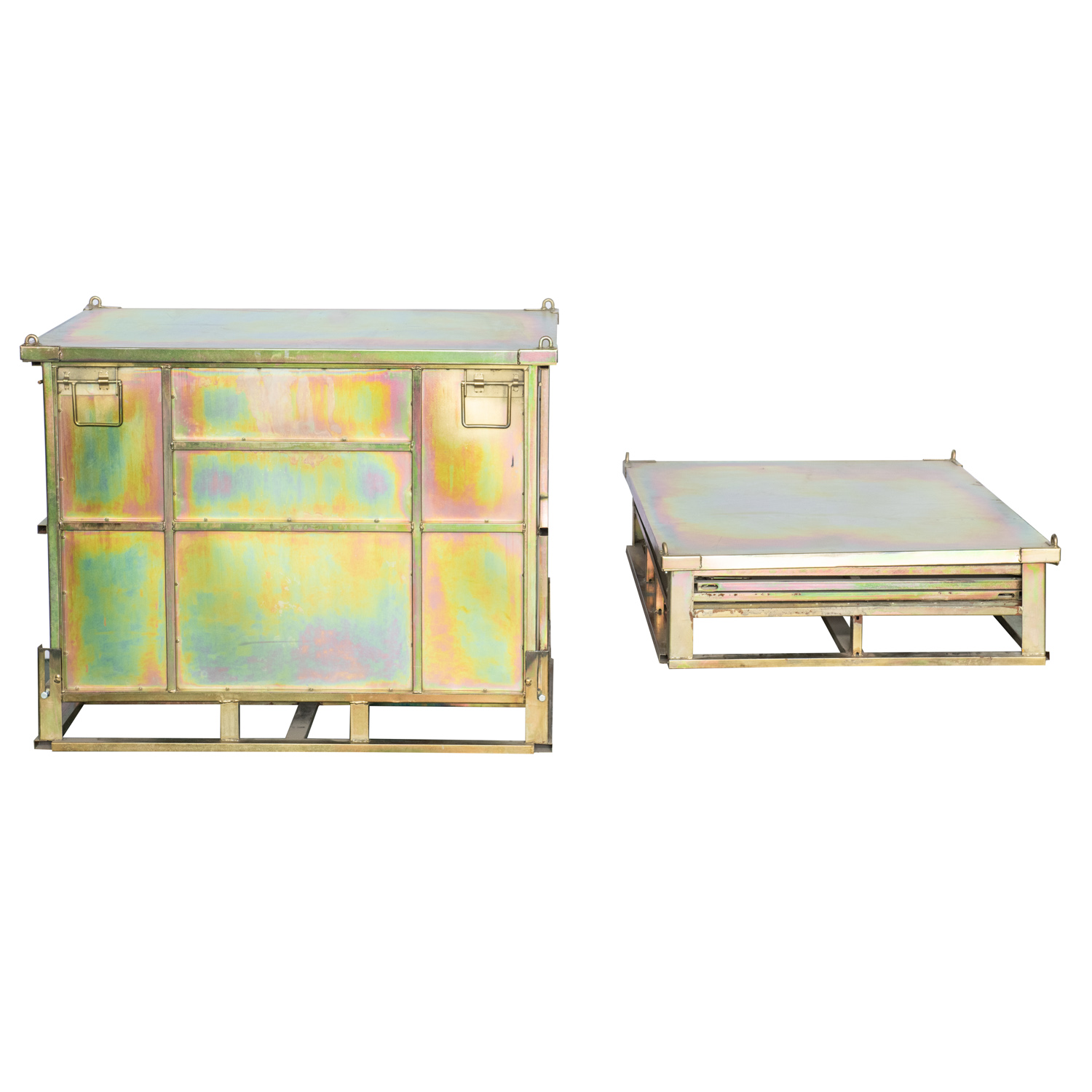

Compared to open-type metal racks, metal crates provide a more enclosed protective environment. Common types include mesh crates, sheet steel crates and lidded returnable crates. Metal crates are suitable for small-volume, high-quantity components that require protection against dust and accidental drops. Their side walls are typically designed with a mesh pattern to reduce weight and facilitate visual management; PP honeycomb panels or canvas barriers can also be fitted as required to prevent small parts from falling out. For export projects, metal crates that have undergone heat treatment or galvanisation can also meet international quarantine standards, avoiding the fumigation complications associated with wooden packaging, and are therefore the preferred solution in cross-border supply chains.

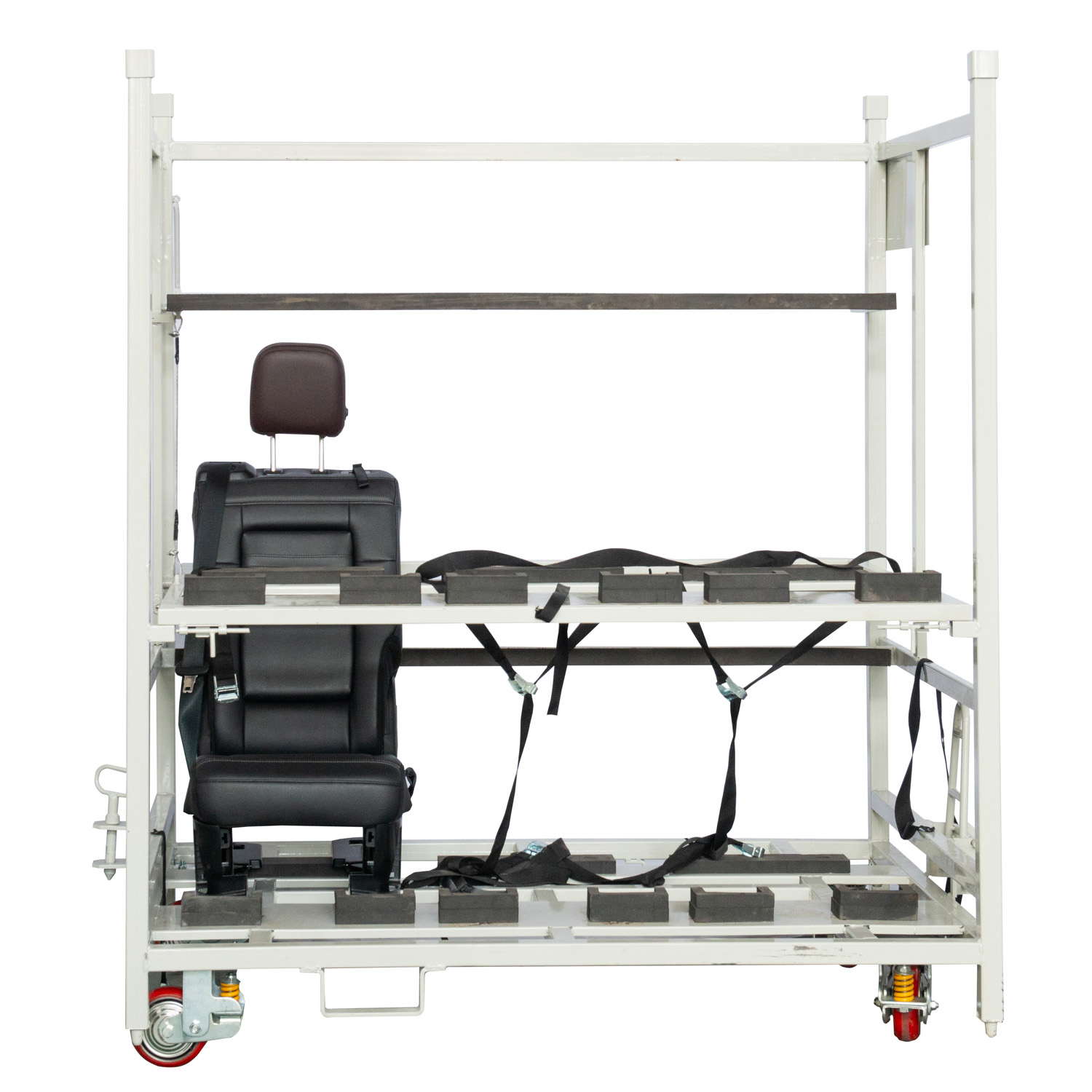

In non-standard automated production lines or when transporting products with unusual shapes, standard racks are often unable to meet the requirements. In such cases, customers commission the development of bespoke metal fixtures based on the product’s 3D model. These fixtures typically take the form of a negative mould of the product’s outer contour; through precise tooling design, they ensure the product assumes a unique orientation within the fixture. For example, specialised iron fixtures used for engine blocks, gearbox housings or new energy battery packs not only serve a transport function but are also used directly as assembly jigs alongside the production line. This integrated transport-and-assembly design completely eliminates the need for reloading or changing containers, significantly enhancing production efficiency and error-proofing capabilities.
Whilst metal containers solve the problem of transportability, liners address the issue of how to transport goods safely. Metal is hard but lacks elasticity; direct contact can very easily cause scratches, dents or even deformation to the surfaces of precision components. Therefore, the careful selection and configuration of liners is of paramount importance in the design of metal packaging.
Foam materials are the most common type of inner lining used in metal packaging, and mainly include EPE, EVA, PU foam and PE.

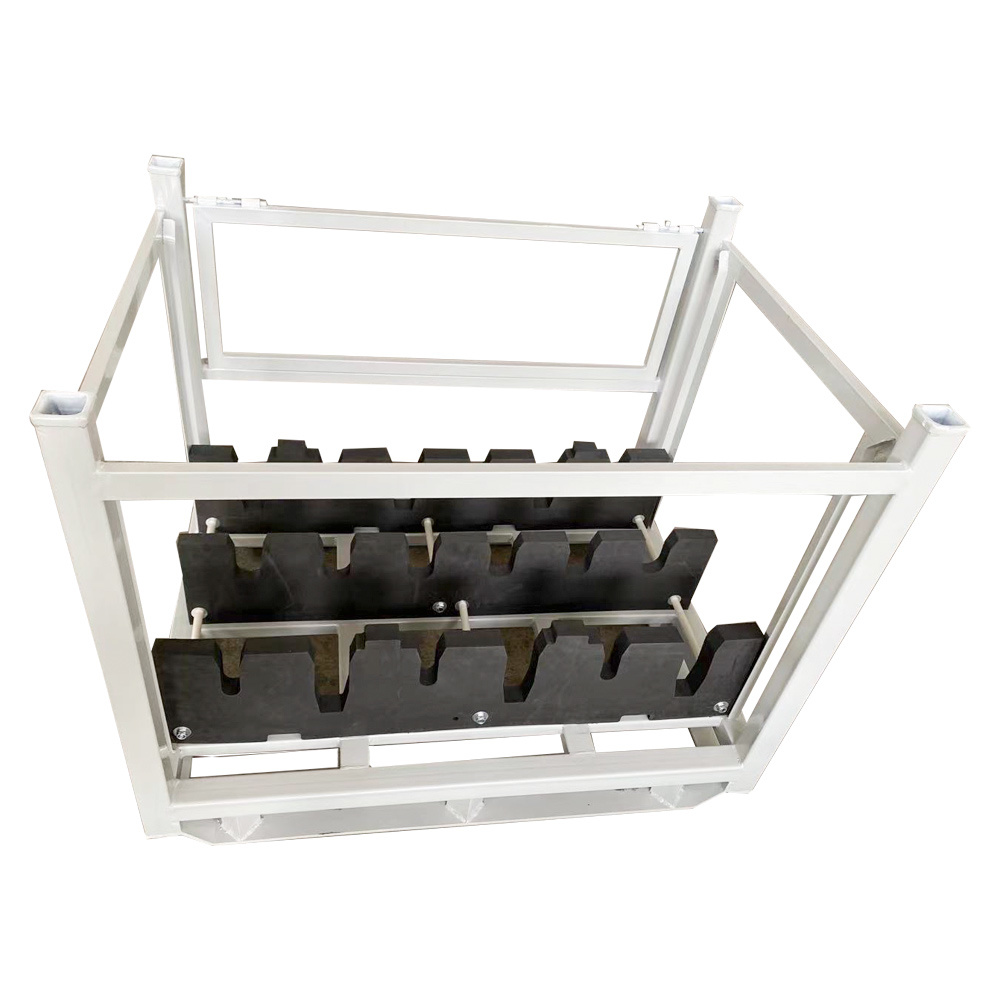

Features: Foam pads offer excellent energy-absorption and shock-absorption properties, as well as superior resilience. Through CNC machining or hot-press molding, they can be shaped to create contoured grooves that perfectly match the product.
Applications: Suitable for heavy, complex-shaped precision castings with extremely high surface quality requirements, as well as optical instruments and hydraulic valve bodies. EVA, with its moderate hardness, resistance to chipping, and oil resistance, is commonly used as an inner lining for automotive powertrain components; whereas lightweight EPE is more frequently used for interlayer separation in electronic products or lightweight aluminum parts.
Design Considerations: Calculate the compression based on the product’s weight, allow for sufficient cushioning travel, and take into account the fatigue life of the foam material to prevent collapse and failure after prolonged use.

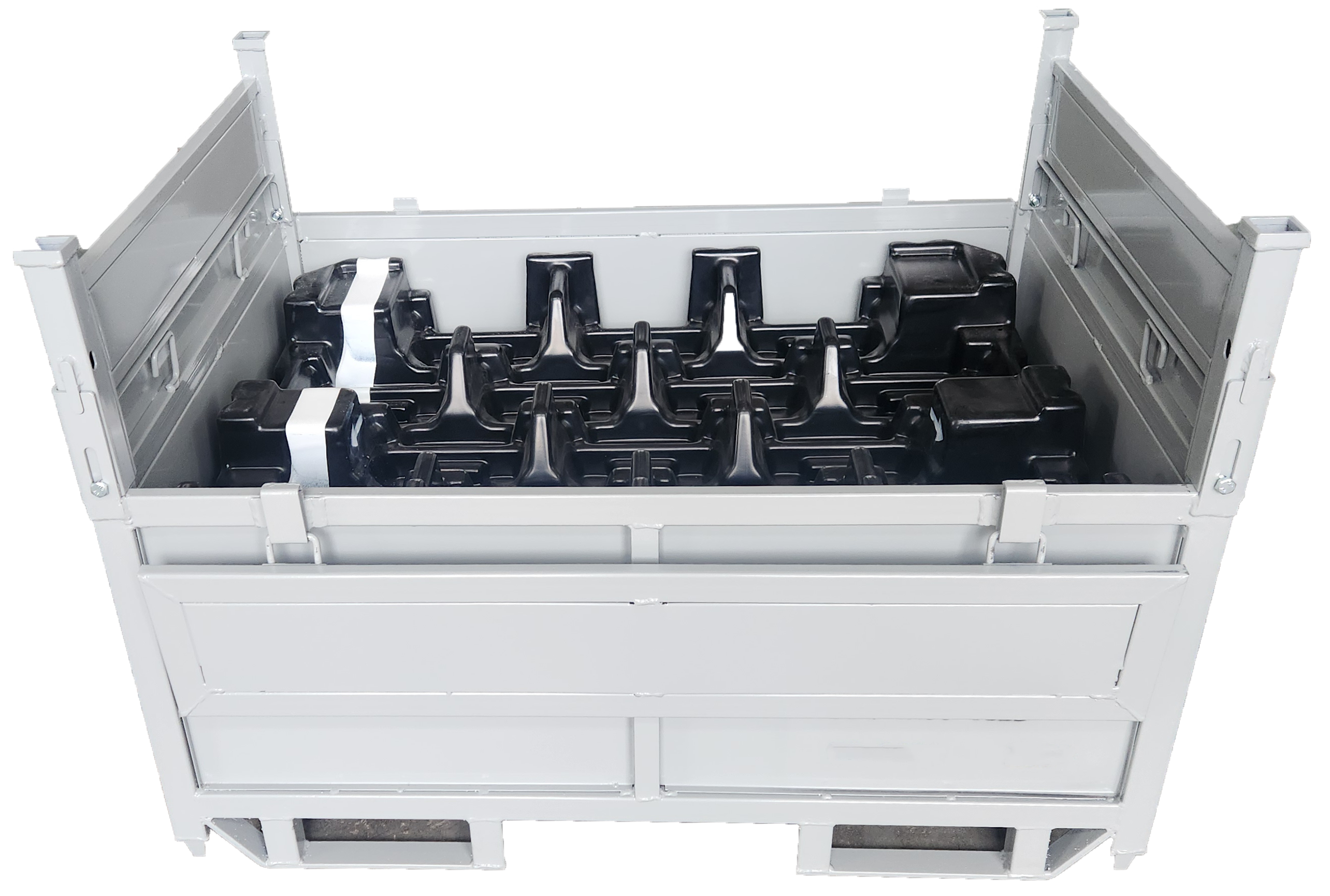

Thermoformed trays are typically made from plastic sheets such as ABS, PS, PET, or HDPE through a thermoforming process, making them an ideal choice for standardized mass production.
Features: High dimensional accuracy, excellent consistency, and a smooth, burr-free surface. Compared to foam materials, thermoformed trays are easier to clean, less prone to dust accumulation, and can be modified for ESD protection, making them the preferred choice for packaging electronic components.
Applications: Widely used for the handling of small to medium-sized components such as vehicle lights, sensors, connectors and bearings. Their regular geometric shapes make them ideal for robotic gripping and vision recognition, making them the perfect partner for automated feeding systems.
Combination strategies: When used inside metal crates, the ‘multi-layer stacking + dividers’ method is commonly employed, or blister trays are snapped into place on a metal frame to form a modular unit-load structure.

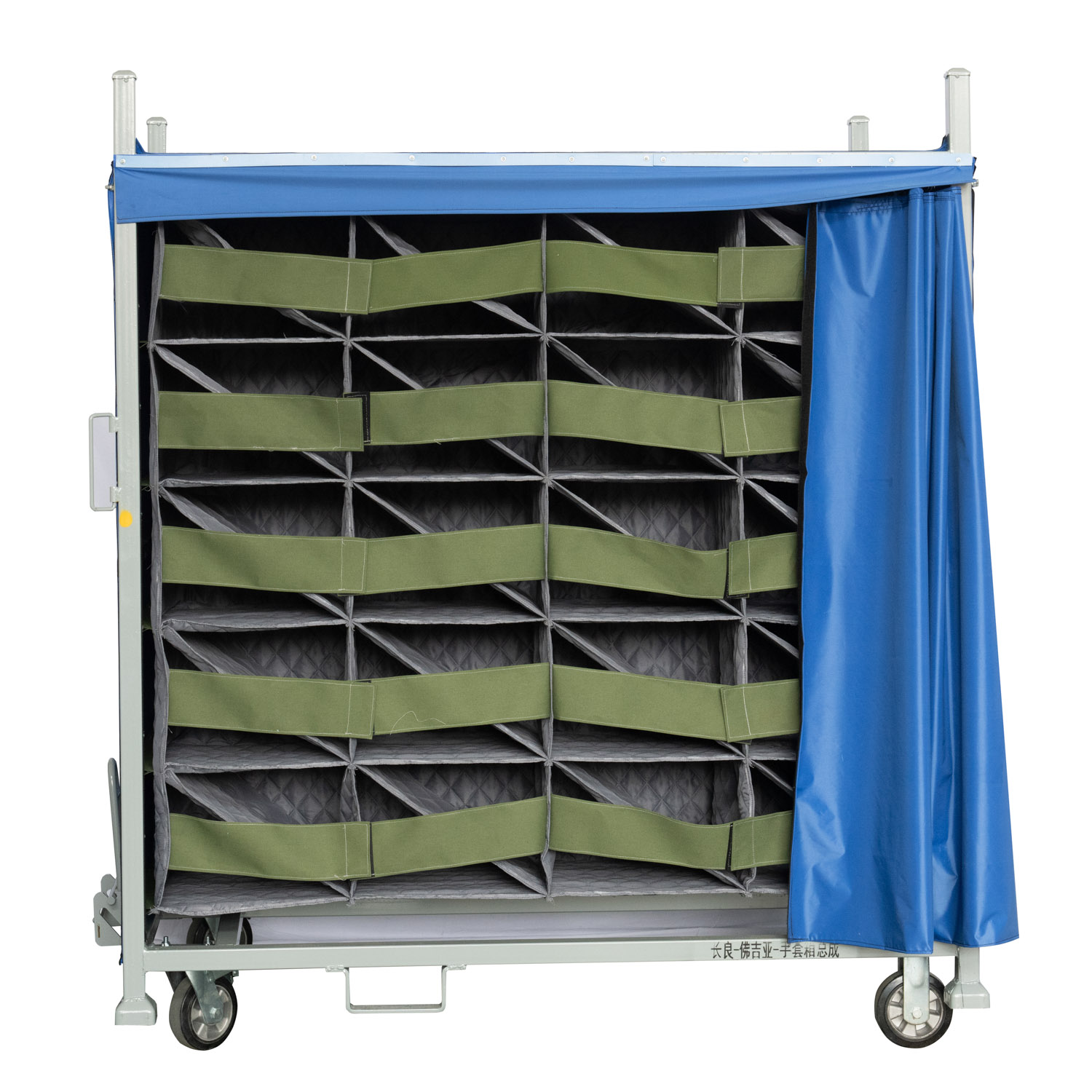

A fabric bag divider is a relatively traditional yet highly practical type of lining, typically sewn from canvas, nylon, flannel or non-woven fabric, and filled with foam or silk wadding.
Features: The greatest advantage lies in the soft contact. The fabric surface has a moderate coefficient of friction and will not cause any micro-scratches on high-gloss, electroplated or painted surfaces. Furthermore, the fabric bags possess a degree of elasticity and flexibility, enabling them to accommodate mixed loads of parts of different sizes within the same series.
Applications: Particularly suitable for automotive exterior components (such as door handles and trim strips), precision shafts, valves and workpieces with delicate coatings. Within metal racks, the filter bags are typically secured using a suspended, insert or strap-fastening method, allowing for easy installation and removal, and low cleaning and maintenance costs.
Environmental benefits: Compared to single-use foam dividers, fabric bag dividers have a longer service life and can be washed and reused when soiled, in line with current ESG and sustainability trends in the manufacturing sector.
An excellent metal packaging solution is by no means a simple combination of the container and the liner, but rather a deep integration based on a systems engineering approach. During the design process, the following principles must be adhered to:
Principles of load matching: The support points of the liner must correspond to the load-bearing structure of the metal container. Care must be taken to ensure that the weight of the product is not borne solely by the suspended liner, as this may lead to premature fatigue of the liner or localised deformation of the metal base plate. Structural design should be employed to effectively transfer vertical loads to the main beams of the metal frame.
Ergonomic principles: The installation and removal of liners must be in line with the operator’s working habits. A fit that is too tight will make insertion and removal difficult, increasing the physical strain on the operator and potentially damaging the product, whilst a fit that is too loose will cause rattling and noise during transport. Appropriate tolerance design, auxiliary handles and labelling are essential.
Consideration of full life-cycle costs: Although the initial investment in metal containers with liners is higher than that for cardboard or wooden crates, they can be reused hundreds or even thousands of times. During the design phase, a balance must be struck between durability and ease of maintenance. For example, designing wear-prone foam padding as modular inserts that can be quickly replaced, rather than bonding them as a single unit, can significantly extend the service life of the entire packaging set and reduce the cost per use.
Cleanliness Control: For products with high cleanliness requirements (such as fuel systems and braking systems), the selection of lining materials must undergo rigorous dust emission and leaching tests. The metal containers themselves must also undergo degreasing and anti-corrosion treatment, and form a sealed or semi-sealed clean microenvironment with the lining.
As smart manufacturing and green logistics continue to advance, metal packaging containers and lining systems are undergoing a new wave of transformation:
Smart Upgrades: By integrating RFID tags, Bluetooth beacons and even shock recorders into metal pallets, packaging containers are transformed into Internet of Things (IoT) endpoints. The condition of the inner liners, the quantity loaded and the transport route are visible in real time, marking a transition from passive containers to active data nodes.
Material innovation: Bio-based foam materials, biodegradable thermoformed sheets and recycled fibre bags are gradually replacing traditional petroleum-based materials, further reducing the carbon footprint whilst maintaining performance.
Standardisation and modularisation: The industry is driving the adoption of a modular system for standardising the dimensions of metal packaging, as well as the standardisation of liner interfaces. This enables packaging containers from different suppliers to be interchangeable and shared, significantly improving asset turnover efficiency across the entire supply chain.
Simulation-driven design: Using CAE finite element analysis and drop simulation software, engineers can accurately predict the mechanical response of metal structures and liners under extreme operating conditions prior to mould production, thereby minimising trial-and-error costs and ensuring rapid approval of packaging solutions.
