In modern logistics and supply chain management, transport packaging has long moved beyond the basic stage of simply containing goods. As a key interface between products and their outer containers, transport packaging liners serve multiple functions, including cushioning and shock absorption, surface protection, separation and positioning, and antistatic protection. Whether for precision automotive parts, electronic components, or high-end consumer goods, selecting the appropriate liner solution directly determines the rate of cargo damage and logistics costs.
This article will systematically review the applications of liners in mainstream shipping containers and provide an in-depth analysis of the performance differences and selection criteria for core materials and processes, including EPP, PE, EVA, polyurethane, fabric bags, honeycomb panels, hollow panels, and thermoformed parts.
Different modes of transport have distinct structural characteristics and handling requirements, so the design of the inner liner must be perfectly matched to the container.

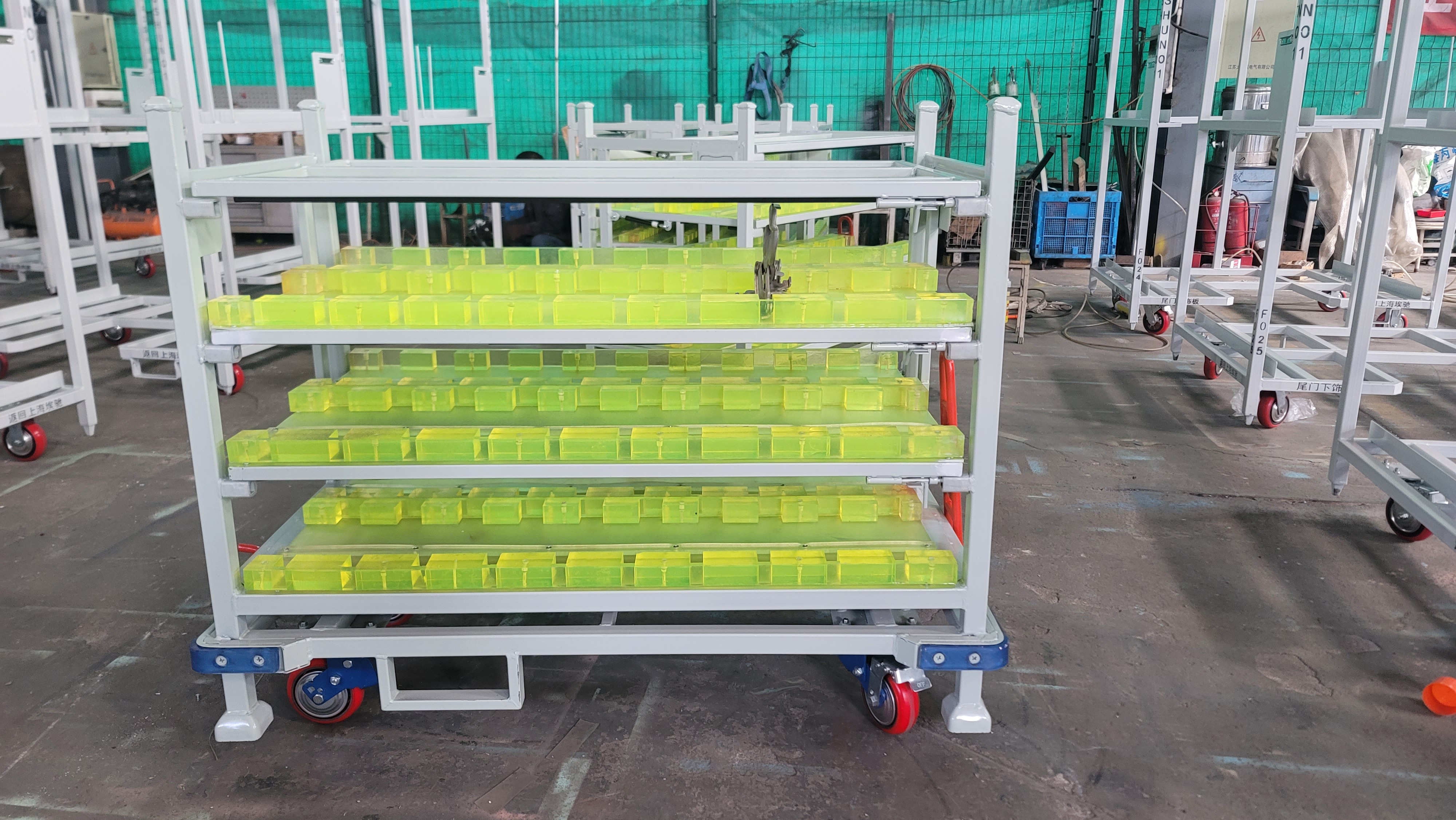

Applications: Primarily used for material handling alongside production lines and for long-distance transport in the automotive and machinery industries. Material racks are typically made of welded metal structures, which offer high rigidity but lack cushioning.
Lining Features:
Contour-Fitting Positioning: By using CNC engraving or mold forming, grooves are created that perfectly match the contours of the parts, ensuring a precise “one part per slot” fit and preventing parts from colliding.
Metal Separation: Prevent precision-machined surfaces from coming into direct contact with metal racks to avoid scratches and rust.
Load-bearing supports: For heavy castings or motor housings, the inner lining must have high compressive strength; high-density EPP, honeycomb panels, or modified plastics are typically used.
Application: Suitable for unitized transport of large volumes of goods in a wide variety of types. Pallet box
Foldable, stackable, with a spacious and regular internal configuration.
Lining Features:
Modular partitioning: A combination of hollow board divider cards and partitions, or vacuum-formed trays, is commonly used to divide the interior of the box into separate compartments, thereby increasing loading density.
Sidewall Protection: When the pallet box is folded or handled, friction may occur on the inner walls; therefore, a soft inner lining must be installed to protect the appearance of the goods.
Dust- and moisture-proof: When used with the top cover, the inner lining serves as part of the seal, making it suitable for warehouse environments.
Application: Standardized small containers compliant with VDA standards, widely used for returnable pickups among suppliers in the electronics, pharmaceutical, and automotive industries.
Lining Features:
Standardized Fitting: The inner liner dimensions must strictly adhere to the inner diameter tolerances of the EU box to ensure smooth handling by automated production lines.
Lightweight cushioning: Because the cases are relatively small, the inner liners are typically thin and often made of EVA foam, thermoformed plastic, or honeycomb board, striking a balance between protection and weight reduction.
ESD Protection: Electronic components are sensitive to static electricity during transport; the inner lining can be customized to provide permanent antistatic protection.
Application: Large-volume, one-piece molded containers used for bulk transport of large industrial goods.
Lining Features:
Bulk Bagging: For powdered and granular materials, multi-layer composite film liner bags are commonly used to block moisture and prevent contamination.
Bottom cushioning: For irregularly shaped, bulky items, line the bottom with honeycomb cardboard or bubble wrap to distribute pressure and protect the pallet structure.
The material is the soul of the lining. Here is an in-depth comparison of eight mainstream materials and manufacturing processes:

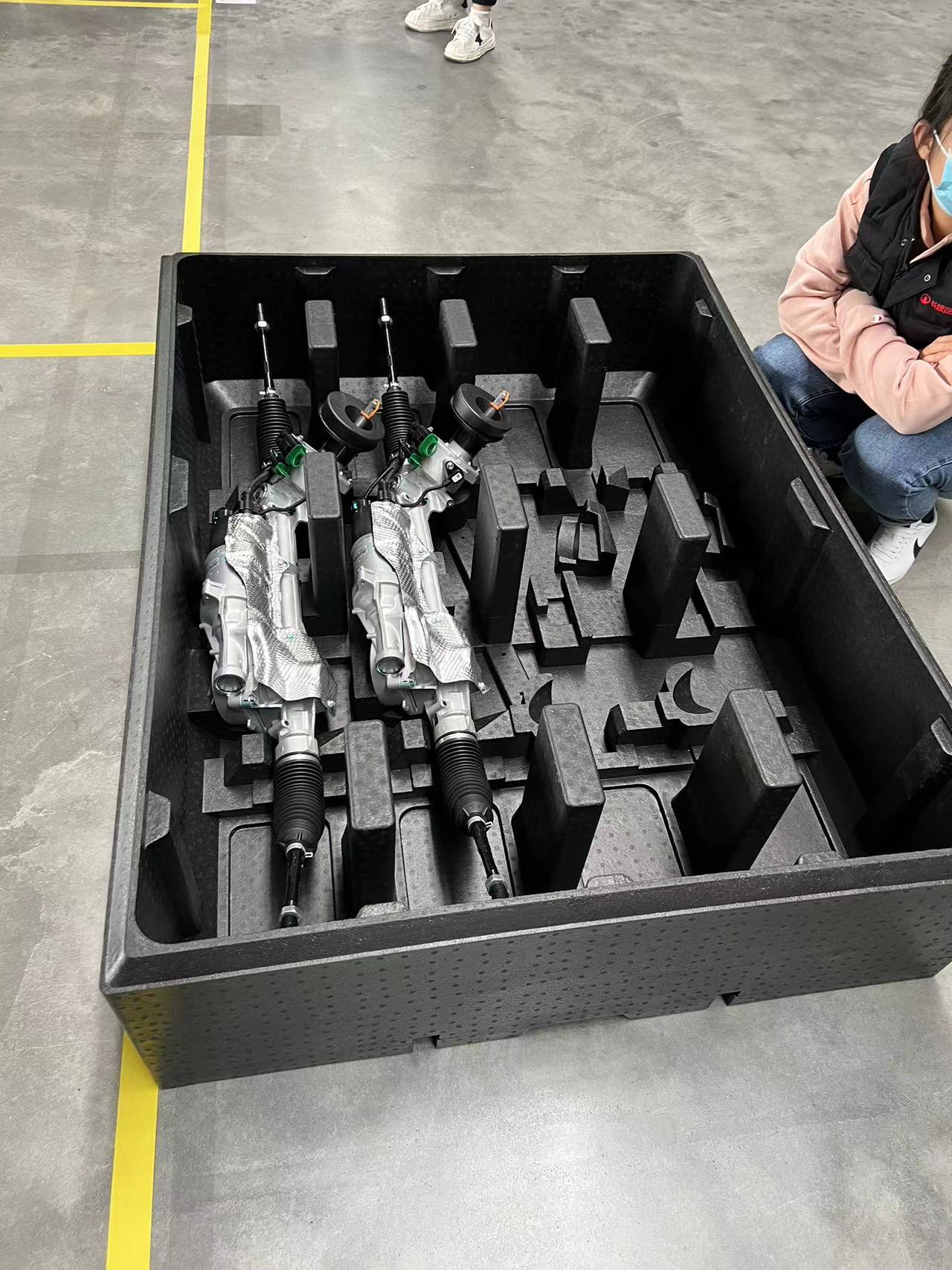

Properties: Closed-cell structure, excellent resilience, oil-resistant, chemical-resistant, and wide temperature resistance range.
Advantages:
Fatigue resistance: High recovery rate after compression, making it suitable for high-frequency cyclic loading.
Lightweight and high-strength: Low density but high load-bearing capacity, without adding unnecessary weight to shipments.
Environmental Protection: 100% recyclable, CFC-free.
Applications: Automotive parts racks, reusable packaging for precision instruments, and insulated liners for the cold chain.
Features: Physically foamed, soft texture, good flexibility, waterproof and moisture-resistant.
Advantages:
Great value for the price: Low raw material costs and a simple manufacturing process (cutting, gluing, and heat-sealing).
Excellent cushioning: Effectively absorbs low-frequency impacts, making it ideal for fragile items.
Flexible Customization: No expensive molds required; ideal for small-batch, multi-specification orders.
Disadvantages: It is prone to permanent deformation after repeated compression and is not suitable for long-term heavy-load cycling.
Applications: Single-use shipping packaging, inner trays for electronic products, and dividers for lightweight parts.
Characteristics: It falls between rubber and plastic in terms of properties, offers a wide range of adjustable hardness levels, and has a smooth, refined texture.
Advantages:
Excellent surface finish: No crumbling or dust particles, making it suitable for cleanrooms and high-end consumer products.
Easy to process and form: Can be hot-pressed and die-cut, and can be used to create complex, irregular shapes.
High conformability: Ideal as a close-fitting protective layer for precision instruments.
Applications: Medical device packaging liners, optical lens cases, high-end tool cases and luggage, and semiconductor wafer carriers.
Polyurethane (PU Foam)
Properties: Available in soft and rigid foam varieties, with optional open-cell or closed-cell structures, and featuring unique viscoelastic properties and energy absorption curves.
Advantages:
Ultimate cushioning: Superior absorption of high-frequency vibrations and sharp impacts compared to EPP/PE.
On-site Foaming: In-situ foaming technology can be used to form the foam directly on the enclosure or workpiece, achieving a gap-free fill.
Shape Memory: Some formulations feature slow rebound properties, providing an exceptionally enveloping feel.
Applications: Customized protection for precision aerospace equipment, valuable works of art, and complex, irregularly shaped parts.
Characteristics: Includes nonwoven fabric, canvas, Tyvek, flannel, and other materials; these fall under the category of flexible packaging.
Advantages:
Breathable and dust-proof: Allows air to circulate while blocking dust and preventing condensation buildup.
Zero Surface Damage: An exceptionally soft contact surface that prevents even the slightest scratch.
Washable and reusable: Can be washed and dried after use, in line with the principles of a circular economy.
Easy to Store: When empty boxes are returned, they can be folded down to a very small size.
Applications: High-gloss injection-molded parts, chrome-plated trim strips, leather goods, and food-grade bulk materials.
Features: Sandwich panels with a honeycomb-like structure, typically available in two types—paper honeycomb and PP plastic honeycomb—that offer extremely high compressive strength and flexural stiffness despite their extremely light weight.
Advantages:
Heavy-Duty Substitute: With the same weight, it offers 5 to 10 times the compressive strength of corrugated cardboard and can replace wooden boards as a base or cover plate for heavy equipment.
Structural Stability: When used as tier dividers in pallet boxes or material racks, they are resistant to collapse, ensuring safe stacking.
Environmentally Friendly and Fumigation-Free: The paper honeycomb is 100% biodegradable, so no fumigation treatment is required for export.
Applications: Bases for heavy machinery, high-strength dividers for crates, and eco-friendly cushioning blocks as an alternative to EPS.

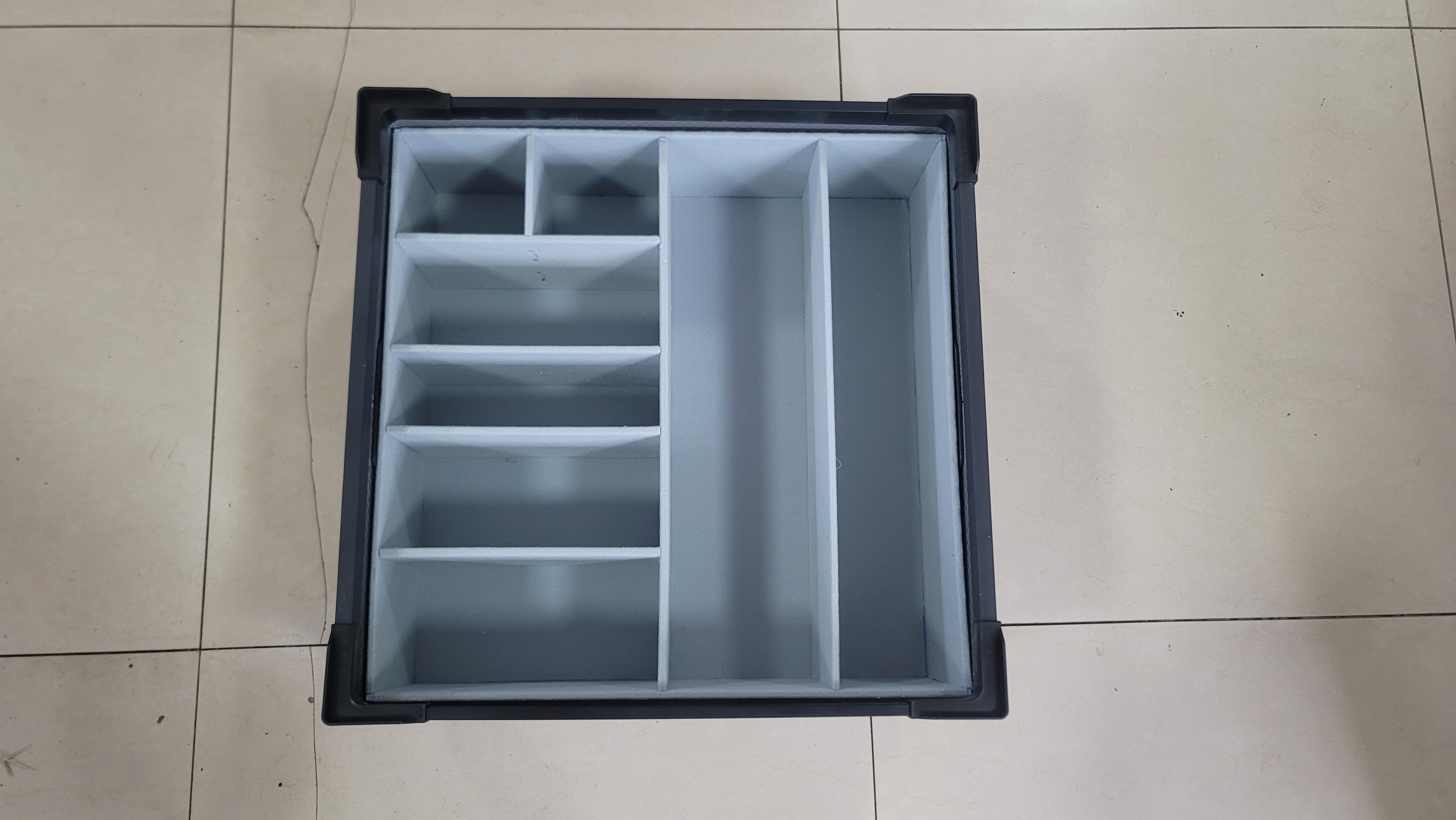

Features: PP sheets with a double-wall corrugated structure that combine the water resistance of plastic with the lightweight properties of corrugated cardboard.
Advantages:
The Ultimate Separator: Extremely easy to cut, bend, and rivet, making it the material of choice for crafting knife guards and shields.
Durable and Moisture-Resistant: Unlike paper dividers, these are resistant to water and oil and can be washed and reused dozens of times.
Extremely low cost: In applications requiring a large number of partitions but where individual parts are lightweight, the overall cost is significantly lower than that of vacuum forming and EPP.
Applications: Internal dividers for EU Boxes/crates, tiered dividers for hardware components, and compartmentalized transport of bottles and cans.

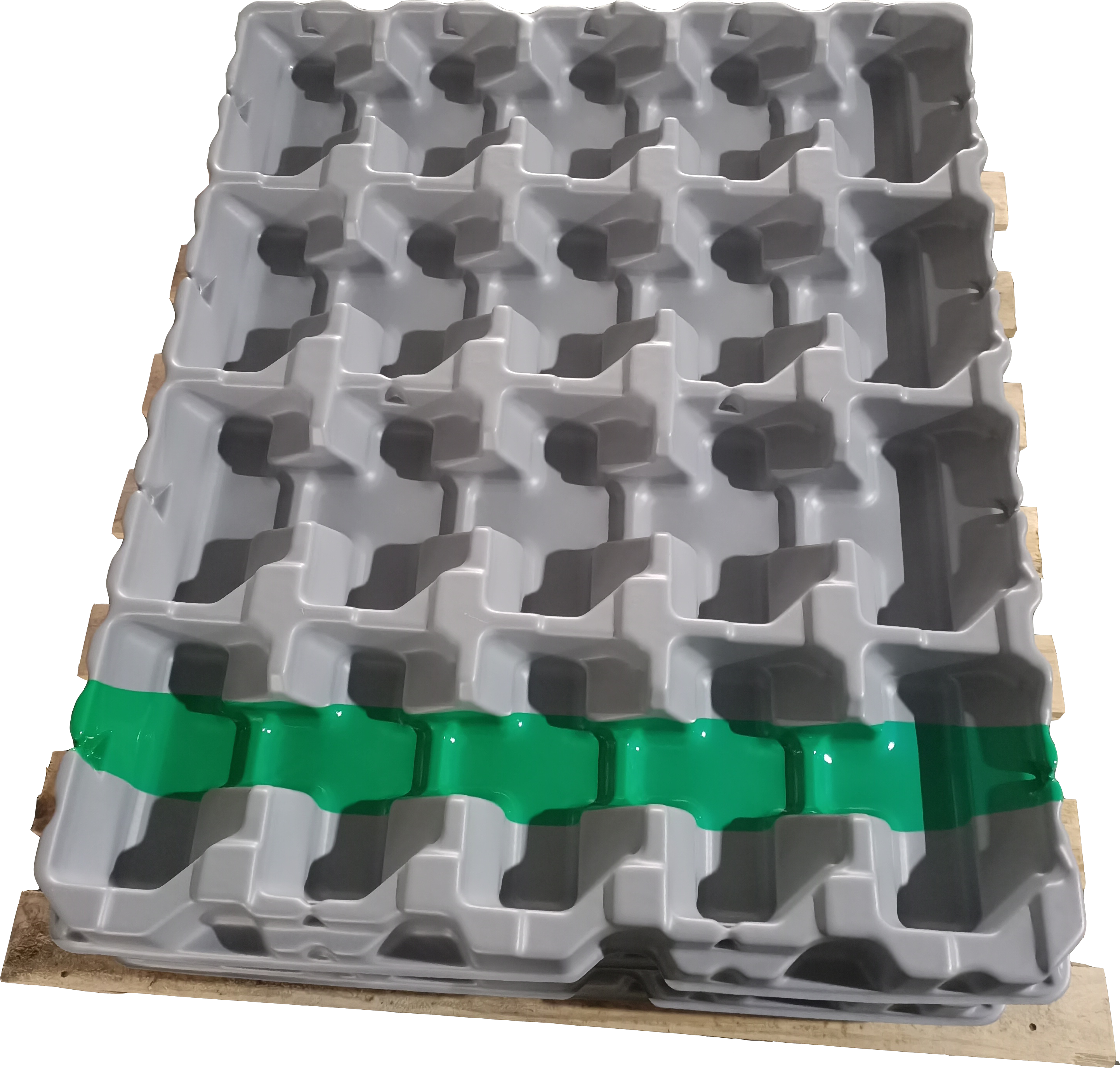

Characteristics: Plastic sheets are softened and heated, then vacuum-formed onto a mould and cooled to take shape.
Advantages:
High-precision lamination: It perfectly replicates the product’s three-dimensional contours, with positioning accuracy of up to ±0.1 mm, far exceeding that of manually applied foam sheets.
Extremely high production efficiency: multiple units produced from a single mould, making it suitable for large-scale production in the millions; the unit cost falls sharply as production volumes increase.
Functional integration: Snap-fits, handles and reinforcing ribs can be incorporated directly during the design stage, thereby reducing the number of assembly steps.
Disadvantages: High moulding costs, making it unsuitable for small batches; the material is relatively hard and does not offer the same level of cushioning as foam materials.
Suitable for: trays for electronic products, liners for cosmetics, standardised returnable trays for automotive components, and packaging for medical consumables.
EPP | PE(EPE) | EVA | PU | Cloth bag | Honeycomb Board | Corrugated Plastic Hollow Board | Vacuum-formed Lining | |
Number of cycles | ⭐⭐⭐⭐⭐ | ⭐⭐ | ⭐⭐⭐ | ⭐⭐⭐ | ⭐⭐⭐⭐⭐ | ⭐⭐⭐⭐ | ⭐⭐⭐⭐ | ⭐⭐⭐⭐ |
Buffering performance | ⭐⭐⭐⭐ | ⭐⭐⭐⭐ | ⭐⭐⭐ | ⭐⭐⭐⭐⭐ | ⭐ | ⭐⭐⭐ | ⭐ | ⭐⭐ |
Surface protection | ⭐⭐⭐ | ⭐⭐⭐ | ⭐⭐⭐⭐⭐ | ⭐⭐⭐⭐ | ⭐⭐⭐⭐⭐ | ⭐⭐ | ⭐⭐ | ⭐⭐⭐ |
Load-bearing/Structural | ⭐⭐⭐⭐⭐ | ⭐⭐ | ⭐⭐⭐ | ⭐⭐⭐ | N/A | ⭐⭐⭐⭐⭐ | ⭐⭐⭐ | ⭐⭐⭐ |
Segmentation efficiency | ⭐⭐⭐ | ⭐⭐ | ⭐⭐ | ⭐ | ⭐ | ⭐⭐⭐ | ⭐⭐⭐⭐⭐ | ⭐⭐⭐⭐⭐ |
Initial costs | Medium to high | Low | Medium | High | Medium to low | Medium | Low | High(Mould) |
Cost per use | Very low | High | Medium | High | Low | Low | Very low | Very low (mass production) |
Best Scenes | Overload cycle | Single-use | Precision/Cleanroom | Ultimate shock resistance | Sensitive skin | Heavy-duty support | Lightweight separator | Large-scale production |
Eco-friendly design and single-material construction: As ESG requirements become more stringent, priority is being given to single-material linings to avoid the recycling difficulties associated with composite materials. For example, PP honeycomb panels and PP hollow panels are being used to replace mixed paper and plastic structures, or EPP is being used as a substitute for EPS.
Smart integration: By embedding RFID tag slots or sensor mounting points within the inner lining, the packaging becomes a data collection terminal, enabling real-time monitoring and traceability of goods.
Design driven by simulation: Using CAE software to perform drop, vibration and stacking simulation analyses on the inner lining, we have shifted from trial-and-error to data-driven design, significantly reducing the number of physical test iterations and the cost of mould modifications.
Standardisation and modularisation: Promoting modular design for inner liners to ensure they are compatible across different sizes of EU boxes and pallet boxes, thereby reducing the complexity of SKU management and enhancing supply chain flexibility.
Transport packaging liners are not merely simple fillers, but rather systematic solutions that integrate materials science, structural mechanics and logistics engineering. From soft fabric bags to rigid honeycomb panels, and from single-use PE to EPP that can be reused hundreds of times, each material has its own irreplaceable value. When selecting materials, companies should move beyond a focus on price alone and instead conduct a comprehensive assessment of total life-cycle costs, product sensitivity, logistics flow patterns and environmental compliance requirements. Only when the inner lining material achieves a dynamic balance with the container, the product and the logistics environment can truly safe, efficient and environmentally friendly modern logistics and transport be realised.
