Within the vast supply chain system of the automotive manufacturing industry, there are tens of thousands of different types of components. Among these, irregularly shaped parts present particular challenges in packaging, warehousing and logistics due to their non-standardised geometric forms, unique physical properties and high unit value. The term ‘irregularly shaped parts’ generally refers to components that cannot be directly accommodated in standard returnable containers; these include parts with irregular shapes, an off-centre centre of gravity, a tendency to deform, or extremely high surface finish requirements. Examples include body panels, exhaust manifolds, steering knuckles, headlamp assemblies, wiring harnesses, glass products and various injection-moulded interior components.
The packaging and storage of irregularly shaped parts is not merely a matter of packing and stacking; it has a direct impact on product protection, logistics loading efficiency, the efficiency of integration with automated production lines, and overall supply chain costs. An effective packaging and storage solution for irregularly shaped parts must strike the optimal balance between protection, space utilisation, ergonomics and reusability. This guide aims to provide automotive OEMs, Tier 1 suppliers and logistics service providers with a systematic, full-lifecycle solution for the packaging and storage of irregularly shaped parts, covering the entire process from design principles, material selection and structural design to warehousing and digital management.
Before drawing up a plan, it is essential to classify irregularly shaped items scientifically. The key requirements for the packaging and storage of different categories of irregularly shaped items vary significantly.
Typical components: door inner panels, bonnet, wing panels, side body panels.
Key challenges: Highly prone to elastic and plastic deformation; scratches are strictly prohibited on Grade A surfaces; large in volume but light in weight, resulting in poor stacking stability.
Key requirements: multi-point supported contour positioning, overhang protection, anti-vibration measures, and a high-rigidity frame.
Typical components: engine blocks, gearbox housings, subframes, brake calipers.
Key challenges: Heavy individual items, making manual handling difficult; complex shapes resulting in large gaps within the packaging; risk of residual oil contamination.
Key requirements: high-strength load-bearing structure; design for mechanised loading and unloading; rust and oil resistance; high-density stacking.
Typical components: headlamp assemblies, instrument panels, sensors, ECU modules, airbag inflators.
Key challenges: Sensitivity to static electricity, dust and humidity; optical surfaces or connectors are highly susceptible to damage; extremely tight assembly tolerances.
Key requirements: ESD protection, cleanliness control, independent compartmentalisation, shock absorption, and moisture-proof sealing.
Typical components: vehicle wiring harnesses, seals, fuel lines and exhaust pipes.
Key issues: Prone to tangling and knotting; internal breakage or permanent deformation caused by excessive bending; length exceeds standard container dimensions.
Key requirements: fixed-length coiling or suspension, anti-tangle dividers, bend radius restrictions, dust-proof bags.
Typical components: windscreens, sunroof glass, ceramic catalytic converters, carbon fibre components.
Key issues: poor impact resistance; prone to chipping at the edges; sensitive to environmental stresses.
Key requirements: soft-contact isolation, vertical slotted storage, constant temperature and humidity, and UV protection.
With regard to the above classification, the design of packaging for irregularly shaped items should adhere to the following six core principles, which form the basis of all technical solutions.
The key to packaging irregularly shaped parts lies in contour-moulding. Unlike the standardised grids used for standard parts, irregularly shaped parts require bespoke liners.
Contour-following design: Using 3D digital models for reverse modelling ensures that the packaging material conforms perfectly to the part’s contours, distributing stress points to non-functional areas or reinforcing ribs on the part.
Preventing over-tightening: In environments subject to thermal expansion and contraction and vibration, allow a clearance of 0.5 mm to 2 mm to prevent jamming or pinching caused by dimensional variations.
Positioning logic: Based on the principle of three-axis, six-point positioning, this ensures that parts do not shift during transport vibrations, whilst also ensuring that they can be grasped smoothly by a robot or manually.
Select materials based on the sensitivity of the parts to avoid excessive packaging or inadequate protection.
Surface protection rating: Class A surfaces must use non-woven fabric, EVA foam or a Teflon coating; Class B surfaces may use corrugated cardboard or standard PE foam; Class C surfaces may use thermoformed trays or injection-moulded dividers.
Chemical compatibility: Packaging materials must not release volatile organic compounds, nor must they react chemically with grease or coatings on the surfaces of components. For example, sulphur-containing rubber must not come into contact with components containing silver contacts.
Cushioning performance: The material’s G-value transmission rate is verified through drop tests and vibration tests to ensure that, following a 1.5-metre drop or under a random vibration spectrum, the acceleration experienced by the component remains below its damage threshold.
Irregularly shaped components inevitably waste space; the key to the design lies in consolidating the parts into a single unit.
Nesting and interlocking: By utilising the protrusions and recesses inherent in the parts, designs can incorporate staggered arrangements, interlocking in opposite directions or rotationally interlocking layouts to minimise wasted space.
Foldable design: For empty containers being returned, the packaging structure should allow for folding or nesting, reducing the return volume to one-third or even one-fifth of its unfolded size, thereby lowering reverse logistics costs.
Standardised external dimensions: Regardless of the internal shape, the external dimensions must strictly comply with ISO or company standard modular dimensions to ensure a perfect fit with shelving, lorries and containers.
Packaging is not merely a container; it is also a tool.
Handling paths: Ensure there is sufficient space for fingers or provide grip slots for robotic grippers to prevent operators’ hands from being trapped or parts from being scratched by fingernails.
Weight control: The recommended maximum weight per box is 15 kg; oversized components must be fitted with lifting points or a skid base.
Visual identification: Colour-coding, error-proofing markings and arrow indicators are used to enable foolproof assembly and inspection, and to prevent the mixing of components and incorrect installation.
The automotive industry is accelerating its transition towards carbon neutrality, and single-use packaging should be phased out.
Design life: The design life of reusable packaging should be aligned with the vehicle model’s life cycle.
Ease of maintenance: The lining should be constructed using modular joints rather than being bonded as a single unit, so that individual sections can be replaced in the event of localised damage, thereby extending the overall service life.
Material recycling: Give priority to single-material products, such as those made entirely of PP or HDPE, to avoid the difficulties associated with separating and recycling composite materials.
Packaging serves as the interface between the physical and digital worlds.
RFID tags: Passive RFID tags are embedded to enable instant bulk stock-taking and end-to-end traceability.
QR code: Serves as a redundant backup for RFID, containing information such as batch numbers, production dates and quality status.
Sensor integration: For high-value precision components, shock recorders or temperature and humidity labels can be integrated into the packaging to record any anomalies in the transport environment in real time.
Suitable for: plastic and stamped parts of medium complexity, produced in large volumes, with high surface finish requirements.
Technical features: Moderate moulding costs and short development cycles; surface protection can be enhanced through flocking or lamination; multi-layer stacked structures can be designed.
Areas for optimisation: Adopt a two-layer top-and-bottom cover structure to enhance rigidity; add reinforcing ribs to prevent the pallet from collapsing; design a dedicated cleaning channel to facilitate maintenance.
Suitable applications: precision electronic components, car lights, fragile items, and parts requiring extremely high cushioning performance.
Technical features: EPP offers the combined advantages of cushioning, thermal insulation, oil resistance and light weight, and is 100 per cent recyclable. EPS is low-cost but prone to crumbling and is used solely for single-use export packaging.
Areas for optimisation: adoption of multi-density composite moulding; incorporation of metal inserts to enhance joint strength; surface hot-melt treatment to form a dense skin that prevents chipping.
Suitable applications: Standard carriers for ultra-high output, long service life, heavy loads and integration with automated production lines.
Technical features: Dimensional accuracy of ±0.1 mm, suitable for automated loading and unloading by robots; high strength, allowing for stacking of 5–8 layers; easy to clean and maintain.
Areas for optimisation: Use gas-assisted injection moulding to reduce the product’s weight; incorporate spring-loaded latches or magnetic positioning; integrate electrostatic dissipation pathways.

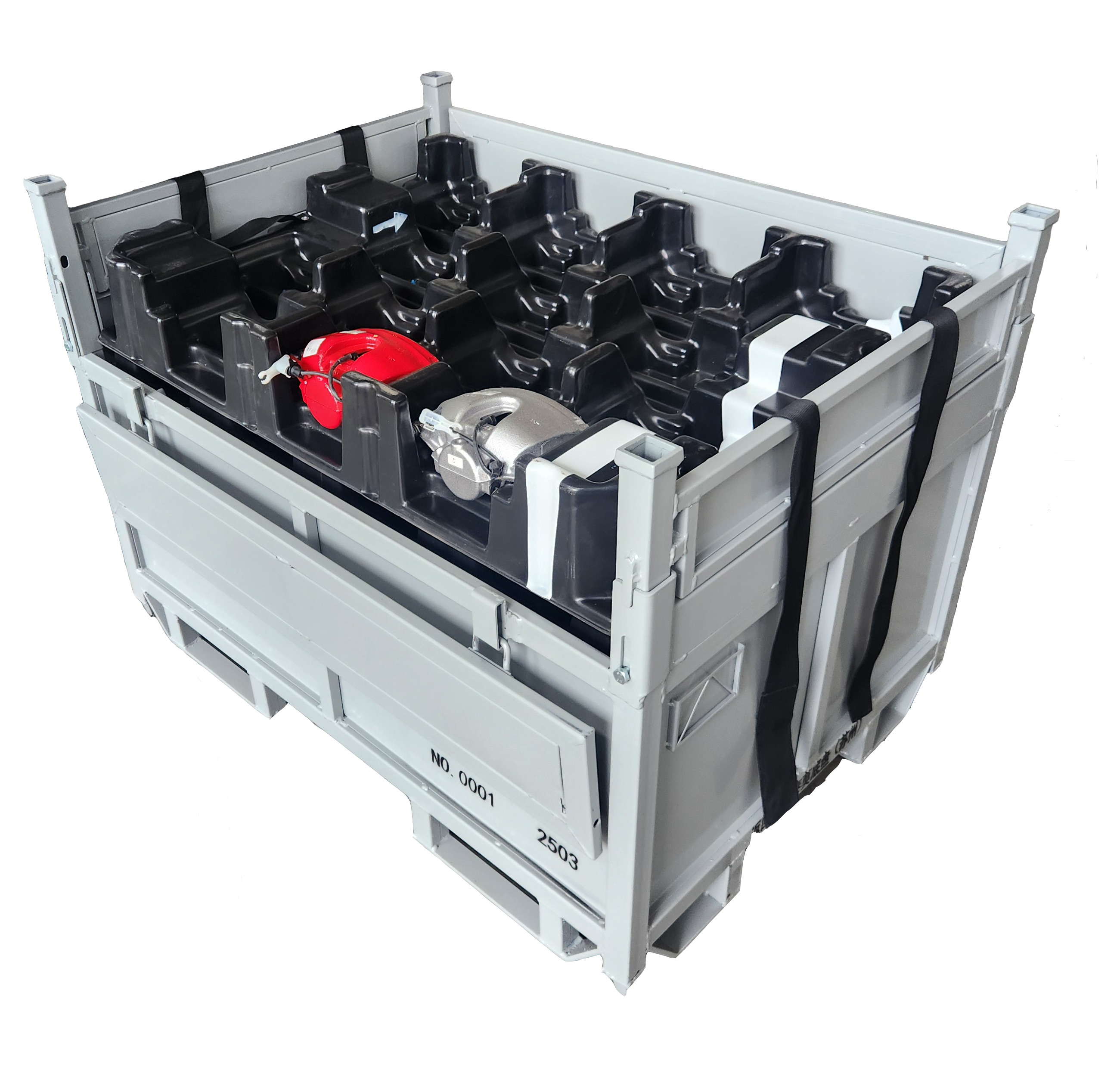

Suitable applications: Large body panels, chassis components, and SPS delivery in final assembly workshops.
Technical features: Load-bearing capacity up to one tonne; foldable design saves space during return journeys; can be used directly on the production line as workstation equipment.
Areas for optimisation: Use maintenance-free bearings at the joints; apply electrophoretic coating or powder coating for rust protection; incorporate castor brakes and a tow hook to enable AGV towing.
Suitable for: wiring harnesses, hoses, sealing strips and other flexible components.
Technical features: Extremely lightweight and highly breathable; the spacing between hangers can be adjusted according to the length of the parts; easy to clean.
Areas for optimisation: Use anti-static conductive yarn; design quick-release fasteners; utilise a dedicated hanging rack to enable high-density, three-dimensional storage.
Suitable scenarios: multiple product varieties in small batches, after-sales spare parts, and the prototype stage.
Technical features: Consists of a standard base plate, adjustable dividers and universal straps; can accommodate a variety of irregularly shaped components without the need for moulding.
Areas for optimisation: developing parametric adjustment mechanisms; establishing a library of modular components to reduce response times.
Packaging is merely a medium; it is only through a scientific storage strategy that its value can be realised. The storage of irregularly shaped items requires moving beyond traditional two-dimensional thinking towards three-dimensional and dynamic approaches.
Part Type | Recommended storage methods | Equipment Configuration | Remark |
Large body panels | Erecting a T-bar/A-frame | Vehicle-mounted/vacuum lifting attachments | Do not lay flat or stack; take care to avoid crushing injuries |
Heavy-duty structural components | Beam racking / Drive-in racking | Forklift trucks/stacker trucks | Heavy load at the bottom, light load at the top |
Precision small parts | Automated Storage and Retrieval System (AS/RS) | Stacker/Shuttle Truck | Constant temperature and humidity, cleanroom control |
Wiring harnesses/hoses | Overhead Conveyor Chains / Mezzanine Racking | Electric hoist/order picker | Grouped by length, to prevent tangling |
Glassware | Specialised L-shaped/A-shaped stands | Side-loading forklift | Tilted at 5–10° to prevent tipping |
Tyres | Vertical compact shelving / honeycomb shelving | Specialised fixtures | Avoid deformation caused by prolonged pressure |
Temperature and humidity control: The temperature in the electronic components storage area should be between 18 and 28 °C, with a relative humidity of less than 60% RH; rubber seals should be stored away from light and at a low temperature to prevent ageing.
Cleanroom classification: The optical components and airbag areas must meet ISO Class 7 or higher cleanliness standards and be equipped with an air shower and dust-trapping mats.
Mandatory First-In, First-Out (FIFO) mechanism: For non-standard chemical components with specified shelf lives, batch numbers must be locked via flow racks or a WMS system to prevent the use of expired products.
Anti-static earthing: Conductive flooring is installed in the storage area for ESD-sensitive components; shelving is securely earthed; personnel wear anti-static clothing; and resistance values are checked regularly.
Application of the ABC classification system: High-frequency, irregularly shaped items are placed near the dispatch area and production lines; low-frequency items are stored on upper shelves or at the far end; and oversized items are arranged along the main aisles to facilitate crane handling.
Kits-of-parts storage: For assembly of sub-assemblies, store related irregularly shaped parts in close proximity according to their BOM relationships, or use kit racks to minimise picking distances.
Buffer design: Sufficient temporary storage buffers for irregularly shaped parts should be provided in the receiving and feeding areas to accommodate fluctuations in incoming materials and changes in production line cycle times.
Packaging and storage solutions are not a one-off solution; a closed-loop validation system must be established.
ISTA 3A/3B: Comprehensive testing simulating global logistics and transport conditions, including drop, vibration, pressure, and temperature and humidity cycling.
ASTM D4169: Standard Test Method for the Performance of Transport Containers and Systems.
Internal company standards: These are generally more stringent than international standards, for example, specifying vibration spectra under specific road conditions, a stacking safety factor of ≥3.0, and dust ingress of <5 mg/m², amongst others.
Road testing: Before a new model goes into mass production, it must undergo at least 1,000 km of road testing to check for any micro-wear on components and any damage to the packaging.
Problem: Regular scratches are appearing on the surface of the parts.
Reason: Insufficient hardness of the lining or a foreign object lodged within it.
Solutions: Increase the hardness of the lining material, apply a surface coating, and establish standards for the frequency of packaging cleaning.
Problem: The robot failed to pick up the part due to a misalignment of the part following transport.
Reason: Wear on the locating pins or resonance at the vibration frequency.
Solution: Switch to wear-resistant liners and adjust the natural frequency of the packaging to avoid the vehicle’s resonance frequency range.
Problem: High rate of damage to returned packaging.
Reason: A design fault in the folding mechanism or rough handling.
Countermeasures: Optimise the hinge structure, introduce limit switches, and provide training for operators, incorporating this into their Key Performance Indicators (KPIs).
PDCA cycle: Review packaging damage rates, loading rates and customer complaint data on a quarterly basis, identify the top three issues and initiate improvement projects.
Cross-functional teams comprising packaging engineers, quality engineers, logistics planners and production line operators participate jointly in the review of proposals to ensure that plans are not merely theoretical.
Benchmarking: Conduct regular visits to leading companies in the industry to introduce new materials and processes.
By using simulation software to model the behaviour of packaging throughout the entire process—from transport and warehousing to the production line—in a virtual environment, potential interference, bottlenecks and risk points can be identified in advance, thereby reducing the costs associated with trial and error involving physical prototypes.
Condition Monitoring: Equipped with an integrated MEMS accelerometer and temperature and humidity sensors, it uploads data in real time to the cloud platform, enabling visualisation of transport quality.
Asset Management: Track the location of reusable packaging using GPS and RFID, predict when empty containers will be returned, optimise the size of the pool, and minimise asset loss.
Predictive maintenance: Using usage and environmental data, AI algorithms predict the remaining service life of packaging and proactively trigger maintenance or disposal instructions.
Biodegradable materials: Exploring the application of bio-based materials such as PLA and PHA in non-critical protective scenarios.
Design for Reduction: Using topological optimisation algorithms, material usage is reduced by 20–30% whilst ensuring structural integrity.
Shared packaging pool: A standardised system for the shared use of reusable packaging across companies and sectors, designed to improve the efficiency of social resource utilisation.
As the trend towards personalised automotive customisation intensifies, packaging will need to offer greater flexibility; modular, programmable and adaptive packaging systems will become the norm, enabling the mixed-flow production of a variety of irregularly shaped parts on the same production line without the need for frequent tooling changes.
The management of noise generated during the packaging and storage of irregularly shaped automotive components is a systematic engineering endeavour that integrates mechanical engineering, materials science, logistics management and information technology. There is no one-size-fits-all solution; rather, it requires bespoke solutions based on a deep understanding of the parts’ characteristics, a precise grasp of the operational context, and continuous iteration and optimisation.
Against the backdrop of the automotive industry currently facing the triple pressures of cost reduction and efficiency improvement, quality enhancement and green transformation, effective packaging and storage solutions for irregularly shaped components are no longer merely a logistical support function, but rather a vital component of a company’s core competitiveness. It is hoped that this guide will provide industry professionals with a systematic framework for reflection and practical guidance, thereby helping to build a safer, more efficient and more sustainable automotive supply chain system.
