A Detailed Explanation of The Six Major Standard Types of Plastic Pallets

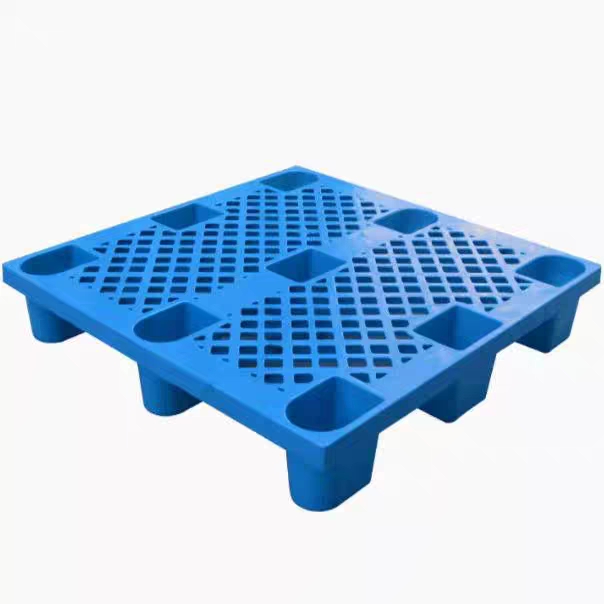

Grid Nine-Legged Pallet

Structural Features:

The base consists of 9 support legs, typically arranged in a 3×3 pattern.

The tray panel features a mesh design, providing excellent ventilation and drainage.

Applicable Scenarios

Suitable for the storage and transportation of light to medium-weight goods;

Commonly used in the food, chemical, and pharmaceutical industries, where it is easy to clean and well-ventilated.

Advantages

Lower cost;

Lightweight and easy to move;

Good ventilation to prevent cargo from becoming damp.

Disadvantages

The load-bearing capacity is relatively limited;

It is not suitable for holding small items or items that are likely to fall off.

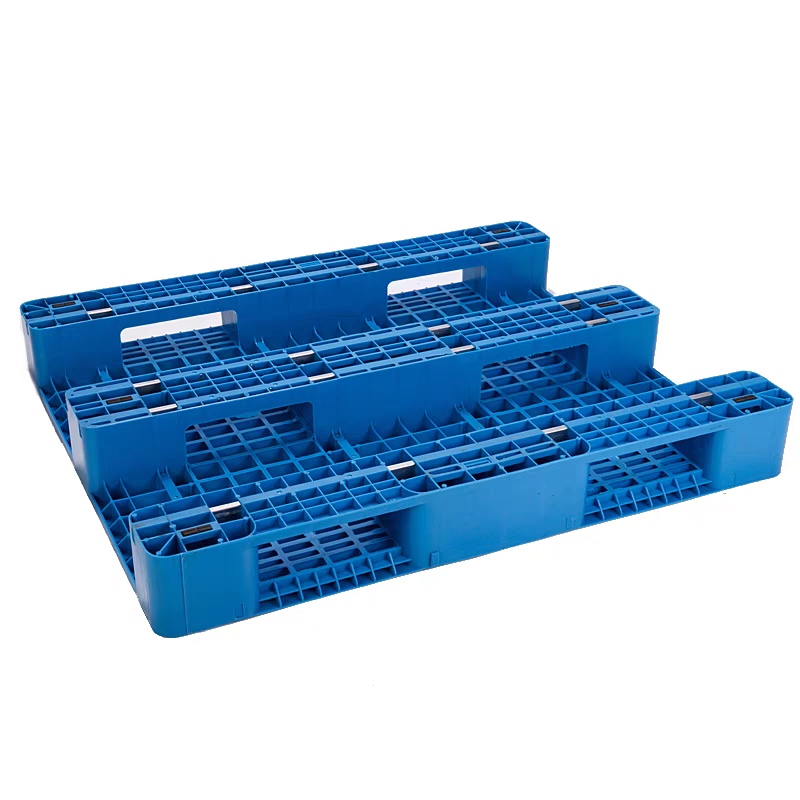

Grid “Chuan” Character Pallet

"Chuan"-shaped refers to a bottom support structure consisting of three parallel channels, resembling the Chinese character "川."

Structural Features:

There are three vertical channels at the bottom to allow forklifts to enter from two directions (typically along the long sides);

The panel has a grid structure.

Applicable Scenarios:

Widely used in automated high-bay warehouses and logistics distribution centers;

Suitable for use with automated guided vehicles (AGVs) or forklifts.

Advantages:

Forklifts are easy to operate, improving loading and unloading efficiency;

Good ventilation;

Higher load-bearing capacity than nine-leg pallets.

Disadvantages:

Forklifts cannot access the pallet from all four sides (only from two sides);

Small items may fall through the slats.

Grid “Tian” Character Pallet

The “田” shape refers to a bottom structure that forms four open forklift aisles, resembling the Chinese character “田.”

Structural Features

There are four slots at the bottom that allow forks to be inserted from any direction;

The panel features a mesh design.

Applicable Scenarios:

Suitable for high-frequency, multi-directional forklift operations;

Commonly used in large logistics centers, export packaging facilities, and similar settings.

Advantages:

Four-way forklift access for flexible operation;

Excellent ventilation and drainage;

Stable structure with high load-bearing capacity.

Disadvantages

Manufacturing costs are slightly higher;

It is also not suitable for storing small items.

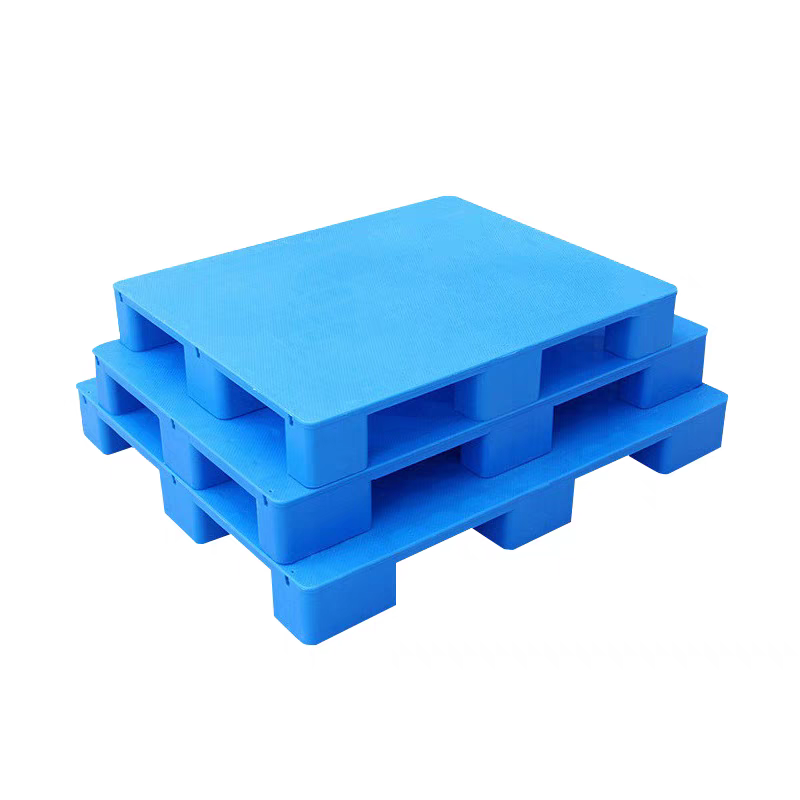

Flat Nine-Legged Pallet

Design Features:

The base still has 9 support feet;

The top panel is a solid, flat surface with no network ports.

Applications:

Suitable for various types of packaged goods, including cartons, bags, and drums;

Commonly used in industries such as e-commerce, personal care, and electronics.

Advantages:

Smooth surface and good load-bearing stability;

Prevents small items from falling off;

Easy to clean and stack.

Disadvantages:

No ventilation; take precautions against mold in humid environments;

Slightly heavier than the mesh type.

Flat “Chuan” Character Pallet

Structural Features:

The base features a "川"-shaped support structure;

The top panel is a solid, flat plate.

Applications:

Commonly used in the manufacturing, automotive parts, and retail industries;

Suitable for environments requiring stable load-bearing capacity and frequent forklift operations.

Advantages:

High load-bearing capacity;

Smooth surface that protects the bottom of the cargo;

High efficiency with two-way fork access.

Disadvantages:

Cannot be operated in four directions;

It is relatively heavy, making it somewhat difficult to move.

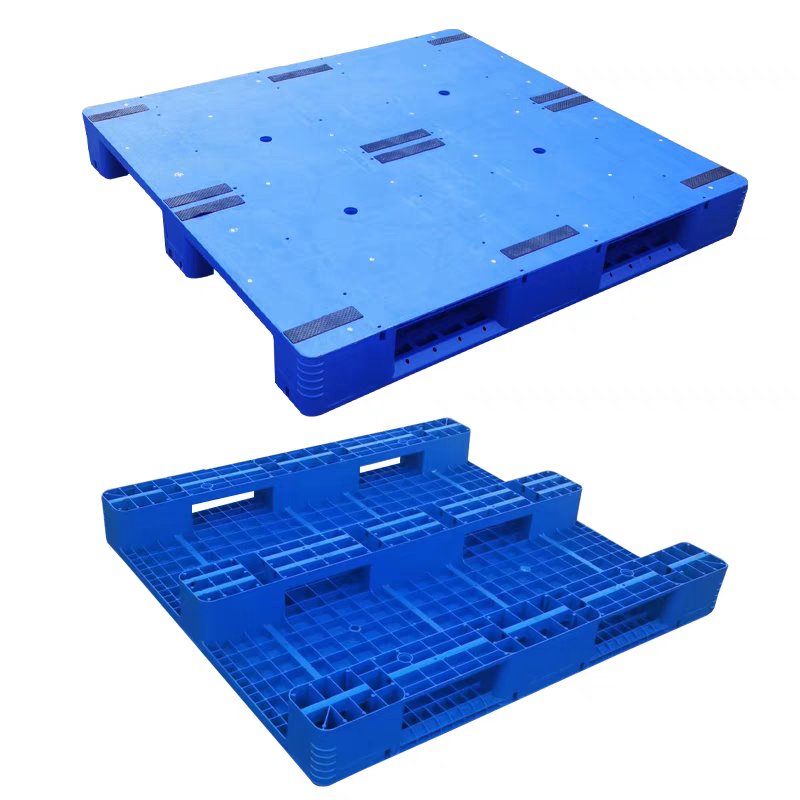

Flat “Tian” Character Pallet

Structural Features:

The base features a "田"-shaped structure that allows for four-way fork entry;

The top panel is a solid, flat plate.

Applications:

High-end logistics, cold chain, export trade, and other sectors with stringent pallet requirements;

Suitable for transporting heavy or high-value cargo.

Advantages:

Most flexible operation (four-way fork entry);

High load capacity and sturdy construction;

Smooth surface and wide range of applications.

Disadvantages:

Highest cost;

Heavy weight.

Choosing the right type of plastic pallet not only improves logistics efficiency but also effectively protects goods and reduces operating costs. Companies should select the appropriate pallet type based on the characteristics of their goods, warehouse conditions, and material-handling equipment to achieve optimal supply chain management.
