In the lean production system of modern manufacturing, the choice of logistics containers directly impacts production efficiency, product quality, and space utilization. While traditional metal storage bins are sturdy, they can easily scratch products, whereas ordinary plastic bins often lack dust protection and make it difficult to customize internal dividers. Stackable fabric-bag racks—also known as canvas racks or flexible storage carts—are a practical warehousing solution designed specifically to address these pain points. Combining the load-bearing capacity of a metal frame with the protective properties of flexible fabric bags, they are particularly suitable for industries with high standards for cleanliness and surface quality, such as automotive parts, precision machining, and electronics assembly. The following provides an in-depth analysis from four perspectives: structural design, functional advantages, operational guidelines, and maintenance management.

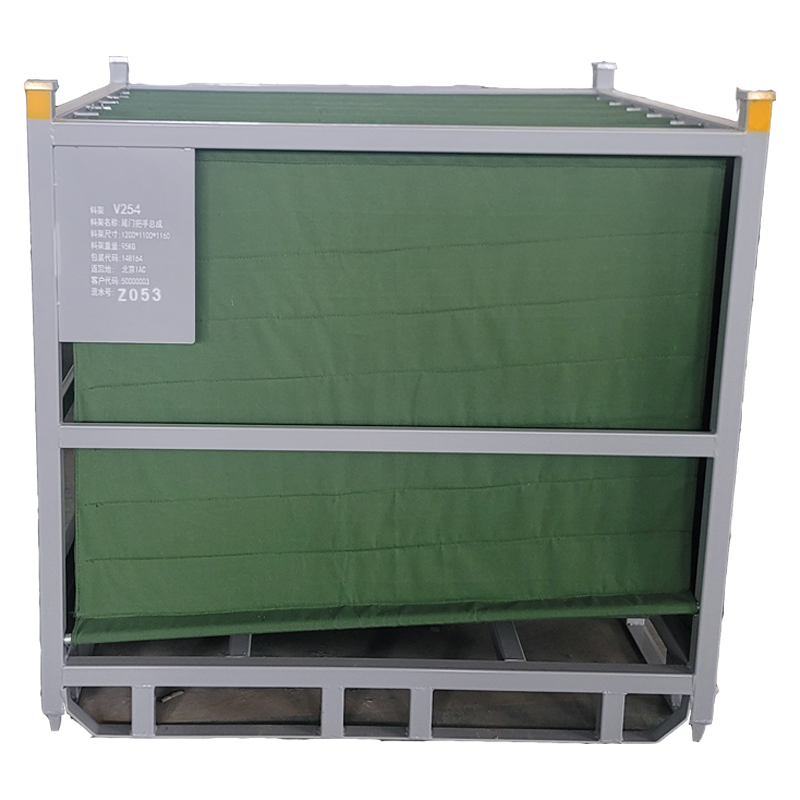

The core of this storage rack’s design lies in its balance of rigidity and flexibility. Its structure consists primarily of three parts: an outer metal frame, an outer dust cover, and an internal storage system.
Metal Frame and Forklift Pits at the Base
The main frame of the shelving unit is typically welded from square steel tubing and treated with galvanization or powder coating, providing excellent rust resistance and structural strength. The most critical feature is the bottom design, which incorporates standard forklift pockets. This design allows for two-way or four-way fork entry, meaning that operators can quickly insert forks from any convenient direction—whether using a manual hydraulic pallet jack or an electric forklift—to move the load. The base is also typically equipped with reinforcing ribs to ensure that the rack will not deform even under full load during long-term use, thereby guaranteeing the smooth operation of mechanized handling.
External Dust-Proof Bag Covering System
Unlike exposed metal mesh cages, this rack is fully covered on the outside with an industrial-grade coated fabric, also known as PVC-coated mesh fabric or heavy-duty canvas. This material is abrasion-resistant, tear-resistant, and easy to clean.
Dust and Contamination Protection: In machining shops with high dust levels or during preliminary processes in paint shops, fully enclosed fabric bags effectively block dust and oil mist from entering, ensuring the cleanliness of stored items.

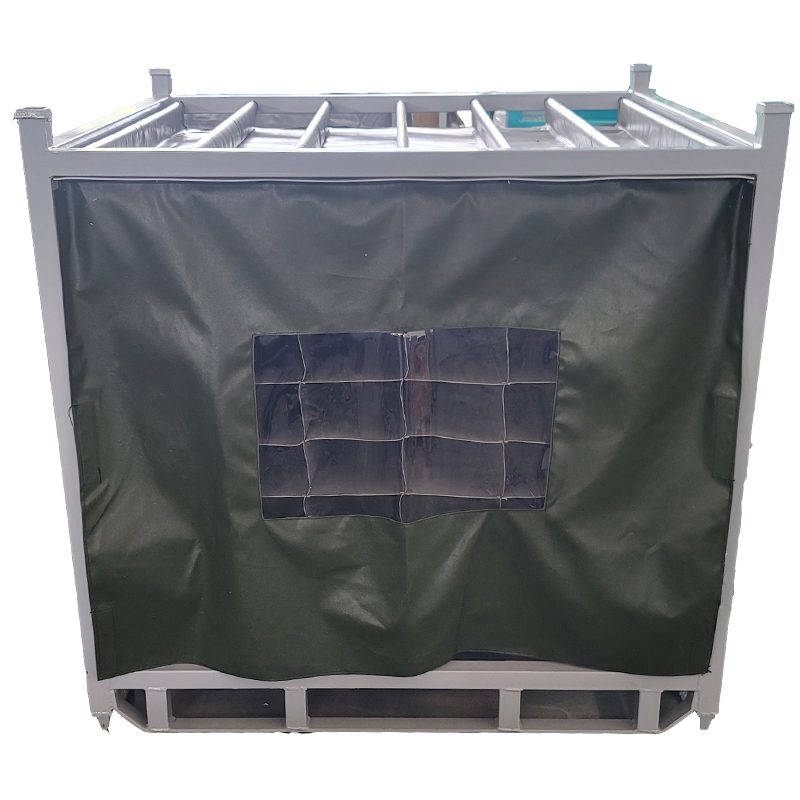

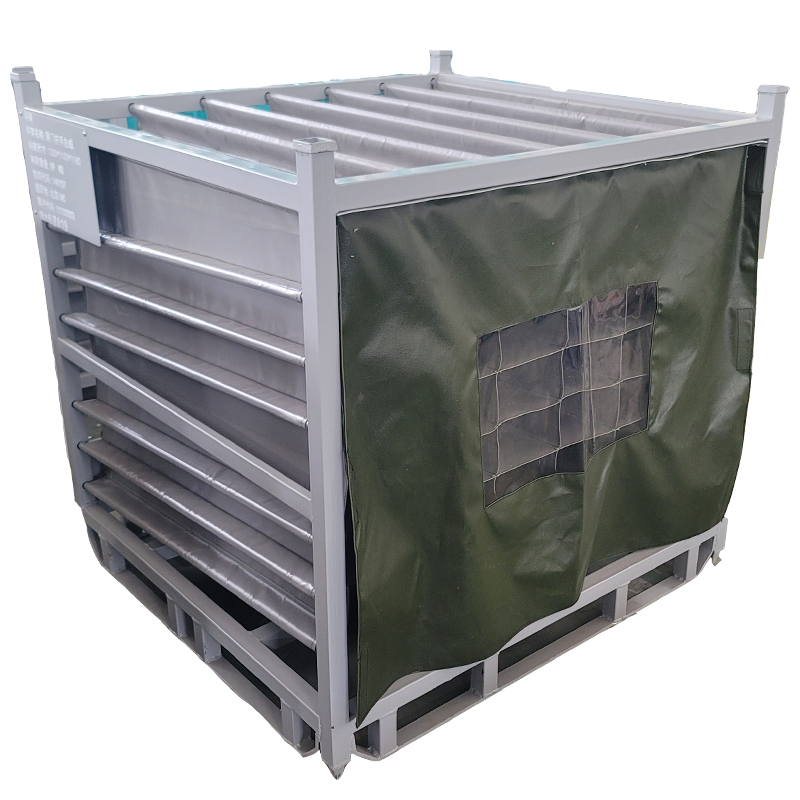

Visual Management: Although the unit is covered with a fabric curtain, a transparent mesh window (or transparent PVC window) has been intentionally incorporated on the front. This detail is extremely practical, as warehouse staff can directly count the number of items inside or check the condition of the materials through the window without having to lift the curtain, significantly reducing inventory counting time.
Layering of Internal Flexible Partitions
This is the most distinctive feature of this storage rack. The interior is not a simple hollow space, but rather consists of multi-layered honeycomb-style or drawer-style partitions made from copper fabric using sewing techniques.
Independent Compartments: Each level is divided into several independent compartments. This design ensures unit-based management of materials and prevents parts of different specifications from being mixed together.
Soft Protection: For precision-machined metal parts (such as engine pistons and transmission gears), direct impact can be catastrophic. The fabric lining provides a natural cushioning layer that effectively prevents bumps and scratches caused by transportation vibrations, thereby reducing the scrap rate.
Top Stacking Angle and Safety Limit Switch
To meet the requirements of multi-level storage, protruding stacking corners have been designed at the four corners of the frame’s top. The positions of these stacking corners have been precisely calculated to fit perfectly into the load-bearing points of the frame on the lower shelf. According to design specifications, this shelf supports safe stacking up to three levels high. This design not only maximizes the use of vertical space but also ensures the stability of the stack, preventing tipping accidents caused by a shift in the center of gravity.
In actual production logistics operations, this type of material rack has demonstrated exceptional value for money and adaptability.
Maximizing Space Utilization: Compared to standard carts that cannot be stacked, the three-tier stackable design triples storage capacity while occupying the same floor space. For line-side warehouses where space is at a premium, this directly frees up valuable production floor space.
Loading Flexibility: The internal fabric bag partitions are typically connected via flexible joints and offer a certain degree of elasticity. This means they can accommodate workpieces with slightly larger dimensional tolerances, or the fabric bags can be folded and compressed when not in use to reduce the volume during return shipping of empty containers.
Reduced Packaging Costs: Since the product racks themselves provide dust and scratch protection, companies can often eliminate the need for additional disposable packaging materials—such as blister trays, foam inserts, or bubble wrap—during use, which significantly reduces the logistics packaging costs per unit in the long run.
Ergonomic Optimization: The height of the parts racks is typically designed to be ergonomic, allowing workers to easily retrieve parts from the top or middle shelves while standing, without having to bend over excessively or climb, thereby reducing physical strain.
To ensure the service life of the material rack and maintain operational safety, please follow these operating procedures during use:
Strictly Limit Stacking Height: Although the design allows for three-tier stacking, this limit must be strictly adhered to in practice. Exceeding three tiers will place excessive weight on the bottom pallet, which may cause the frame to deform or the bags to rupture; additionally, excessively high stacks will obstruct visibility, increasing the risk of collisions during forklift operations.
Principle of Even Loading: When placing products on the shelves, ensure that the weight is distributed evenly across each compartment to avoid uneven loading. Uneven loading can easily cause the rack to tilt or even result in goods sliding off, especially during forklift handling.
Forklift Operating Guidelines: When entering or exiting a forklift bay, the forklift operator should control the vehicle’s speed, align the forklift with the bay, and insert it slowly to avoid violent impacts with the base that could cause welds to crack. It is recommended to ensure that the forks are inserted to a depth of at least two-thirds of the rack’s depth before lifting.
Environmental Adaptability Inspection: Although the filter bags are designed to prevent dust, if they are exposed to extremely humid conditions or highly corrosive gases, they must be inspected regularly for signs of mold or coating peeling. If necessary, replace them with filter bags made of special materials.
As a reusable logistics tool, proper maintenance can extend its service life:
Cleaning and Replacing Filter Bags: The external dust-proof filter bags are consumables. If the surface becomes too heavily soiled with oil to be cleaned, or if the bags are damaged, there is no need to scrap the entire material rack. On most high-quality material racks, the filter bags are secured to the frame with Velcro or hooks, allowing them to be removed and replaced individually. Companies should maintain a stock of spare parts and rotate and clean the bags regularly to keep the equipment looking neat and tidy.
Frame Inspection: Metal frames should be inspected once every quarter, with particular attention paid to checking for cracks in the welds of the forklift openings at the bottom and for severe wear on the stacking corners at the top. If any structural damage is discovered, use of the frame must be immediately suspended and welding repairs performed to prevent safety incidents.
Storage When Not in Use: When production line adjustments result in idle material racks, it is recommended to stack them neatly and store them in a dry, well-ventilated area to prevent direct sunlight from causing the fabric bags to age and become brittle. If there is extra space inside the bags, fold them neatly to prevent dust accumulation.
In summary, this stackable storage rack—featuring forklift slots, dust-proof bags, and internal dividers—is not merely a simple container, but a powerful tool for companies to implement refined management and enhance on-site 5S standards. With its practical design, it addresses the four major challenges of dust prevention, impact protection, stacking, and handling, making it an indispensable piece of infrastructure in modern industrial logistics systems.
