In the grand narrative of the automotive manufacturing industry, attention often focuses on automated production lines, precision robots, or breakthroughs in new energy technologies. However, between the final assembly shop and the parts warehouse, there is a seemingly unremarkable yet crucial “silent player”—the automotive parts rack (also known as workstation equipment or turnover rack). It is by no means a simple metal container, but rather a core piece of logistics equipment that connects the upstream and downstream segments of the supply chain, embodies the principles of lean production, and ensures product quality and operational efficiency. This article takes a practical approach to provide an in-depth analysis of the design logic, selection strategies, management challenges, and future trends surrounding automotive parts racks.
When purchasing parts racks, many companies view them solely as a cost item, prioritizing low prices while neglecting systematic design. This misconception often leads to frequent parts collisions, difficulty in retrieving parts, wasted space, and even the risk of production line stoppages. In fact, an excellent automotive parts rack must meet stringent requirements across the following four dimensions:
Product Protection: Automotive components come in a wide variety of forms, ranging from precision electronic sensors to heavy cast-iron cylinder blocks, and from scratch-prone interior panels to oil-stained drive shafts. Parts racks must be equipped with tailored features such as positioning stops, cushioning, dust protection, and anti-static protection. For example, parts racks for headlight assemblies require custom-shaped grooves made of EVA foam to prevent friction on the mirror surfaces, while those for engine cylinder blocks must incorporate oil drainage designs and ensure structural strength to support heavy loads.
Ergonomic Design: On a final assembly line where the production cycle is measured in seconds, every additional time an operator bends over or turns 30 degrees adds up to significant efficiency losses and occupational health risks. A high-quality parts rack should follow the “golden zone” principle, placing frequently accessed parts within the natural range of hand movement while standing, and be designed with an optimal tilt angle to position the handle and label window for “blind operation”-level human-machine interaction.
Logistics Standardization and Compatibility: Material racks are not isolated entities; they must be integrated into the overall logistics system. Their external dimensions must strictly match standard pallets, rack storage locations, the internal dimensions of transport vehicles, and AGV interfaces. Internal compartmentalization should follow a modular design to facilitate the storage of mixed parts or rapid changeovers. A lack of standardization in material racks leads to low loading rates and fragmented warehouse space, which directly drives up the logistics cost per unit.
Full Lifecycle Cost-Effectiveness: The initial purchase price is just the tip of the iceberg. The true costs lie in repair frequency, cleaning difficulty, the volume of empty containers during return shipping, and residual value upon disposal. For example, while welded racks are inexpensive, they are difficult to repair once damaged; modular bolted racks require a higher initial investment, but since components can be replaced individually, their long-term total cost is actually lower. Additionally, foldable and nestable designs can significantly reduce return shipping costs for empty containers, which is particularly critical in cross-regional supply chains.
There is a wide variety of automotive parts, so there is no such thing as a “one-size-fits-all” parts rack. The practical approach is to match parts precisely based on their characteristics and the production process:

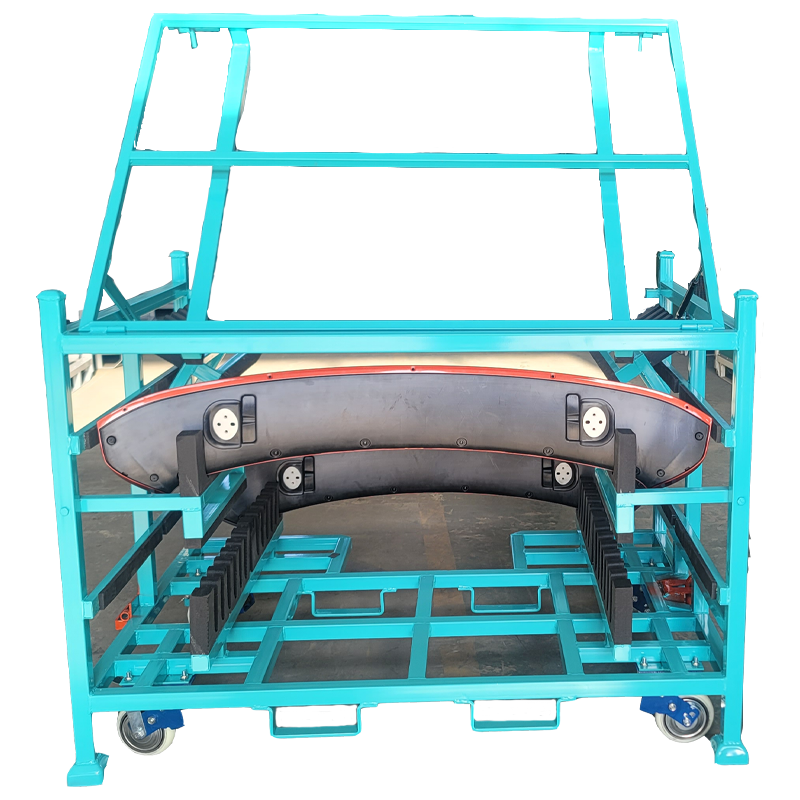

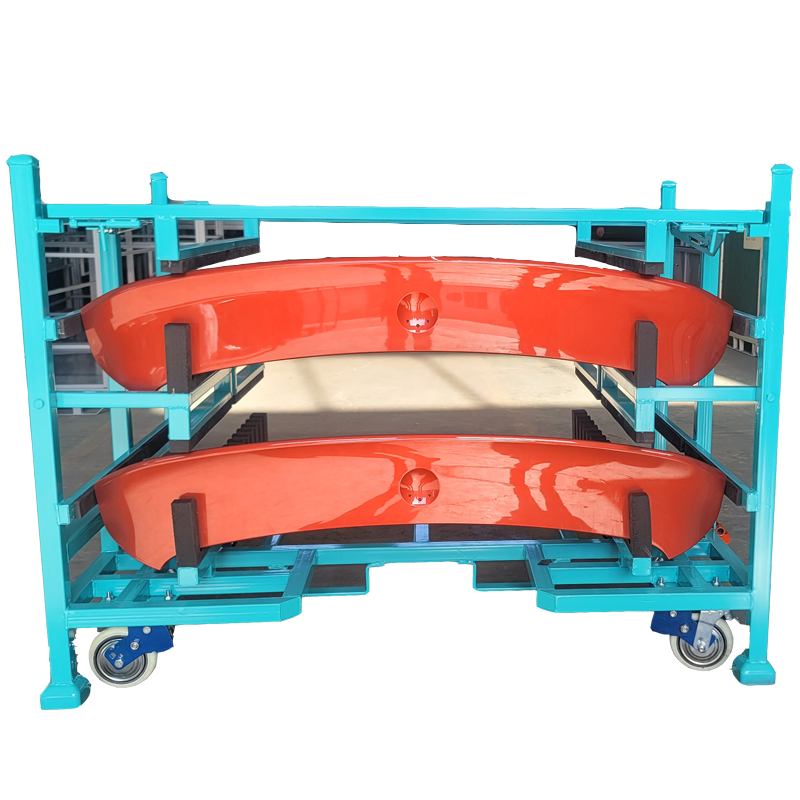

Specialised jig and fixture racks: Designed for parts with complex geometries, high value and stringent protection requirements. These are highly customised and are typically developed and validated in parallel with the parts themselves. The advantages include maximum protection and the ability to be used immediately upon installation; the disadvantage is their lack of versatility, meaning they are likely to become stranded assets once a vehicle model is discontinued. Suitable applications: Key workstations on the final assembly line and during the introduction phase of new vehicle models.
Universal modular racking: Features a standard frame combined with adjustable shelves, hooks and liners. Can be adapted to accommodate a wide variety of parts by replacing internal components. Suitable for: after-sales spare parts warehouses, production lines handling multiple product varieties in small batches, and trial assembly workshops. The advantages lie in its high flexibility and high asset reusability; however, attention must be paid to error-proofing during changeovers and the maintenance of configuration records.
Returnable Container/Cage Trolley System: Suitable for small to medium-sized items and standardised parts. Designed for use with standardised plastic containers and metal mesh crates, it facilitates easy stacking, handling and cleaning. Applications: Sorting centres, SPU supermarkets, and delivery to line-side buffer zones. The key lies in the dimensional accuracy of the fit between the containers and the racks to prevent wobbling and collapse.
Tips for avoiding pitfalls when selecting equipment: Never place an order based solely on drawings or samples. It is essential to carry out physical loading tests, simulate transport vibration tests, verify operation at the workstation, and invite front-line operators to participate in the evaluation. Many ‘perfect designs’ fail in actual operation due to factors such as glove thickness, lighting angles and fatigue levels; only on-site verification can reveal the real issues.
Even with a high-quality material rack, a lack of proper management will still turn it into a black hole of inefficiency. Below are three common problems in the industry and strategies to address them:
Issue 1: Material racks are dirty, damaged and poorly labelled
Consequences: Contaminated parts, incorrect or missing components, and customer complaints.
Breaking the deadlock: Foster a mindset that recognises the quality of the product is reflected in the condition of the material racks. Establish clear cleaning standards, inspection checklists and labelling guidelines. Implement a ‘user-maintains’ accountability system, and incorporate the condition of the material racks into the team’s 5S assessment. For material racks returned by external suppliers, a mandatory incoming inspection procedure must be established; non-conforming items must be rejected or subject to a deduction from payment.
Pain Point 2: Backlog of empty chat logs; poor workflow
Consequences: Valuable floor space is taken up; there is nowhere to store new shelving units; and when urgent needs arise, suitable equipment cannot be found.
Breaking the deadlock: Implement closed-loop management. Use RFID technology to track the location and status of material racks, and establish a visual kanban system to monitor stock levels. Set safety stock levels and warning thresholds; when empty racks fall below the lower limit, automatically trigger a replenishment order. Optimise the return process by planning dedicated channels and temporary storage areas in the opposite direction to the flow of goods, thereby avoiding interference with production logistics. For cross-site circulation, third-party reusable packaging service providers may be engaged, transforming asset management into the procurement of services and thereby reducing the organisation’s operational burden.
Pain Point 3: Delays in modifying material racks when switching between old and new models
Consequences: Using cardboard boxes as a temporary substitute has led to quality risks, whilst the idling and scrapping of the old shelving units has resulted in waste.
Breaking the deadlock: Initiate an analysis of the compatibility of existing racks at the early stages of the project. Assess whether existing racks can be adapted to accommodate new parts through minor modifications, giving priority to retaining the main structure. For racks that must be newly added, incorporate interfaces for future expansion during the design phase. Establish an enterprise-wide rack database to record the historical usage, modification history and remaining service life of each rack, thereby providing data-driven support for decision-making.
Future-oriented development directions: intelligence, sustainability and collaboration
As smart manufacturing and the ‘dual carbon’ targets gain momentum, material racks are also quietly evolving:
Intelligent Sensing: Equipped with integrated load cells, temperature and humidity sensors, and GPS and Bluetooth beacons, the system monitors loading status, environmental conditions and geographical location in real time. It triggers immediate alerts in the event of abnormal vibrations, excessive temperatures or deviation from the route, transforming the container from a passive unit into an active information node. This is particularly significant for temperature-sensitive and high-value goods.
Green, low-carbon materials: Traditional steel shelving is gradually being replaced by high-strength recycled plastics, bamboo-wood composites and aluminium alloys. These materials are not only lighter but also easier to recycle and reuse. Some companies have already piloted shelving made from bio-based materials, achieving breakthroughs in terms of their full life-cycle carbon footprint. When selecting these materials, it is important to strike a balance between environmental attributes and mechanical performance, to avoid frequent replacements due to insufficient strength, which would actually increase carbon emissions.
Standardisation of supply chain collaboration: OEMs and suppliers are jointly establishing a standardised pool of material racks, breaking down the barriers caused by fragmented operations. Through a unified interface and the sharing of reusable containers, they are reducing duplicate investment and empty-run mileage. Industry associations are currently promoting the development of cross-company protocols for the exchange of material racks and settlement mechanisms, which will be a key step towards improving logistics efficiency across the entire supply chain.
The essence of an automotive parts rack is to ensure that the right parts reach the right place at the right time and in the right condition. Achieving this simple objective depends on respect for the laws of physics, an understanding of human nature, the effective use of data, and a clear-eyed view of costs. Whilst it lacks dazzling technical specifications, it embodies, in every aspect, the most valuable spirit of pragmatism in manufacturing.
For business leaders, it is worth taking a fresh look at their shelving budgets and management systems: do they truly understand their strategic value? Are they willing to pay a reasonable premium for the intangible benefits of efficiency and safety? Have they established the capacity for meticulous operations throughout the entire lifecycle? The answers may well lie within those metal frames that shuttles back and forth between the workshop and the warehouse day in, day out. Only by getting this seemingly minor detail right can the major undertaking of car manufacturing be built on a truly solid foundation.
