Case Study on Selecting Returnable Packaging for Automotive Parts: A Comparative Analysis of Collapsible Sleeve Boxes

In the day-to-day operations of the automotive supply chain, no single packaging solution is perfect. The reason collapsible sleeve boxes have been widely adopted in recent years is not because they are flawless, but because—given the current conditions of high-value, high-variety, and long-distance circulation of automotive parts—their overall benefits are sufficiently significant, and their shortcomings can be mitigated through management measures or technological advancements. To truly understand the role of collapsible sleeve boxes, it is essential to examine them in a side-by-side comparison with corrugated cardboard boxes, wooden crates, metal racks, and injection-molded returnable containers—an analysis that sets aside marketing rhetoric.

Key Differences: The fundamental distinctions between Collapsible Sleeve Boxes and other types of packaging.

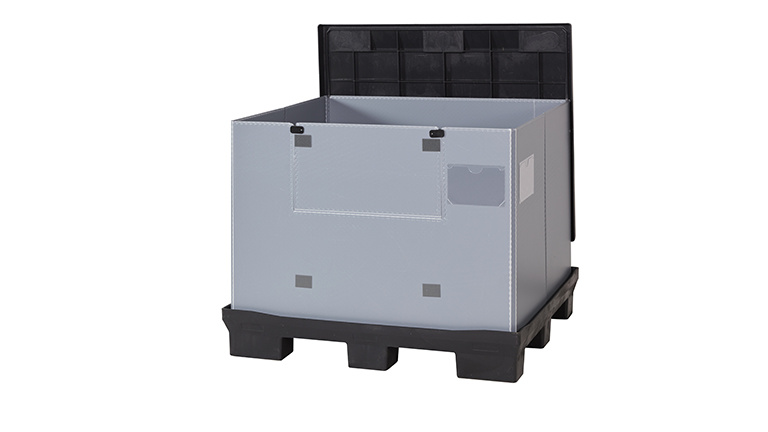

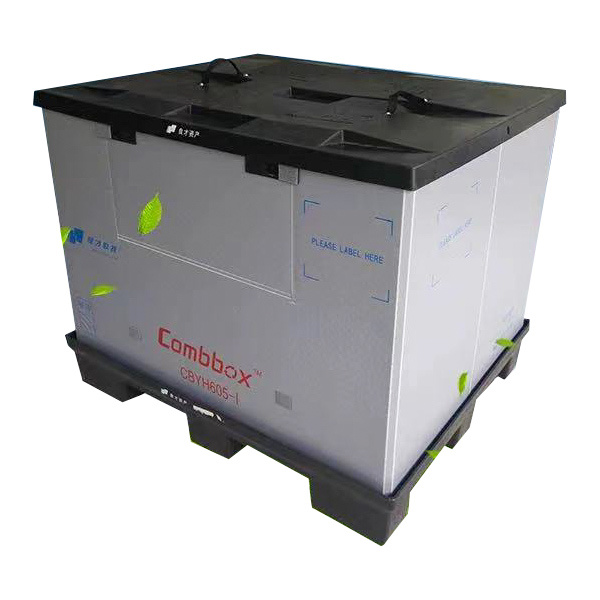

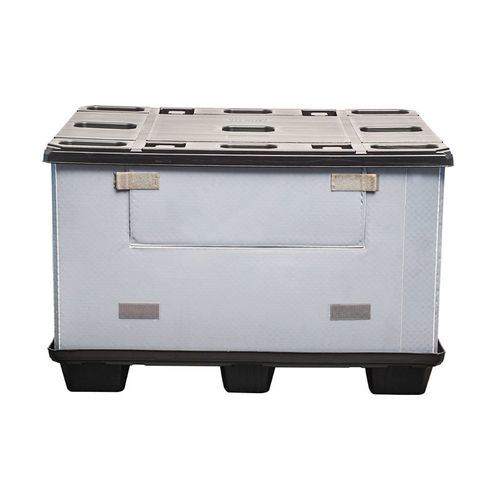

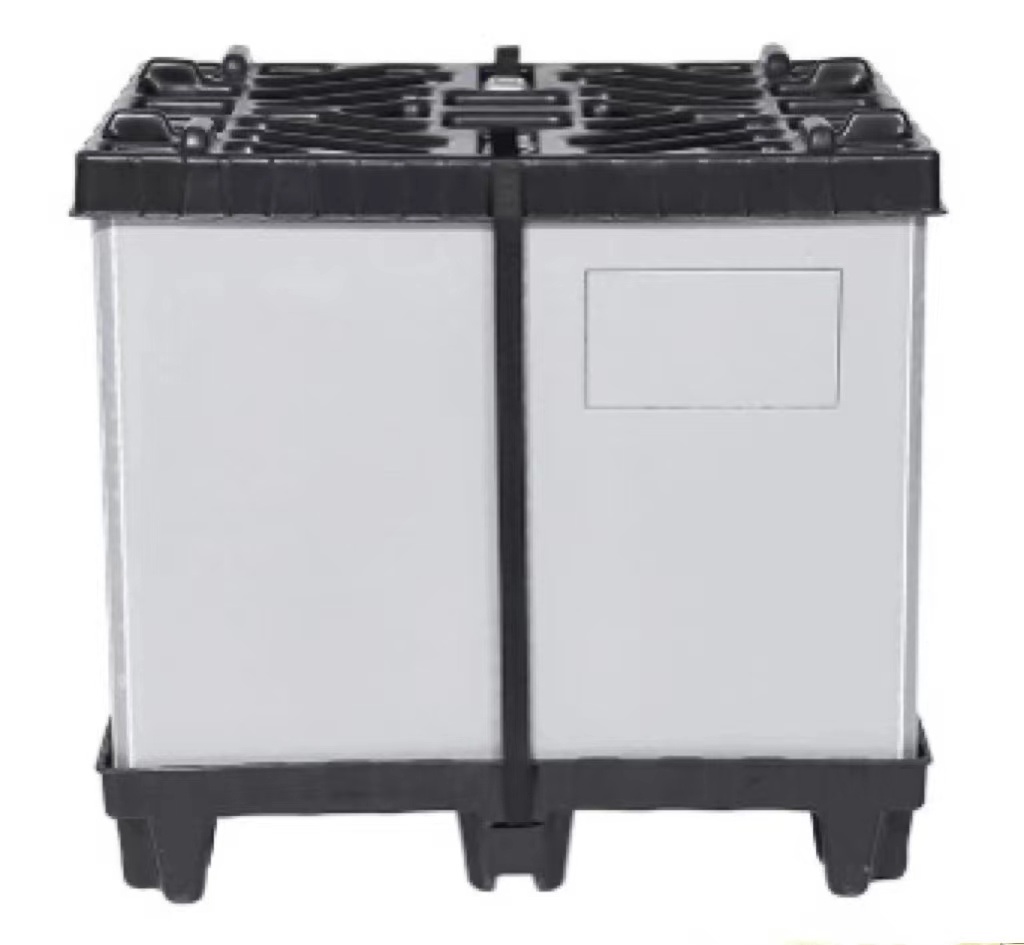

The structural characteristics of collapsible sleeve boxes determine their performance limits. They consist of three parts: a base tray, a collapsible sleeve (typically made of honeycomb PP board or hollow board), and a top lid. This “modular assembly plus flexible sheet material” design sets them apart from other packaging solutions in multiple ways.

Compared to corrugated cardboard boxes, the fundamental difference between collapsible sleeve boxes lies in their classification as assets rather than consumables. Cardboard boxes are single-use consumables with low per-purchase costs, but their cumulative long-term costs are high and their quality is highly variable; collapsible sleeve boxes are reusable assets with a higher initial investment, but their cost per use decreases sharply as the number of cycles increases. In terms of protection, the compressive strength of cardboard boxes deteriorates with humidity and stacking time, whereas the load-bearing capacity of collapsible sleeve boxes remains stable throughout their entire lifecycle. However, cardboard boxes offer greater flexibility in terms of customized printing and information capacity, and do not require empty container management; they therefore retain an advantage for short-distance, low-frequency, and low-value parts.

Compared to wooden crates, collapsible sleeve boxes completely eliminate biosafety and cleanliness risks. Wooden crates require fumigation and quarantine, involve a cumbersome export process, and are prone to generating wood shavings and nails, which pose a contamination threat to precision parts and cleanrooms. Collapsible sleeve boxes are made of clean materials and are exempt from quarantine, but their maximum load capacity is lower than that of heavy-duty wooden crates. For overweight components such as engine blocks and large castings, wooden crates or steel containers remain the only viable option.

Compared to metal pallets, the key advantages of collapsible sleeve boxes lie in their collapse ratio and lightweight design. While metal pallets are sturdy and durable, most are not collapsible, resulting in inefficient return transport; their heavy weight increases dead weight. Collapsible sleeve boxes can achieve a folding ratio of 3:1 to 5:1, and their weight is only one-third to one-half that of metal racks of the same size. However, metal racks far surpass collapsible sleeve boxes in terms of extreme load-bearing capacity, high-temperature resistance, and impact resistance, and are better suited for high-temperature and oily environments such as welding and painting operations.

Compared to injection-molded returnable containers, collapsible sleeve boxes offer the advantages of larger dimensions and adjustable height. Injection-molded containers are typically small, standard-sized boxes suitable for small parts, but they cannot accommodate large, irregularly shaped components such as bumpers or door panels; their height is fixed, and space utilization is limited by the shape of the parts. Collapsible sleeve boxes can flexibly adjust their height by adding or removing layers to accommodate large or tall components. However, injection-molded containers are molded as a single, integrated unit, offering superior sealing and water resistance compared to assembled collapsible sleeve boxes, and they provide higher dimensional accuracy in automated high-bay warehouses.

The Real Drawbacks of Collapsible Sleeve Boxes: Limitations That Cannot Be Ignored

The evaluation requires us to acknowledge the shortcomings of collapsible sleeve boxes, which, if overlooked in actual projects, could lead to project failure.

High initial investment threshold: The procurement cost of a set of collapsible sleeve boxes (including the pallet, sleeve, top cover, and inner liner) is tens or even hundreds of times that of a standard cardboard box. For projects with unstable production volumes and short vehicle model lifecycles, these boxes may become obsolete before the costs are recouped, resulting in sunk costs.

Hidden Cleaning and Maintenance Costs: Collapsible sleeve boxes accumulate oil residue and dust during repeated use, resulting in high cleaning costs. If not cleaned thoroughly, they may become a source of contamination, and their maintenance and management are more complex than those of single-use packaging.

Insufficient Sealing and Water Resistance: Due to its modular design, the product cannot be completely sealed. During transportation in the rainy season or in high-humidity storage environments, moisture may penetrate through the seams. For electronic components that are extremely sensitive to humidity, additional moisture-proof bags or desiccants must be used, which increases both the number of operational steps and costs.

Load limits are clearly defined: Generally, collapsible sleeve boxes have a dynamic load capacity of ≤500 kg and can be statically stacked up to 3 layers. Exceeding these limits may cause the boxes to deform or collapse. For heavy-duty powertrains, chassis components, and similar items, metal containers are still required, as collapsible sleeve boxes cannot fully meet these needs.

Selection Criteria: When to Use and When Not to Use Collapsible Sleeve Boxes

Based on the above comparison, the selection process should follow the following principles:

Scenarios where collapsible sleeve boxes are the preferred choice: parts with a high unit price and sensitive surfaces; shipping distances exceeding 300 km with a stable cycle frequency; parts of moderate size; supply chain partners with the capability to manage collapsible sleeve boxes; and a project lifecycle of 2 years or more.

Situations where collapsible sleeve boxes should be used with caution or avoided: parts that are excessively heavy or oversized, or where shipping conditions are extremely harsh; extremely low production volumes or vehicle models nearing end-of-life; suppliers are geographically dispersed, making it difficult to establish a unified recycling system; and situations where absolute waterproof sealing is required and additional moisture-proof measures are unacceptable.

Mixed-Use Strategy: In real-world projects, very few companies adopt a single packaging solution. A more pragmatic approach is to create a “packaging matrix”: use metal racks for heavy items, injection-molded crates for small parts, and cardboard boxes for short-distance, low-value shipments, while positioning collapsible sleeve boxes as the primary packaging solution for medium- to long-distance transport of medium- to high-value core components. This integrated approach achieves overall optimization rather than pursuing the perfection of a single solution.

Conclusion: Finding the Dynamic Optimal Solution Through Trade-offs

Collapsible sleeve boxes are neither a myth nor a useless gimmick. They represent the “art of compromise” that has evolved within the automotive supply chain under the four constraints of cost, efficiency, quality, and environmental sustainability. Their value lies not in completely surpassing other packaging options, but in providing the optimal overall balance under specific operating conditions. Pragmatic logistics managers should not blindly favor any particular packaging format. Instead, they should thoroughly analyze the characteristics of their parts, transportation networks, circulation frequencies, and management capabilities. Based on a full understanding of the strengths and weaknesses of various packaging options, they should make data-driven, risk-controlled decisions regarding packaging selection. Only in this way can packaging truly transform from a cost center into a value engine, quietly providing indispensable support within the ever-moving automotive supply chain.
