The logistics market in India has very distinct regional characteristics: a high proportion of road transportation, diverse truck models, and varying degrees of warehouse automation. This size is not the standard size of the storage cage, but was uniformly determined by the customer after communication with us. It is also a deep response based on these pain points:
Seamless connection with various sizes of truck vehicle compartments: The internal width of standard freight truck compartments in India is generally between 2.3m and 2.5m. The length and width of 1200*1000 allow for a "1+1 side by side" or 2 vertical row layout inside the carriage, maximizing the utilization of the carriage area and reducing the shaking of goods and space waste during transportation. Compared with other sizes, this size specification does not require tray pads and can be used directly.
The golden balance point of 1m height: This height not only ensures the effective volume of the storage cage but also perfectly ADAPTS to the height of the truck compartment opening in India. Currently, the loading and unloading in Indian logistics still rely on manual methods, requiring workers to remove the goods from the truck and place them on other containers. For heavy items, cardboard boxes are difficult to bear weight. Therefore, this type of storage cage can be directly loaded into the truck. When unloading, only the storage cage needs to be removed, reducing labor and lowering the risk of goods damage during handling.

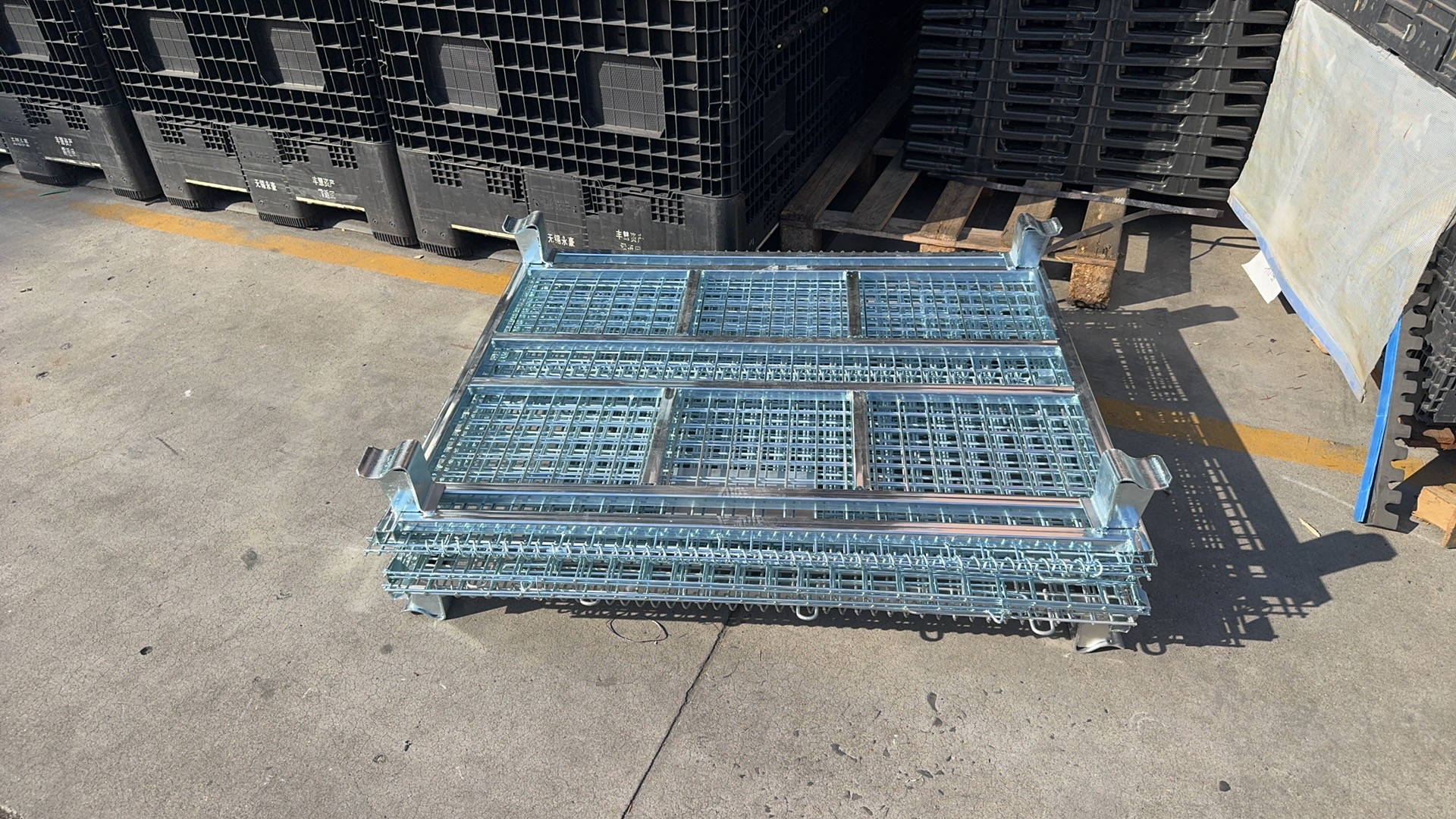

Folding design addresses reverse logistics costs: In India, logistics is distributed radially, and empty return trips are a common problem. When folded, the volume of this storage cage is compressed to one quarter of its original size. The number of empty cages that can be recycled by one truck is more than four times that in the unfolded state, directly reducing the frequency and cost of reverse logistics transportation. Customer feedback shows that just the empty cage recycling alone can save 18% of vehicle dispatching costs every month.
The scene of "loading and unloading from the truck and placing it in the storage cage for turnover" poses a dual test to the dynamic impact tolerance and static stacking stability of the vehicle. Behind the customer's feedback of "good usage" lies a deep match between the product performance and the actual working conditions:
Safety redundancy design with a static load of 1000kg: Although the standard static load is 1000kg, considering the cargo settlement caused by road bumps in some areas of India and the possible local impact during manual loading and unloading, we have reserved a 20% safety factor in the structure. The bottom adopts a 50*50*3mm square tube welded frame, combined with 6mm cold-drawn steel wire mesh, to ensure that the deformation is controlled within 2mm under long-term full-load stacking (3 layers), avoiding the risk of stacking toppling due to cage twisting.
Forklift compatibility and ground adaptability: In response to the significant differences in ground flatness in Indian warehouses, a bidirectional forking structure has been designed at the bottom of the storage cage, which is compatible with both manual hydraulic trucks and 3-ton internal combustion forklifts. The feet are made of thickened stamped steel plates, increasing the contact area by 30%. Even in an environment where the epoxy floor is damaged or the cement floor is sandy, it can maintain stable support and avoid getting stuck or scratched when moving.
Surface treatment to resist damp and hot environments: Most areas of India have a tropical monsoon climate. The high temperature and humidity impose extremely high requirements on the anti-corrosion performance of metal containers. This product adopts a dual protection process of galvanizing and electrostatic powder coating, and its salt spray test exceeds 720 without rust. During the actual use of the warehouse at the Mumbai port by the customer, despite the high-humidity environment caused by continuous rainy seasons, the surface of the cage remained intact without rust, and there was no problem of reduced structural strength.
Although the current product has been recognized, in light of the particularity of the Indian market, we are still exploring the possibility of further optimization:
Localized maintenance support: It is planned to set up a spare parts warehouse to provide rapid replacement services for vulnerable parts, reducing the maintenance response time from within 7 days in the past to within 48 hours.
Customized signage solution: For the multilingual environment in India, we have developed replaceable multilingual label boards that support on-site signage replacement in local languages.
Lightweight iteration: Under the premise of ensuring a static load of 1000kg, the product's self-weight is reduced by 5% to 8% through topology optimization design, further reducing the energy consumption of empty-load transportation, which is in line with the green logistics initiative launched by the Indian government.
The recognition of the 1200*1000*1000mm storage cage in the Indian market is not merely a product export, but a solution based on a deep understanding of the local logistics scenarios. It proves that in the field of cross-border industrial products, Chinese manufacturing is shifting from cost-performance competition to co-creation of scene value in a new stage. In the future, we will continue to take customer demands as the anchor point, making each storage cage a stable link between the supply belt of China and South Asia.
