In today’s highly globalised supply chain systems and precision manufacturing sector, the journey of a product from the end of the production line to the end user often involves greater uncertainty and risk than the manufacturing process itself. Drops, vibrations, compression, fluctuations in temperature and humidity, and electrostatic interference—each of these factors at every stage of the process can cause irreversible damage to high-value or fragile products. Against this backdrop, packaging materials have long transcended the mere function of ‘wrapping’ and have evolved into a systematic engineering solution that integrates physical protection, environmental adaptability and brand experience. Among the myriad cushioning and protective materials available, EPE (expanded polyethylene) liners have become the protective barrier of choice for high-end electronic products, precision instruments, medical devices and fragile artefacts, thanks to their outstanding overall performance. This article will provide a comprehensive and in-depth analysis of the material properties, manufacturing processes, application principles, environmental benefits and future development trends of EPE liners, revealing the technical significance and industrial implications behind this ‘invisible guardian’.

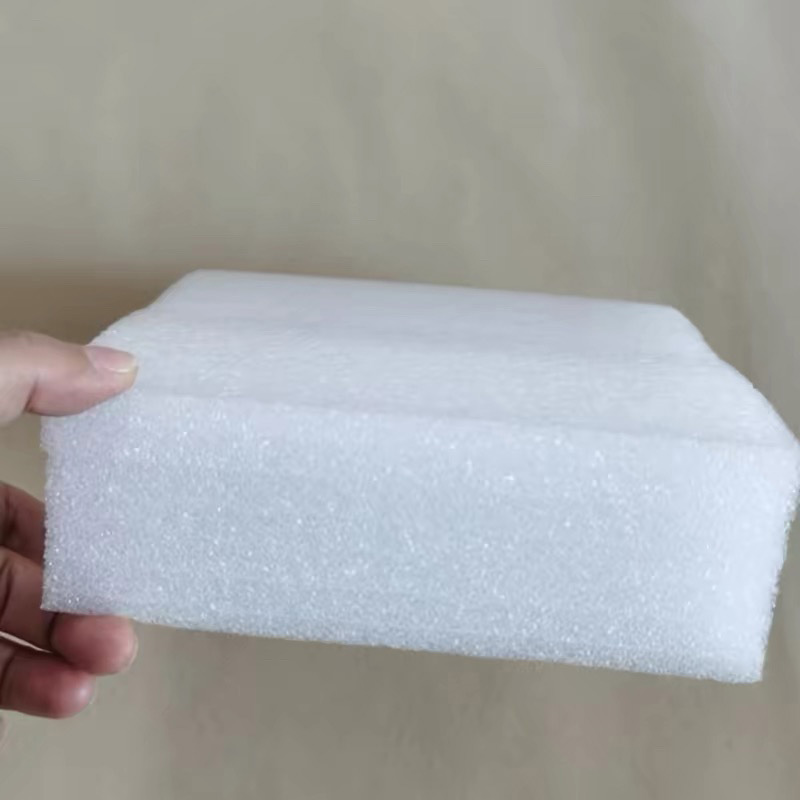

EPE, commonly known as pearl cotton, is a new type of environmentally friendly packaging material with a non-cross-linked, closed-cell structure. To understand why EPE liners are capable of withstanding demanding protective tasks, one must begin by examining their microstructure.
Unlike traditional EPS, EPE does not undergo chemical cross-linking during the foaming process, and its molecular chains retain a linear structure. This non-cross-linked nature gives EPE excellent flexibility and resilience. When observed under a microscope, EPE is composed of countless independent, sealed air bubbles, which are uniform in diameter and densely distributed. When an external force is applied to the EPE lining, the gas within the bubbles is compressed, absorbing and dispersing the impact energy; once the external force is removed, the bubbles rapidly return to their original state. In contrast, EPS is a brittle material; upon impact, its bubbles are prone to rupture, leading to permanent deformation and a loss of secondary protective capability.
Furthermore, EPE offers an extremely wide range of physical properties. By adjusting the expansion ratio, the material’s density and hardness can be precisely controlled, thereby meeting the diverse protective requirements of everything from lightweight electronic components weighing a few hundred grams to heavy industrial equipment weighing tens of kilograms. At the same time, the polyethylene substrate itself possesses excellent chemical resistance, exhibiting inertness towards acids, alkalis, salt spray and most organic solvents; this enables EPE liners to perform equally well in specialised applications such as maritime transport and the packaging of chemical products.
To define EPE simply as a cushioning material is to greatly underestimate its capabilities. As a high-performance lining, EPE creates a multi-dimensional protective system.
The cushioning performance of EPE lining is not simply ‘soft’, but rather ‘resilient’. Its stress–strain curve exhibits typical elastoplastic characteristics, maintaining a relatively stable plateau stress across a wide range of strains. This means it can absorb a large amount of impact energy with a constant reaction force, preventing the peak acceleration transmitted to the product from exceeding the safety threshold. For products featuring screens, lenses or precision sensors, this smooth energy dissipation mechanism is of paramount importance.

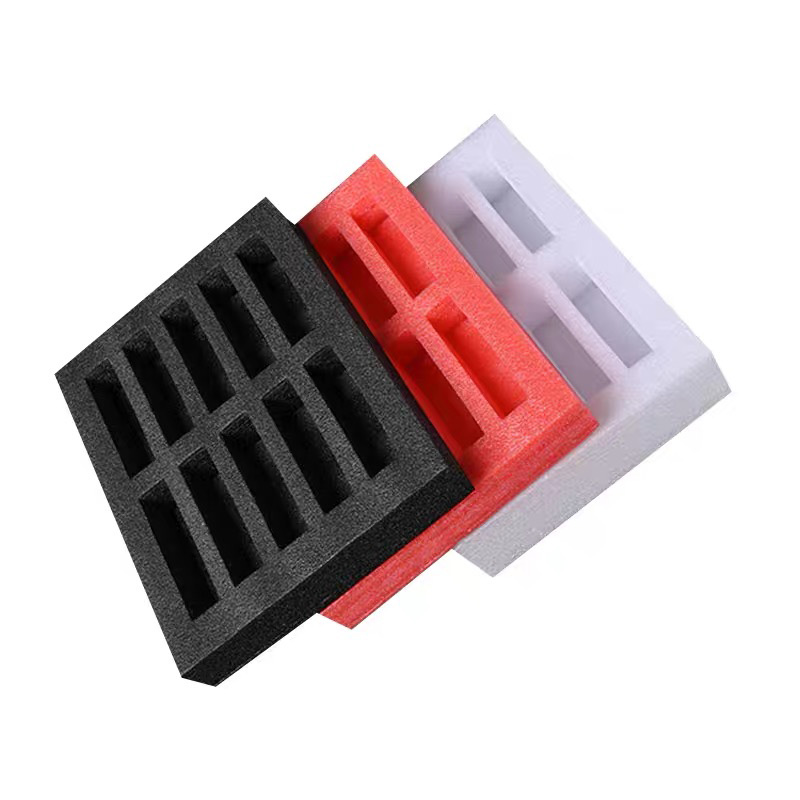

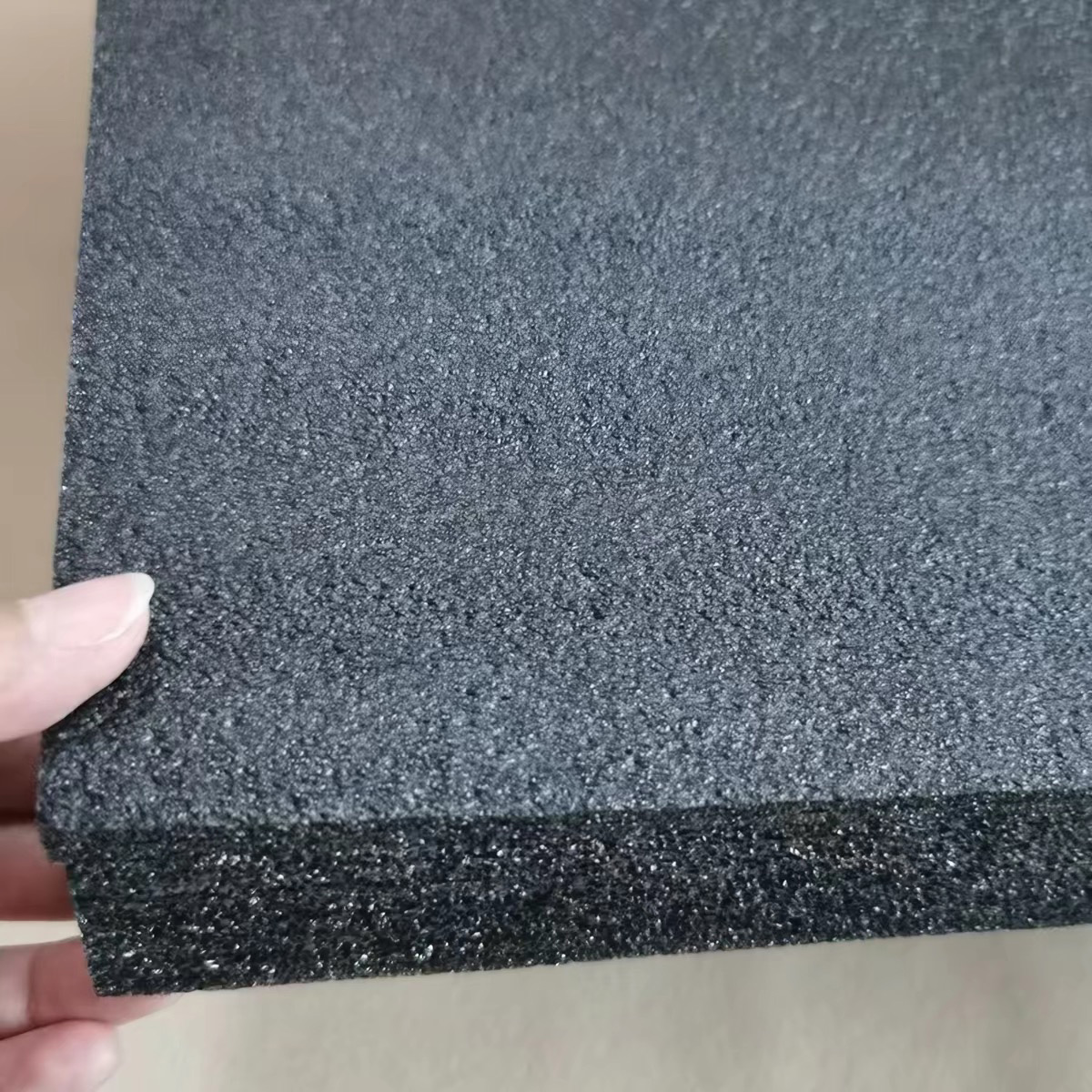

In the packaging of semiconductors, chip modules and precision circuit boards, electrostatic discharge is a silent killer. Ordinary EPE is an insulator, and friction can easily lead to the build-up of static electricity. Consequently, anti-static EPE liners are typically manufactured by adding anti-static agents or conductive carbon black during the production process, resulting in pink anti-static EPE or black conductive EPE. The surface resistivity of these functional liners can be consistently maintained at a low level, enabling them to effectively dissipate static charges whilst avoiding the risk of short circuits caused by excessive conductivity, thereby fully complying with international electrostatic protection standards.
Due to its closed-cell structure, EPE absorbs virtually no water, and its cushioning properties do not deteriorate even after prolonged storage in damp environments. This characteristic makes it an ideal inner lining for cold-chain logistics, outdoor equipment and products exported by sea. Furthermore, the low thermal conductivity of polyethylene gives EPE excellent thermal insulation properties; in the packaging of temperature-sensitive pharmaceutical reagents and fresh foodstuffs, EPE linings not only provide impact protection but also help to maintain a stable temperature distribution within the container.
EPE has a soft, fine texture and a smooth surface free from loose particles, meaning it will not scratch high-gloss mirror surfaces, coated optical components or soft leather. This is particularly crucial in the packaging of consumer electronics and luxury goods. Compared to the risk of dust and paper debris contamination that can arise from corrugated cardboard dividers, EPE liners provide a medical-grade, clean contact surface.
The value of EPE liners depends heavily on precision design and manufacturing. They are by no means simply filler material stuffed haphazardly into a box, but rather bespoke components resulting from rigorous engineering calculations.
During the design phase, engineers must design cushioning packaging based on the product’s 3D model, weight distribution, centre of gravity and analysis of vulnerable points. Using a specialised cushioning curve database and simulation software, they determine the minimum cushioning thickness and load-bearing area required for each part. An excellent EPE liner design adheres to three key principles: ‘precise positioning, even force distribution and ease of handling’. Six-point positioning is achieved through a form-fitting cavity to prevent the product from shifting during transit, whilst the design of reinforcing ribs and cantilevered structures ensures that impact forces are channelled to the product’s most robust structural components. At the same time, finger grips or lifting mechanisms are incorporated to enhance the end-user’s unboxing experience.
In the manufacturing process, the production techniques for EPE liners primarily include stamping and cutting, hot-melt bonding and CNC milling. For high-volume, standardised products, die-stamping is extremely efficient; whereas for small batches, a wide variety of products or complex, irregularly shaped liners, CNC milling technology offers significant advantages, enabling rapid delivery without the need for mould making and substantially shortening the new product introduction cycle. In recent years, with the introduction of automated laminating equipment and vision inspection systems, the dimensional accuracy of EPE liners has been achieved within ±0.5 mm, ensuring a perfect fit with both the outer packaging and the product itself.
The scope of application for EPE liners is constantly expanding, and they have now found their way into virtually every industry with high standards for packaging quality.
Consumer Electronics and Smart Hardware: In the original packaging of products such as mobile phones, laptops, drones and VR headsets, the EPE lining serves not only as a protective shield during transit but also as a key element in creating a sense of anticipation during unboxing; its smooth texture and precise fit directly convey the brand’s sense of refinement.
Automotive and aerospace components: Precision components such as headlamp assemblies, instrument panels and aviation instruments are complex in shape and of high value. EPE liners provide all-round support through their contoured design, preventing fatigue damage caused by micro-vibrations during transport.
Medical devices and biopharmaceuticals: CT X-ray tubes, endoscopes, in vitro diagnostic equipment and similar products have extremely stringent requirements regarding cleanliness and shock resistance. Medical-grade EPE liners are manufactured and sterilised in cleanrooms to meet GMP standards.
Alcoholic beverages and luxury gifts: Products such as ceramic wine bottles, crystal glassware and decorative art objects—which have traditionally relied on moulded wood pulp or silk lining—are gradually switching to EPE liners. The ability to dye, flock and print on the surface means that the protective material itself becomes part of the aesthetic design.
New Energy and Power Batteries: Lithium-ion battery packs face the dual risks of thermal runaway and mechanical abuse during transport. Flame-retardant EPE liners, combined with thermal insulation design, provide a crucial safeguard for the safe distribution of products within the new energy supply chain.
Against the backdrop of global ‘dual carbon’ targets and plastic restriction policies, the environmental credentials of packaging materials have become a key factor in procurement decisions. EPE offers significant advantages in this regard.
Firstly, the EPE production process uses only physical blowing agents; it contains no ozone-depleting substances such as CFCs, nor does it leave any toxic chemical residues. Secondly, as a single-material product, EPE is easy to recycle and reprocess. Discarded EPE liners can be pelletised and reused in the production of low-density sheets or other plastic products, creating a closed-loop cycle. Compared with EPS, which is difficult to degrade and produces black smoke when incinerated, EPE has a significantly lower environmental footprint.
Furthermore, the industry is exploring the use of bio-based polyethylene and biodegradable additives in EPE, as well as reducing material consumption per unit through lightweight design. Some leading companies have already launched rEPE liners made from over 30 per cent recycled material, which significantly reduce carbon emissions whilst maintaining performance, thereby meeting companies’ stringent requirements for supply chain sustainability.
Although EPE liners offer significant advantages, they still face a number of challenges. For example, their maximum heat resistance is typically around 80°C, which limits their use in high-temperature environments; the price of raw materials is highly susceptible to fluctuations in the oil market; and in situations involving extremely heavy loads, they still need to be used in combination with materials such as corrugated board and honeycomb panels.
Looking ahead, the development of EPE liners will follow three major trends: firstly, functional integration, incorporating multiple functions such as antibacterial properties, flame retardancy and moisture indication into a single material; secondly, smart manufacturing, utilising AI-assisted design to optimise cushioning structures, reduce material waste and employ digital twin technology to conduct virtual validation of packaging performance; thirdly, the deepening of the circular economy, involving the establishment of a standardised EPE liner recycling system and a certification mechanism for recycled materials, to drive the industry’s transition from ‘linear consumption’ to ‘circular regeneration’.
EPE padding may appear unremarkable at first glance, yet it embodies the combined wisdom of polymer science, mechanical engineering, industrial design and environmental science. It is the tangible embodiment of modern manufacturing’s commitment to product safety, and the invisible yet vital bond of trust linking the factory to the consumer. On the path towards the pursuit of ultimate quality and a sustainable future, EPE inner liners will continue, with their resilient and steadfast nature, to safeguard every cherished creation. The next time we unpack a carefully packaged product, let us take a moment to appreciate that quietly snug white or pink inner liner—it is not merely packaging, but a silent testament to the beauty of engineering and the weight of responsibility.
