Views: 0 Author: Site Editor Publish Time: 2026-09-07 Origin: Site

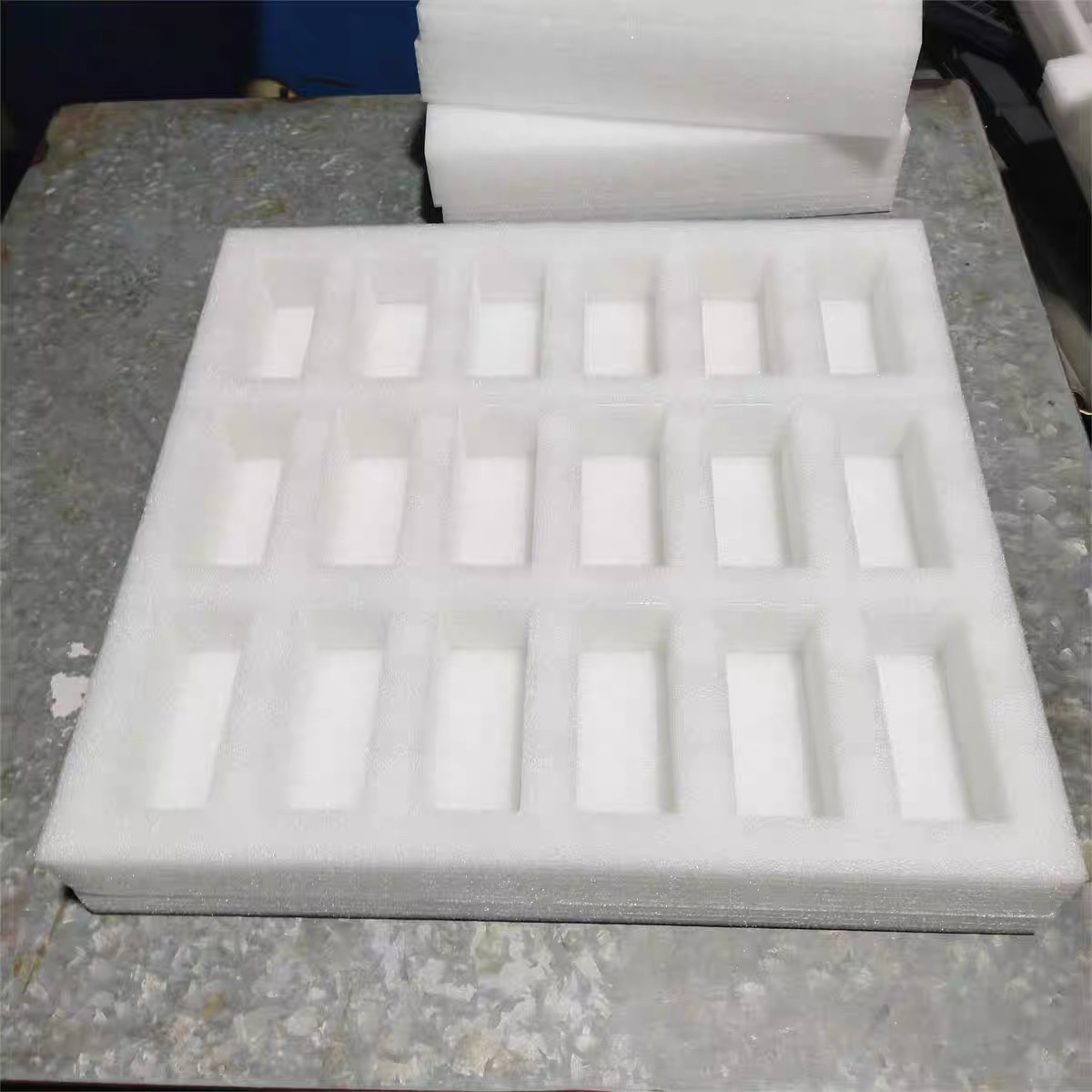

In the fields of packaging engineering and industrial support, EVA foam liners are by no means a novelty. However, in practical applications, many companies often experience protective failure, cosmetic defects, or budget overruns due to a lack of understanding of the material’s properties, inadequate process control, or unclear cost calculations. This article avoids lengthy theoretical discussions and, grounded in the front lines of production and procurement, provides an introduction to EVA foam liners.
The physical property tables provided by suppliers typically represent ideal values measured under standard laboratory conditions, whereas actual operating environments are complex and variable. When selecting a product, the following three key variables must be taken into account:
25°–35° (Soft): Feels like sponge and has slow rebound. Suitable for close-fitting cushioning of precision optical instruments and fragile glass products. Note: EVA that is too soft provides poor support; if the product is heavy, prolonged pressure may cause permanent deformation, resulting in the loss of positioning functionality.
38°–45° (medium hardness):The industry-standard range, offering a balance of cushioning and support. Suitable for most consumer electronics, medical devices and tool kits. This is the range offering the best value for money, with good mould compatibility and a low scrap rate.
50°–70° (hard): Feels similar to a rubber sheet; primarily used for securing heavy-duty mechanical components, as dividers in storage crates, or as a base layer in composite structures. Warning: Hard-grade foam has a low expansion ratio and high density; its unit price is significantly higher than that of medium-hard-grade foam, and it is prone to burrs during stamping, requiring an additional trimming process.
Do not blindly pursue high density. The shock-absorbing and energy-dissipating efficiency of EVA does not increase linearly with density. Actual test data shows that for standard protection against drops from heights of less than 1 metre, medium-hard EVA with a density of 35–45 kg/m³ is sufficient to meet test requirements; specifications of 60 kg/m³ or higher should only be selected when the product weighs more than 5 kg or the risk of a fall is extremely high. Over-engineering is the primary cause of wasted costs.
White and black EVA are the base colours and offer the lowest price. Custom colours (such as Pantone colours) require the addition of colour masterbatch, which not only increases the unit price but may also result in colour variations between batches due to uneven dispersion of the masterbatch. Recommendation: Unless there are specific brand requirements, prioritise the use of black, white and grey; if colour matching is essential, ensure that approval samples are signed off prior to mass production to clearly define the acceptable range of colour variation and avoid disputes upon delivery.

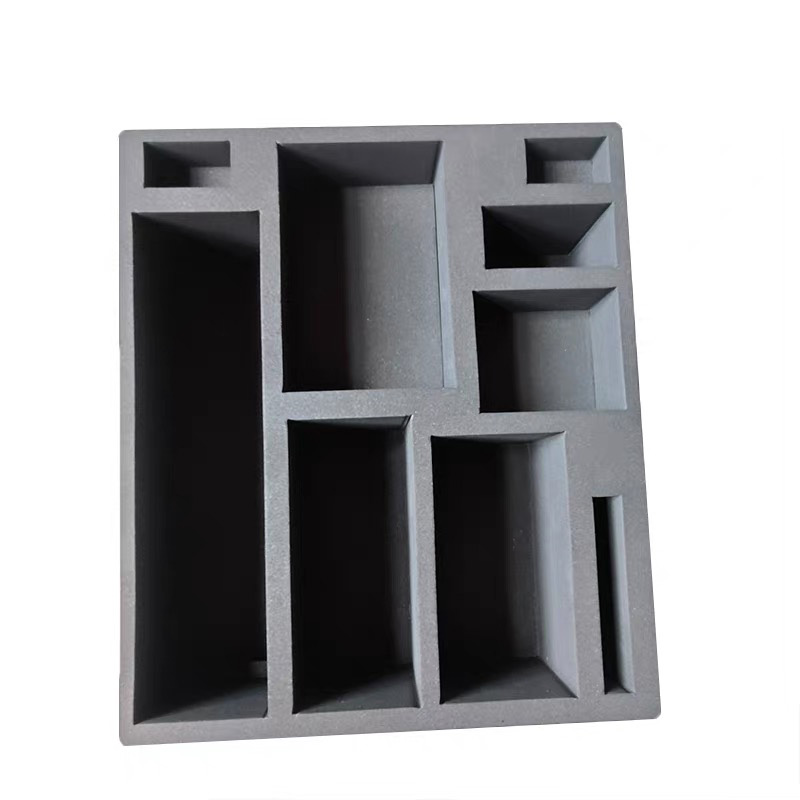

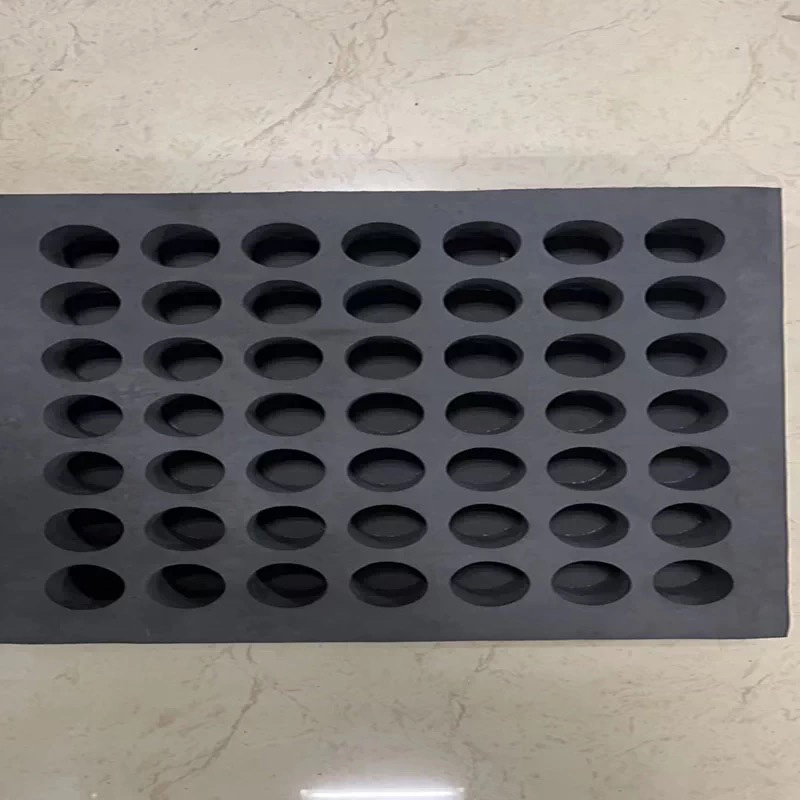

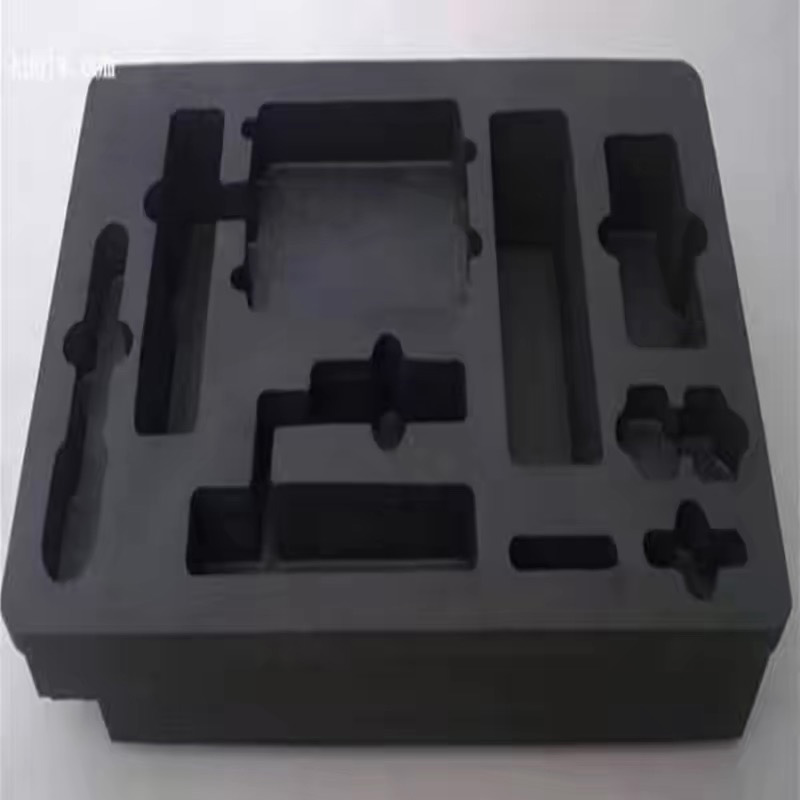

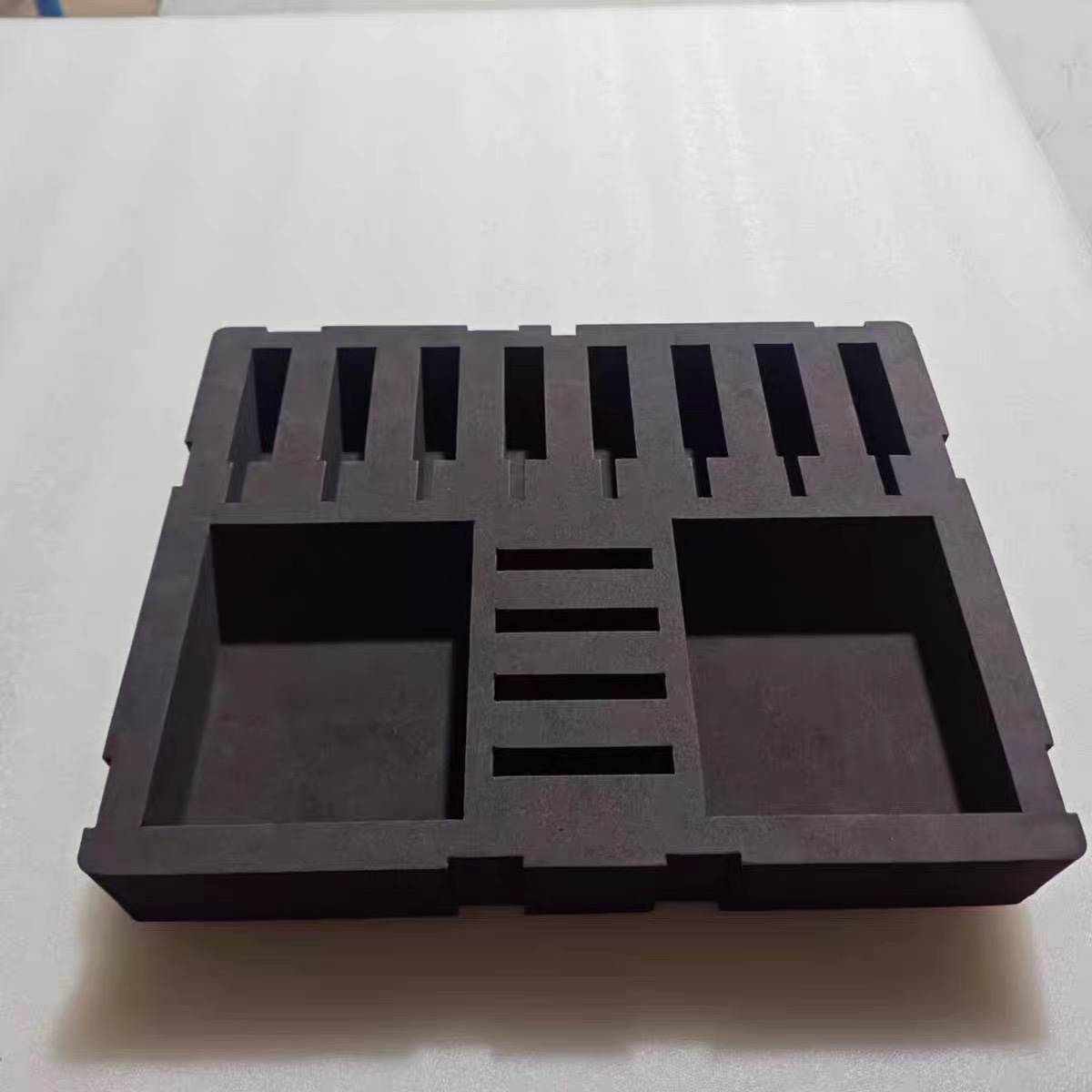

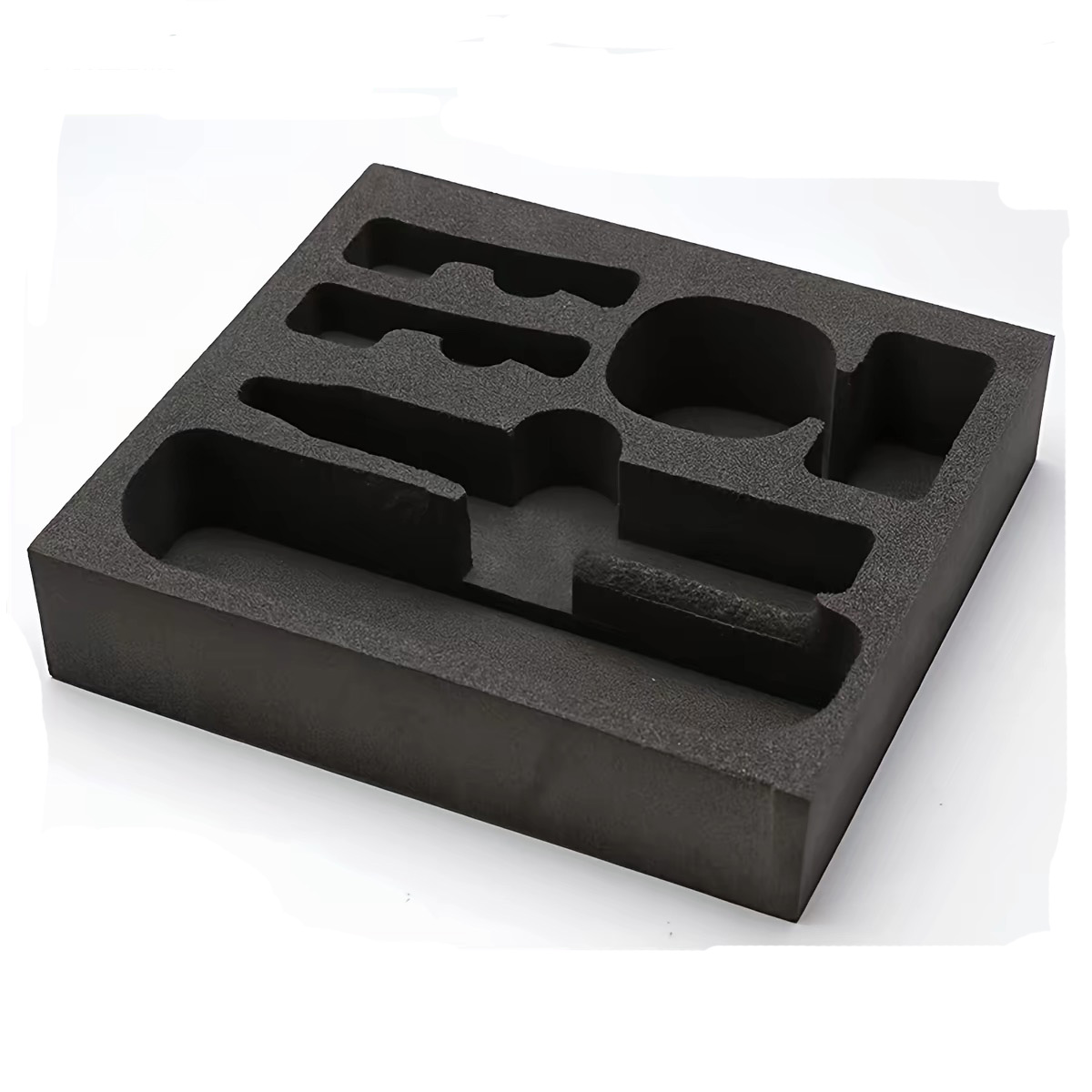

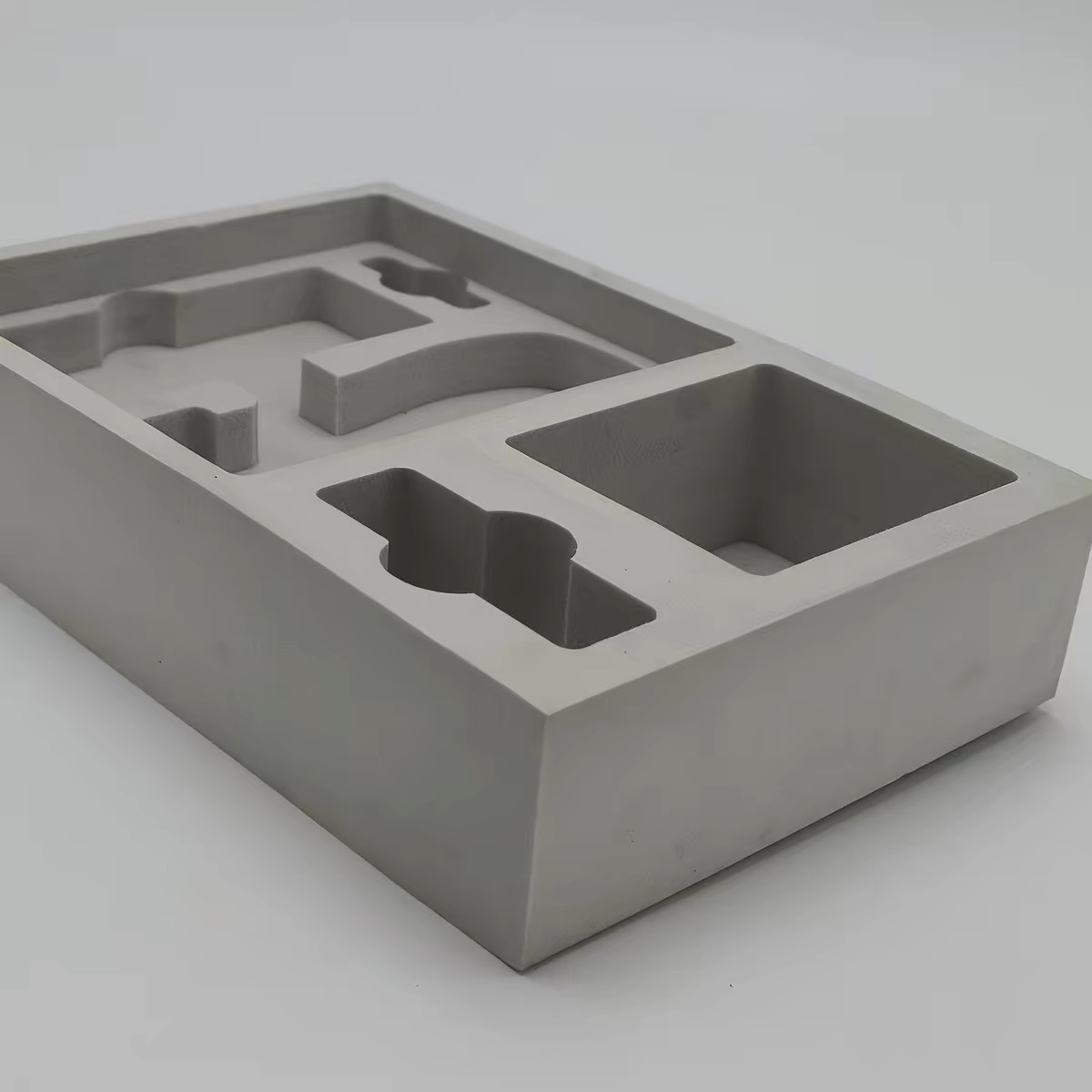

There are three main methods of EVA foam moulding; the choice depends not on which is better, but on which is most suitable for the current order.
Process type | Suitable scenarios | Mould costs | Unit cost | Delivery date | Accuracy/Appearance | Points to note |
Hot Pressing | High-volume production (>5,000 pcs), complex curved structures | High (aluminium moulds/CNC moulds) | Lowest | Long (7–15 days) | Smooth surface, dimensionally stable | Suitable only for mature products; the cost of tooling modifications is extremely high, making small-batch trial production uneconomical. |
Stamping | Medium-volume runs (1,000–5,000 pcs), flat + simple grooves | (Die) | Intermediate | Short (3–7 days) | Neat edges, limited depth | The groove depth is generally ≤15 mm; when bonding multiple layers, the amount of adhesive used must be controlled to prevent it from spilling over. |
CNC | Small batches/prototypes (<1,000 pcs), deep cavities/irregular holes | No moulding costs | Highest | Very short (1–3 days) | Accuracy: ±0.1 mm; capable of machining any shape | Low material utilisation (high scrap rate); surface shows tool marks, and high-end products require secondary polishing |
New product validation phase: We are committed to using CNC machining for prototypes, even if the unit cost is three times higher. If a hot-press mould is produced incorrectly, the losses will far exceed the cost of the prototypes.
Where annual consumption forecasts are uncertain: initially use stamping dies as a transitional measure, and assess whether to switch to hot-pressing once sales volumes have stabilised. The service life of stamping dies is approximately 30,000–50,000 cycles, which is sufficient to support market validation.
Deep-cavity structures (greater than 20 mm): If the annual production volume is less than 10,000 pieces, the ‘CNC grooving + stamped cover plate’ combined process should be given priority, as it results in significant cost savings compared to integral hot-pressing.
Defects in EVA linings often only become apparent after assembly or transport, resulting in extremely high rework costs. Incoming inspections must focus on the following four points:
Fluctuations in dimensional shrinkage: EVA foam undergoes a slight degree of natural shrinkage after cooling, which is influenced by seasonal temperature and humidity. The length of the same lining produced in summer and winter may vary. Countermeasures: Require suppliers to provide measured dimensional reports for each batch; a factory certificate of conformity alone is not sufficient. Allow for a tolerance of 0.5 mm to 1 mm in the packaging design.
Delamination and Adhesive Failure: Multi-layer composite EVA may crack during use if the adhesive is applied unevenly or if the hot-pressing temperature is insufficient. A simple test method: take random samples and tear along the bonded surface; a compliant product should tear the EVA material itself rather than the adhesive layer separating.
Surface indentations and soiling: EVA is a soft material and is extremely susceptible to being scratched by fingernails or tools, or soiled by oil, during handling. Solution: Clearly instruct suppliers to wear finger cots at all times whilst handling the product, and to pack each item individually in a PE bag prior to dispatch; refuse to accept items that are stacked without individual packaging.
Excessive odour: Decomposition products from foaming agents left behind in substandard EVA cause a pungent odour upon opening the packaging. Red-line standard: Compliance with the VOC limit values set out in GB/T 35602-2017 ‘Green Product Evaluation – Textile Products’, or direct submission of an SGS RoHS/REACH report. For orders relating to automotive interiors and children’s products, this is a deal-breaker.
Simply squeezing suppliers’ profits is not sustainable; genuine cost reduction comes from collaboration between the design team and the supply chain:
Standardised module design: Consolidating the dimensions of the inner grooves for different products into 3–5 standard modules, which share the same set of hot-press moulds or die-cutting moulds, thereby reducing moulding costs. For example, a certain tool brand standardised the inner grooves of 20 screwdriver models into two groove types, reducing moulding costs by 70%.
Waste Recycling Agreement: EVA offcuts can be recycled and re-pelletised. Entering into a waste offset clause with suppliers can usually help to reduce costs to some extent.
Local supply radius: EVA liners are bulky yet lightweight, and logistics costs account for as much as 15 per cent of the total cost. Suppliers within 300 km should be given priority.
Evaluation of alternatives: For scenarios requiring only basic cushioning with no need for positioning, a comparison is made with alternative materials such as EPE foam and corrugated cardboard clips. The advantages of EVA lie in its refined appearance and reusability; however, if the product is a single-use item, EVA may offer more than is necessary.
With the tightening of the EU’s PPWR and China’s ‘dual carbon’ policies, the environmental credentials of EVA linings have shifted from being a bonus to becoming a prerequisite:
Bio-based EVA: Some manufacturers have already launched sugarcane bagasse-based EVA, which reduces the carbon footprint by 30–50%whilst offering performance comparable to that of conventional EVA. Currently commanding a premium of around 20 %, it is suitable for high-end brands exporting to Europe to stock up in advance.
Single-material design: Avoid combining dissimilar materials such as EVA, plush fabric and magnets, as such structures are difficult to recycle. Instead, use detachable designs such as fasteners made from the same material or hot-melt adhesive dots.
Pre-certification requirement: Suppliers are required to provide a GRS certificate, which will be subject to thorough verification during the audit.
When it comes to EVA foam linings, there is no ‘best’ option—only the most suitable one. Excellent engineers and procurement professionals do not blindly rely on the极限 values listed in technical specifications, nor do they pursue the lowest price at all costs; rather, they seek a dynamic balance between protective performance, production costs, delivery reliability and compliance risks. Every product selection decision should be based on real-world operating data, historical failure cases and life-cycle cost calculations. Only in this way can this seemingly ordinary foam material truly become a reliable and cost-effective component in the product value chain.
