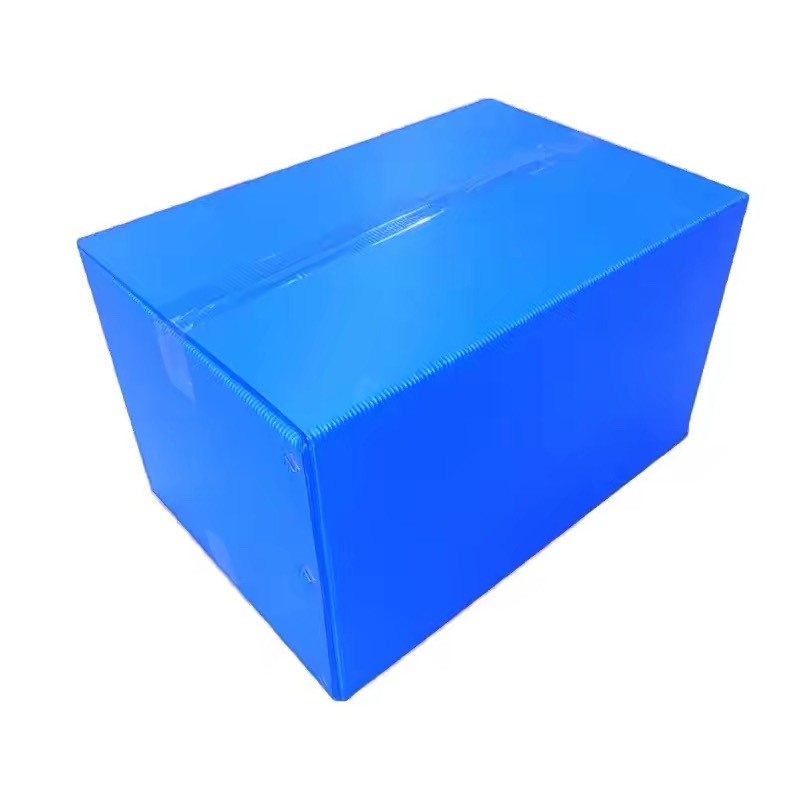

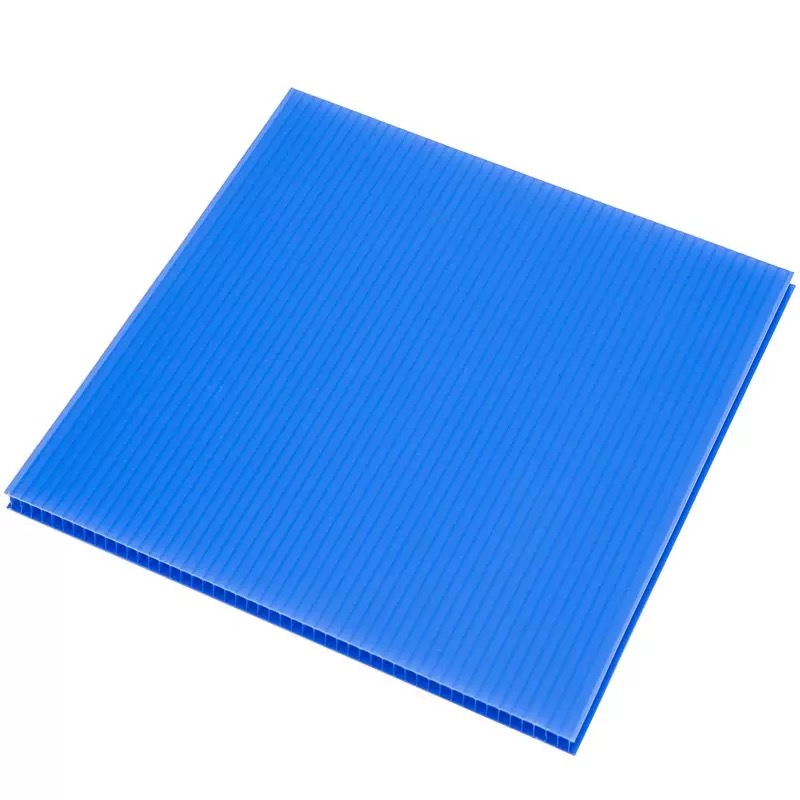

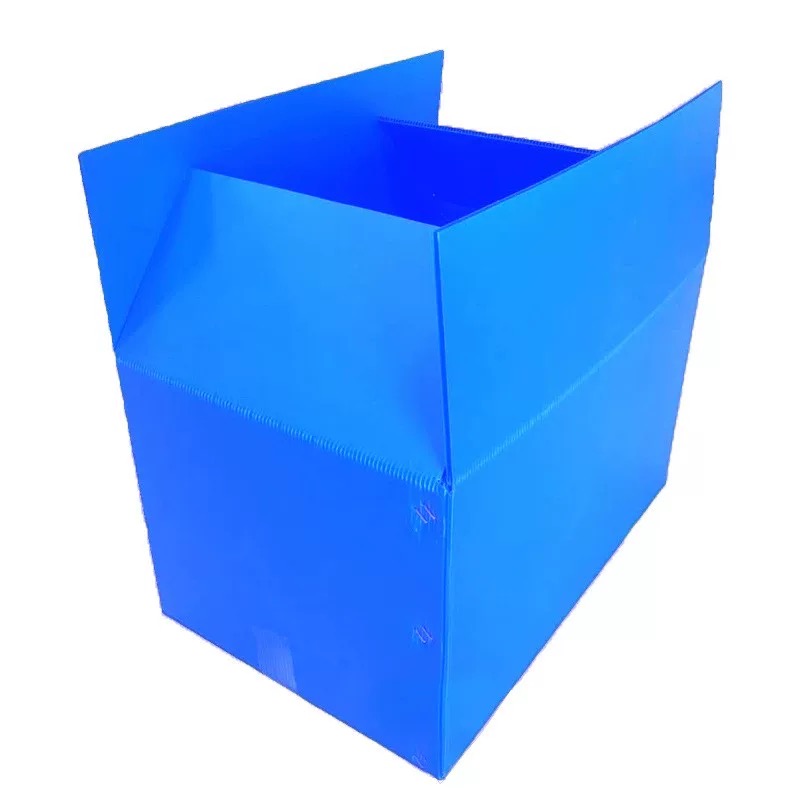

The foldable hollow board box is a high-performance turnover container made of polypropylene (PP) hollow board as the base material. Its core material adopts a double-layer wall panel structure, with vertical ribs connected in the middle. This unique physical structure endows the box with excellent compressive strength and buffering performance, while maintaining the lightweight feature.
Unlike traditional corrugated cartons, this type of product features water resistance, moisture resistance and chemical corrosion resistance. Moreover, through a modular folding design, its volume can be significantly reduced when empty. This innovative design not only addresses the pain points of traditional packaging such as easy loss and poor protection, but also significantly optimizes the reverse logistics cost through the "folding and returning" model, making it an ideal carrier for achieving a circular economy in packaging.
Thanks to the double-layer reinforcing rib structure, the box body can maintain its shape stability even when subjected to heavy loads and rough handling, and is not prone to deformation or cracking. Compared with the single-use attribute of cardboard boxes, hollow board boxes can be reused hundreds of times, and the total life cycle cost is significantly reduced.
PP material is naturally hydrophobic and resistant to acids and alkalis, which makes it perform exceptionally well in damp, oily or highly clean environments. Whether it is condensate water during cold chain transportation or oil stains in industrial sites, neither will cause structural damage to the box body, effectively ensuring the safety of the contents inside.

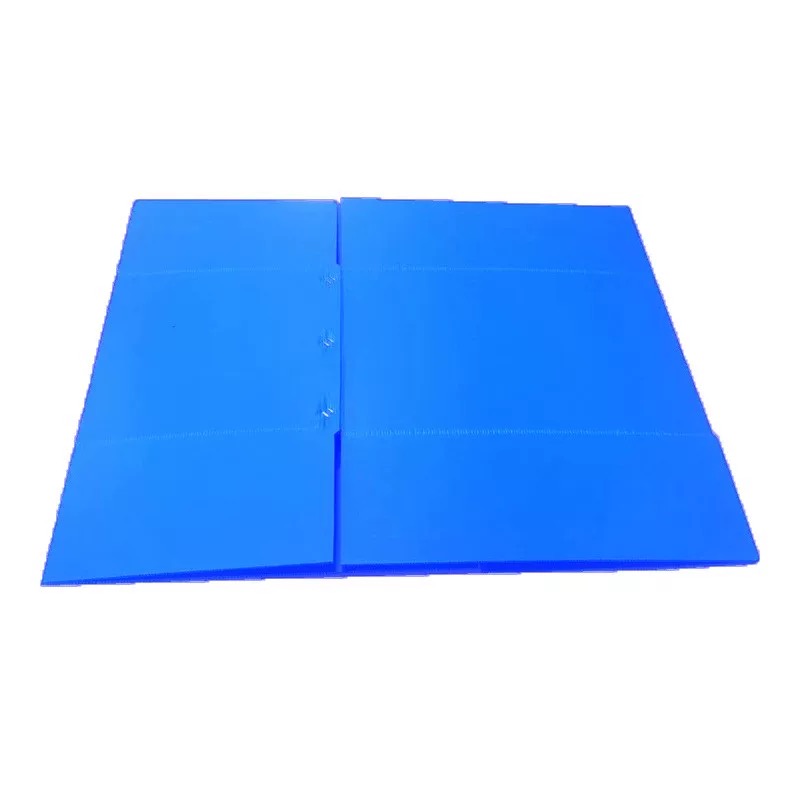

The folding design is the key that distinguishes it from traditional rigid containers. The volume of an empty container after folding is usually only 1/5 to 1/8 of its unfolded state, which greatly frees up storage space and increases the loading rate of return transportation several times, directly reducing the waste of ineffective transportation capacity.
Under the premise of ensuring the same load-bearing capacity, its weight is much lower than that of wooden boxes and injection-molded turnover boxes. This not only reduces the logistics freight for individual items but also eases the handling load on front-line workers, meeting occupational health and safety standards.
It supports flexible customization in terms of size, color and load-bearing grade, and can integrate identification solutions such as silk-screen printing, label card slots and RFID chips. Enterprises can enhance their brand image through a unified visual system and achieve digital tracking and management of packaging assets at the same time.
As a 100% recyclable thermoplastic material product, it can be re-granulated and regenerated after being scrapped. Combining the long-life reusability feature, it significantly reduces the generation of solid waste, helping enterprises achieve their ESG goals and carbon reduction commitments.
Precision manufacturing and automotive industry: It is used for the inter-factory circulation of heavy or high-value parts such as engine components and electronic components, replacing disposable cartons and reducing the risk of dust pollution.
Fresh food and cold chain logistics: Its waterproof and mold-proof features make it the first choice for the distribution of fruits, vegetables, aquatic products and beverages. It avoids the damage of goods caused by the collapse of cartons due to moisture, and is easy to clean and disinfect, meeting food safety standards.
E-commerce retail and store delivery: Supports two-way efficient flow from warehouse to store and from store to warehouse, and the folding return transportation mechanism perfectly ADAPTS to the high-frequency replenishment rhythm of chain retail.
Pharmaceuticals and medical devices: Provide a clean, dust-free and pollution-free transportation environment, meeting the strict requirements for packaging hygiene grades under GMP standards.
Dimension | Corrugated carton | Wooden packaging | Foldable hollow board box |
Service life | Single time | Limited number of times | Hundreds of cycles |
Moisture-proof performance | poor | General | Outstanding |
Empty box storage/transportation | It takes up a lot of space | It takes up a lot of space | Save 70% to 90% of space |
Self-respect | light | heavy | Lightweight and high strength |
Environmental protection attribute | Difficult to recycle (after being contaminated) | Involving wood consumption | 100% renewable and recyclable |
Brand display | Printing is restricted | Almost none | High-definition printing + digital integration |
To ensure that the packaging plan precisely matches the actual business, it is recommended to conduct an evaluation from the following dimensions:
Load verification: Based on the weight of the contents and the number of stacking layers, select the corresponding gram weight and wall thickness specifications. If necessary, conduct compressive strength tests.
Size matching: Prioritize the use of standardized modular dimensions to be compatible with pallet and shelf systems; Special-shaped parts can apply for custom mold opening.
Locking mechanism: According to the operation frequency and sealing requirements, Velcro, snap fasteners, zippers or heat-sealing edge banding and other closing methods can be selected.
Stacking stability: Confirm whether the box body has an interlocking stacking design to prevent sliding and toppling during transportation.
The foldable hollow board box is not merely a replacement of packaging materials, but a key infrastructure for the upgrade of the logistics packaging system towards "circularization, standardization and intelligence". It integrates protective performance, operational efficiency and environmental responsibility, providing practical solutions that balance economic benefits and social value for various industries.
For enterprises seeking a balance between supply chain resilience and sustainable development, systematically introducing such circular packaging is not only a tactical choice to address current cost pressures but also a strategic investment in building future-oriented competitiveness. Through scientific selection and standardized operation management, enterprises can fully unleash their long-term value and gain dual advantages of efficiency and reputation in the fierce market competition.
