Within the vast supply chain of the automotive industry, the packaging of components is far more than a simple boxing process; it serves as a vital link connecting component manufacturers, logistics service providers and vehicle assembly plants. A scientific and well-designed packaging solution has a direct impact on the quality and safety of components during transport and storage, as well as on logistics efficiency and overall costs. Automotive components come in a vast array of types, ranging from minute electronic components to heavy engine blocks, and from fragile headlight lenses to interior trim panels susceptible to scratches; their physical characteristics, protection requirements and handling patterns vary greatly. Consequently, a ‘one-size-fits-all’ packaging strategy is long outdated; it is essential to precisely match the most suitable container—whether made of paper, plastic or metal—to the specific attributes of each component, supplemented by an appropriate inner lining design. This article will explore in depth the systematic logic and practical guidelines for selecting packaging containers for different automotive components.
Before selecting packaging containers, it is essential to establish a multi-dimensional evaluation model. The industry-standard criteria can be summarised as QCD+S+E:
Quality protection: This is the overriding principle. Packaging must be able to withstand risks such as vibration, impact, stacking pressure, fluctuations in temperature and humidity, and static electricity, to ensure that components are delivered free from defects.
Total cost: It is important not only to consider the cost of a single purchase, but also to calculate the full life-cycle cost. For reusable packaging, costs such as cleaning, maintenance, recycling logistics and depreciation must be factored in; for single-use packaging, disposal costs must be taken into account.
Logistics efficiency: Packaging design should maximise load factors, be compatible with standard pallet dimensions, and facilitate forklift operations, automated line handling and container transport.
Ergonomics and safety: The weight of the packaging should be within safe limits for manual handling; edges should be free of burrs; and it should be easy to open, thereby minimising the risk of workplace injuries.
Environmental Compliance: We prioritise the use of recyclable and biodegradable materials, minimise excessive packaging, and comply with environmental regulations in various countries as well as the green supply chain requirements of original equipment manufacturers.
Corrugated cardboard boxes are the most basic and widely used form of packaging in the automotive supply chain. Their advantages include low cost, light weight, ease of printing and labelling, the ability to be folded for storage, and a well-established recycling system.
Compatible parts:
Lightweight exterior and functional components: such as car badges, door handles, switch buttons, sensors, wiring harness assemblies, etc. These components are relatively light in weight and have relatively modest requirements in terms of load-bearing capacity and impact resistance.
After-sales spare parts: As the aftermarket has low turnover and a dispersed distribution network, disposable cardboard boxes are typically used to reduce reverse logistics costs.
Export loose parts: In a maritime transport environment, reinforced corrugated cardboard boxes that have undergone moisture-proof treatment, fitted with internal liners, can be used as outer transport packaging.
Key considerations for selection:
Cardboard grade: B-flute or E-flute should be used for standard components; for heavier components or those requiring stacking, BC-flute or AB-flute double-wall cardboard, or even seven-layer corrugated cardboard, should be used.
Structural design: For irregularly shaped items, die-cut, one-piece paper trays or top-and-bottom lid structures should be used, rather than simple partition dividers, in order to improve compressive strength and positioning accuracy.
Special treatment: For sea transport or in high-humidity conditions, a waterproof coating must be applied or aluminium-plastic composite bags must be used as an inner barrier.
With the widespread adoption of lean manufacturing and automated assembly, standardised plastic storage containers have become the mainstream choice for in-house logistics at original equipment manufacturers (OEMs) and for distribution by tier-one suppliers. These primarily include EU crates, HP crates, pallet boxes and multi-wall corrugated boxes.
Compatible parts:
Small and medium-sized precision structural components: such as gears, bearings, valve bodies, connectors, etc. These parts are suitable for storage in standardised EU-series bins, facilitating their movement on shelves and along production lines.

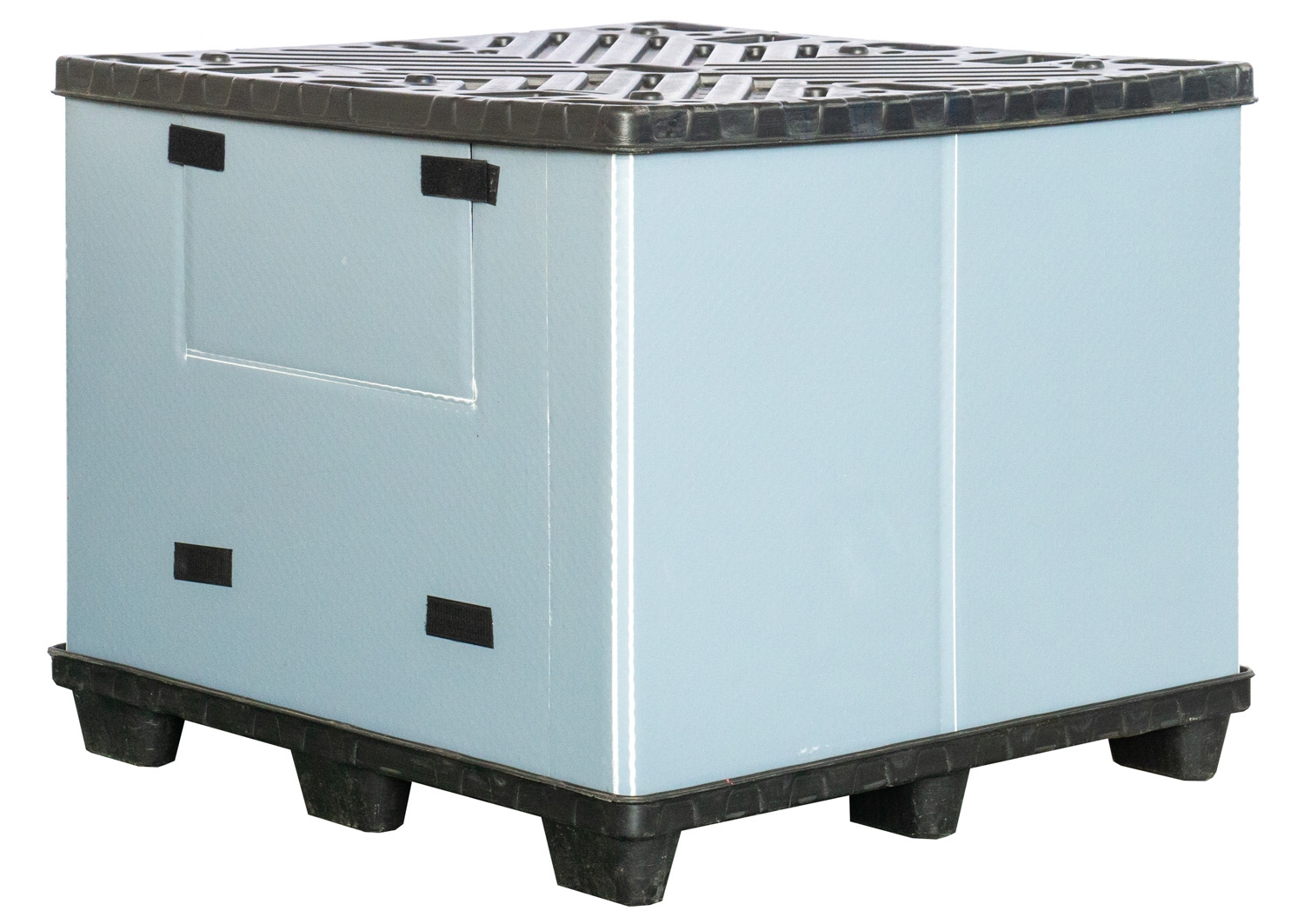

For large batches of standard parts—such as bolts, nuts, clips and other fasteners—injection-moulded storage bins with compartments or foldable pallet boxes are commonly used.
Large body panels and assemblies: components such as bumpers, dashboards and door inner panels—which are bulky yet of moderate weight—are typically packed in large honeycomb panels or specialised thermoformed/injection-moulded trays. Honeycomb panels are collapsible, reducing the volume of empty boxes to a quarter of their original size upon return, thereby significantly reducing return freight costs.
Sensitive electronic components, such as ECUs and battery modules, must be stored in plastic containers made from ESD-compliant materials, typically black conductive PP or PE.
Key considerations for selection:
Material classifications: HDPE is resistant to low temperatures and offers good toughness, making it suitable for cold chain applications or outdoor transport; PP offers good rigidity and is resistant to high temperatures, making it suitable for hot filling or cleaning and disinfection; ABS is used for specialised jigs and fixtures requiring high strength.
Standardised interfaces: It is essential to select containers that comply with both VDA and AIAG standards to ensure seamless compatibility with automated high-bay warehouses, AGVs and robotic grippers.
Durability testing: Reusable packaging must pass drop, stacking, ageing and cleaning agent compatibility tests, and is typically required to have a service life of 3–5 years or more.
When the weight, dimensions or protection rating of components exceed the limits of paper and plastic packaging, metal containers become the only option. The main types include steel racks, wire-mesh trolleys, aluminium alloy returnable crates and wire mesh crates.
Compatible parts:
Heavy-duty powertrain components: engine blocks, gearbox housings, crankshafts, brake discs, etc. These components can weigh tens or even hundreds of kilograms each, and their machined surfaces require extremely high precision; they must therefore be supported by specialised steel racks of exceptional rigidity.
Stamped body panels: Large thin-walled components such as wing panels and outer side panels are highly prone to deformation. A specialised steel frame fitted with multi-point locating pins and contour-following supports must be used to achieve a suspended clamping arrangement.
New energy battery packs: Power batteries are classified as dangerous goods and are extremely valuable; they typically require custom-made, high-strength steel or aluminium sealed enclosures that provide explosion-proof, fire-resistant, heat dissipation and electromagnetic shielding functions.
Cast and forged blanks: Blanks with rough surfaces, oil stains and heavy weights are best suited to foldable metal mesh crates, which allow air to circulate, drain oil and are resistant to dirt.
Key considerations for selection:
Level of customisation: Metal containers are almost exclusively made to non-standard specifications. During the design phase, CAE simulation must be used to analyse stress concentration points, whilst the welding process must ensure there are no cold welds or sharp edges.
Surface treatment: Powder coating, galvanising or electrophoretic coating must be applied to prevent rust, particularly for export or for use in damp workshops.
Man-machine assistance: Due to the unit’s considerable weight, the design should take into account space for forklift trucks, lifting points and roller configurations; the manual handling of overweight units is strictly prohibited.
If the outer packaging is like a suit of armour, then the inner lining is like close-fitting protective gear. In many cases, damage to components is not caused by external impacts, but rather by friction, collisions or stress concentrations within the packaging itself. The choice of inner lining must also be tailored to the specific circumstances.
Properties: Closed-cell structure, excellent cushioning properties, does not absorb water, does not shed particles, and has good resilience. EVA has a higher hardness and can be thermoformed.
Applications: Positioning and cushioning of precision-machined parts, optical lenses and painted components. Commonly used in the manufacture of contouring tool holders, spacers or liners for integral trays. For parts with high-gloss surfaces, premium-grade EPE with a smooth surface or film-coated EVA should be selected to prevent fine scratches caused by friction.
Features: Air-filled cushioning, extremely lightweight, excellent fit, and low cost.
Applications: Filling gaps and wrapping the surfaces of irregularly shaped aftermarket spare parts, headlamp assemblies, wing mirrors, etc. Note: Do not allow direct contact with unpainted rubber components or certain soft plastics, as this may cause plasticiser migration leading to adhesion; nor should it be used on parts with sharp edges or corners, as these may puncture the material and cause failure.
Characteristics: Environmentally friendly and recyclable, low-cost, and offering a degree of cushioning and separation. Moulded pulp can be shaped to fit complex three-dimensional curves.
Applications: Separating small and medium-sized parts, providing base trays for bottle and can components, and isolating rough-machined parts where high cleanliness standards are not required. In recent years, high-strength wet-pressed pulp moulding has been gradually replacing some EPS foam in the manufacture of cushioning bases for new energy vehicle battery modules.
Features: Functional lining designed to address specific environmental risks.
Applications:
Electronic components: Silver-grey, semi-transparent anti-static shielding bags must be used to create a Faraday cage effect and shield against external electrostatic fields. The use of pink anti-static PE bags alone is strictly prohibited.
Metal parts: For precision metal parts intended for sea transport or long-term storage, they should be wrapped in VCI (Vapour Phase Inhibitor) film or rust-preventative paper, or placed in a sealed bag containing a sufficient quantity of desiccant and a humidity indicator card to control the dew point temperature and prevent electrochemical corrosion.
Features: Soft, leaves no marks, reusable, and has a luxurious feel.
Applications: Genuine leather seats, solid wood trim and piano-lacquered panels in high-end vehicle models. In reusable packaging, Velcro straps are used in place of traditional cable ties, providing a secure hold without damaging the surface of the workpiece.
To provide a clearer understanding of the theory outlined above, here are a few typical scenarios:
Component type | Recommended outer packaging | Recommended lining | Key considerations |
Vehicle headlamp assembly | Specialised pallet boxes or reinforced corrugated cardboard boxes | Bespoke EVA moulded trays + dust-proof bags | Fragile, with optical surfaces susceptible to scratches; complex shapes requiring precise positioning; and a high dust protection rating |
Engine block | Specialised steel shelving | Nylon/polyurethane contour-following bearing + VCI anti-corrosion cover | Overweight (>50 kg), machined surfaces with micrometre-level precision, requiring rust protection, and forklift handling |
In-car entertainment system head unit | ESD-compliant EU-standard box | Anti-static shielding bag + conductive foam barrier | Susceptible to static electricity; PCBs are sensitive to bending; connectors are susceptible to oxidation; a ground link is required |
Genuine leather steering wheel | Foldable pallet boxes or large cardboard boxes | Non-woven fabric sleeve + moulded pulp positioning tray | The surface is susceptible to indentations, staining, dampness and mould, and is frequently handled manually. |
M6×20 hexagon bolt | Standard injection-moulded returnable containers / KLT small containers | No lining or simple paper dividers required | High volume, heavy weight, resistant to minor knocks and bumps, and designed for maximum loading density |
Lithium-ion power battery pack | Customised steel/aluminium sealed enclosures | Flame-retardant thermal insulation mat + cushioning EPP + temperature-controlled label | Regulations on hazardous chemicals, thermal runaway protection, IP67 sealing, end-to-end traceability |
The selection of packaging for automotive components is an interdisciplinary field that combines materials science, mechanics, logistics engineering and aesthetics. In practice, there is no such thing as absolute perfection; rather, there is only a balanced solution best suited to the current business context.
Looking ahead, three major trends are emerging in automotive packaging. Firstly, digitalisation: by embedding RFID/NFC chips, packaging containers are transformed into smart carriers, enabling end-to-end visual tracking and automated stock-taking; secondly, sustainability: bio-based plastics, post-consumer recycled (PCR) materials and all-paper solutions will accelerate the replacement of traditional petroleum-based materials and hard-to-recycle composite materials; thirdly, integration, whereby packaging design is incorporated at the product development stage, ensuring that the structure of components themselves takes packaging compatibility into account, thereby reducing packaging waste at source.
In summary, whether it be the cost-effectiveness of paper, the standardised efficiency of plastic, the robust reliability of metal, or the precise protection offered by various types of liners, the crux of the choice always comes down to a thorough understanding of the components’ characteristics and the systematic optimisation of the supply chain as a whole. Only in this way can every automotive component arrive at its intended destination on time, in the safest possible condition and at the lowest overall cost, ultimately being assembled into vehicles that traverse the globe. This is not only a triumph of packaging technology, but also a microcosm of the refined management standards within the modern automotive industry.
