The packaging of automotive batteries is evolving from simply finding a sturdy box into a systematic engineering challenge. Lithium-ion power batteries are classified as Class 9 dangerous goods; during transportation, impacts, compression, electrolyte leakage, or thermal runaway could all turn a shipment of battery modules worth hundreds of thousands into a safety hazard. On February 1, 2026, GB/T 45915-2025, “Technical Requirements for the Safe Transport and Multimodal Transport of Lithium-Ion Power Batteries,” officially took effect. Building upon the United Nations Model Regulations on the Transport of Dangerous Goods (TDG), it established transport classification standards and set forth more detailed requirements for the packaging performance of both in-service and end-of-life batteries. Consequently, the logic behind packaging selection has changed: rather than prioritizing value or material first, the process now begins by confirming the minimum compliance requirements, followed by a step-by-step matching of the packaging to the specific application scenario, materials, and structure.
The compliance chain for lithium battery packaging consists of interlinked steps. For exports, packaging container manufacturers must obtain the “Inspection Report on the Performance of Packaging for Inbound Goods.” Battery manufacturers then use this document to apply for packaging usage certification—commonly referred to in the industry as the “Hazardous Packaging Certificate.” This certificate is valid for 12 months for sea and land transport, but only 3 months for air transport. The UN TDG P903 packaging guidelines require lithium batteries to meet Class 2 packaging performance standards, with proper internal cushioning and securing. Heavy batteries weighing 12 kg or more per unit must also be equipped with a sturdy outer box or pallet, and the electrodes must not bear the weight of stacked layers above them. Furthermore, the UN 38.3 test is a prerequisite for the battery itself; packaging compliance cannot substitute for the battery’s own test certification. For buyers, the first criterion for screening packaging suppliers is whether they can consistently provide performance test reports—this constitutes the packaging manufacturer’s statutory qualification and serves as the starting point for battery manufacturers’ export declarations.

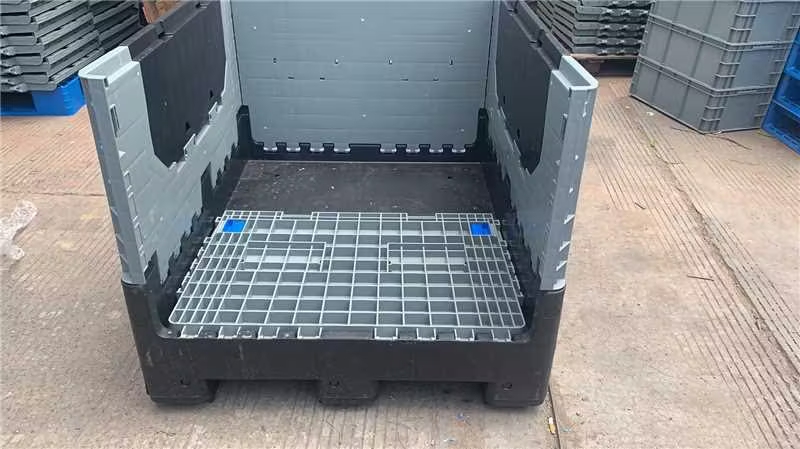

Packaging requirements for automotive batteries vary significantly along the supply chain. For the movement of batteries from vehicle manufacturers to 4S dealerships and after-sales service centers, packaging must be forklift-compatible, stackable, and quick to open and close. For short-distance transfers of battery modules from cell manufacturers to pack manufacturers, the focus is on the number of reuse cycles and space efficiency when folded. For export by sea, packaging must balance the stacking strength required for intermodal transport with corrosion resistance under prolonged exposure to the marine environment. Foldable plastic pallet boxes offer clear advantages in reusable applications: an HDPE blow-molded base combined with PP honeycomb panels saves over 80% in storage space when folded compared to traditional packaging. These rigid plastic pallet boxes can be reused more than 300 times over a 5-year cycle, with a material recovery rate of up to 97%. For heavy-duty export packaging, plywood crates offer fumigation-free options with good moisture resistance, making them suitable for small-to-medium-sized modules; solid wood crates provide higher strength but must undergo heat treatment and bear the IPPC mark. There is no “one-size-fits-all” crate design—only crate types that are tailored to the frequency of reuse, transport distance, and loading method.
The division of roles between metal and plastic in battery packaging essentially involves a trade-off between structural strength, flame retardancy, thermal insulation, and weight reduction. Steel enclosures offer high compressive strength and excellent barrier properties, making them suitable as the primary load-bearing structure for heavy batteries and long-distance ocean transport; aluminum alloy, with a density of about one-third that of steel and outstanding corrosion resistance, offers greater advantages in scenarios requiring weight reduction and moisture protection. The changes on the plastic side are even more significant: PPS matrix material naturally possesses UL94 V-0 flame retardancy and can withstand a 1,200°C flame test for over 10 minutes without burning through, whereas aluminum alloy takes approximately 3–5 minutes to burn through. At the same time, a PPS top cover weighs more than 60% less than a steel component and 30% less than an aluminum one. The limitations of engineering plastics lie in their absolute rigidity and load-bearing capacity. Therefore, the mainstream trend in the industry is not to replace all-metal structures with all-plastic ones, but rather to adopt a hybrid structure consisting of a steel or aluminum load-bearing frame, a flame-retardant plastic lining, and plastic side panels—combining the strength of metal tubes with the flame retardancy, insulation, and lightweight properties of plastic tubes to leverage the strengths of each material.
Passing compliance testing merely indicates that the packaging meets standards under standard test conditions; what truly sets products apart is the structural details’ ability to respond to thermal runaway and secondary damage. In terms of thermal runaway protection, mainstream safety storage and transport cases primarily consist of high-strength steel plates, with Class A flame-retardant fireproof materials installed in the internal sandwich layers and fire-resistant intumescent materials used to seal gaps. Some products are designed with pressure-relief ventilation structures that allow for directed venting during abnormal gas generation, thereby preventing pressure buildup inside the case. Regarding cushioning and securing, industry best practices call for a cushioning layer at least 30 mm thick, with the gap between the battery modules and the case walls kept within 5 mm. Expanded polyethylene (EPE) foam and honeycomb cardboard are commonly used cushioning materials. The primary objective is to eliminate any space for battery movement within the case while isolating the electrode terminals to prevent short circuits. For battery types at risk of electrolyte leakage, the case is lined with corrosion-resistant PP panels that also serve as insulation, preventing leaked electrolyte from corroding the case or triggering abnormal discharge. While these structural details are not visible on the exterior of the case, they are hidden parameters that must be verified item by item during the selection process.
The purchase price of packaging containers is only a portion of the total cost. While the unit price of disposable wooden crates may seem manageable, frequent replacements in a reusable scenario, along with storage space requirements and waste disposal, result in continuously accumulating hidden expenses. Reusable plastic pallet boxes require a higher initial investment, but with hundreds of uses over a 5-year cycle and significantly reduced storage space when folded, they lower the cost per shipment; Thermoplastic composites also offer a recycling pathway through remelting and reshaping, with a recycling rate of over 90%. For companies engaged in export business, it is also necessary to account for the cost of aligning the validity period of the packaging performance certificate with the three-month window for air transport hazardous materials packaging certificates—if the packaging solution cannot match the shipping schedule, the compliance certifications themselves will become a source of inventory pressure. When selecting a packaging solution, calculating the total cost by factoring in the unit price multiplied by the estimated number of replacements, plus storage space requirements and inspection/maintenance costs, provides a more accurate reflection of the true cost than simply comparing quotes.
Let’s return to a fundamental principle: When selecting packaging containers for automotive batteries, the choice is not based on material labels, but rather on a comprehensive set of capabilities—ranging from regulatory compliance and suitability for specific applications to material combinations, structural protection, and circular economy principles. The value of a plastic and metal packaging manufacturer lies precisely in its ability to create customized combinations of steel, aluminum, engineering plastics, and composite panels based on the battery’s UN number, weight class, mode of transport, and turnover frequency—rather than selling a single standard container to all customers. When the packaging solution aligns with the battery’s actual risk profile, compliance is the baseline, safety is the outcome, and cost optimization occurs naturally.
