An automotive shock absorber is a component with a diverse structural composition, featuring not only precision-engineered metal cylinders and piston rods but also non-metallic sealing elements such as rubber bushings and oil seals. It is filled with damping fluid and is often in an inflated or pre-compressed state when it leaves the factory. This means that when selecting a storage container, one cannot simply consider whether it will fit; three issues must be addressed simultaneously: preventing rust on metal surfaces, preventing rubber components from aging or deforming, and preventing fluid leakage and contamination. The performance limits of metal and plastic containers do not overlap in these areas. The key to selecting the right container is not to determine which is better, but to identify which one’s capabilities precisely meet the requirements given specific weight, environmental conditions, handling frequency, and protection rating.
Before comparing materials, it is necessary to first identify several rigid constraints imposed by the shock absorber reservoir on the container.
Load-bearing capacity and stacking stability are the first critical requirements. The weight of a single shock absorber assembly varies significantly depending on the vehicle model and type; front shock absorber assemblies for passenger cars typically range from a few kilograms to over ten kilograms, while those for commercial vehicles or heavy-duty suspension components are significantly heavier. Industry standards for suspension component storage crates generally require a minimum static load-bearing capacity of 80 kg per layer and the ability to pass a fully loaded three-layer stacking test. This means that the containers must not only meet the single-layer load-bearing capacity requirements but also prevent the base from sagging or the frame from warping when stacked in multiple layers.
The second point is protection against dust and oil leakage. The shock absorber’s oil seals and dust seals are designed to combat external dust and oil evaporation. If the storage container is not sufficiently sealed, dust can accelerate wear on the oil seals. Furthermore, if the shock absorber experiences minor oil leakage during storage, the container must be capable of containing or isolating the leak to prevent oil from spreading and contaminating other materials. In storage scenarios involving oil-contaminated workpieces, metal bins equipped with drip pans are a common solution.
Compatibility with rubber components is the third point—and the one most often overlooked. The rubber bushings and oil seals in shock absorbers are part of a metal-rubber composite structure. Vapor-phase rust inhibitors are not inherently safe when in contact with plastics or rubber; certain VCI formulations may corrode plastics or rubber. Assemblies containing rubber components must undergo compatibility testing before VCI is applied. This means that if containers or liners with VCI rust-inhibiting properties are selected, their neutrality toward the rubber components in the shock absorbers must be verified.

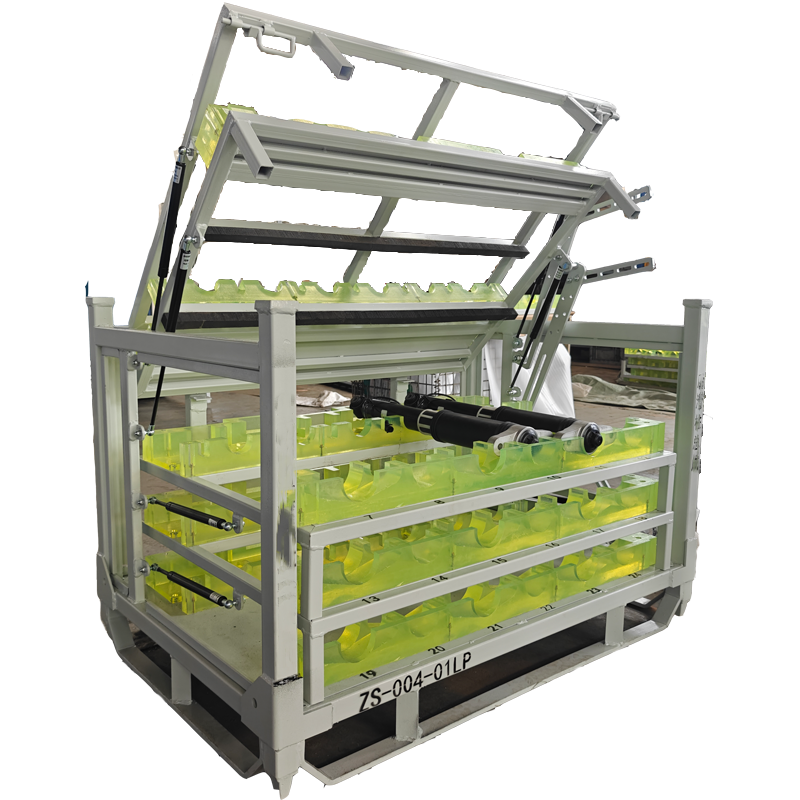

Cleanliness and liner protection are the fourth point. Shock absorber piston rods have a high surface finish; impacts or scratches can directly affect seal life. In practical applications, dedicated shock absorber mounting brackets typically feature molded polyurethane buffer blocks inside the steel structure. These utilize polyurethane’s high elasticity and wear resistance to achieve positioning and vibration damping, rather than allowing metal parts to come into direct contact with the container wall. The value of a container lies not only in the material of its shell but also in the interface between the shell and its components.
The advantages of metal containers in shock absorber storage are concentrated in three areas.
There is no substitute for their load-bearing and stacking capacity. Steel returnable containers typically have a static load capacity of 500–3,000 kg per container and can be stacked 3–4 high, while plastic returnable containers generally have a static load capacity of 100–500 kg and are typically stacked no higher than 3 high. For shock absorber assemblies, the number of units that can be loaded into a single crate depends on their dimensions and weight. However, whenever there is a need for bulk stacking or forklift handling of full crates, the rigidity of a metal shell makes it the foundation of the packaging. Cold-rolled or galvanized steel sheets, combined with surface treatments such as acid washing, phosphating, and electrostatic powder coating—with a coating thickness of 80 μm or more—can meet the anti-corrosion requirements for short-term outdoor storage under a rain shelter.
Superior sealing and oil contamination control capabilities. Metal storage bins with an all-steel, sealed structure are dustproof, leak-proof, and impact-resistant, making them particularly suitable for storing oil-filled shock absorbers; an optional oil-collection tray keeps even trace oil leaks contained within the bin, preventing contamination of warehouse floors or other parts. Some metal racks designed specifically for shock absorbers also feature a sealed perimeter structure that, in addition to dust protection, incorporates polyurethane cushioning and positioning to ensure both protection and secure holding.
Total life-cycle costs are more favorable in heavy-duty, high-frequency applications. While the initial unit price of steel crates is significantly higher than that of plastic crates, their typical service life ranges from 8 to 10 years, and localized deformation can be repaired through welding. Plastic crates, on the other hand, typically become brittle due to aging after 3 to 5 years and are generally scrapped entirely once damaged. Case studies from the automotive industry show that with an annual transport volume of 100,000 trips, the metal container solution reduces the per-unit packaging cost from 0.8 yuan to 0.3 yuan, resulting in cumulative savings of tens of millions over five years. The more frequent the turnover and the heavier the load, the more pronounced the annual cost advantage of metal containers becomes.
However, metal containers also have specific areas where they are not suitable for use. Due to their heavy weight, they generally rely on forklifts or hydraulic trucks for handling, offering limited flexibility for manual handling and line-side picking and sorting; in environments with prolonged moisture or standing water, there remains a risk of corrosion if surface coatings are not properly maintained, and once corrosion occurs, it may in turn contaminate the parts. If shock absorbers are primarily handled manually, with low loading volumes and a dry, controlled environment, the heavy-load advantage of metal containers can actually become a burden during handling and a waste of procurement resources.
The value of plastic containers in shock absorber storage lies not in competing with metal containers in terms of load-bearing capacity, but in the fact that they serve applications where metal containers are either unsuitable or not commonly used.
Lightweight design and ease of manual handling are fundamental characteristics of plastic containers. Injection-molded PP or HDPE returnable bins are lightweight and well-suited for manual handling, assembly line picking and packing, and in-line material flow. For small- and medium-sized shock absorbers or subassemblies at workstations where manual loading and unloading are the primary methods, plastic bins offer significantly higher handling efficiency than steel bins that require forklifts.
Their cleanliness, moisture resistance, and rust prevention properties make them attractive for specific applications. Since plastic does not rust, is water-resistant, and is easy to clean, plastic containers eliminate the possibility of the container itself becoming a source of contamination in situations where metal corrosion must be avoided. Anti-static modified plastic boxes can also be used for automotive electronic components that are sensitive to static electricity; this feature is particularly useful when sensors or electronic modules are transported on the same production line as shock absorber assemblies.
Automated integration and lightweight, reusable packaging are key growth areas for plastic containers. PP offers greater rigidity than HDPE and better dimensional stability, making it suitable for container applications that require integration with automated handling systems. Reusable plastic packaging has already become a core carrier in the inbound logistics of automotive parts and for in-plant, line-side material flow. Its standardized dimensions are compatible with pallets and AGVs, and empty containers can be nested or folded for recycling, reducing return-trip volume.
The limitations of plastic containers for shock absorbers also need to be addressed. The impact strength of standard PP/PE drops sharply below -20°C, and they are prone to deformation at high temperatures; long-term stacking under heavy loads in cold storage is not a strength of plastic crates. The weight capacity limit of plastic crates makes them unsuitable for multi-layer stacking of large quantities of heavy shock absorber assemblies; once damaged, the entire crate is scrapped, lacking the cost-effectiveness of localized repairs found with metal crates. Furthermore, the asset management costs associated with plastic returnable packaging cannot be overlooked: the industry-wide reference range for the annual loss rate of untracked returnable containers is between 10% and 30%. Tracking methods such as RFID can significantly reduce the loss rate, but this in itself requires investment in a dedicated management system.
When you apply material properties to specific scenarios involving shock absorber storage, the selection logic becomes clear.
Heavy-duty shock absorber assemblies, high-volume stacking, forklift handling by the full pallet, and storage of oil-containing parts: Metal containers are the default option. Give priority to steel bins with a sealed design or a drip tray, lined with polyurethane cushioning and positioning blocks, and with a surface treatment that meets the anti-corrosion requirements for the storage environment. If the storage environment is humid or prone to condensation, further evaluate the suitability of galvanized steel or stainless steel solutions.
Small-to-medium-sized shock absorbers, primarily handled manually, with turnover at workstations along the production line; cleanliness requirements take priority: plastic containers are more suitable. Select PP bins with a ribbed structure and stable dimensions. Configure EVA or plastic divider inserts based on the shape of the parts to prevent direct contact between shock absorbers. If there are electrostatic-sensitive components on the same production line, choose anti-static models. However, verify that the plastic bins’ rated load capacity and stacking limits accommodate actual loading and storage methods.
Low- or high-temperature environments: The temperature tolerance range of metal containers covers extreme conditions found in cold storage facilities and workstations near heat sources, whereas the applicable temperature range for ordinary plastic boxes is significantly narrower. If shock absorbers need to be stored long-term in cold storage or transported through supply chains with large temperature fluctuations, metal enclosures offer more reliable environmental adaptability.
For cross-border and long-distance transport cycles that require a balance between lightweight design and load-bearing capacity, a single material may not be the optimal solution. Modular metal-plastic composite containers have already been introduced in the reusable packaging of automotive parts; they reduce weight while maintaining high load-bearing capacity and are designed to withstand over 100 cycles. For shock absorbers, the value of a composite structure lies in the separate configuration of a rigid metal frame and a lightweight plastic liner, rather than having to choose between all-metal and all-plastic options.
Another aspect that is often overlooked is the compatibility between the inner surface of the housing and the shock absorber’s rubber components. Regardless of whether you choose a metal or plastic housing, if you plan to use VCI anti-corrosion bags, anti-corrosion liners, or anti-corrosion foam, you must verify that they are neutral toward the shock absorber’s rubber bushings and oil seals. While VCI is typically neutral toward non-metallic surfaces, this does not constitute a reason to skip testing; confirming the compatibility of rubber components before use is a more fundamental prerequisite for protection than simply choosing between metal and plastic.
The selection of shock absorber storage containers should not be simplified to a binary choice between metal and plastic. A more effective approach is to break down the decision into three layers: the shell material addresses load-bearing capacity, environmental resistance, and baseline sealing requirements; the inner lining and positioning structure address the securing, cushioning, and isolation of the shock absorber’s metal and rubber components within the container; and the container management method addresses issues such as loss, cleaning, and maintenance costs associated with reusable packaging. Metal containers are hard to replace when it comes to heavy loads, sealing, and long-term costs, making them the primary choice for heavy-duty assemblies and high-volume stacking; plastic containers are more efficient in terms of weight, cleanliness, and manual handling, making them suitable for small-to-medium-sized parts and line-side operations. The selection errors that truly warrant caution are using plastic containers to carry heavy shock absorber assemblies that exceed their structural limits, or relying on the sturdiness of metal containers to mask protective flaws such as missing liners or unverified rubber compatibility. The value of a container’s material ultimately depends on whether it matches the actual exposure conditions of the shock absorber at that stage of the process.
