Automotive components undergo long-distance transport, multiple handling operations and temporary storage in warehouses on their journey from the production line to the vehicle assembly line. A single rusted bolt, a dent in a sheet metal part or a scratch on a display screen can all lead to a halt in the assembly line or the customer refusing to accept the goods. Throughout these stages, packaging serves as the final physical line of defence for the components, and the thermoformed insert is the element within this defence that fits the components most snugly, yet is also the most readily underestimated.
The protection provided by customised thermoformed inserts is achieved through the combined effect of three functions: firstly, positioning, which restricts product movement through a contoured cavity; secondly, cushioning, which utilises ribs, bosses and interlayer gaps to absorb impact; and thirdly, isolation, which prevents direct contact between adjacent products and between products and external hard objects. The value of the insert lies not in simply wrapping the product, but in maintaining a stable relative position during transport and stacking, thereby reducing the risk of knocks, scratches and deformation. Unlike selecting materials based on their properties, the protective effectiveness of inserts must be understood in terms of the forces acting on the product and the stacking method—in practical use, insert failure is often not a material issue but a structural one: cavities that are too loose lead to displacement and impact damage during transport; insufficient wall thickness causes collapse under heavy loads; and the absence of gaps between layers results in indentations after stacking.
This article will address the central question of ‘how vacuum-formed liners are placed inside containers to protect automotive components’, exploring the topic step by step—from the principles of protection, material selection and container compatibility, through to storage procedures and maintenance for reuse.
There is a wide variety of automotive components, and the requirements for thermoformed liners vary considerably. The first step in selecting the right product is not to compare prices or choose based on appearance, but to gain a clear understanding of the component’s weight, centre of gravity, surface sensitivity and transport conditions.
The key challenge with precision electronic components (such as navigation screens, instrument cluster modules and sensors) is their susceptibility to pressure, scratches and static electricity. Taking automotive navigation components as an example, thermoformed trays must meet four requirements simultaneously: protection, positioning, static dissipation and stackability. The screen surface must be suspended, without contacting the base of the cavity, with the load borne by the bezel or the non-display area on the rear; rounded corners are used at the four corners to act as stops and cushions, preventing the component from rattling within the cavity; the electrostatic protection level is determined by the component’s electrostatic sensitivity grade, with the surface resistance range for electrostatic dissipation sections typically being 10⁴ Ω–10⁶ Ω, and consistency must be verified through actual testing upon batch delivery.

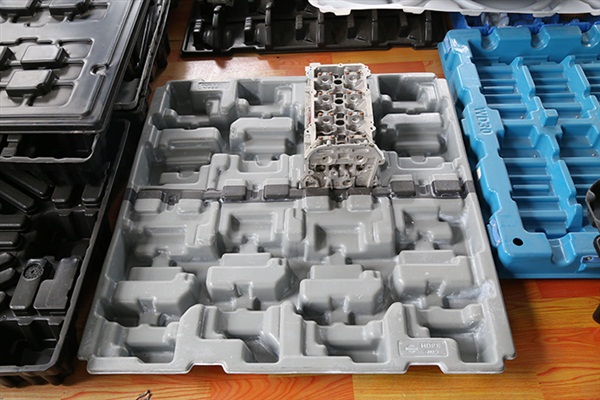

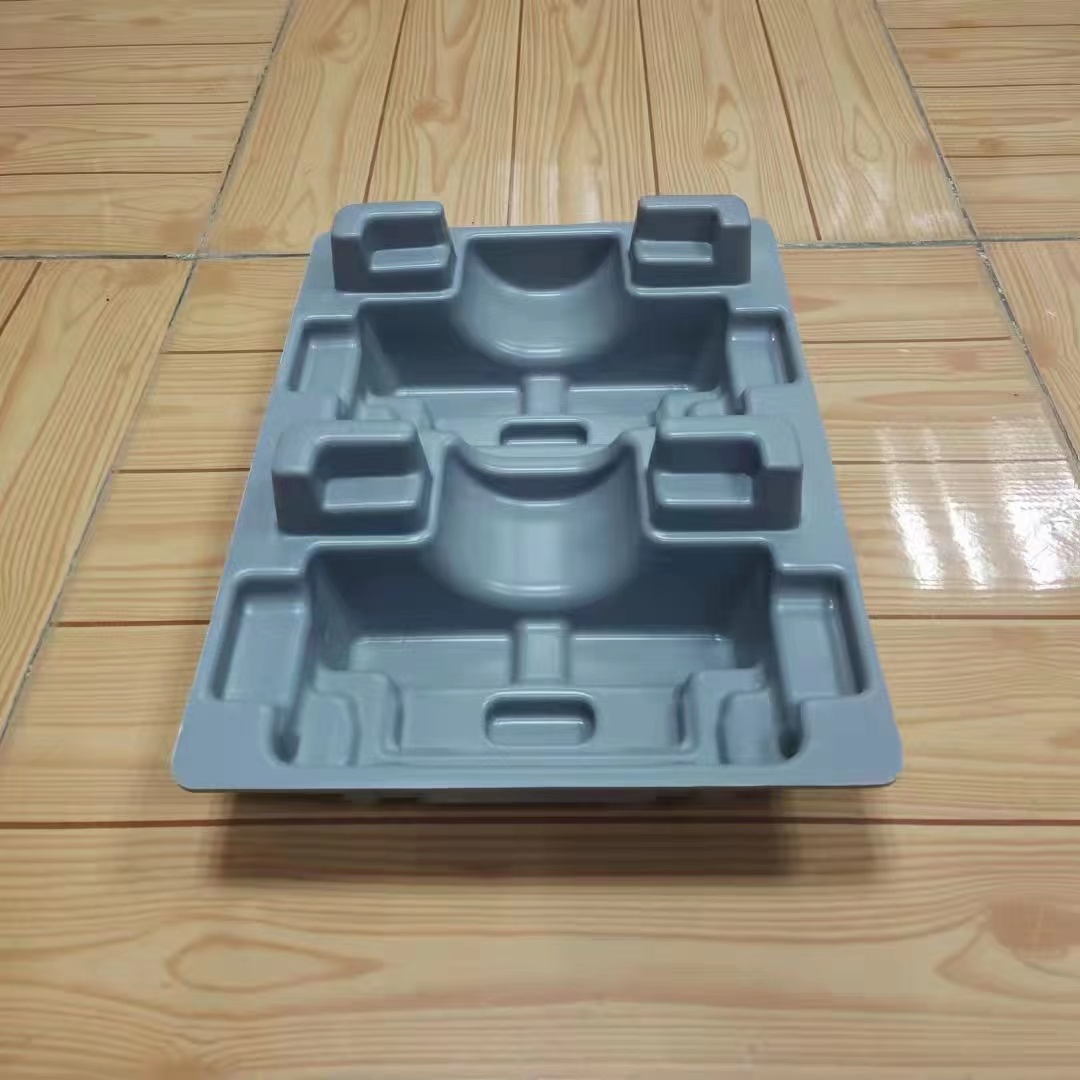

The weight and sharp edges of machined metal components (such as gearbox housings, clutch housings and engine cylinder heads) present significant challenges. For such parts, thick-walled vacuum-formed inserts are commonly used, combined with customised contour designs, structural load-bearing capacity of the inserts, rotational support designs, and anti-rattling designs to limit Z-axis movement, ensuring that heavy components do not shift during long-distance transport.
The edges of sheet metal stampings are as sharp as knife blades and can cause scratches and abrasion to the thermoformed trays during bumpy transport, resulting in plastic shavings adhering to the parts. For such parts, a barrier layer must be added between the thermoformed liner and the parts, whilst the liner must be designed to allow clearance for the sharp edges.

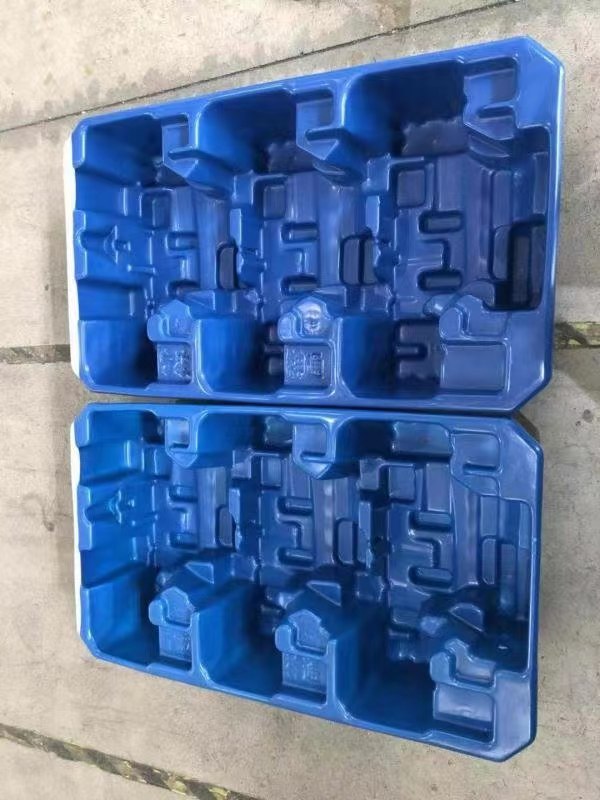

Cavity profiling and draft angles. The cavities in thermoformed inserts are shaped to match the part’s outline, whilst the sheet thickness is typically determined by the part’s weight and protective requirements. The inclusion of draft angles not only facilitates demoulding during production but also enhances load-bearing capacity and ensures that adjacent inserts separate smoothly when stacked for recycling. With regard to cavity depth, deep-cavity parts present greater challenges in terms of demoulding and wall thickness uniformity; the ratio of depth to opening dimensions must therefore be assessed. If the cavity is too shallow, it may press against the part’s surface; if too deep, it unnecessarily reduces stacking height, resulting in a lower packing density.

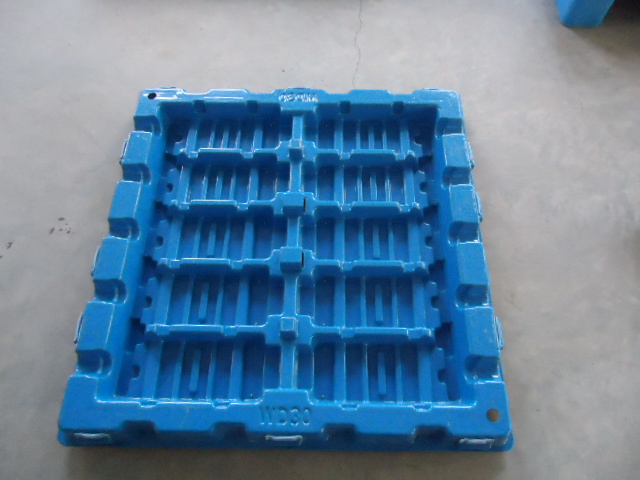

Wall thickness and reinforcing ribs. The thicker the sheet, the greater its rigidity and load-bearing capacity; however, this is accompanied by increased moulding difficulty and material costs. Heavy-duty components are more prone to thinning and internal stress issues when manufactured with greater thickness. Ribs can enhance local stiffness, whilst bosses are used to support load-bearing points; however, excessively dense rib placement can exacerbate uneven stretching during moulding, which in turn affects consistency. The standard thickness range for thin-sheet thermoforming is 0.2 mm to 2.0 mm; the specific thickness is determined by the weight of the part, the number of stacking layers and protection requirements, and thicker is not necessarily better.
Calculation of stacking load-bearing capacity. Products are not transported individually, but rather stacked in crates containing dozens of items. The load on the bottom pallet must be calculated based on the actual number of stacking layers; sufficient space must be allowed for the lid to bear down on the load, and no gaps must be left inside the crate; otherwise, the entire stack will shift about during transport, rendering even the best-designed restraints ineffective. The static load-bearing capacity of thick-walled thermoformed trays can reach up to 2 tonnes, whilst a single tray can bear a load of up to 3 tonnes; however, these figures must be calculated and confirmed on a case-by-case basis within the specific stacking scheme.
The main types of outer containers commonly used for automotive components are folding returnable crates, panel-sided crates and component racks; thermoformed liners must be tailored to suit the specific container.
Foldable returnable crates fitted with thermoformed liners are currently the most widely used combination. A typical structure comprises a base tray, a thermoformed insert, polyurethane blocks and cushioning foam: components are placed within the contoured cavities of the thermoformed insert; polyurethane blocks are snapped into place on the insert to further prevent debris from falling out; cushioning foam is placed over the top of the insert; the top of the base tray is fitted with side panels all round, and a top cover is fitted over the side panels. The thermoformed insert is moulded as a single piece using the thermoforming process; this prevents parts from falling out during placement and retrieval. Its dimensions are tailored to the on-site returnable container, ensuring it can be integrated into the production line, whilst the spacing between products is optimised for on-site robotic arms, thereby meeting the requirements of automated production.
Surround-panel boxes fitted with vacuum-formed inserts are suitable for medium to large components. The surround panels are made of high-strength honeycomb panels, offering excellent sealing properties and protection against dust and water. They are lightweight, foldable for return transport, and have a recycling ratio of up to 1:5. The vacuum-formed inserts can be flexibly designed to suit the shape and arrangement of the parts, making full use of the internal space within the surround-panel box.
Pallet racks fitted with vacuum-formed liners are designed for larger, heavier components, such as gearbox assemblies, front subframes and car doors. The vacuum-formed liners provide flexibility and the ability to conform to the shape of the components, whilst the steel pallet racks offer load-bearing capacity; together, they enable the loading and transport of large, heavy components, with a space utilisation ratio of up to 1:3.
The process of placing components into the blister liners within containers must be standardised to prevent protective failure caused by variations in manual handling.
Step 1: Check the condition of the inner liner. Before use, inspect the thermoformed inner liner to ensure the surface is smooth and free from cracks and deformation. Avoid subjecting the inner liner to excessive stress and ensure the base is not scratched. When using the same mould across different production batches, variations in sheet thickness tolerances, as well as fluctuations in heating temperature and cooling time, may result in differences in the dimensions and wall thickness of the finished products. It is recommended that spot-check criteria and tolerance ranges be agreed upon, with retained samples serving as a benchmark for comparison, to ensure that products from different batches remain interchangeable.

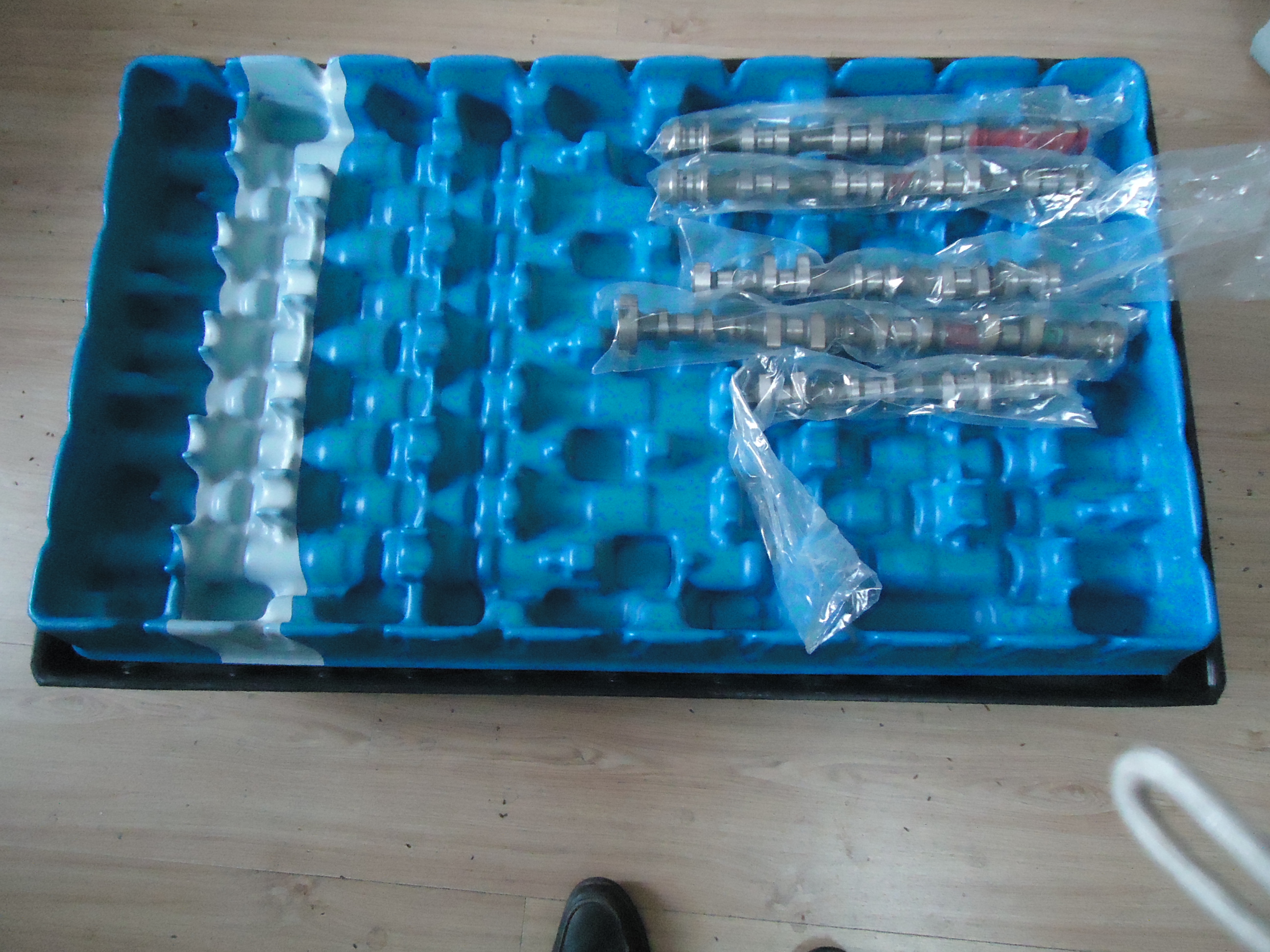

Step 2: Part positioning and placement into the cavity. Parts should be positioned in accordance with the orientation of the contour mould cavity, ensuring that the positioning points align with the cavity’s protrusions. For electronic components such as navigation screens, the screen surface must be suspended, with the load-bearing points situated on the bezel or the non-display area on the rear. Allow sufficient space at the extraction point—do not eliminate the extraction space in an attempt to secure the part tightly, as this will actually slow down production on the line.

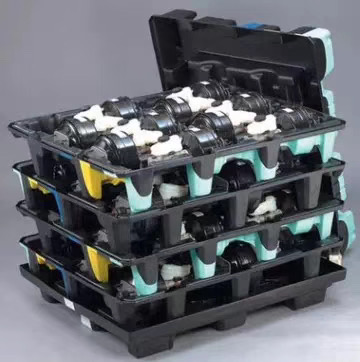

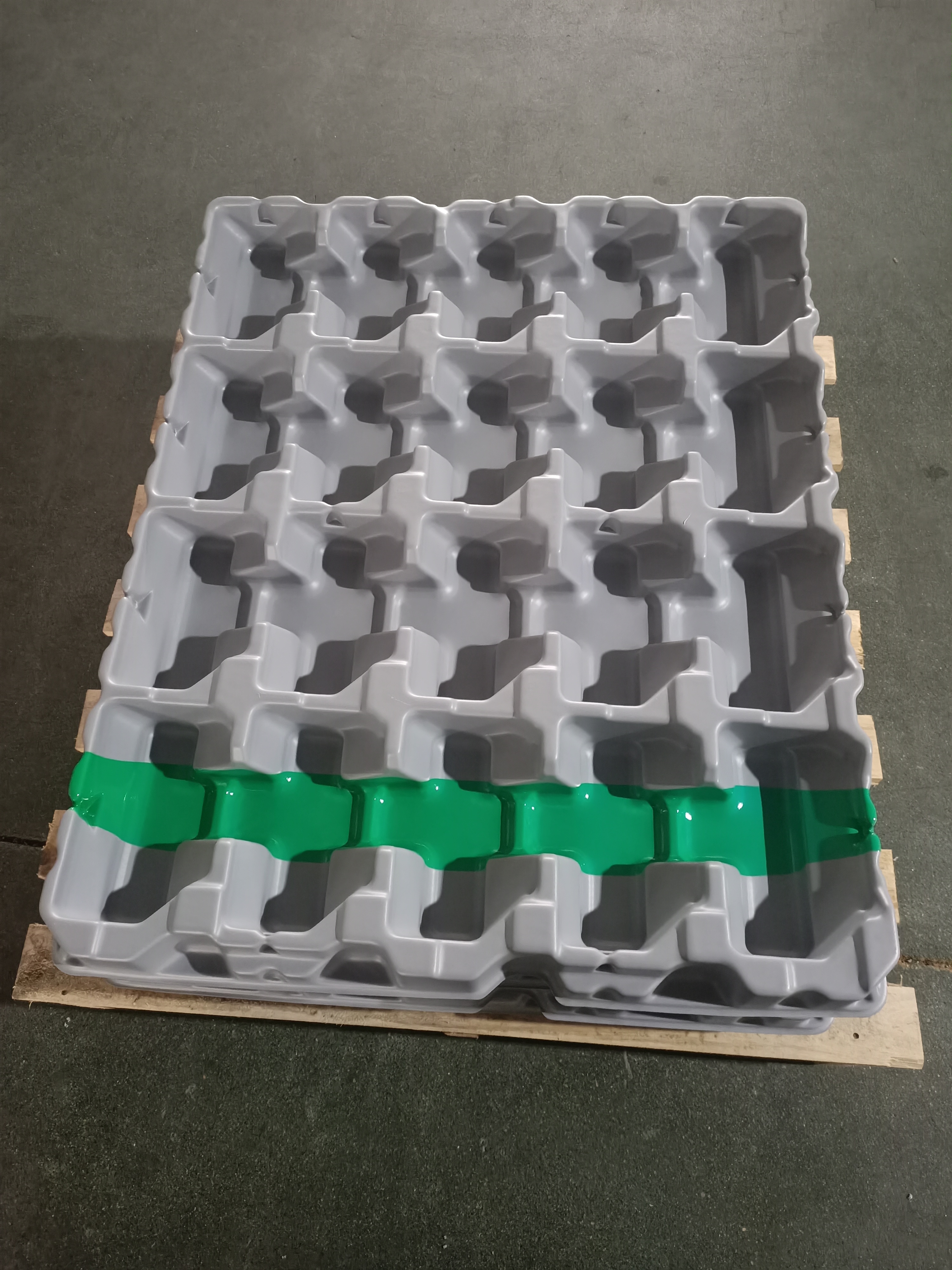

Step 3: Inter-layer alignment and stacking. A multi-compartment structure reduces friction between items; the number of compartments and their dimensions should be determined according to the product’s shape. Stackable thermoformed trays rely on a positioning mechanism to ensure correct alignment when stacked; the stacking height must be matched to the load-bearing capacity of a single layer. When stacking, ensure that heavy items are placed at the bottom and calculate the pressure exerted by the lid.
Step 4: Final check before sealing the box. Ensure there are no gaps inside the box, check that the parts do not rattle within the compartments, and verify that the blister inserts are secure against the side panels. Cover the topmost insert with cushioning foam before closing the lid, wrap the box in several layers of stretch film, and then secure it with plastic strapping.
The proportion of electronic components in automotive parts is rising rapidly. Components such as display modules, sensors and control modules—which incorporate drive circuits—are sensitive to static electricity, and electrostatic discharge may cause irreversible damage to the circuitry.
The selection of anti-static thermoformed liners requires a two-step approach. First, determine the component’s electrostatic sensitivity grade; then specify the corresponding surface resistivity range in the procurement requirements. According to industry standards, materials with a surface resistivity between 10⁵ and 10¹¹ Ω are classified as electrostatic dissipative (ESD-dissipative), capable of controlling the rate of static electricity build-up and discharge; those below 10⁴ Ω are classified as conductive. The ESD-dissipative range typically falls between 10⁴ and 10⁶ Ω, whilst anti-static materials generally fall within the range of 10⁹ to 10¹¹ Ω.
In terms of materials, anti-static thermoformed inserts are typically made from anti-static PS, PET, PP and other sheet materials. A conductive film is formed on the surface of the sheet using conductive polymer materials, which reduces surface resistance and allows residual or generated static electricity to be dissipated through the conductive film. In some applications, flocked thermoformed inserts are also used; these provide anti-static protection whilst enhancing surface softness, making them suitable for precision electronic components and automotive parts.
It is important to note that anti-static properties are not permanent. After repeated washing and use, the anti-static coating on the surface of the vacuum-formed liners may wear away; therefore, the consistency of resistance values must be verified through actual testing upon receipt of each batch, rather than simply relying on a single type of anti-static tray.
Blister pack liners themselves also require appropriate storage conditions to maintain their protective properties. The correct procedure is to store the liners in a cool, dry and well-ventilated indoor area, away from heat sources and ultraviolet light. The storage area should be kept clean and tidy, with the temperature maintained below 40°C and a distance of at least 2 metres from any heat source. Exposure to high temperatures and direct sunlight can cause the plastic sheets to age and become brittle, thereby affecting their load-bearing capacity and dimensional accuracy.
One of the characteristics of thick-walled thermoformed packaging units is that they can be recycled and reused. Upon return, they can be nested within one another to reduce volume and lower transport costs, with a recycling ratio of up to 1:3 or even 1:5. For cleaning, rinsing with a water hose is sufficient to meet general hygiene requirements; if there are stubborn stains on the surface, these may be wiped with a soft cloth dampened with a neutral detergent. Strong solvents such as alcohol or acetone must not be used. For anti-static liners, it is recommended to use a specialised anti-static cleaning agent.
When stacking for return, attention should be paid to a common issue: thick-walled thermoformed liners are designed with a draft angle to facilitate stacking; however, prolonged stacking and vibrations during transport can cause the liners to press ever more tightly together, resulting in ‘locking’—which, in severe cases, can impair normal use. To address this issue, some manufacturers have incorporated ‘easy-separation anti-locking technology’ into their liner designs, utilising structural optimisation to resolve the problem of liners becoming difficult to separate after stacking.
Vacuum-formed liners are not intended for permanent use. It is recommended that a system be established to track the number of uses; once a certain number of cycles has been reached, spot checks should be carried out, focusing on whether the cavities have become deformed, whether the wall thickness has been reduced due to wear and tear, and whether the anti-static coating has deteriorated. For packaging equipment provided under a leasing model, suppliers typically offer supporting services such as warehousing and sorting, cleaning and maintenance, logistics and distribution, return of empty containers, and planning and coordination; component manufacturers can incorporate the maintenance of inner liners into the management of their overall packaging service system.
The packaging requirements for the export of automotive components are far more stringent than those for domestic distribution. The high humidity and salt spray environment encountered during sea transport present the primary challenge in terms of rust prevention for metal parts. For precision-machined surfaces such as engine flywheels, brake discs and steering knuckles, it is recommended to use vapour-phase rust inhibitors, which continuously volatilise within a sealed space and adsorb onto the metal surface to form a molecular-level protective film. The rust-prevention period must cover at least the duration of the sea voyage plus a 30-day storage period; it is recommended to select materials with a rust-prevention period of 12 months or more.
Vacuum-formed liners are typically used as inner positioning and separation units in export packaging, with the outer layer comprising wooden crates or corrugated board boxes. Export wooden crates must comply with the ISPM-15 International Standards for Phytosanitary Measures. It is recommended to use plywood or OSB (Oriented Strand Board) as alternatives to solid timber; these engineered wood panels do not require fumigation, offer uniform strength and are resistant to deformation, making them suitable for the positioning and packaging of precision components. Large structural components may be fully wrapped in rust-preventative film, with desiccants used to maintain the relative humidity inside the crate below 60 per cent.
In terms of packing schemes, the external dimensions of the packaging crates should adhere to the principle of integer division of the container’s internal dimensions: in the width direction, using an internal width of 2.35 metres as the benchmark, the width of a single crate should not exceed 1.15 metres; in the height direction, a single crate should be limited to between 0.8 and 1.2 metres; in the length direction, common modular dimensions are 1.2 metres, 2.4 metres and 3.0 metres. The layout of the cavities and the arrangement of parts within the thermoformed inserts should be designed in accordance with this modular principle to maximise the utilisation of container space.
Reusable, high-strength thermoformed containers are widely used in high-value-added industries such as automotive components and medical devices; the market for these products is growing at an above-average rate, projected to reach 9.5 per cent. The industry as a whole is currently at a critical juncture in its transition from traditional plastics to environmentally friendly, lightweight materials. Thermoformed sheet products are predominantly made from plastic; their lightweight design means they weigh less for the same volume, facilitating transport and storage whilst reducing logistics costs and space requirements.
In terms of business models, an increasing number of packaging suppliers are beginning to offer integrated solutions encompassing design, production and recycling. This approach not only enhances customer loyalty but also extends the value chain across the industry. For automotive component manufacturers, incorporating thermoformed liners into a circular packaging management system—from design selection and container compatibility through to storage, handling, cleaning, maintenance and recycling—represents a practical pathway to reducing overall packaging costs and enhancing supply chain resilience.
The protection afforded to automotive components by thermoformed inserts is, in essence, a systematic process: contoured cavities address positioning issues; wall thickness and reinforcing ribs address load-bearing requirements; anti-static coatings meet the specific needs of electronic components; and container compatibility resolves stacking and handling issues. Meanwhile, standardised storage procedures and regular maintenance ensure that these protective capabilities remain effective throughout the product’s service life. Only by implementing each of these elements can packaging truly become a reliable link in the chain, safeguarding components as they move from the production line to the assembly line.
