In modern electrical engineering systems, the importance of low-voltage junction boxes—as fundamental connection units in AC and DC power distribution systems rated at 1,000 V or less—is often underestimated. They serve not only as physical carriers for wire branching, transition, and terminal connections, but also as core protective barriers that ensure the safe operation of electrical systems, prevent electric shock, resist environmental corrosion, and facilitate future operation, maintenance, and repair. With the rapid development of Industry 4.0, new energy, and smart buildings, performance requirements for junction boxes have evolved from simple “connection and protection” toward “high protection and long service life.” This article provides a technical breakdown across four dimensions—classification, material science, in-depth analysis of advantages and disadvantages, and engineering selection strategies—to offer an authoritative reference for designers, contractors, and procurement professionals.
The classification of junction boxes is not based on a single criterion, but rather on a multi-tiered system that takes into account installation methods, protection ratings, functional purposes, and special operating conditions. A thorough understanding of the applicable boundaries for each category is essential to avoiding selection errors.

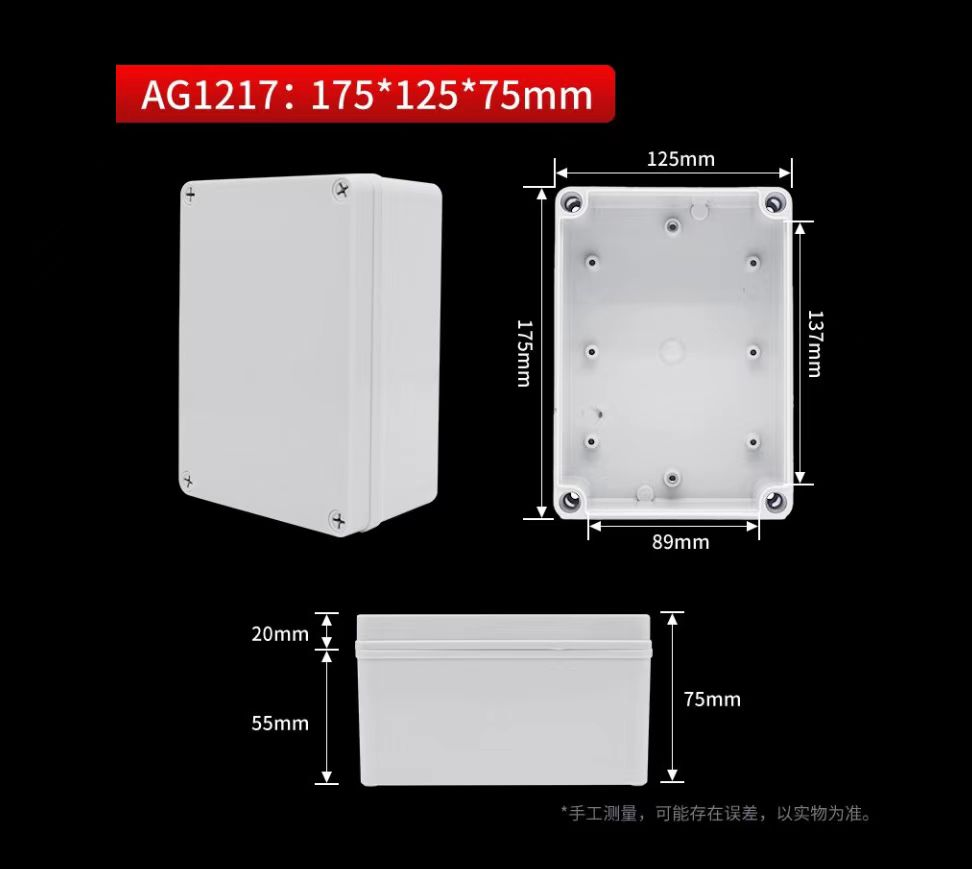

Surface-mounted junction boxes: These are secured directly to walls, columns, equipment enclosures, or cable tray surfaces using bolts or self-tapping screws. Their greatest advantage lies in their exceptional installation flexibility, as they do not require damage to existing building structures. They are particularly suitable for industrial plant renovations, temporary electrical installations, utility tunnels, and spaces where interior finishing has already been completed. Surface-mount junction boxes typically feature removable covers and offer high internal space utilization; however, their prominent appearance can somewhat detract from the harmony of interior decor. Some high-end surface-mount junction boxes incorporate streamlined designs and concealed screw holes, balancing industrial aesthetics with practicality.
Flush-mounted junction boxes: These are embedded into walls, floor slabs, or floors during the civil engineering phase, with only the edges of the faceplate or cover plate exposed. This is the standard configuration for residential buildings, hotels, office buildings, and other venues where aesthetics are a top priority. Flush-mounted boxes must be flush with the building’s plaster finish, requiring strict precision during installation. Any deviation in position or insufficient depth will result in extremely high repair costs later on. Their advantages include excellent concealment and no encroachment on interior headroom; however, they offer poor heat dissipation, and expanding or replacing them later is extremely difficult.
DIN-Rail/Enclosure Junction Boxes: Designed specifically for use inside distribution panels and control cabinets, these junction boxes feature standard clips on the bottom that allow them to be mounted directly onto DIN rails. This type of junction box typically integrates terminal blocks, fuse holders, signal indicator lights, and even surge protection modules, providing an all-in-one solution for “wiring, protection, and indication.” Their core value lies in saving space inside the cabinet. They improve wiring neatness and support rapid, modular replacement, making them widely used in PLC control systems, variable frequency drive cabinets, and new energy combiner boxes.
Underground Junction Boxes: Designed specifically for outdoor use beneath the ground, in green belts, or under roads, these boxes feature extremely high compressive strength and IP68-rated waterproof sealing. The box bodies are typically made of cast iron or high-strength composite materials, and the covers feature anti-slip grooves and anti-theft locks. They are commonly used in applications such as landscape lighting, streetlight cable branching, and underground power supply for charging stations. Special attention must be paid to drainage design and the reliability of the seal under long-term submersion.
Standard Type: Prevents only solid foreign objects larger than 1 mm in diameter from entering and offers limited splash protection. Suitable for dry, clean indoor environments, such as inside office ceilings and dry areas of electrical distribution rooms. These products are inexpensive, but if mistakenly used in humid environments, they are highly prone to causing short circuits or insulation degradation.
Dust- and Water-Resistant Model: Featuring a one-piece molded seal, stainless steel latches, and a breather valve design, this model completely prevents dust from entering and can withstand water jets from any direction or brief immersion. It is widely used in food processing facilities, car washes, underground parking garages, agricultural greenhouses, and with outdoor equipment. Please note that IP67 does not mean the product is suitable for long-term underwater use; for continuous immersion, select IP68.
Explosion-proof types: These are classified into flameproof and increased safety types. Explosion-proof enclosures are made of high-strength cast aluminum or cast steel, with precision-machined flange clearances designed to withstand internal explosion pressures without propagating the explosion. Increased safety enclosures eliminate ignition sources through measures such as reinforced insulation and temperature rise limitations. Both types must obtain national explosion-proof certification, and their mixed use or substitution is strictly prohibited. They are suitable for locations where explosive gases or dust are present, such as petrochemical plants, underground coal mines, flour mills, and pharmaceutical production facilities.
Fire-resistant and flame-retardant type: Made of V0-rated flame-retardant materials or metal structures, these components do not burn or drip when exposed to open flames and can maintain circuit integrity for a certain period during a fire. They are used in fire emergency lighting, evacuation signage systems, and critical life-saving pathways such as vertical shafts in high-rise buildings, and are components mandated by building fire safety codes.
Basic Feed-Through/Junction Box: Contains only mounting studs or simple terminal blocks inside and is used solely for the mechanical connection and electrical continuity of wires. It features a simple structure and low cost, but relies on the quality of the wiring work performed by installation personnel.
Spring-Clamp/Tool-Free Junction Boxes: Featuring built-in spring terminals or pierce-type connectors, these allow for wiring without a screwdriver, are vibration-resistant, and require no maintenance. They are particularly suitable for work at heights, in confined spaces, and for large-scale standardized installations, significantly reducing the rate of human error; however, they have a higher unit price.
Smart Monitoring Junction Box: Equipped with an integrated temperature sensor, current transformer, and communication module, it can upload data—such as joint temperature, load current, and insulation status—to the operations and maintenance platform in real time. It automatically triggers an alarm when overheating or abnormalities are detected, marking a shift from passive protection to active early warning. It is currently widely used in high-value asset scenarios such as data centers, solar power plants, and rail transit systems.
Multifunctional Combination Box: Integrates switches, outlets, USB charging ports, network ports, dimmers, and other components into a single unit. It is commonly found in smart homes, hotel guest rooms, and office partition systems. Its advantages include reducing the number of wall cutouts and enhancing the user experience, but it places extremely high demands on internal heat dissipation and electromagnetic compatibility (EMC) design.
The choice of materials for junction boxes is by no means a simple “plastic vs. metal” dichotomy; rather, it involves a comprehensive decision-making process that draws on polymer chemistry, metallurgy, and composite materials engineering. The molecular structure, crystalline state, and additive formulations of different materials directly determine the product’s mechanical, thermal, electrical, and environmental resistance properties.
Polyvinyl chloride (PVC): The most traditional material used for junction boxes, it is inexpensive, offers good flame retardancy, and is resistant to acid and alkali corrosion. However, it has poor heat resistance, exhibits significant low-temperature brittleness, and, because it contains chlorine, releases toxic fumes when burned. It is gradually being replaced by environmentally friendly materials, but it still dominates the low-end residential market.
Acrylonitrile-butadiene-styrene copolymer: It offers greater toughness than PVC, has a high-gloss surface, is easy to electroplate or spray-coat, and has an attractive appearance and texture. However, it has poor weather resistance and is prone to yellowing and chalking when exposed to ultraviolet light; its flame retardancy is average. It is primarily used for concealed panels with strong decorative appeal in interior design or as components in consumer electronics.
Polycarbonate: High transparency, excellent impact strength, good heat resistance, and outstanding dimensional stability. However, it is stress-sensitive, prone to cracking when exposed to certain solvents, and relatively expensive. It is widely used in high-end waterproof enclosures, explosion-proof viewing windows, and photovoltaic connector housings.
Nylon: Wear-resistant, self-lubricating, oil-resistant, heat-resistant, and highly mechanically strong. However, it is highly hygroscopic; when it absorbs water, it expands in size and its electrical insulation properties deteriorate, requiring modification. It is commonly used in high-temperature, oil-contaminated environments such as automotive wiring harnesses, engine compartments, and the interiors of heavy machinery.
Galvanized steel sheet: The most commonly used base material for metal enclosures, providing a corrosion-resistant coating through hot-dip galvanizing or electrogalvanizing. It offers high strength, low cost, and good shielding properties; however, it is prone to corrosion once the zinc coating is damaged, and cut edges require touch-up painting. It is suitable for general industrial environments but is not recommended for use in coastal or chemical areas.
Stainless Steel: Grade 304 is resistant to atmospheric corrosion, while Grade 315L contains aluminum and is resistant to pitting corrosion and stress corrosion cracking, making it suitable for long-term use in marine and strong acid environments. Its surface passivation film has self-healing properties, and its service life can exceed 30 years. Disadvantages include high cost, heavy weight, high thermal conductivity, severe work hardening, and difficulty in cutting holes on-site.
Die-cast aluminum alloy: With a density of only one-third that of steel, it offers excellent heat dissipation and can be anodized to achieve a variety of surface finishes and enhanced corrosion resistance. It provides good electromagnetic shielding and is non-magnetic. It is widely used in LED driver power supply housings, photovoltaic inverters, and aerospace equipment. However, due to its low hardness, threads are prone to stripping, so steel thread inserts must be installed.
Sheet-type laminated plastic / block-type laminated plastic: Manufactured by molding unsaturated polyester resin, glass fiber, fillers, and other materials under high temperature and pressure. It combines the rigidity of metal with the insulating and corrosion-resistant properties of plastic. It is arc-resistant, has a high tracking resistance index, and a heat deflection temperature exceeding 200°C. As a thermosetting material, it does not melt when exposed to fire but only carbonizes. Its disadvantages include high brittleness, limited color options, and non-recyclability. It is the material of choice for harsh environments such as the chemical, power, and rail transit industries.
Phenolic resin: The earliest synthetic plastic, it offers excellent flame resistance and arc resistance, but it is very dark in color, highly brittle, and has slightly high water absorption. It is now primarily used in older-style electrical meter boxes, mining electrical equipment, and other applications where flame resistance is critical but aesthetic requirements are low.
Key Advantages:
Intrinsically Safe Insulation: No grounding required, completely eliminating the risk of a live enclosure; particularly suitable for TT and IT systems.
Low total life-cycle cost: Inexpensive raw materials, high injection molding efficiency, easy to transport, and quick to install; the overall cost is 50% lower than that of metal.
High design flexibility: Complex structures can be molded as a single piece, reducing the number of assembly parts, and the transparent PC cover allows for visual inspection.
Broad-spectrum chemical resistance: Offers excellent resistance to dilute acids, alkalis, salt spray, and oils and greases, far surpassing that of ordinary steel.
Fatal Weakness:
Mechanical Vulnerability: Limited impact energy absorption; prone to fracturing when struck by heavy objects or stepped on; a tendency toward creep leads to seal failure under prolonged compression.
Thermal Management Bottlenecks: Low thermal conductivity makes it difficult for heat from internal heating elements to dissipate, leading to heat buildup that accelerates aging.
Environmental aging is irreversible: UV radiation, ozone, and temperature and humidity cycling can cause molecular chain breakage, resulting in discoloration, chalking, and cracking; models for predicting service life are complex.
Electromagnetic transparency: Provides no shielding against external signals, making internal signals susceptible to interference, and does not comply with certain regulatory requirements.
Key Advantages:
Ultimate Mechanical Protection: Pressure-resistant, impact-resistant, theft-resistant, and rodent-bite-resistant. Easily passes impact tests and is suitable for harsh environments.
Superior Thermal Management: The enclosure’s high thermal conductivity allows it to function as a heat sink, reducing the internal temperature rise by 10–20°C and extending the lifespan of components.
Perfect Electromagnetic Shielding: Provides shielding performance of over 60 dB, meeting the stringent requirements of medical equipment, precision instruments, and the defense industry.
Extremely long service life: High-quality stainless steel or aluminum enclosures can last up to 40 years with proper maintenance, and their cost-effectiveness over the entire life cycle may ultimately surpass that of plastic.
Significant Disadvantages:
Ground Dependency: A low-impedance ground path must be established; otherwise, in the event of a fault, the enclosure becomes a lethal source of electric shock, and poor grounding can also introduce ground-loop interference.
Corrosion Risk: With the exception of 316L, most metals are susceptible to corrosion under certain conditions and require regular maintenance; contact between dissimilar metals may also cause galvanic corrosion.
Construction Complexity: The heavy weight makes handling more difficult; on-site cutting produces burrs that must be sanded down, otherwise they may damage the cables; conductive debris may cause short circuits.
High initial costs: Expensive materials, multiple processing steps, and high logistics costs make small-batch customization economically unfeasible.
Key Advantages:
Well-balanced performance with no weaknesses: Its strength is comparable to that of metal, its insulation properties rival those of plastic, its corrosion resistance surpasses that of stainless steel, and its temperature resistance exceeds that of all thermoplastics.
The Champion of Extreme Environments: Stable operation across a wide temperature range; resistant to strong acids and alkalis, salt spray, and UV radiation; virtually no environmental restrictions.
High safety redundancy: Thermosetting materials do not melt; even if a fire breaks out inside, they will not flow and fuel the fire. A high CTI rating prevents surface discharge.
Main Limitations:
High cost barrier: Molds are expensive, making this method suitable for high-volume production; for small orders, the cost per unit is high.
Poor sustainability: Thermosetting resins cannot be melted down and recycled; once discarded, they can only be landfilled or incinerated, which is inconsistent with the trends of a circular economy.
Appearance and Texture: Difficult to clean, monotonous colors, and hard to match with modern interior design styles.
In actual projects, it is recommended to develop a four-dimensional evaluation model comprising “environment, load, specifications, and cost”:
Environmental Factors: Specify temperature and humidity ranges, concentrations of corrosive media, UV radiation intensity, risks of mechanical shock, and EMC requirements.
Load Considerations: Calculate internal heat generation, wire cross-sectional area, and short-circuit current levels. For high-current or high-density wiring, metal enclosures should be prioritized to facilitate heat dissipation; for small-signal short circuits, heat dissipation requirements may be relaxed.
Regulatory Requirements: Review local electrical codes, industry standards, and the owner’s technical specifications. In explosion-proof, fire-resistant, and medical facilities, certified products must be used; compliance must not be compromised based on experience alone.
Cost Perspective: Distinguish between initial procurement costs and full life-cycle costs. For critical infrastructure, appropriately increasing the initial investment in exchange for long-term reliability is often the optimal solution.
Even the best junction box will fail if installed improperly. Key considerations include:
Seal Integrity: After installation, the waterproof enclosure must undergo an airtightness or water spray test. The sealing rings must not be twisted, deteriorated, or missing; matching waterproof cable glands must be used at the cable entry and exit points. Wrapping them directly with tape is prohibited.
Grounding Continuity: The connection resistance between metal boxes, between a box and a conduit, and between a box and the PE conductor must be less than 0.1. Use dedicated grounding terminals; do not use the box threads as a grounding path.
Fill Rate Control: The total cross-sectional area of the wires inside the box must not exceed 40% of the box’s net cross-sectional area to ensure adequate heat dissipation and space for pulling wires; when multiple wires are laid side by side, gaps must be left between them.
Labeling and Documentation: Each junction box should be clearly labeled with a number that corresponds to the drawings; the as-built documentation should include the wiring diagrams inside the box, test records, and product certificates of conformity to serve as a basis for future operation and maintenance.
The Green Materials Revolution: Bio-based plastics, post-consumer recycled (PCR) plastics, and recyclable thermoplastic composites are currently being developed and promoted to meet carbon neutrality goals.
Digital Convergence: Built-in RFID tags enable full-lifecycle traceability of assets; integrated wireless sensor nodes transform junction boxes into IoT sensing endpoints.
Prefabrication and Modularization: Factory-pre-wired and pre-tested plug-and-play junction box assemblies significantly reduce on-site work time and human error, aligning with trends in prefabricated construction and smart manufacturing.
Alignment with International Standards: Standards are continuously updated to promote global mutual recognition of products, while domestic companies are accelerating their participation in the development of international standards to enhance their influence.
Although low-voltage junction boxes are “minuscule components” in electrical systems, they shoulder the monumental responsibility of ensuring safe, reliable, and efficient operation. From PVC to SMC, and from manual wiring to smart monitoring, their evolutionary history serves as a microcosm of technological progress in electrical engineering. Only by deeply understanding the wide variety of types, the differences in materials, and the pros and cons of each can engineers precisely identify the optimal solution from among countless options, ensuring that every junction box becomes a solid bulwark safeguarding light and safety. When selecting materials and designing, please keep in mind: safety is always the non-negotiable bottom line, and the right fit is the ultimate value for money.
