Within the vast framework of modern logistics and supply chain management, storage containers are not merely vessels for holding goods; they are the “building blocks” that connect the various stages of production, storage, and transportation. For a long time, traditional storage cages have dominated the market due to their foldable and easily stackable design. However, as manufacturing becomes increasingly precision-oriented and heavy-duty, and as lean production places ever-higher demands on logistics turnover efficiency, the limitations of traditional storage cages have become increasingly apparent: issues such as small items falling through the bottom mesh, weight-bearing capacity bottlenecks, and insufficient mobility have become major pain points hindering logistics efficiency.

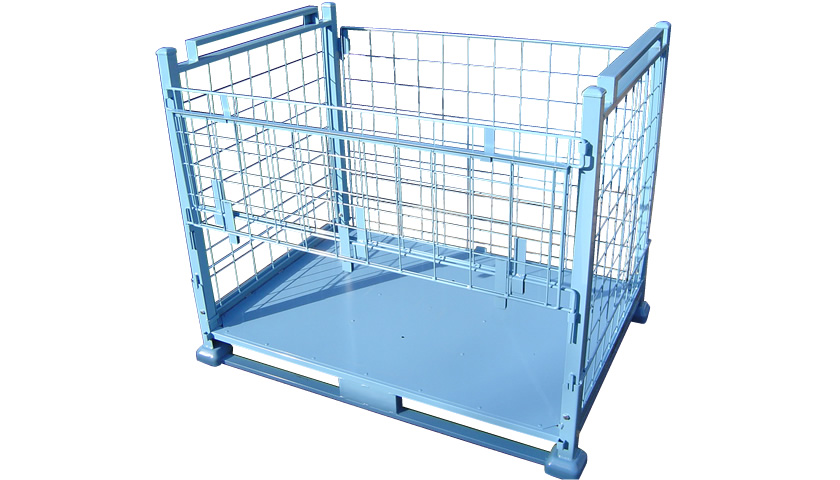

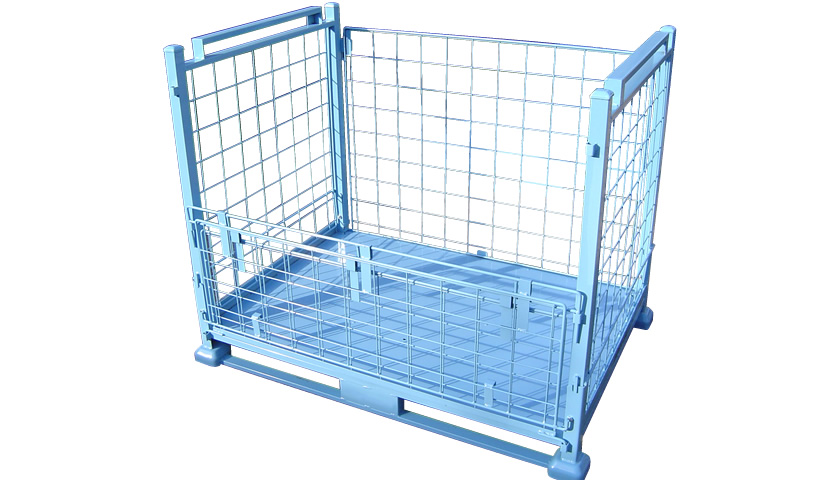

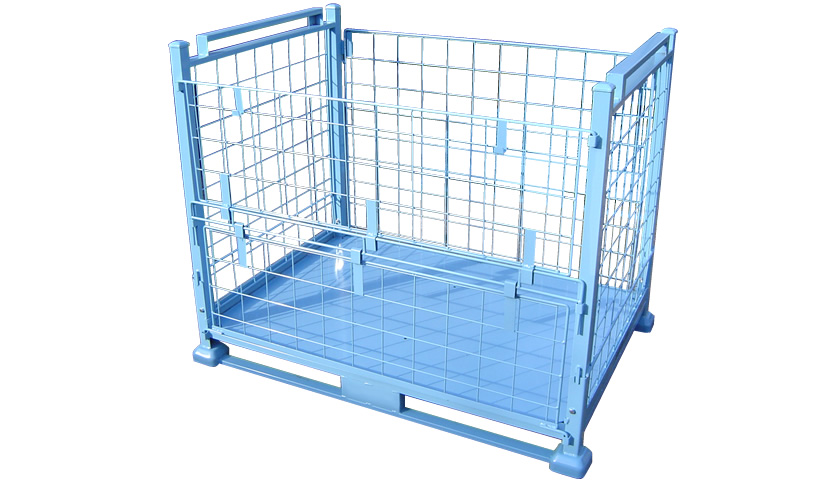

It is against this backdrop that a new type of metal folding mesh container has emerged. It is not a simple imitation of traditional storage cages, but rather a profound improvement based on real-world application scenarios. As shown in the figure, the most notable feature of this product is its fully flat steel plate base design. This structural change not only completely resolves load-bearing and leak-proofing issues but also offers unlimited possibilities for adding accessories such as casters, transforming it from a simple “storage container” into a multifunctional “logistics cart.” This article will thoroughly analyze the fundamental differences between this metal folding mesh bin and traditional storage cages, and comprehensively explore its unique value in modern industrial settings.
This is the most fundamental difference between the two, and it is also the key factor that determines their distinct application scenarios.
In pursuit of maximum lightweight design and low cost, traditional storage cages typically feature a bottom made of a mesh welded from cold-drawn steel wire or spaced U-channel steel. While this design reduces the cage’s weight, it introduces two critical weaknesses:
Poor load distribution: The load is primarily concentrated on a few wires or channel beams, so placing heavy objects with a small base area can easily cause the base to deform or even break. The dynamic load capacity of standard storage cages is typically limited to between 500 kg and 800 kg.
Poor material compatibility: For screws, nuts, powdered materials, or small electronic components, the mesh bottom is not suitable; not only do these items easily fall through, but they can also get stuck and damage the product.
The metal folding cage shown in the figure features a bottom made from a single piece of cold-rolled steel plate that has been stamped into shape and fully welded to the surrounding frame for reinforcement.
Exceptional Load-Bearing Capacity: The flat base evenly distributes the load across the entire frame, enabling the static load-bearing capacity to easily exceed 1,000 kg; some reinforced models can even reach 2 metric tons. This means it can safely support high-density, heavy objects such as engine blocks, large molds, and dense bundles of metal bars.
Zero risk of spillage: The enclosed base plate eliminates any risk of fine materials falling out, making it particularly suitable for automotive parts assembly lines, metalworking shops, and similar environments, ensuring a clean and safe floor.
Cleaning and Maintenance: Compared to wire mesh, which tends to accumulate dust, rust, and is difficult to clean, the smooth surface of steel plates can be easily cleaned with a simple wipe or rinse, meeting higher hygiene and maintenance standards.
Traditional storage cages were originally designed primarily for storage—specifically, for use with forklifts in high-rack storage or ground-level stacking. In contrast, the design philosophy behind this metal folding mesh cage is geared more toward material handling—that is, high-frequency movement on the production floor.
Thanks to its sturdy flat base and reinforced bottom frame, this net cage is an ideal platform for mounting casters.
Flexible Configuration: Depending on their needs, users can flexibly assemble either a combination of 2 fixed-direction casters and 2 swivel casters, or 4 swivel casters, using the mounting holes provided at the four corners of the base.
Brakes and Safety: More importantly, it can be easily fitted with heavy-duty casters equipped with brakes. When temporarily storing items next to an assembly line, simply engage the brakes to use it as a stable workbench or storage rack; when you need to move it, release the brakes to roll it along. This “cart-like” functionality is difficult to achieve with ordinary mesh storage cages, as their mesh bases cannot securely accommodate wheel brackets.
In today’s warehouse environment, where space is at a premium, vertical space utilization is crucial. Although traditional storage cages can also be stacked, their mesh or channel steel bottoms result in a small contact area between layers, making them prone to wobbling when fully loaded. In contrast, the flat base plate or reinforced frame base of metal folding mesh crates provides a larger contact surface for support. Combined with the positioning grooves on the top, this allows for multi-tier stacking (typically 3–4 tiers) that is as stable as building blocks, significantly reducing the risk of tipping and enhancing safety.
To live up to its “heavy-duty” positioning, this metal folding crate makes no compromises in terms of materials or craftsmanship.
Steel Selection: The main frame is typically made of Q235 high-quality carbon structural steel, which offers high strength and good ductility, enabling it to withstand severe impacts without fracturing. For the base, depending on load-bearing requirements, anti-slip checkered plate or flat plate with thicknesses ranging from 1.5 mm to 3.0 mm is selected. This ensures sufficient strength while increasing friction to prevent cargo from sliding.
Welding Process: Unlike traditional storage cages, which rely heavily on spot welding, the key load-bearing points of this mesh cage—such as the four corners of the base and the column joints—are all welded using CO₂ gas shielded welding or robotic automated welding. The welds are full and uniform, providing extremely high tensile strength and ensuring structural integrity during long-term heavy-load operations.
Surface Treatment: The blue finish shown in the image is typically achieved through electrostatic powder coating following acid washing and phosphating. This not only gives the product an attractive appearance but, more importantly, forms a dense protective coating that is resistant to acids and alkalis. It is corrosion-resistant and does not rust easily, even in humid workshop environments, and has a service life far exceeding that of ordinary galvanized storage cages.
Although it offers enhanced load-bearing capacity and functionality, it still demonstrates the wisdom of minimizing its footprint.
Foldable Storage: When empty crates are returned or not in use, the four side panels can fold inward like a flip-top lid, reducing the folded volume to about 20% of the unfolded size. This means a single truck can transport five times as many empty crates, significantly reducing reverse logistics costs.
Standardized Dimensions: The cages in this series typically adhere to international standard modular dimensions (such as 1000 × 800 mm, 1200 × 1000 mm, etc.), allowing them to fit perfectly onto standard pallets (1200 × 1000 mm) and within the interior space of shipping containers. This enables the entire process—from the supplier to the production line—to proceed without the need to unload pallets or change containers, significantly reducing the number of handling operations and labor costs.
In summary, this metal folding mesh cage is by no means a simple substitute for traditional storage cages; rather, it is an upgraded logistics solution tailored to meet the demands of heavy-duty, precision, and mobile applications. By focusing on the flat base plate as its core innovation, it successfully addresses the challenges of load-bearing capacity and leak prevention; and by extending this design to ensure compatibility with casters, it breaks down the barriers between static storage and dynamic circulation.
For companies undergoing industrial upgrading and pursuing lean manufacturing, choosing a high-performance folding mesh container like this is not merely about purchasing a container—it is about adopting a more efficient, safer, and more flexible on-site logistics solution. In the smart manufacturing factories of the future, we have every reason to believe that this type of multi-functional logistics equipment—which combines heavy-duty capacity, mobility, and storage—will play an increasingly important role.
