PP hollow board partition liners are typically manufactured from extruded PP hollow boards. Their core structural feature is a corrugated cross-section; this biomimetic mechanical structure provides the material with extremely high compressive strength and cushioning performance.
"Partitioning" refers to the use of hollow panels—through cutting, welding, riveting, or interlocking—to create matrix-style, honeycomb-style, or customized partitioned spaces; while "lining" refers to the protective layer affixed to the interior of shipping containers, material racks, or pallets. When combined, these two elements form a unitized packaging system that integrates physical separation, surface protection, and load-bearing support. It primarily addresses pain points such as impact damage, scratches, material mix-ups, and deformation from stacking that occur during the transportation and storage of precision components. Compared to traditional packaging, it serves not only as a container accessory but also as a standardized interface between production lines and logistics chains, fulfilling multiple functions including information transfer, compatibility with workstation tools, and adaptation to automated production lines
To understand the technical aspects of hollow-core panel partition liners, one must first conduct an in-depth analysis of the characteristics of their base material. Compared to ordinary solid plastic sheets, hollow-core panels offer unique performance advantages, which form the foundation for their engineering applications.
Hollow core panels exhibit an extremely high modulus of bending in the MD direction, while the TD direction is relatively weaker. Professional partition designs must fully account for this anisotropy by using the vertical rib direction as the primary load-bearing axis. Through cross-joining or ultrasonic welding, bidirectional stress can be balanced, enabling the overall structure’s vertical compressive strength to reach 300–800 kg/m² or higher, thereby meeting the requirements for multi-layer stacking. Furthermore, the number of ribs per unit density directly affects stiffness; high-density ribs are suitable for heavy-load applications, while low-density ribs strike a balance between weight reduction and cost.
The density of PP hollow panels typically ranges from 0.6 to 0.9 g/m³, which is only one-tenth that of steel and one-third that of wood for the same volume. While ensuring the same level of protection, the barrier liners are extremely lightweight, which significantly reduces transportation costs. At the same time, their lightweight nature reduces the physical strain of manual handling, meets ergonomic requirements, and lowers the risk of workplace injuries.
Industrial-grade PP material offers excellent resistance to acids, alkalis, oil, water, and moisture. Unlike corrugated cardboard, which suffers a sharp drop in strength when it absorbs moisture, hollow-core partition panels can maintain more than 90% of their physical strength even in an environment with 95% relative humidity. Furthermore, by adding antistatic agents, conductive carbon black, or UV stabilizers, specialized partition panels with antistatic, conductive, and outdoor weather-resistant properties can be developed to meet the specific operating conditions of electronic component manufacturing or automotive paint shops. For machined parts that come into contact with oils and cutting fluids, the inert nature of PP material ensures that the packaging will not react chemically with or contaminate the workpieces.
The surface of untreated honeycomb panels is relatively smooth, which may cause parts to slip. In professional applications, the surface friction coefficient is often adjusted through processes such as corona treatment, flocking, EVA foam lamination, or embossing. These methods not only prevent parts from slipping but also avoid micro-scratches caused by hard contact. In certain high-end applications, flocking or soft TPU coating is also used to create a contact interface that combines rigidity and flexibility, ensuring optimal support while providing ultimate surface protection.
The operating temperature range for PP hollow panels is typically -20°C to 60°C. Within this range, their dimensional change rate is extremely low, ensuring the fitting accuracy of the partitions in cold chain or high-temperature workshop environments. However, creep or embrittlement may occur outside this range; therefore, modified materials must be selected for special temperature-controlled applications to ensure long-term dimensional stability.
Plastic hollow-core panel partition liners are not off-the-shelf products, but highly customized engineering products. Their design directly determines their protective effectiveness, space utilization, and compatibility with automation systems.

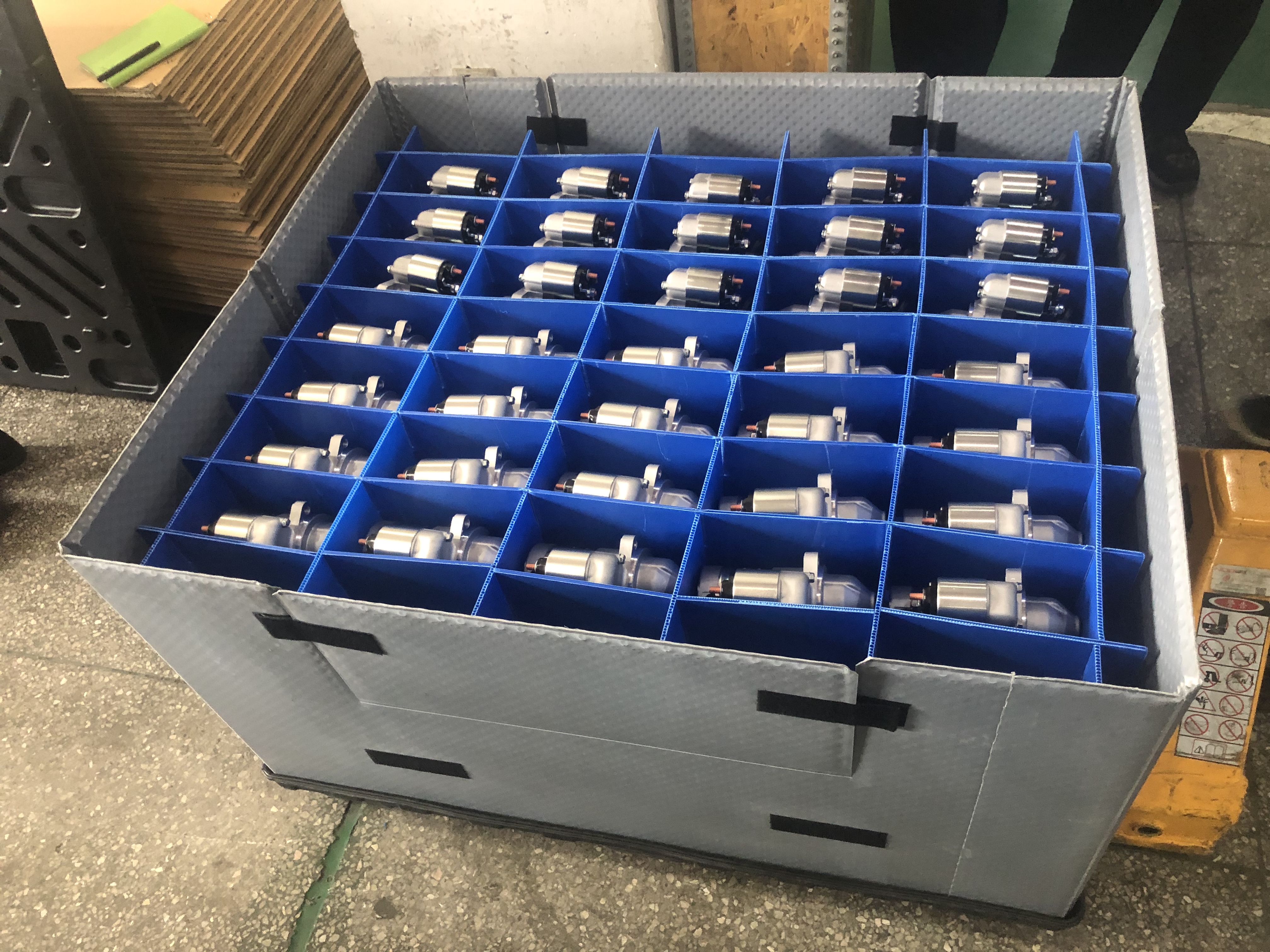

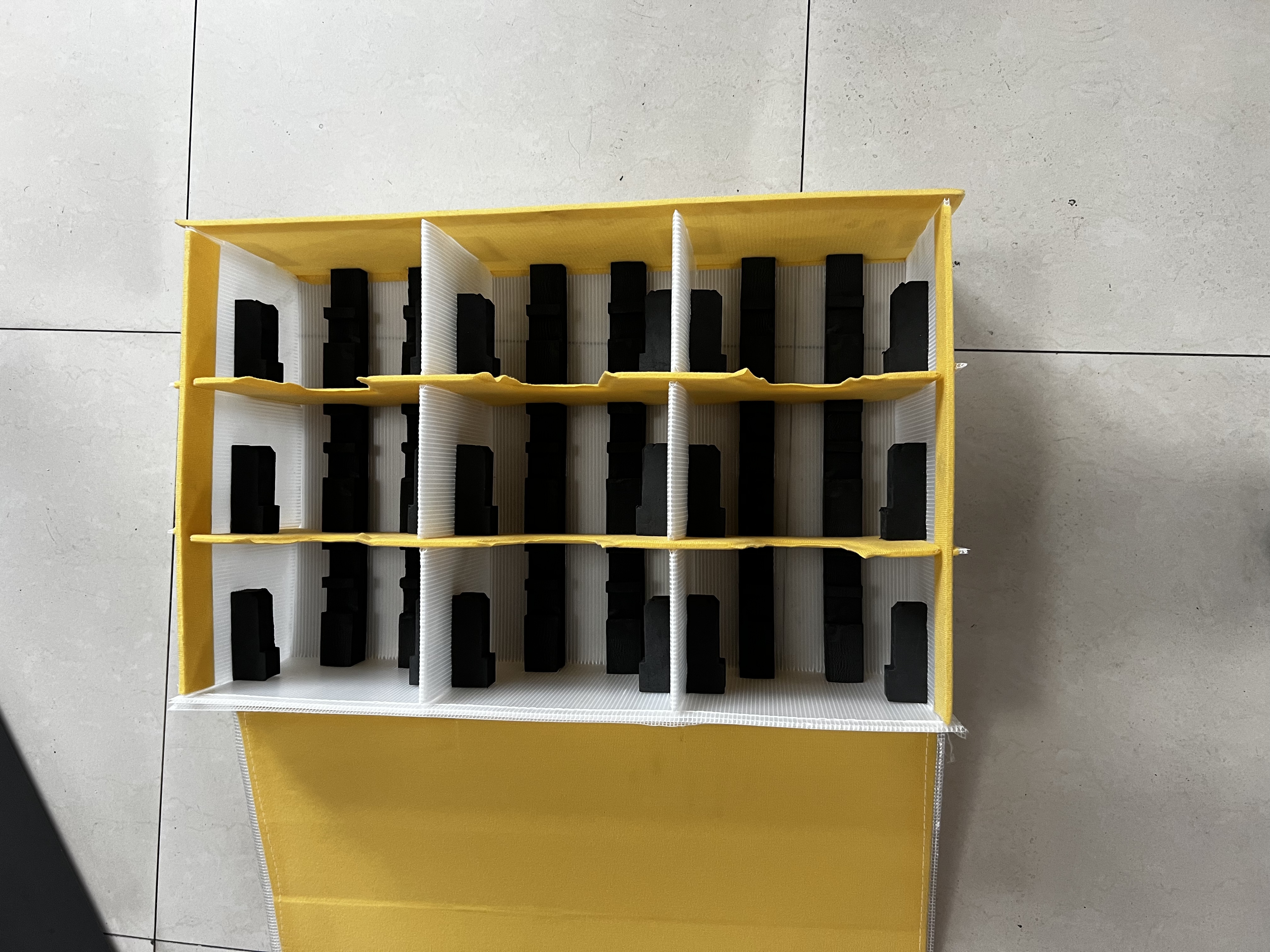

Grid-type dividers: The most basic design, suitable for regular square parts. Secured by interlocking or welding the vertical and horizontal slats, they are low-cost and highly versatile. Ideal for standardized packaging of high-volume, low-variety products.
Blade Car Blocking: Utilizing interlocking grooves along the edges of the panels, this system requires no glue or solder joints, allowing for flexible assembly and disassembly. It facilitates the replacement of locally damaged components and is ideal for switching between multiple product varieties in small batches. Its modular design enables a single outer box to accommodate different products by simply replacing the internal blade cards, greatly enhancing the flexibility of packaging assets.

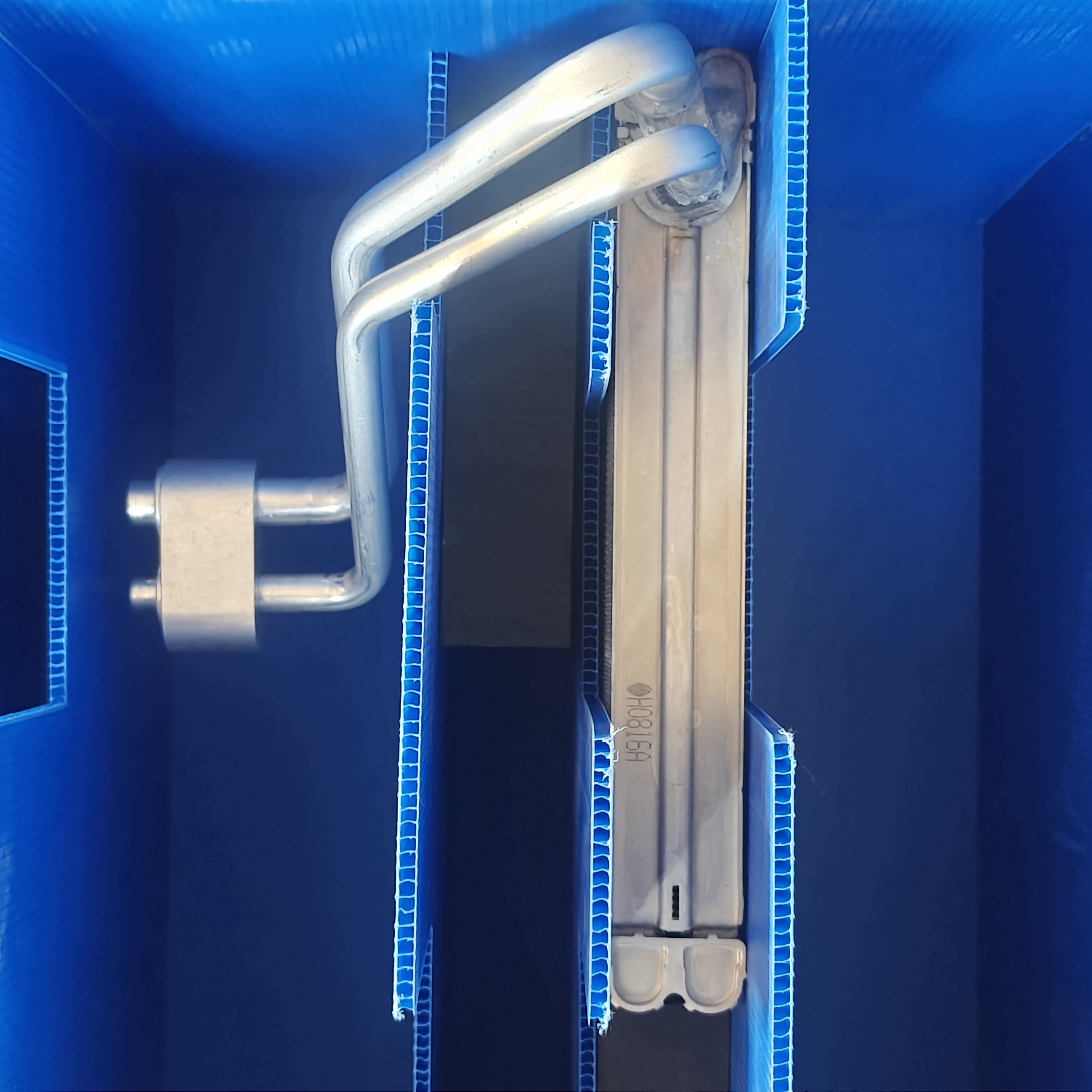

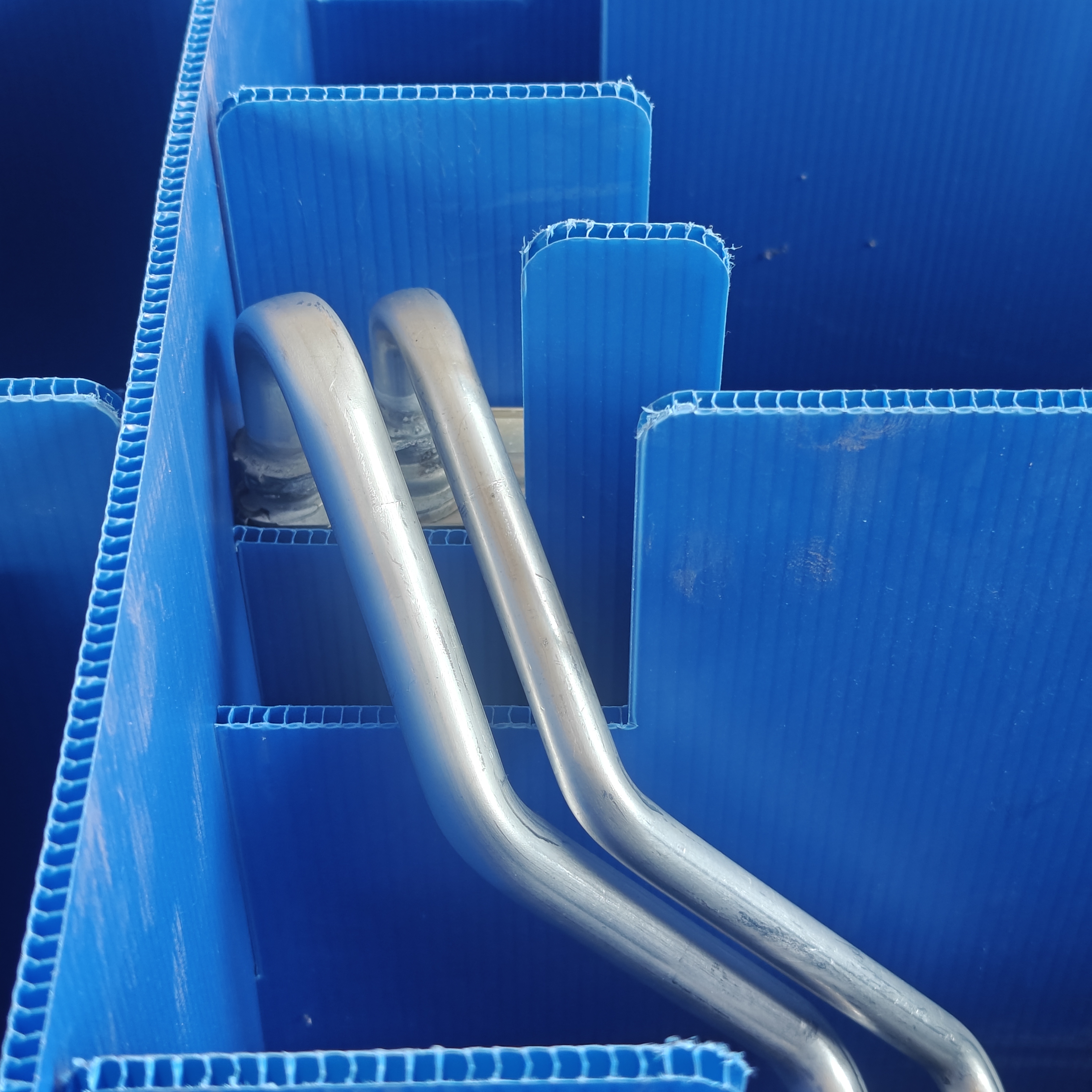

Custom-Shaped Retaining Trays: Designed for irregularly shaped parts such as gears, bearings, and connectors, these trays are manufactured using CNC machining or hot-press molding to achieve precise “one slot per part” positioning, thereby maximizing the use of the enclosure’s volume. This type of design often incorporates mechanical simulations based on the distribution of the parts’ centers of gravity to ensure even stress distribution during transport.
Foldable Liner: Special creasing is applied along the folds of the panels, allowing the liner to fold and stow away with the box, reducing return shipping volume by 60%–80%. This is particularly suitable for cross-border logistics or long-distance pick-up and return operations.
Suspension/Elastic Support Structure: For highly sensitive precision instruments, elastic elements are integrated into the bottom or side walls of the enclosure to form a two-stage damping system that isolates the instrument from external vibrations.
Ultrasonic Welding: Compared to hot-melt adhesive bonding, ultrasonic welding achieves a molecular-level bond that offers high strength, no adhesive overflow, and no contamination, making it the preferred joining method in the high-end electronics and automotive industries. Welding parameters must be precisely set based on the thickness and material of the panels to prevent incomplete welds or over-welding that causes perforations.
CNC Cutting and Die-Cutting: Ensure dimensional accuracy of the dividers is maintained within ±0.5 mm to guarantee a perfect fit with standard shipping containers (such as EU boxes and HP boxes), thereby preventing wobbling caused by excessive tolerances or difficulty in loading and unloading due to an overly tight fit. High precision is also a prerequisite for automated handling.
Sealing and Edge-Banding Processes: The cut edges of hollow boards are prone to burrs and dust. Professional manufacturers heat-seal or apply U-shaped edge bands to all exposed edges to completely prevent plastic debris from contaminating precision parts. The heat-sealing temperature and speed must be precisely matched to ensure a smooth, warp-free seal.
Printing and Marking Integration: Using screen printing, inkjet, or laser marking technologies, part numbers, flow direction arrows, error-proofing markings, and other information are printed directly onto the dividers. Compared to applying labels, direct printing is more wear-resistant, prevents label peeling, and eliminates the issue of adhesive residue.
Online Inspection and Sorting: Our state-of-the-art production lines are equipped with vision inspection systems that automatically identify the weld quality, dimensional deviations, and surface defects of the partitions, removing non-conforming products to ensure consistency in the final product.
The demand for hollow-core panel partitions varies greatly across different industries, and specialization is reflected in our precise response to industry pain points.

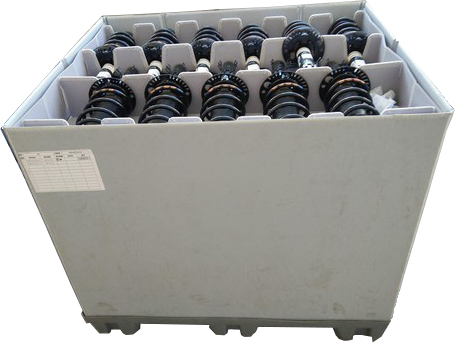

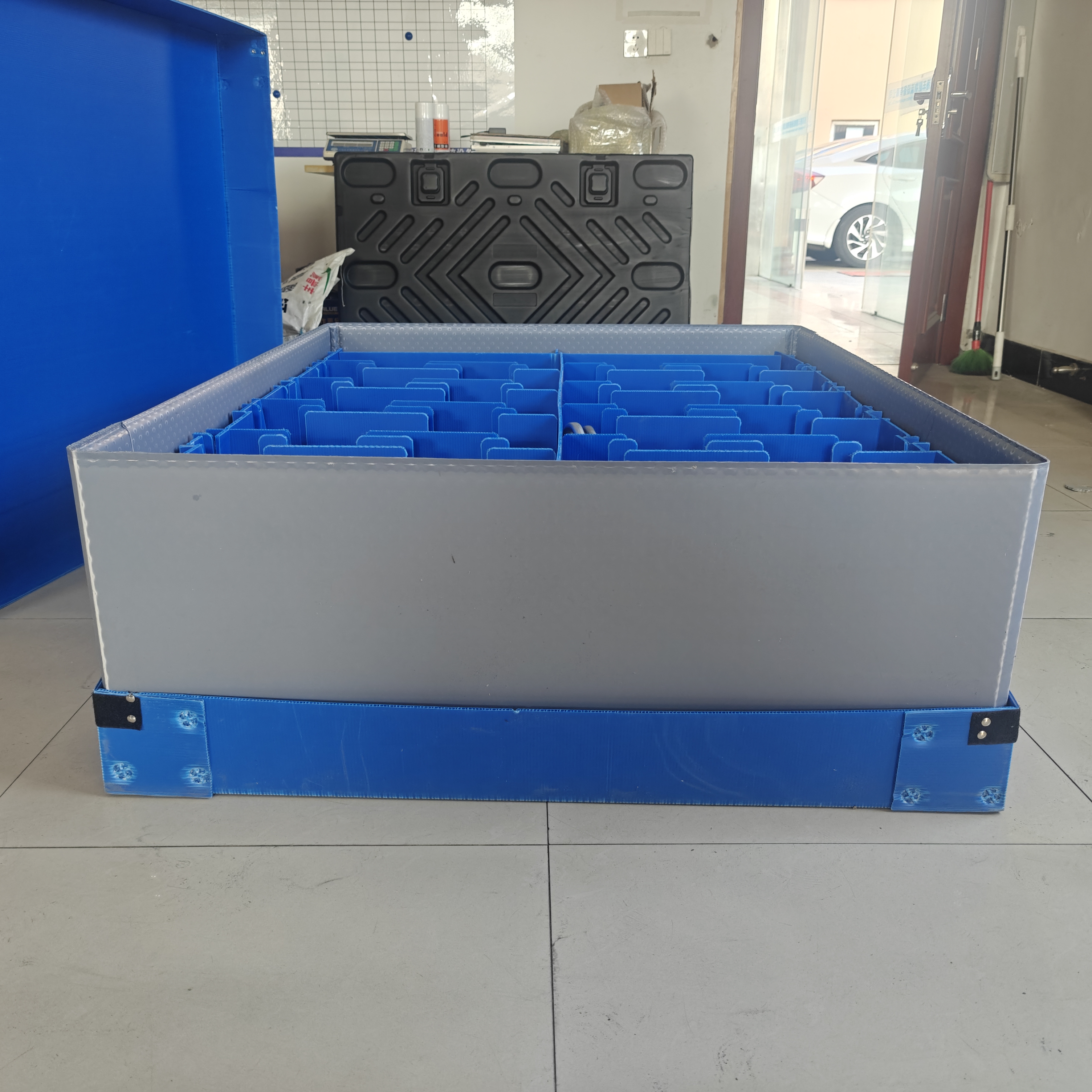

The automotive supply chain is the largest application market for hollow partition panels. High-value components such as engine valves, transmission gears, and headlight assemblies commonly utilize a solution combining pallet boxes with hollow partition panels. Dividers not only serve to separate components but also integrate functions such as dust covers and label slots. For new energy battery modules, specially designed dividers that meet V-0 flame retardancy standards and provide electrically conductive shielding are required to prevent the risks of short circuits and thermal runaway. Additionally, automotive OEMs often require color-coded management of dividers to enable visual quality control.
This field has high requirements for cleanliness and electrostatic control. Hollow-core partition panels must undergo rigorous ion-air dust removal and ESD testing (surface resistivity of 10⁸–10⁹ Ω). The design typically employs a suspended structure to prevent stress on component leads; this is combined with the use of clean bags to create a micro-level protective environment. For FOUP internal liners, Class 1 cleanliness is even required, and assembly and packaging must be completed in a Class 100 cleanroom during the production process.
Brittle materials such as silicon wafers and glass substrates are extremely sensitive to vibration. In such situations, honeycomb panels serve as dampers; by adjusting the spacing between the ribs and the panel thickness to match specific natural frequencies, they absorb high-frequency vibration energy during transport and reduce the breakage rate. At the same time, because photovoltaic modules are large and heavy, these panels are often used in combination with metal frames to form a steel-plastic hybrid structure that balances strength and cushioning.
Taking advantage of PP material’s non-toxic, odorless, and low-temperature-resistant properties, hollow-core partition panels are widely used to separate vaccines and reagent vials. Their ease of cleaning and ability to withstand high-temperature sterilization fully comply with GMP standards, eliminating the risk of mold growth associated with paper packaging. In the transport of biological samples, these partition panels must also provide an airtight seal to help maintain a constant temperature environment when used in conjunction with dry ice or phase-change cooling agents.
The reliability requirements for packaging in this field are extremely stringent. Hollow-core partition panels must pass environmental testing in accordance with military standards, including a full suite of tests such as random vibration, shock, salt spray, and mold resistance. Complete traceability documentation must be provided for the materials, and samples from each batch must be retained for inspection. The design emphasizes a safety margin to ensure reliability even under extreme operating conditions.
Professional suppliers of hollow boards should establish a comprehensive quality control system that covers the entire process, from incoming materials to shipment. Key indicators and testing methods include:
Raw Material Acceptance Testing: PP pellets are tested for MFI, ash content, moisture content, and additive content to ensure batch consistency. Recycled materials require additional testing for impurity content and mechanical property degradation rate.
Weight and Thickness Tolerances: These are the foundation for determining strength and must be inspected on a random basis for each batch. Using precision thickness gauges and electronic balances, tolerances are typically controlled within ±5%.
Peel Strength Test: For welded barriers, this test verifies the strength of the welds to prevent cracking during transportation. It is conducted using a tensile testing machine in accordance with ISO 4578.
Drop Impact Test: Simulates accidental drops to evaluate toughness. A standard steel ball is dropped from a specified height to observe whether the panel cracks or delaminates.
Compression-Crawl Testing: To verify the amount of deformation under long-term stacking loads and ensure warehouse safety. A constant load is applied under constant temperature and humidity conditions. Deformation curves are recorded at various time intervals.
Cleanliness and Particle Release Testing: For electronics and pharmaceutical-grade products, particle emission levels must be tested in Class 100 and Class 1,000 environments. Liquid particle counters or the sedimentation method are used.
ESD Performance Verification: Using a surface resistance tester and an electrostatic decay tester to ensure that the anti-static shield maintains stable performance throughout its entire lifecycle.
RoHS/REACH Compliance: Ensures the absence of heavy metals and harmful organic compounds, meeting export requirements. Products are regularly sent to third-party laboratories for comprehensive testing.
Functional Validation: Conduct assembly tests using actual returnable containers to verify smooth insertion and removal, positioning accuracy, and compatibility with automated equipment. Conduct simulated transport tests with actual loads as necessary.
With the advancement of smart manufacturing and green logistics, plastic hollow-core panel partition liners are showing the following trends:
Smart Integration: By embedding RFID tags, NFC chips, or flexible sensors into the partitions, these units enable digital identity binding and status monitoring for packaging units, bridging the gap between physical packaging and digital twins. Smart partitions provide real-time feedback on inventory location, turnover rates, and the timing of anomalies, thereby enhancing supply chain visibility.
Applications of Bio-based and Recycled Materials: In response to carbon neutrality goals, the use of PCR PP or bio-based PP to manufacture barriers will become the mainstream approach. Technically, the issue of performance degradation in recycled materials must be addressed, and performance standards must be maintained through blend modification and structural compensation design. At the same time, carbon footprint certification will become a new requirement for supplier qualification.
Modular and Parametric Design: Using AI-assisted design software, the system automatically generates the optimal shielding topology based on a part’s 3D model and rapidly produces prototypes via 3D printing for validation, significantly shortening the development cycle. Parametric design also supports self-service configuration by customers, improving response times.
Circular Economy Model: Shifting from selling products to selling services, suppliers provide one-stop managed services—including leasing, cleaning, maintenance, and recycling—to reduce the burden of asset ownership for customers and promote the social sharing of packaging. The application of blockchain technology can enhance trust and transparency throughout the circular process.
Multifunctional Integration: In the future, barriers will no longer be merely physical dividers, but rather smart carriers that integrate multiple functions—such as cushioning, conductivity, antimicrobial properties, and indicator capabilities—into a single unit. The cross-disciplinary integration of materials science and microelectronics will give rise to a new generation of packaging solutions.
Improved Standardization and Interchangeability: The industry alliance will promote the standardization of rack interface dimensions, enabling products from different vendors to be interchangeable within the same system, thereby breaking vendor lock-in and fostering market competition and technological progress.
PP hollow board partition liners are by no means simple plastic dividers; rather, they represent a systematic engineering endeavor that integrates materials science, structural mechanics, industrial design, and management science. They serve as a critical link between manufacturing and logistics distribution, and are an indispensable part of the infrastructure for achieving lean logistics and a green supply chain.
For manufacturing companies, selecting a professional hollow board partition solution should not be limited to price comparisons alone; greater emphasis should be placed on the supplier’s design capabilities, manufacturing expertise, quality control systems, and full-lifecycle service capabilities. Only by examining the value of packaging through a systematic lens can companies build a solid cost moat and quality defense through detailed optimization in a highly competitive market environment. In the industrial ecosystem of the future, corrugated plastic partition systems that seamlessly integrate protective functions, the circular economy, and digital intelligence will inevitably become standard equipment in advanced manufacturing, continuously driving the global supply chain toward greater efficiency, safety, and sustainability.
