This is not merely a matter of replacing a container, but rather a precisely engineered system. The outer box provides standardised stacking strength, folding ratio and forklift compatibility, whilst the inner lining fulfils the core functions of product protection, optimised space utilisation and efficient handling. This article will provide an in-depth analysis of the technical characteristics of plastic folding pallet boxes, with a particular focus on the application logic and selection strategies for mainstream inner lining solutions such as thermoformed trays, hollow board dividers, honeycomb board dividers and fabric bag dividers.
Plastic folding pallet boxes are typically made from HDPE or PP, feature a pallet base that complies with ISO standards, and have a foldable sleeve for storage. Their core value is reflected in the following three aspects:
Unrivalled folding ratio: When empty, high-quality folding crates can be compressed to one-third or even one-quarter of their original height. This means that during the return of empty crates, significant savings can be made in both transport costs and storage space.
Standardised unit loads: Unlike the unpredictable strength of cardboard boxes, plastic folding crates offer consistent dynamic (200–500 kg) and static (1,000 kg) load-bearing capacities, support multi-tier stacking, and enable a modular ‘building-block’ effect in warehousing and transport.
Life-cycle cost advantages: Although the cost per use is higher than that of cardboard boxes, after being reused more than 30–50 times, the cost per use is significantly lower than that of single-use packaging. Furthermore, the plastic material is oil-resistant, washable and does not shed particles, making it particularly suitable for workshops with strict cleanliness requirements.
Manufacturing high-performance folding crates is no easy task. The hinge area is particularly prone to fatigue failure, and it is usually necessary to use modified, toughened PP material or to incorporate metal pins to ensure a folding lifespan of tens of thousands of cycles. Furthermore, to be compatible with automated high-bay warehouses, the dimensional tolerances of the crates must be controlled to within a few millimetres, and the base must be designed with anti-slip strips or RFID chip slots to enable digital tracking.
If a folding crate is likened to a skeleton, then the inner lining is its muscles and nerves. An empty crate cannot directly hold precision components or fragile parts; these must be secured in place, positioned correctly and protected by means of an inner lining. The specific product design determines the choice of inner lining; below is an in-depth analysis of four mainstream inner lining technologies.

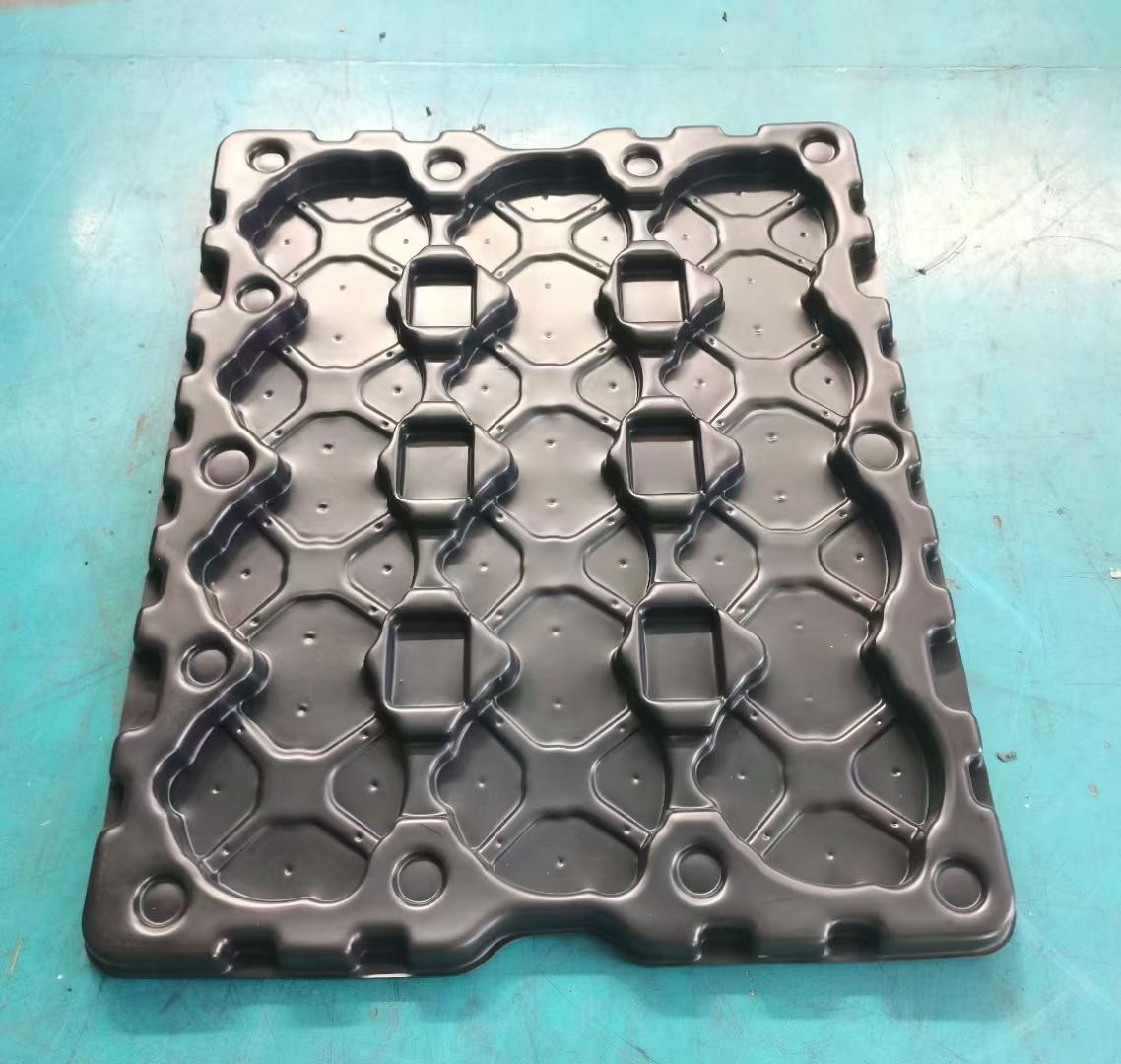

Technical principle: Thermoplastic sheets are heated until softened, then vacuum-formed onto a mould; once cooled, this produces a recessed structure that perfectly matches the product’s contours.
Applications: Automotive components / 3C electronics / Medical devices
Key strengths:
Perfect fit: Designed to perfectly match the three-dimensional geometry of the product, eliminating any movement or impact during transport.
High-density packing: Through nested or staggered arrangements, the number of items packed into a box can be maximised within a limited space.
Anti-static/conductive properties: ESD blister trays are manufactured by adding carbon powder to protect sensitive electronic components.
Automation-friendly: Standardised groove positions facilitate visual recognition and gripping by robotic arms.
Limitations: Mould development costs are high, and this method is only suitable for high-volume, standardised products; if there are changes to the product design, new moulds are often required for the thermoformed trays.

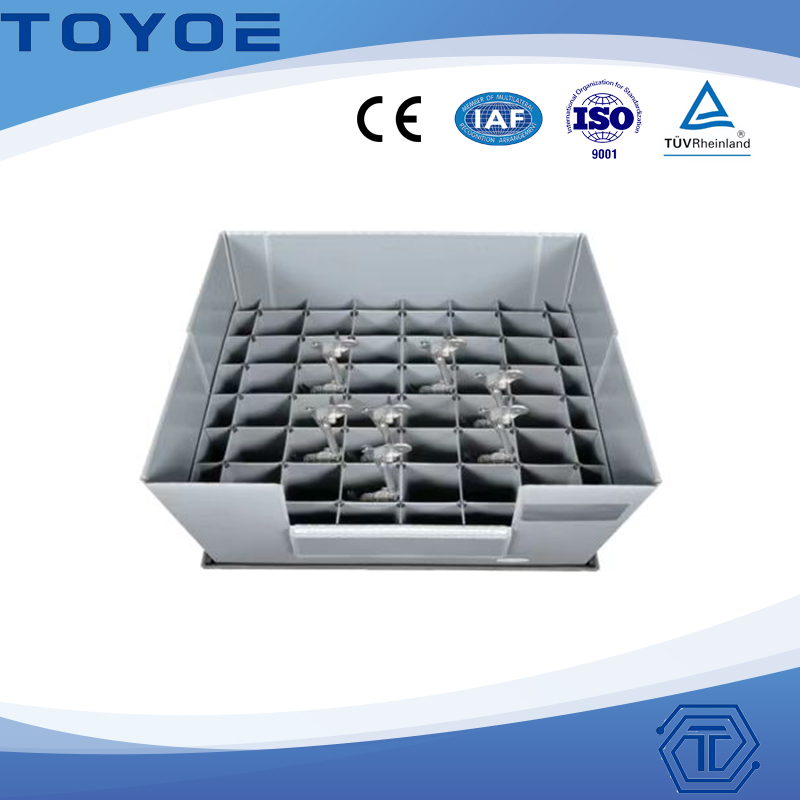

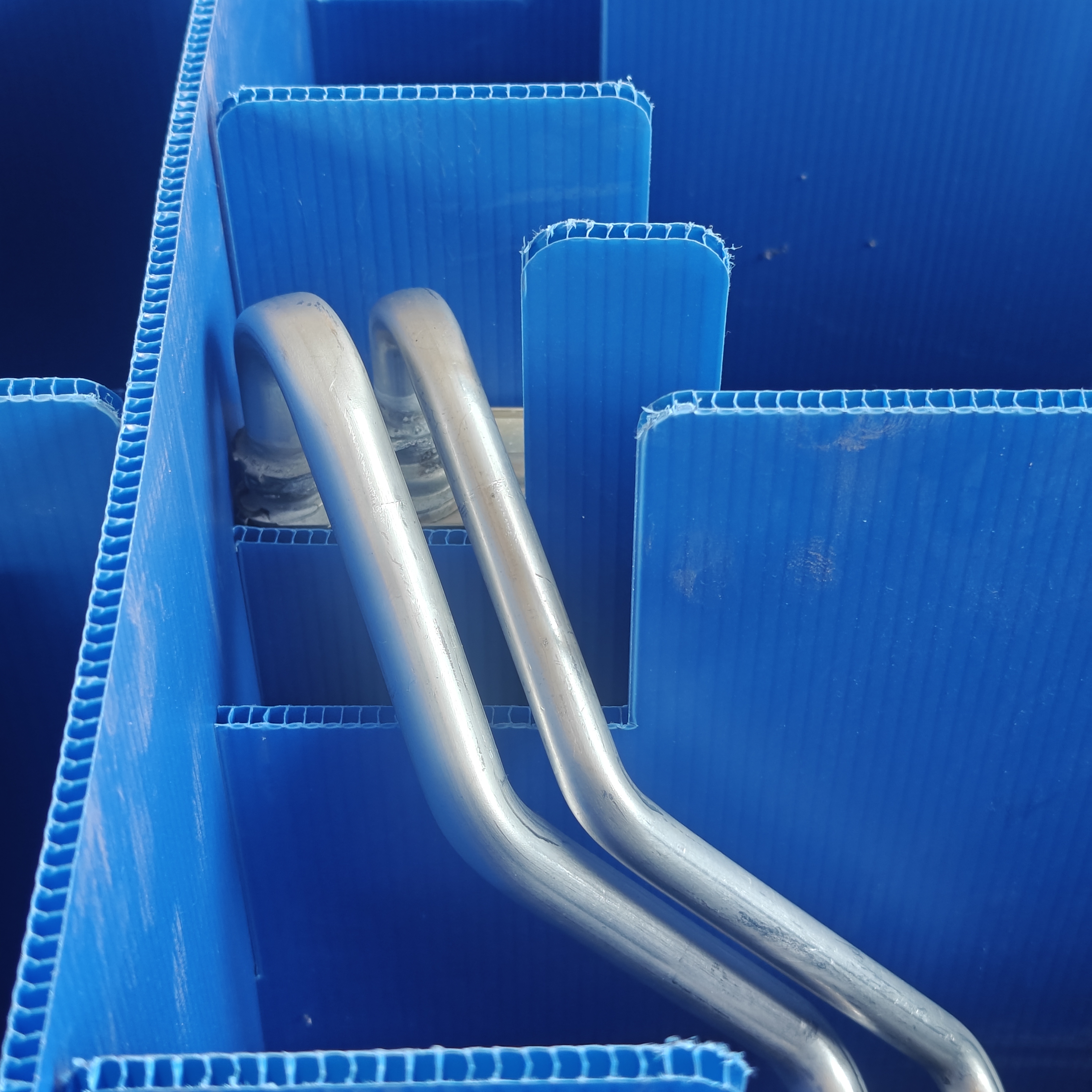

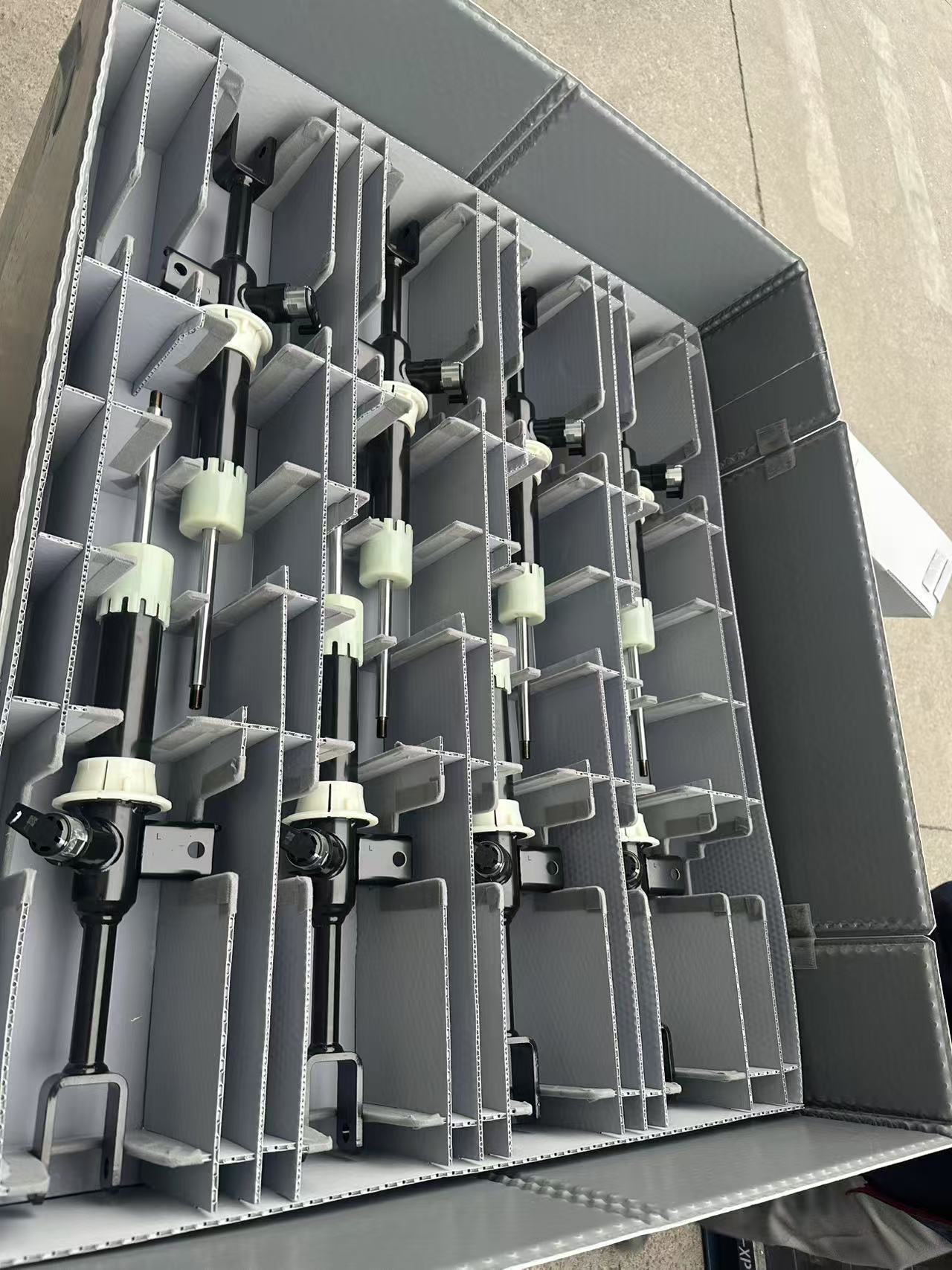

Technical Landscaping: Double-wall corrugated sheets extruded from PP are cut, welded, riveted or assembled using interlocking slots to form a grid-like partition.
Applications: Machined metal parts / glass bottles and jars, cosmetics packaging materials / medium-sized injection-moulded parts
Key strengths:
A balance between lightweight and high strength: the hollow structure means it weighs just one-third as much as a solid sheet, whilst offering excellent vertical compressive strength.
Flexible customisation: no expensive moulds are required; it can be cut using a die-cutting template alone, with short prototyping lead times, making it suitable for small to medium batch production or mixed-product lines.
Waterproof and moisture-resistant: PP material is inherently water-repellent, making it suitable for damp environments or situations requiring wet cleaning.
Edge protection: Burrs can be eliminated through edge sealing to prevent scratches on the surfaces of precision workpieces.
Points to note when selecting a model:Care should be taken to ensure that the weight per unit area matches the dimensions of the partition. Panels that are too thin are prone to buckling under heavy loads, whilst those that are too thick result in a waste of space.
Technical principle: Modelled on the structure of natural beehives, it is formed by bonding two layers of plastic sheeting—one on top and one on the bottom—to a hexagonal core layer in the middle. PP honeycomb panels are used exclusively in high-end industrial packaging.
Applications: Heavy machinery parts / Large household appliance components / Packaging for export by sea
Key Advantages:
Exceptional compressive strength: For the same weight, the honeycomb structure offers far greater compressive strength than corrugated cardboard and hollow-core boards, and can withstand extremely high vertical stacking loads without collapsing.
Shock absorption and energy dissipation: The unique porous structure provides excellent shock absorption, making it a suitable alternative to foam plastic as a cushioning material.
Environmental Compliance: Paper honeycomb panels are fumigation-free and 100% recyclable, serving as a ‘green passport’ for exports to the EU and other regions.
High Flatness: With a smooth surface, they are suitable for printing graphics or affixing labels, and offer a superior appearance and texture compared to hollow core boards.
Limitations:Traditional paper-faced honeycomb panels are susceptible to water and damp; PP honeycomb panels are relatively expensive.

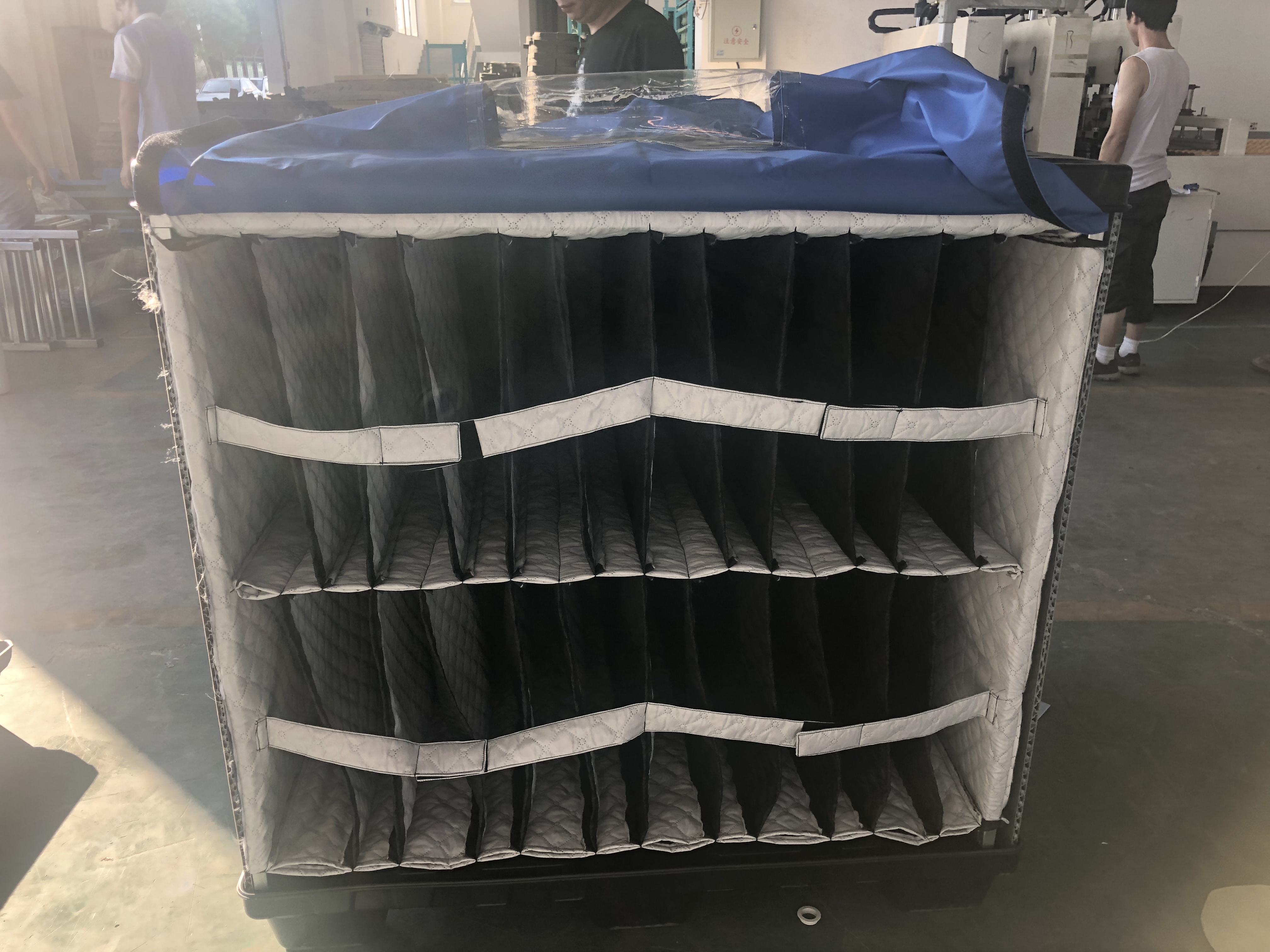

Technical principle: Flexible partitions are sewn from canvas, non-woven fabric, nylon or specialised fabrics to form multiple pockets; they are typically suspended from the inner walls of folding boxes or used in conjunction with a frame.
Applications: Automotive wiring harnesses, hoses, sealing strips and other irregularly shaped flexible components; polished or electroplated parts with surfaces that are highly susceptible to scratching; and products with irregular shapes that cannot be secured using rigid dividers.
Key Advantages:
Flexible protection: The fabric is soft to the touch, fundamentally eliminating the risk of scratches caused by hard contact.
High adaptability: The fabric bags possess a degree of elasticity, making them compatible with similar products of slightly varying dimensions and ensuring excellent versatility.
Dust-proof and breathable: Suitable for products that require a high level of cleanliness whilst still needing to breathe (such as certain rubber components).
Convenient storage: Empty crates can be lost, whereas fabric bags can be folded and rolled up, taking up virtually no space when returned empty.
Limitations:It offers poor structural support and cannot withstand the pressure of stacking; it is intended solely for use as a horizontal divider. Cleaning and maintenance are relatively troublesome, as it is difficult to clean thoroughly once oil stains have penetrated the material.
In actual projects, the choice of lining is by no means a one-dimensional comparison, but rather a comprehensive decision based on QCD.
Blister Tray | Corrugated Plastic Divider | Honeycomb Board Divider | Fabric Separator | |
Weight | Low-Medium | Medium | High | Low |
Shape | Complex/Irregularly shaped | Rules/Blocks | Bulky/Flat | Flexible/irregular |
Protection rating | ⭐⭐⭐⭐⭐ | ⭐⭐⭐ | ⭐⭐⭐⭐ | ⭐⭐⭐⭐ |
Investment in moulds and tooling | High | Low | Medium | Low |
Applicable batch size | >50,000pcs/year | 10000-50000pcs/year | Depending on the material | Wide range of products, small batches |
Return-to-empty efficiency | Nested is better; otherwise, it’s not so good | Detachable and foldable | Generally | Excellent |
Cleanliness | High | Medium | High | Medium |
A skilled packaging engineer would never design the box and its inner lining as separate entities.
Pre-installed slots: During the injection moulding of folding crates, slots or guide rails for the inner liners are incorporated directly into the side walls to avoid the need for retrofitting metal brackets, thereby reducing the risk of foreign objects falling out.
SNP synchronisation: The number of compartments in the inner liner should match the production line’s cycle time and distribution frequency. For example, if an OEM consumes 20 units per hour, the inner liner should be designed with 20 compartments per crate to ensure precise distribution.
Ergonomics: For scenarios involving manual loading and unloading, the height of the inner liner should not exceed two-thirds of the box’s depth, or it should be designed with a stepped or pull-out structure to prevent operators from leaning in too far and sustaining back injuries.
Inner liners are often the first components to fail in a reusable packaging system. Companies should establish a grading system for inner liners:
Grade A: In good condition and fully functional; ready for use on the production line.
Grade B: Showing minor wear but still providing adequate protection; downgraded for use in internal circulation or for packaging spare parts.
Grade C: Damaged or severely soiled; sent for cleaning and repair or scrapped and recycled.
In particular, for thermoformed trays, regular checks should be carried out to determine whether the depth of the grooves has been affected by creep deformation due to prolonged pressure; for fabric bag dividers, standards for cleaning frequency should be established to prevent cross-contamination.
As the ESG philosophy gains traction, the transition towards bio-based and recycled materials for interior trim is accelerating. rPET thermoformed trays, PLA honeycomb panels and recycled PP hollow panels are gradually finding their way onto the procurement lists of leading car manufacturers and electronics giants. This not only meets regulatory requirements but has also become a key factor in brand differentiation.
In the future, liners will no longer be merely passive physical barriers. Smart liners incorporating RFID tags, NFC patches and even flexible sensors will enable traceability down to the individual item. For example, by embedding an RFID tag at the base of each recess in a blister tray, information is automatically linked when a product is placed inside and automatically unlinked when it is removed, thereby completely resolving the industry-wide issue of boxes appearing empty in the system despite containing goods.
In response to the shortening of product life cycles, the industry is promoting a model comprising a universal base combined with specialised liners. The folding boxes and outer frames remain standard components that remain unchanged for a decade, whilst only the low-cost liners are replaced to accommodate new product iterations. This decoupled design significantly reduces the risk of long-term capital lock-up in packaging systems.
The combination of plastic folding pallet boxes and liner systems serves as a microcosm of modern industrial civilisation within the logistics sector. It embodies an evolution from an extensive to a lean approach, from a consumptive to a circular model, and from experience-based to data-driven practices.
For manufacturing enterprises, understanding the precision of thermoformed trays, the flexibility of hollow-core boards, the strength and resilience of honeycomb panels, and the gentle protection offered by fabric bags is not merely a matter of mastering a few packaging materials; it is a fundamental capability for building an efficient, resilient and sustainable supply chain. In future competition, whoever can optimise the synergy between outer packaging and inner liners to the utmost will gain a decisive competitive edge in the market, even when logistics costs are measured in the smallest of margins.
