Therefore, we conducted in-depth research on the actual pain points of the original equipment manufacturers and suppliers, and developed and mass-produced a metal turnover box specially tailored for Audi calipers. This product adopts a combination mode of "high-strength metal outer box + customized double-layer vacuum-formed inner lining", perfectly achieving full-chain safety protection from the production line to the final assembly workshop.

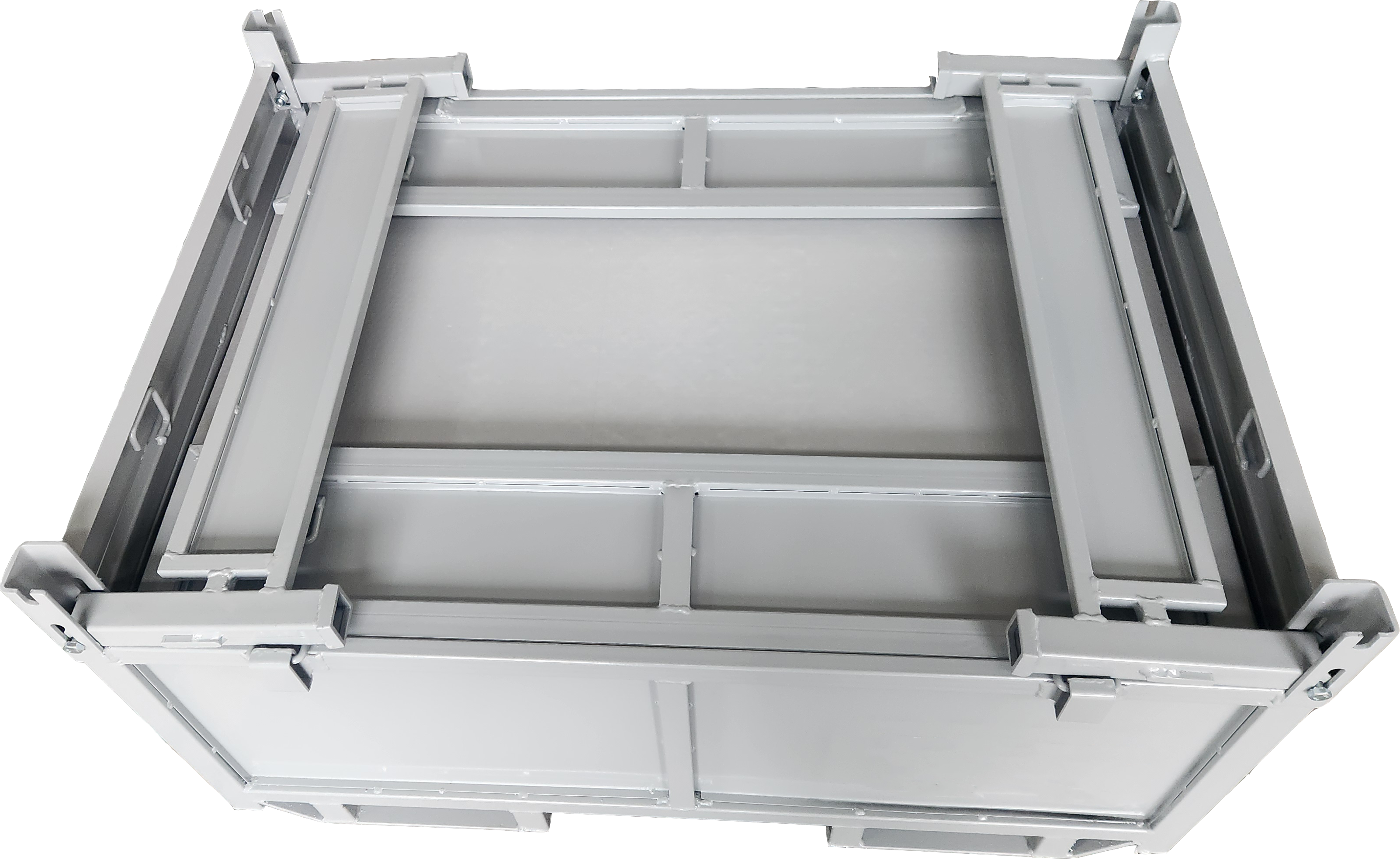

The outer body of this turnover box is not merely a container; it serves as the framework of the entire logistics system. We have selected high-quality cold-rolled steel plates as the base material and formed them through precise laser cutting and CO2 shielded welding processes, ensuring the absolute rigidity of the box under heavy loads.
Sturdy and durable metal body: The surface of the box has undergone galvanization and electrostatic powder coating treatment, forming a dense anti-corrosion protective layer. This not only endows the box with a beautiful matte grey appearance, but also makes it highly resistant to oil stains and rust, capable of adapting to the complex oil mist environment in automotive parts production workshops. The thickened side plates and reinforcing ribs design effectively resist external impacts, prevent box deformation caused by compression, and thus protect the internal precision parts from external force interference.
Efficient forklift operation interface: Considering the high-frequency circulation requirements of modern factories, the bottom of the box is specially designed with standard forklift holes (bidirectional or four-way forking options are available). This design enables manual hydraulic trucks, electric stackers and automated forklifts (AGVs) to be easily involved, significantly enhancing the efficiency of loading and unloading and reducing manual handling.

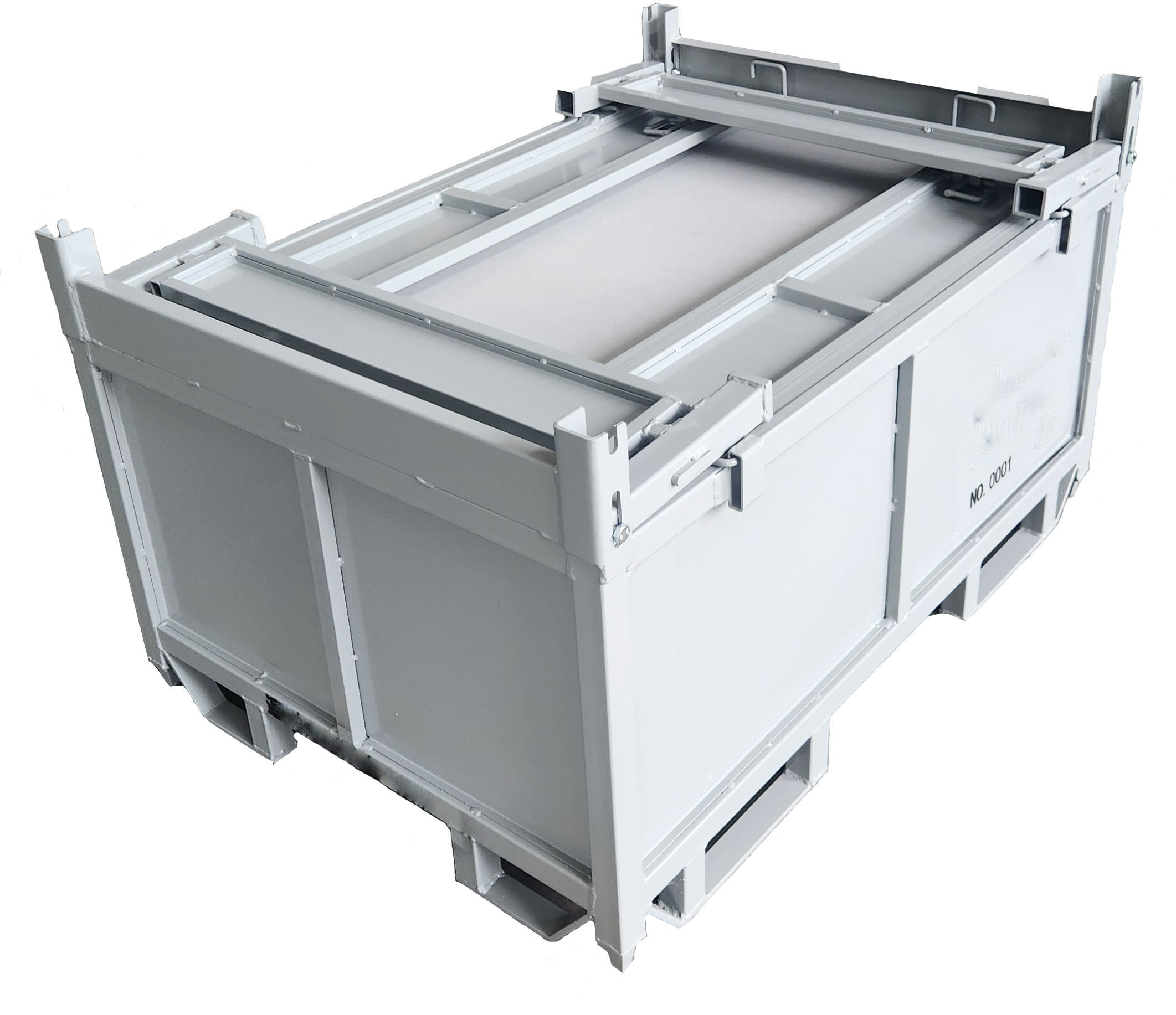

Stable stacking system: To maximize the utilization of vertical storage space, the top four corners of the box are integrated with specially designed stacking corners. These stacking angles have been optimized through force analysis to evenly transfer the weight of the upper box to the bottom, avoiding direct compression on the side walls of the lower box. In combination with the interlocking structure on the side of the box, even when fully loaded with 20 heavy-duty calipers, it can achieve multi-layer safe stacking (usually up to 3-4 layers), greatly saving warehouse area and space costs for transportation vehicles. In addition, a clear numbering area is reserved on the side of the box, which is convenient for digital management and asset tracking.
If the metal outer box is a hard armor, then the vacuum-formed tray inside is a gentle embrace. In view of the irregular shape, heavy weight and vulnerability of Audi calipers, we have abandoned the common partitions and adopted a fully customized vacuum forming solution.

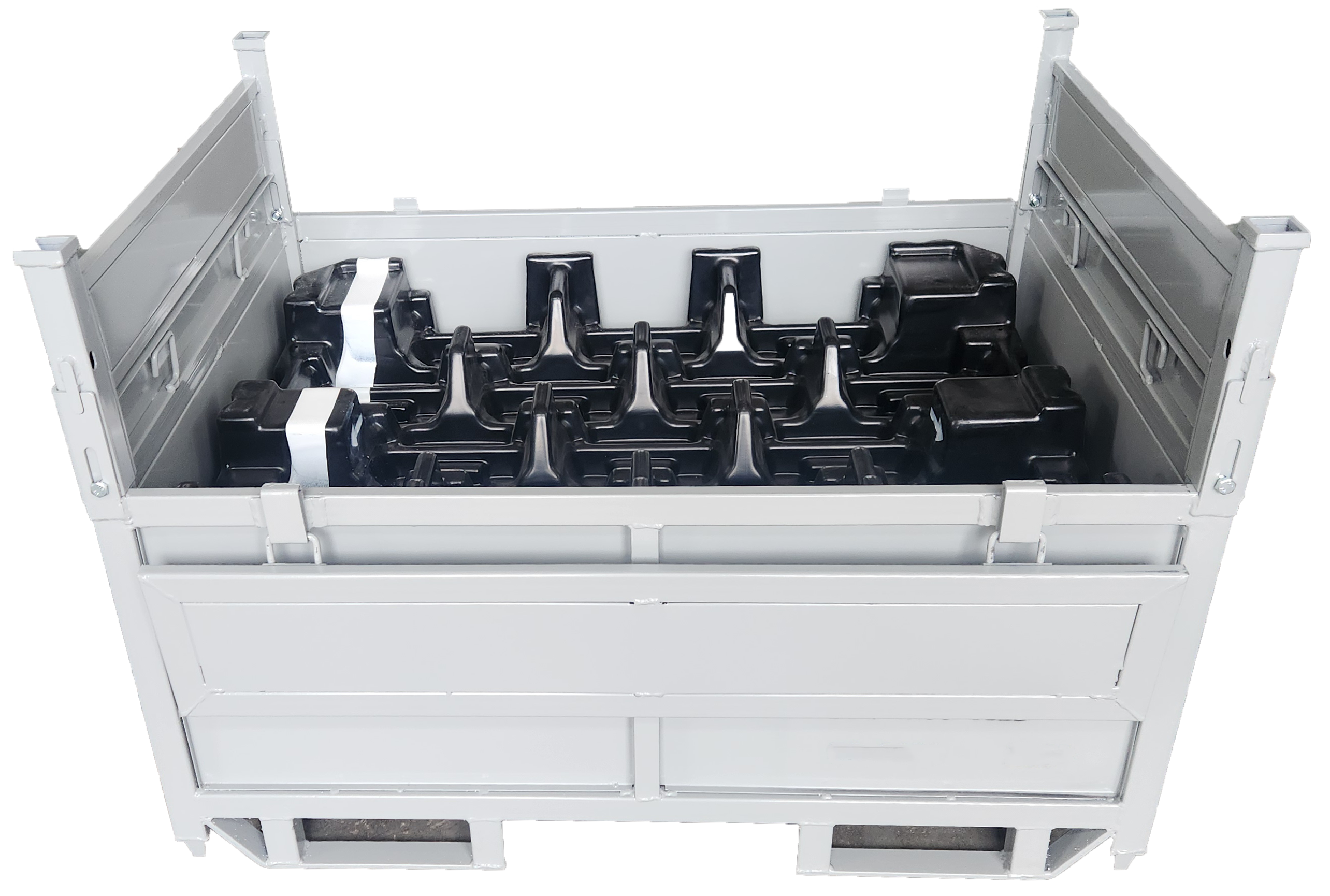

Double-layer layout, doubling capacity: The internal space of the box is scientifically divided into upper and lower layers, each layer accommodating 10 calipers, with a total capacity of 20 pieces per box. This high-density layout maximizes the efficiency of a single transportation while ensuring protection.
Precise shape imitation design: Each blister trough is reverse-engineered based on the 3D digital model customized by Audi calipers. Whether it is the piston hole of the caliper, the installation bracket or the complex curved surface, the perfect fit point can be found in the vacuum forming tray. This "one-to-one" embedded fixation completely eliminates the mutual collision and friction between parts during transportation.
Material and protective details: The blister tray is made of high-strength, impact-resistant modified PP material, which has good toughness and is not prone to cracking. In the area where the key parts of the caliper are removed, we have specially added an R-corner transition or patch treatment to further prevent the anti-corrosion coating or dust cover on the surface of the caliper from being scratched.

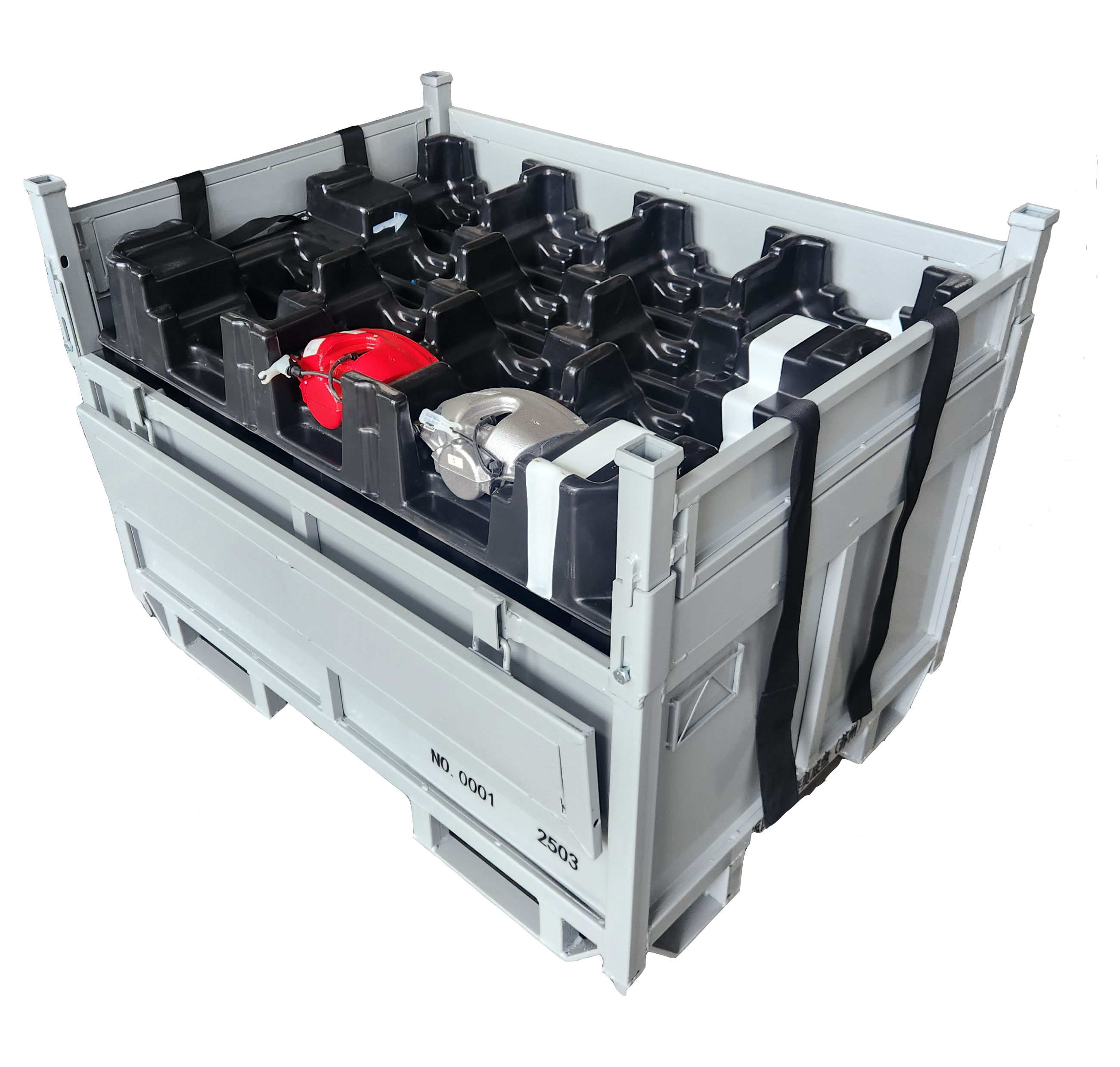

At present, this metal case has been put into actual use. The black vacuum-formed inner lining makes the red brake calipers stand out particularly. This striking color contrast not only enables workers to quickly identify the state of materials but also reflects the texture of high-end manufacturing. For customers, the introduction of this system means multiple value enhancements:
Reduce the scrap rate: Fundamentally solve the problem of calipers being damaged by bumps during circulation within the factory and long-distance transportation, and reduce the cost of rework or scrapping caused by poor appearance.
Enhancing production line rhythm: Standardized dimensions and stacking methods make online distribution smoother, and in line with workers' picking habits, they reduce the incidents of unpacking and organizing.
Circular and environmentally friendly: Compared with disposable cardboard boxes or wooden crates, this metal turnover box has a service life of up to 5 years, and all materials are recyclable, meeting the increasingly strict green supply chain requirements of the automotive industry.
To sum up, this metal turnover box specially designed for Audi calipers is not only a packaging product, but also a comprehensive packaging solution that integrates safety protection, logistics acceleration and cost control. With exquisite craftsmanship and humanized design, it interprets the professional strength of industrial packaging in the field of precision manufacturing.
