In modern healthcare systems, precision medical devices—such as endoscopes, surgical robot components, implants and minimally invasive surgical instruments—form the backbone of clinical diagnosis and treatment. However, these high-value, highly sensitive devices are extremely vulnerable to physical damage, microbial contamination or environmental degradation during sterilisation, transport, storage and use. As an ‘invisible line of defence’ linking the manufacturing end to the clinical end, the packaging containers for precision medical devices are no less important than the devices themselves. They are by no means mere storage containers, but rather complex technical systems that integrate materials science, precision engineering, microbiological control, regulatory compliance and supply chain management. This article will provide a comprehensive and in-depth analysis of this critical field from six perspectives: materials systems, structural design, sterilisation validation, regulatory standards, trends towards smart technology, and sustainability.
The selection of materials for precision instrument packaging containers is a delicate balancing act subject to multiple physical, chemical and biological constraints. Materials must not only fulfil their basic functions, but also remain stable and safe throughout their entire life cycle.
Medical-grade polymer materials are currently the mainstream choice, including PC, PES, PP and PPS. However, this is not merely a matter of selecting raw materials, but rather a complex process of formulation modification. For example, standard PC will yellow and become brittle after undergoing dozens of cycles of high-temperature steam sterilisation at 134°C, whereas medical-grade PC requires the addition of specialised hydrolysis inhibitors and thermal stabilisers to increase its cycle endurance to several hundred cycles or more, whilst keeping the decline in light transmittance within an extremely narrow range to ensure clarity during visual inspection. For precision optical instruments, the material must possess low leaching properties to prevent small molecules from migrating to the instrument surface under high-temperature, high-humidity sterilisation conditions, which could cause fogging. Some high-end containers utilise multi-layer co-extrusion or special coating technologies to form an inert barrier on the inner wall, completely eliminating the risk of contamination. Furthermore, the tolerance requirements for the mounting slots in precision instruments are stringent; if the material undergoes creep or stress relaxation under repeated thermal shock, this will lead to failure of the mounting mechanism. Therefore, when selecting materials, particular attention must be paid to the coefficient of thermal expansion, glass transition temperature and long-term thermal ageing data, and residual stresses from injection moulding must be eliminated through an annealing process.
Metal alloys are used in applications such as heavy-duty power systems and orthopaedic instrument sets, providing unrivalled mechanical strength and electromagnetic shielding. However, bare metal cannot meet medical requirements; surface treatment is key. Hard anodising creates a high-hardness ceramic layer on the surface of aluminium, which is wear- and corrosion-resistant, and can be colour-coded for departmental management through electrolytic colouring; Stainless steel containers, on the other hand, require passivation and electrolytic polishing to reduce surface roughness and thereby minimise the risk of biofilm adhesion. When multiple metals are present within the same container, care must be taken to guard against galvanic corrosion; this can be prevented by using insulating gaskets to isolate the metals or by selecting combinations of metals with similar electrochemical potentials.
Although functional auxiliary materials such as silicone fixing points, TPE cushioning strips and breathable membranes account for a small proportion of the product, they are high-risk areas. All materials that come into contact with medical devices must undergo a full suite of biocompatibility tests in accordance with the ISO 10993 series of standards. The pore size distribution of breathable media, such as Tyvek or medical dialysis paper, must strike a precise balance between allowing sterilising agents to penetrate and preventing the passage of microorganisms; new types of nanofibre membranes are gradually offering an optimal combination of these properties.
Excellent packaging container design is the result of the convergence of mechanical engineering, ergonomics and risk management, with the aim of creating a dynamically stable protective system throughout its entire life cycle.

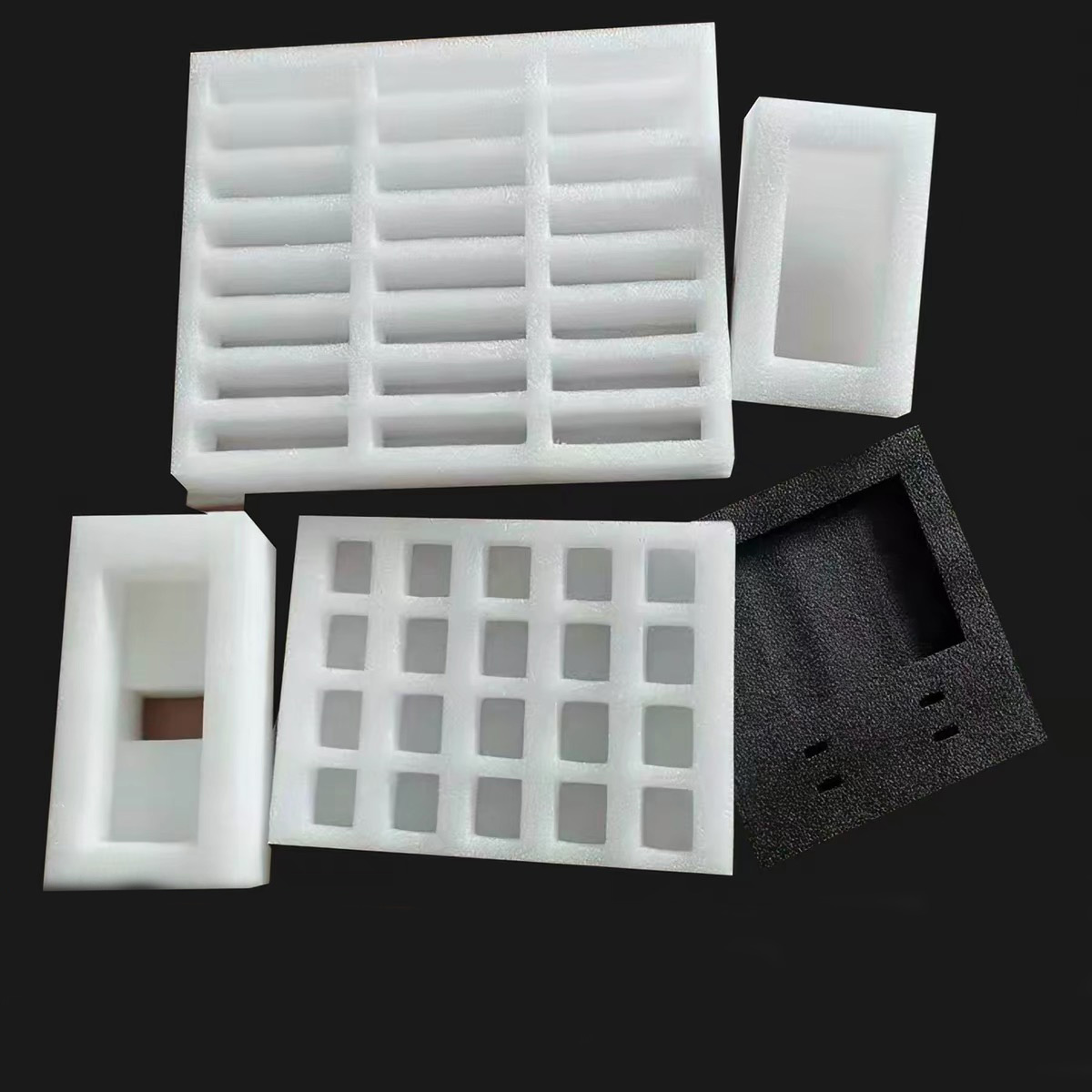

Customised suspension and securing systems are central to the protection of precision instruments. The foam padding found in standard transport crates no longer meets requirements; it has been replaced by specialised securing structures based on modal analysis. The design principle involves suspending critical components: by utilising 3D scans to obtain digital models of the instruments, sensitive parts such as lenses and cutting edges are kept completely suspended, with loads borne solely by non-functional areas. The number and positioning of fixing points must be optimised via finite element simulation to avoid over-constraint or under-constraint. The introduction of silicone shock absorbers between the mounting bracket and the casing creates a two-stage vibration isolation system, reducing the transmission rate of transport vibrations by more than 80 per cent. Additionally, error-proofing designs such as asymmetrical slots and colour-coding are employed to ensure that instruments can only be inserted in the single correct orientation; when the lid is closed, a locking mechanism is automatically triggered to prevent accidental opening.
The dynamics of sealing in aseptic barrier systems are equally critical. Containers must maintain a sterile state throughout the sterilisation, cooling and storage stages. The layout of vent valves and vent ports must be optimised through CFD simulation to avoid localised cold spots or dry dead zones. In a multi-stage sealing strategy, the primary seal ring provides routine containment, whilst the auxiliary breathable membrane regulates equilibrium during pressure differentials to prevent seal failure. Drainage grooves are incorporated into the rim of the cap to prevent the accumulation of condensation, and a single-use tamper-evident label provides a visual integrity indicator.
Ergonomic design ensures that the containers integrate seamlessly with clinical workflows. The opening and closing mechanism must provide clear tactile feedback and require a moderate amount of force to open, whilst the handle shape must conform to the biomechanics of the grip. Interlocking structures at the base and top of the container ensure stable stacking, and the external dimensions are compatible with standard sterilisation racks and logistics equipment. Visualisation features, such as embossed icons and colour-coded sections, enable the contents to be quickly identified without opening the container, which is particularly important in high-pressure scenarios such as the A&E department.
Claims regarding the sterility of packaging containers must be based on rigorous scientific validation; this is central to regulatory scrutiny and forms the cornerstone of product release.
Sterilisation compatibility must be validated from multiple perspectives. In addition to routine biological indicator challenges, steam sterilisation requires specific validation of drying performance; the weighing method, combined with humidity indicator cards, must be used to demonstrate that there are no visible water droplets and that the relative humidity meets the required standards under the most unfavourable load conditions. For low-temperature plasma sterilisation, it must be verified that the material neither absorbs nor catalyses the decomposition of the sterilising agent, and that the permeable medium allows sufficient concentrations to penetrate to the areas most difficult to sterilise. For ethylene oxide sterilisation, the focus is on validating desorption performance to determine the minimum safe storage period.
Integrity testing of aseptic barrier systems comprises physical methods and microbial challenge tests. Physical methods, such as dye penetration, bubble leakage and vacuum decay tests, are highly sensitive and non-destructive, and are suitable for batch release testing. Microbial challenge tests, however, serve as the ultimate arbiter of aseptic claims and are typically used for initial validation or in the event of significant changes. Shelf-life validation requires the parallel use of accelerated and real-time ageing to establish a performance-versus-time decay model. Transport simulation, meanwhile, requires data to be collected based on the actual logistics chain, with laboratory test protocols formulated to ensure that containers still meet sterility and functional requirements following testing.
The global distribution of precision instrument packaging requires compliance with the regulatory frameworks of the target markets; as requirements vary across regions, a coordinated approach is necessary.
Within the international standards framework, the ISO 11607 series forms the top-level structure, setting out general requirements for materials and sterile barrier systems, underpinned by dozens of test method standards. This standard emphasises a process-based approach, requiring organisations to establish a quality management system covering the entire product lifecycle. In accordance with relevant guidance documents, China’s NMPA requires that, where packaging containers are submitted as device accessories, complete validation data must be provided; where they are registered independently, product technical specifications and test reports, amongst other documents, must be submitted. In recent years, regulatory reviews have placed increasing emphasis on the validation of compatibility between packaging and medical devices. Under the FDA 510(k) pathway, packaging validation data is a key component of the substantial equivalence comparison. The EU MDR, meanwhile, has strengthened post-market surveillance requirements; packaging-related adverse events must be included in monitoring programmes, and stricter requirements have been introduced for the reprocessing validation of reusable packaging.
The mandatory implementation of UDI and traceability systems has made packaging containers the foundation of digital management. The UDI carriers on containers must remain legible after sterilisation, cleaning and wear and tear, which poses a challenge to the durability of the marking process. This not only meets regulatory requirements but also provides data support for the intelligent management of hospital SPDs and CSSDs.
Traditional packaging is evolving from a static physical container into a dynamic information hub, serving as a data gateway for the smart healthcare ecosystem.
Environmental sensing and status monitoring technologies enable packaging to be self-aware. By integrating TTI labels, RFID/NFC chips, temperature and humidity sensors, and other components, data can be uploaded wirelessly to a cloud platform, enabling the automatic recording of sterilisation parameters, real-time alerts for transport anomalies, and dynamic warnings regarding stock expiry dates. A design revolution driven by digital twins utilises CAE simulation to predict container behaviour during the design phase. Combined with AI algorithms to automatically optimise structures, this significantly reduces trial-and-error costs. Deep integration with hospital automation systems transforms packaging containers into native units for automated high-bay warehouses, AGVs and washer-disinfectors. Working in conjunction with management systems, this enables fully unmanned operations throughout the entire process and allows for precise traceability by linking to patients’ electronic health records.
Driven by ESG principles and the ‘dual carbon’ targets, the green transition in precision instrument packaging has evolved from an ethical imperative to a business necessity.
Long-life design and circular economy models are key priorities. Promoting modular, serviceable designs extends product lifespans, whilst establishing third-party reprocessing centres creates a closed-loop system. Some enterprises have introduced packaging rental services, thereby fundamentally reducing resource consumption. Innovations in low-carbon materials and lightweighting include the development of bio-based plastics and recycled medical-grade resins, as well as weight reductions of 20–30 per cent achieved through technologies such as topological optimisation and micro-foamed injection moulding, whilst simultaneously optimising packaging dimensions to increase packing density. Life-cycle environmental impact assessments utilise LCA methodologies to quantify carbon footprints and resource consumption at each stage, providing a scientific basis for emissions reduction roadmaps and green procurement. In the future, the environmental performance of packaging may be incorporated into medical insurance reimbursement schemes or hospital rating systems, becoming a new dimension of competition.
Packaging containers for precision medical devices have long transcended their traditional definition; they serve as an integrated platform for materials, engineering, microbiology, information technology and sustainable technologies, and are an indispensable component of the medical quality and safety system. As the waves of precision medicine, smart hospitals and green manufacturing sweep across the globe, packaging containers are moving from behind the scenes to the forefront, transforming from a cost centre into a value-creation centre. For medical device manufacturers, investing in advanced packaging technology is not merely a matter of regulatory compliance; it is a strategic choice to build a differentiated competitive advantage, earn clinical trust and fulfil social responsibilities. On this invisible frontline of safeguarding lives, every refinement in detail represents a silent fulfilment of the medical oath. In the future, as new materials, processes and technologies continue to emerge, packaging containers for precision medical devices will undoubtedly continue to evolve towards greater safety, intelligence and sustainability, thereby building a more robust barrier for the cause of human health.
