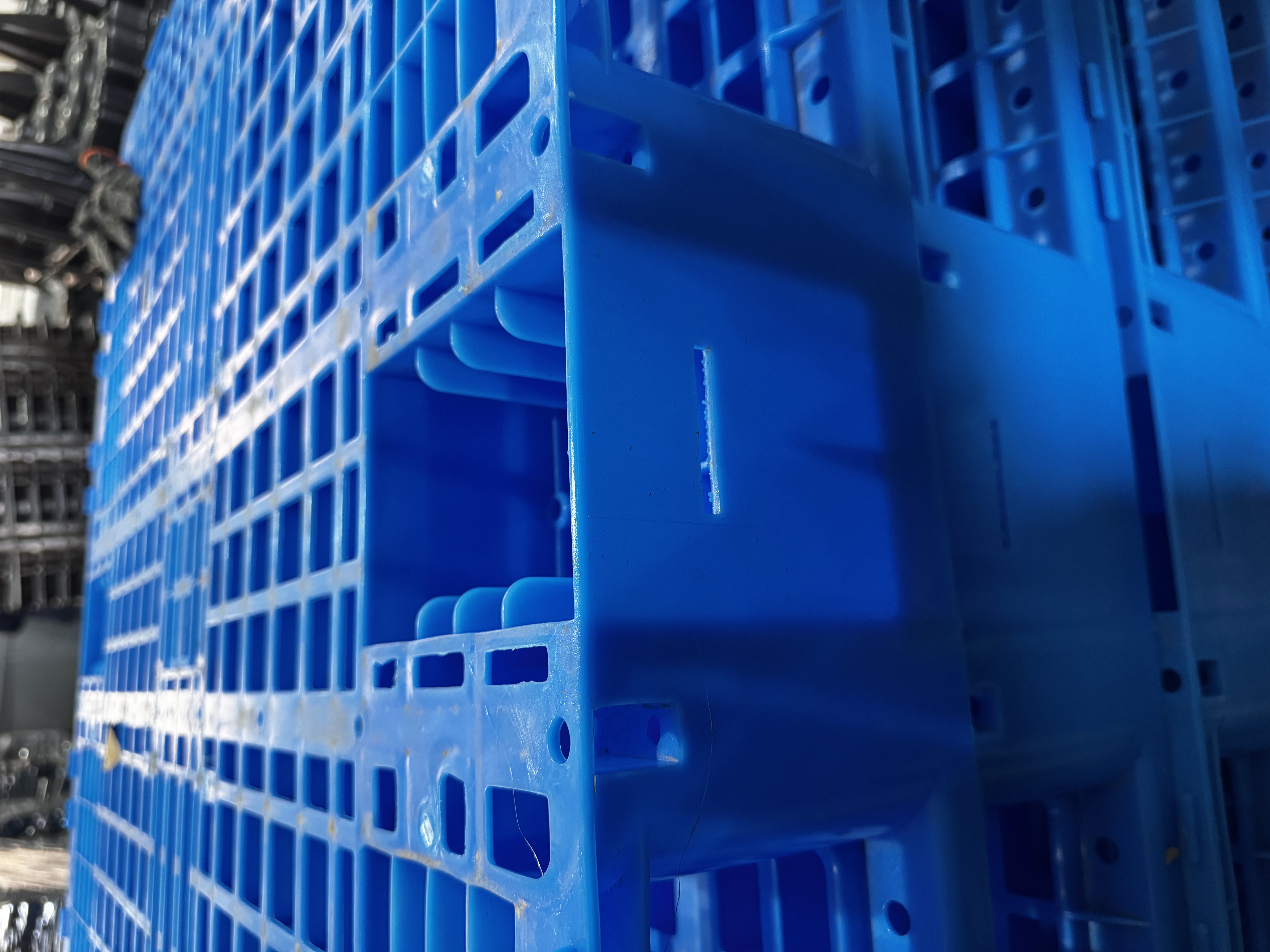

This product is an industrial-grade logistics carrier. Its main material is high-density polyethylene (HDPE), and it is formed through injection molding. The core design feature lies in the integration of standardized strapping slot structures on the side walls around the pallet. This structural design aims to address the issue of insufficient stability of goods units in traditional flat pallets during multi-layer stacking and long-distance transportation, providing a standardized and fixed solution for warehouse management and logistics transportation.

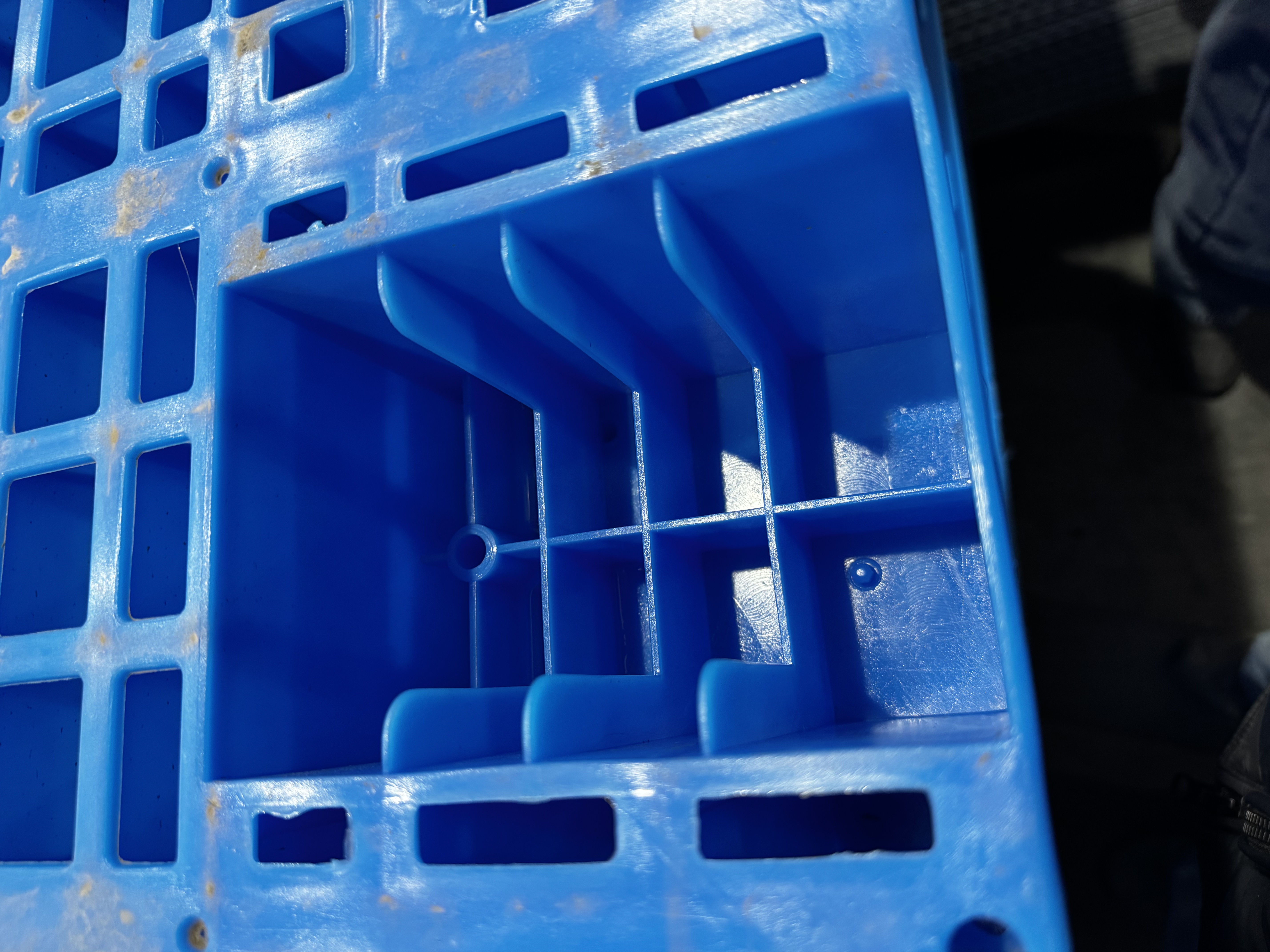

Four-way slot layout
Both the long and short side walls of the slot are provided with through rectangular slots.The position of this slot has been mechanically calculated and is located at the force equilibrium point of the pallet, ensuring that after the strapping tape is inserted, the tensile force can be evenly distributed throughout the pallet frame, avoiding deformation or breakage of the pallet due to excessive local force.
Mechanized fixed interface:

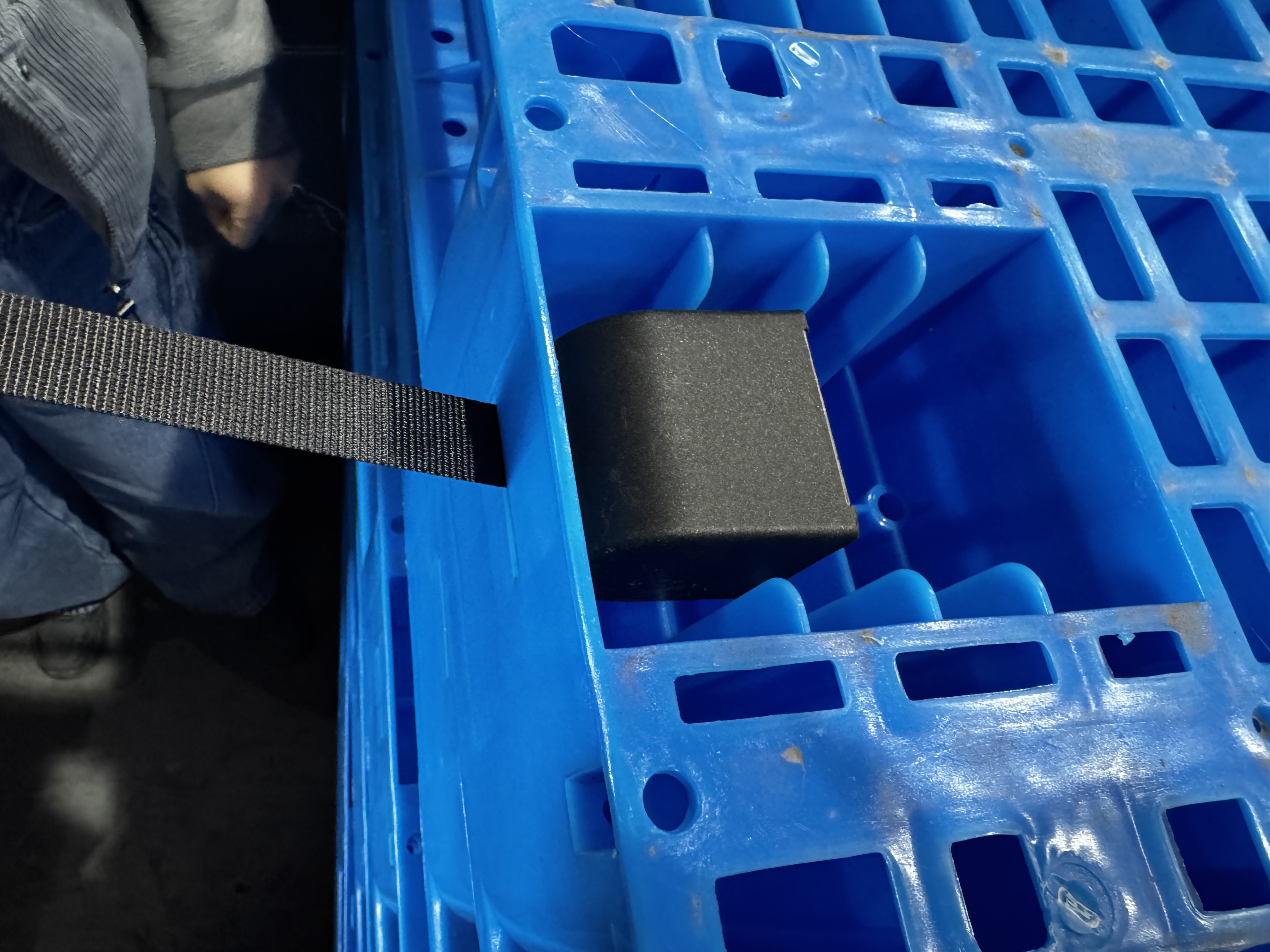

The slot size is compatible with standard PP/PET plastic steel strapping and polyester fiber strapping. Operators can use pneumatic or electric strapping machines to directly pass through the slot opening to bind the goods on the pallet horizontally or longitudinally. This design upgrades the pallet from a simple "load-bearing platform" to a "fixed base", achieving a rigid connection between the carrier and the goods.
Stacking interlock effect:
When performing multi-layer stacking operations, the slot structure of the lower pallet can serve as a limit reference for the goods on the upper layer. When used in conjunction with strapping bands, it can effectively eliminate the gaps between layers, prevent horizontal displacement caused by vehicle jolts or sudden stops of forklifts, and ensure that the verticality of the stack shape complies with the safety regulations of the warehouse.Physical performance parameters
Material specification: Brand-new HDPE (high-density polyethylene), resistant to acid and alkali corrosion, and can maintain stable physical properties in an environment ranging from -20℃ to 60℃.
Static load: ≥4000kg (in a flat ground condition)
Dynamic load: ≥1000kg (forklift operation state)
Shelf load capacity: ≥800kg (Beam-type shelves, steel pipe reinforced type is optional)
Dimensional tolerance: The overall dimensional error is controlled within ±3mm to ensure the compatibility of the automated stereoscopic warehouse (AS/RS) and the conveyor line.
Anti-slip coefficient: The surface of the pallet adopts a grid-like texture design to increase the friction at the bottom of the goods and assist the binding system in operation.
After the introduction of this type of pallet, the following changes and optimizations have occurred in the warehousing and logistics operation process:
During the pallet stacking stage: After the goods are stacked, there is no need to search for additional external fixed frames or wrap a large amount of stretch film. The operators can directly use the built-in slots of the pallets for binding.
Storage stage: The bundled pallet units have strong integrity, allowing for an appropriate increase in stacking height under the premise of meeting the load-bearing capacity, thereby enhancing the utilization rate of vertical space in the warehouse.
During the transportation stage: When the goods are closely arranged inside the carriage, the slot structure reduces the risk of goods collapse and lowers the rate of cargo damage. For export container transportation, a compact and stable stack shape facilitates maximizing the loading capacity.
Recycling stage: HDPE material can be 100% recycled and granulated, meeting the standards of a circular economy. Compared with wooden pallets, its service life is over five years, and the total life cycle cost (LCC) is significantly reduced.
This product is mainly designed for the following high-demand working environments:
Bulk boxed goods: such as food and beverages, pharmaceutical preparations, electronic components and other goods packed in cartons, to prevent the cartons from being deformed or scattered due to compression.
Bagged powder and granular materials: such as chemical raw materials, plastic particles, etc., are packaged in woven bags to prevent the bags from slipping off.
Automated production line connection: The slot design does not interfere with the operation of the roller line or belt line, and is convenient for the mechanical hand to grasp and position.
Export exemption from inspection requirements: Plastic materials do not need fumigation certificates. Slot reinforcement replaces part of the wooden frame reinforcement requirements, simplifying the customs clearance process.
This blue plastic pallet integrates the function of goods fixation into the carrier itself through structural innovation. It addresses the stability pain point caused by the separation of "goods" and "pallets" in the logistics process through standardized industrial design. For logistics enterprises that pursue lean management, focus on transportation safety and long-term operating cost control, this is an infrastructure equipment with clear technical advantages.
