Against the backdrop of the accelerating restructuring of global supply chains and the manufacturing industry’s transition toward smart and green practices, logistics packaging units—which serve as the “capillaries” connecting production, warehousing, transportation, and end-consumer markets—directly determine the operational efficiency and cost structure of the entire supply chain system based on their performance. Traditional wooden pallet boxes are prone to moisture and mold; metal racks are bulky and unsuitable for long-distance transport; and standard plastic returnable containers have limited load-bearing capacity. These pain points have long hindered companies’ ability to improve their lean management practices. It is precisely in response to these industry-wide demands for transformation that a high-performance folding pallet box measuring 1200 × 1000 × 980 mm has been developed. It is not merely a container, but a systematic solution that integrates materials science, structural mechanics, and ergonomics.
This article will provide an in-depth analysis of this product—spanning over 10,000 characters—covering multiple dimensions such as technical specifications, structural design, economic benefits, application scenarios, and future trends. The aim is to offer a comprehensive reference guide for business managers, logistics planners, and procurement decision-makers.

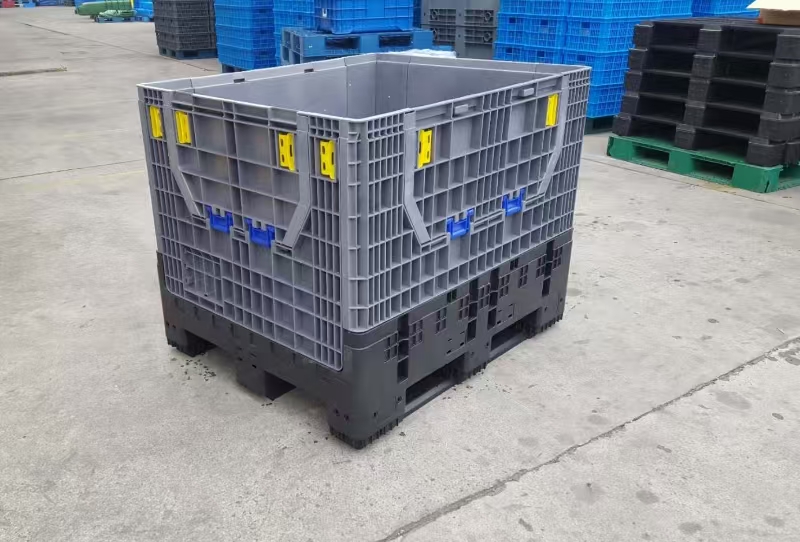

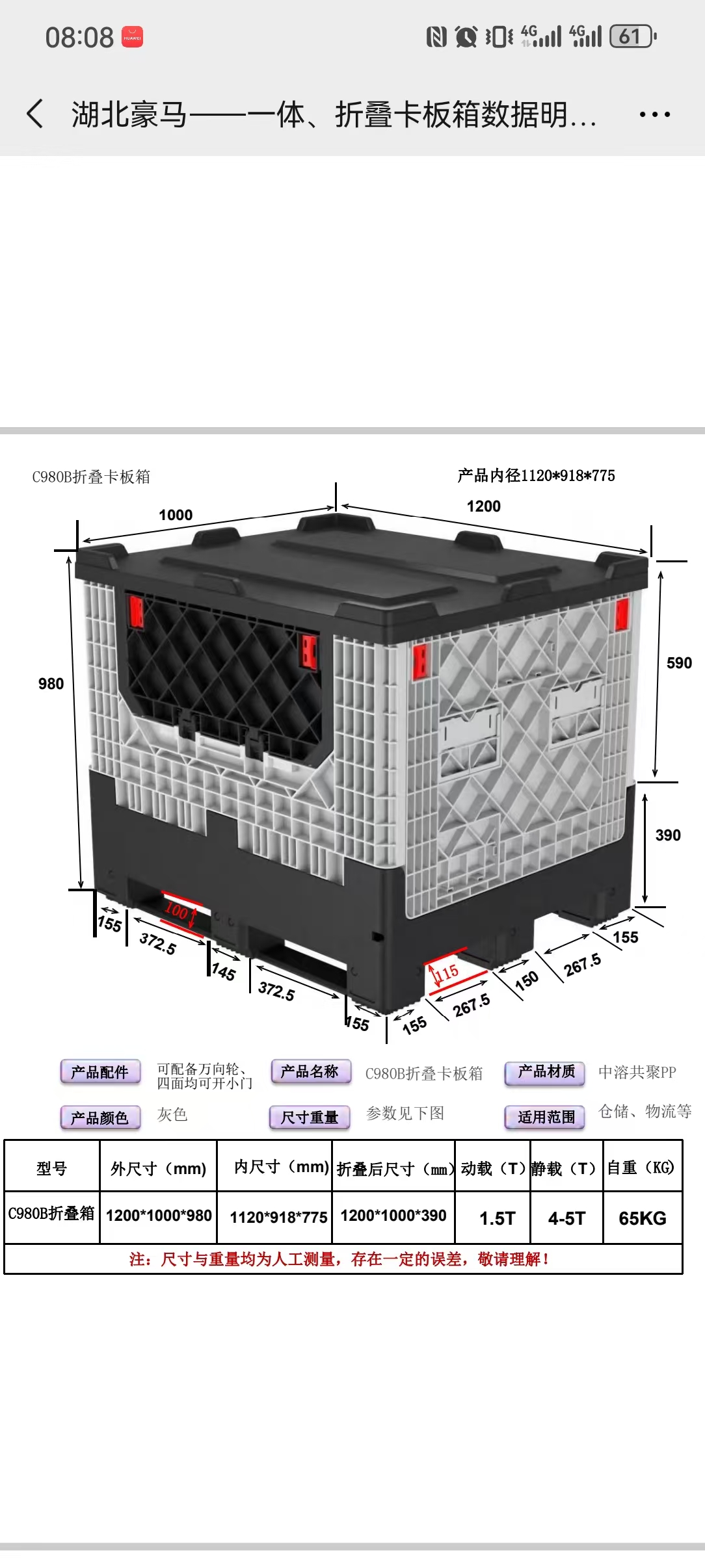

The base dimensions of 1200 × 1000 mm are by no means arbitrary figures; rather, they represent the “gold standard” validated by decades of global logistics practice. These dimensions strictly comply with the ISO 6780 international standard and are also one of the core specifications recommended by China’s GB/T 2934 standard. Choosing these dimensions means that companies can eliminate compatibility barriers with mainstream domestic and even global logistics infrastructure right from the source.
During transportation, the 1200×1000 dimensions perfectly match the internal width of standard shipping containers. Taking the common 40HC container as an example, using 1200×1000 pallet boxes allows for two rows to be loaded side by side with virtually no gaps, achieving a cargo space utilization rate of nearly 100%. In contrast, non-standard-sized containers often result in large amounts of unusable dead space inside the container, which inadvertently increases the cost per shipment by 15%–20%. In the warehousing phase, this size aligns perfectly with the design of automated high-bay storage bays, conveyor line widths, and the fork spacing of AGV handling robots, allowing for seamless integration into existing automated systems without the need for additional equipment modifications. Furthermore, 1200×1000 is a mainstream specification in both the European EPAL pallet system and the Japanese JIS standards. For companies engaged in export operations or requiring cross-border supply chain management, this pallet box is inherently globally compatible, eliminating cumbersome operations such as repackaging and transshipment caused by inconsistent packaging standards, and significantly shortening cross-border logistics cycles.
The 980mm height is also thoughtfully designed. It ensures sufficient volume to meet the single-batch handling needs for most industrial components and raw materials, while keeping the center of gravity within a reasonable range to prevent tipping during forklift operations. At the same time, this height aligns with the upper limit of the optimal reach range for standing operations in ergonomics. Combined with the side-access design, operators can complete loading and unloading tasks without excessive bending or climbing, thereby reducing the risk of workplace injuries.
In the plastic pallet box industry, “load-bearing capacity” is often the key factor that distinguishes high-end products from standard ones. This pallet box has a rated static load capacity of 4.5 metric tons and a dynamic load capacity of 1.5 metric tons—figures that place it at the absolute forefront among comparable products. This performance is the result of three major breakthroughs: material formulation, structural design, and manufacturing processes.
Ordinary PP or PE is clearly incapable of achieving such high load-bearing capacity. This product typically uses high-molecular-weight high-density PE or reinforced, modified PP as the base material, which is then composite-reinforced by adding glass fiber, carbon fiber, or nano-mineral fillers. These reinforcing phases form a three-dimensional network framework within the matrix resin, effectively transferring and distributing external loads, thereby increasing the material’s tensile strength, flexural modulus, and impact toughness by more than 50%. Additionally, for low-temperature environments, freeze-resistant toughening agents are incorporated to ensure the material does not suffer brittle fracture at temperatures as low as -20°C or even -30°C, without compromising its load-bearing performance. All raw materials must comply with environmental certifications such as RoHS and REACH to ensure they are recyclable and can be 100% recycled after disposal, in accordance with ESG sustainability requirements.

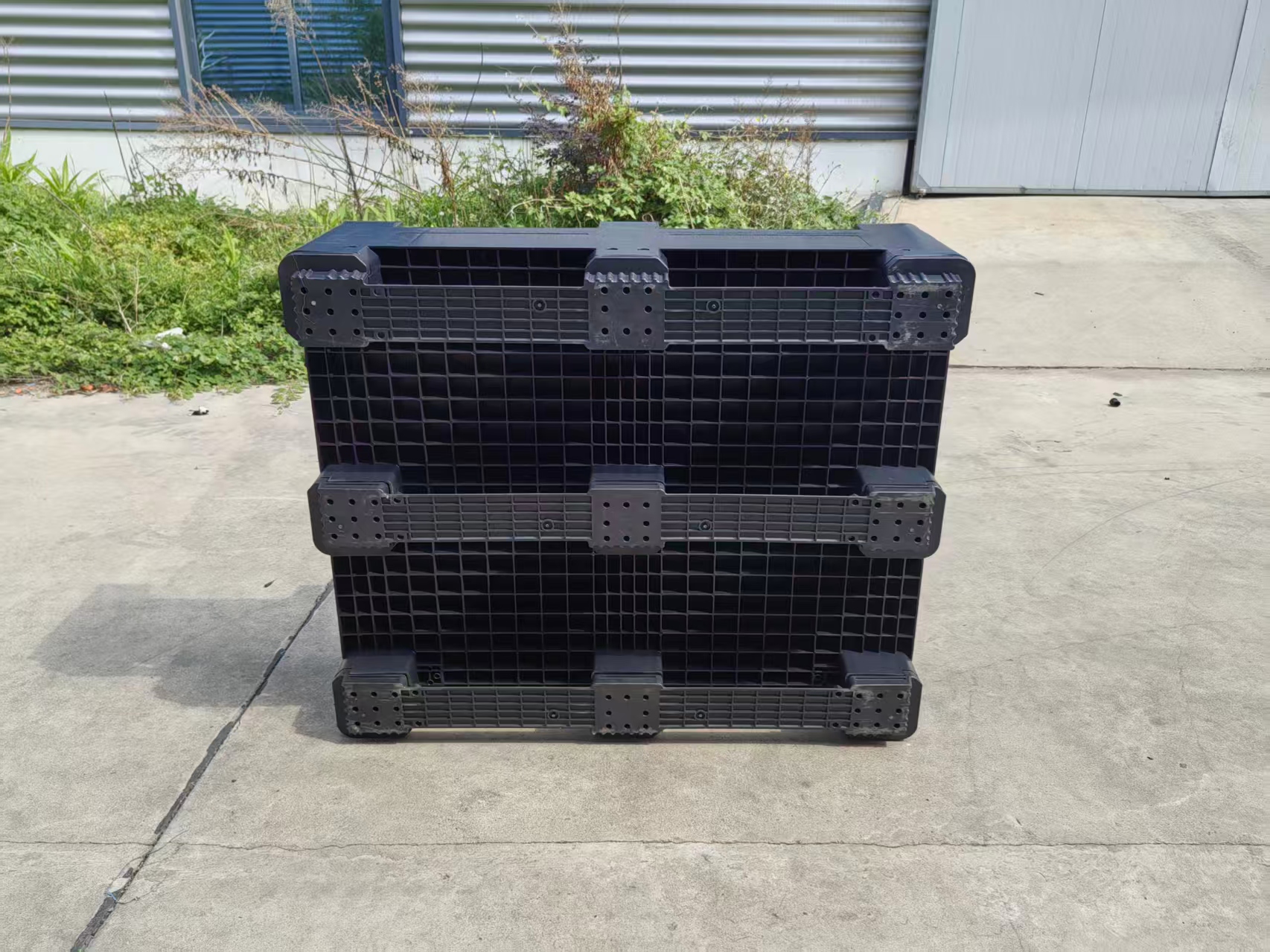

Load-bearing capacity depends not only on the materials but also on the structure. The bottom of the container features a nine-leg or “川” character-shaped rib reinforcement layout, combined with a honeycomb or grid-patterned base plate design, to evenly distribute vertical pressure across the entire bottom surface and prevent localized deformation caused by stress concentration. The side walls utilize a double-layer hollow or corrugated reinforcement structure, which significantly enhances compressive stiffness while ensuring lightweight construction. Thickened vertical posts are installed at the four corners of the container, serving as the primary load-bearing and force-transfer pathways. They directly transmit the weight of the stacked upper layers to the support points of the lower container, rather than relying on the side walls to bear the load, thereby protecting vulnerable areas such as the side door hinges. During dynamic load testing, the container must also withstand the inertial forces generated by forklift emergency braking and turning, as well as the alternating loads caused by road bumps. This requires that the connecting components be manufactured using a metal-insert injection molding process to eliminate the risk of plastic fatigue fracture.
The true load-bearing capacity is not a theoretical value derived in a laboratory, but a safety commitment verified through tens of thousands of real-world tests. Before leaving the factory, this pallet box must pass a series of tests in accordance with national standards, including: full-load stacking tests, dynamic handling tests, drop tests, and vibration tests. Only after passing all tests can it be labeled as qualified for shipment. This unwavering commitment to safety ensures it can reliably carry high-value, high-risk cargo—such as engine blocks, battery modules, and precision molds—safeguarding corporate assets.
Modern manufacturing is characterized by fragmented orders, product diversification, and fast production cycles, which require logistics equipment to be highly flexible and adaptable. This pallet box moves away from a “one-size-fits-all” design approach and instead adopts a modular platform architecture, allowing users to freely combine functional modules according to their specific needs, much like building with LEGO blocks.

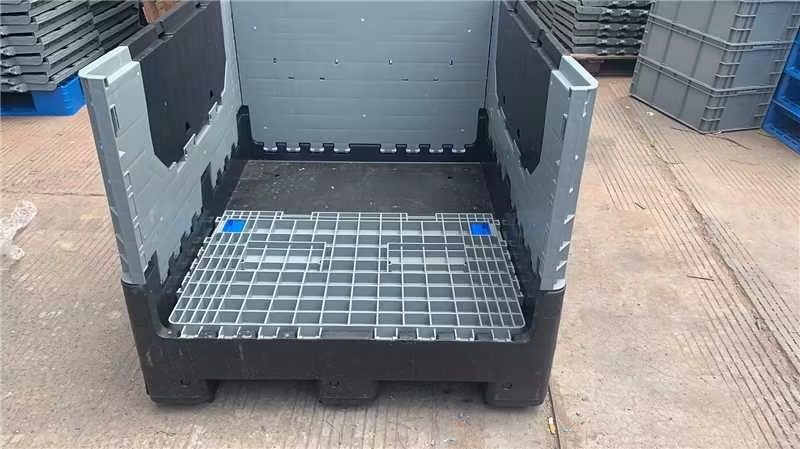

Two-Door Version (Doors Opening on the Long Side): Suitable for feeding materials alongside assembly lines, one-way logistics corridors, or scenarios with extremely high requirements for exterior protection. Because there are fewer doors, the overall structural integrity of the cabinet is stronger, providing superior sealing and dust protection, while manufacturing costs are relatively lower. In the inbound logistics of automotive parts, the two-door design is often used for loading large exterior components such as bumpers and headlights. It not only allows workers to easily retrieve parts from the production line side but also minimizes dust intrusion as much as possible.

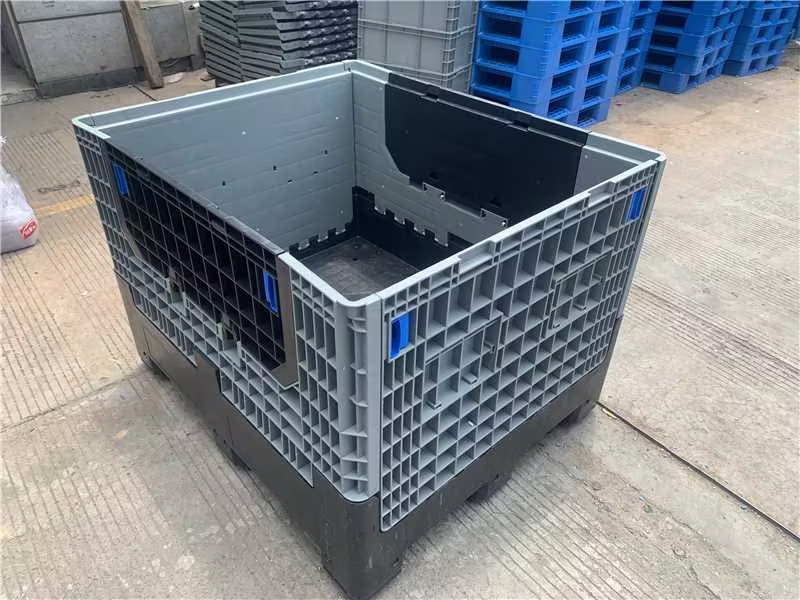

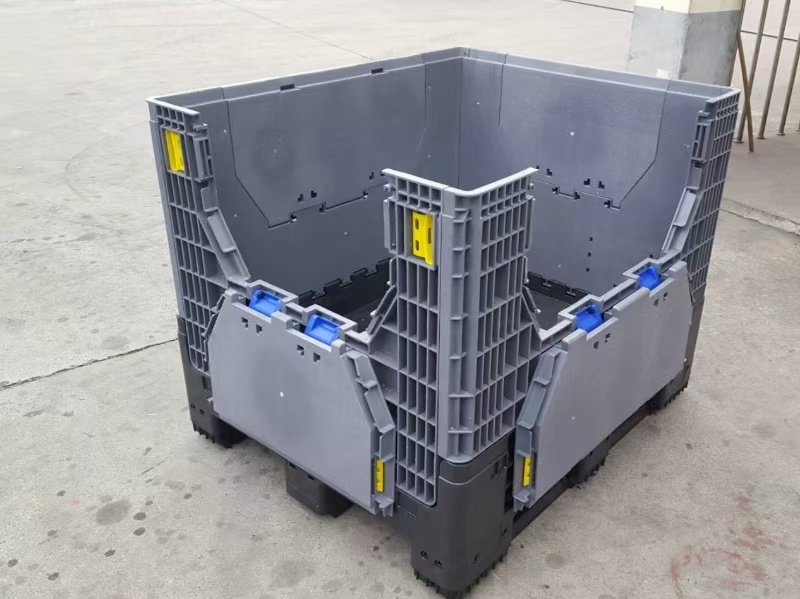

The four-door version (all four sides open) is an indispensable tool for complex warehousing environments and multi-station collaboration. In high-density storage areas, when a container is surrounded by other goods, operators can open the doors from any direction without having to move heavy items to adjust its orientation; in sorting centers, the four-door design allows goods of different categories to be loaded or unloaded simultaneously from different sides, significantly improving sorting efficiency; In retail stores, the four-door, fully open design offers superior display capabilities, serving both storage and merchandising functions. Each door is equipped with an independent locking mechanism and safety latch to prevent accidental opening during transport. Some high-end models also support the installation of lead seals or RFID electronic locks, enabling end-to-end traceability and theft prevention management for goods.
The top cover is not simply a piece of plastic, but a multifunctional interface. The basic top cover provides fundamental protection against dust, rain, and foreign objects; the lockable top cover supports padlocks or disposable cable-tie labels to ensure the security of valuable items; the breathable top cover features a built-in waterproof, breathable membrane, making it suitable for agricultural products or chemicals that require ventilation but must be protected from water; and the insulated top cover is filled with a polyurethane foam layer, which, when used with ice packs, enables passive temperature control for several hours.
Although pallet boxes were originally designed for use with forklifts, frequently relying on forklifts for short-distance transport within workshops, temporary storage alongside production lines, and restocking in supermarkets is neither cost-effective nor flexible. The optional swivel casters on the bottom perfectly solve this problem. The casters are typically made of polyurethane or nylon, with each capable of supporting over 300 kg. They are wear-resistant, quiet, and do not damage the surface they roll on. The four-wheel configuration allows even a fully loaded 1.5-metric-ton container to be easily pushed by a single person. With a small turning radius, it can maneuver effortlessly through narrow aisles. The braking system ensures the container does not roll away on slopes or when parked, guaranteeing operational safety. When loading onto shelves or transporting over long distances, the wheels can be quickly removed or stowed away without affecting stacking or forklift operations. This design truly achieves full-scenario coverage for logistics equipment.

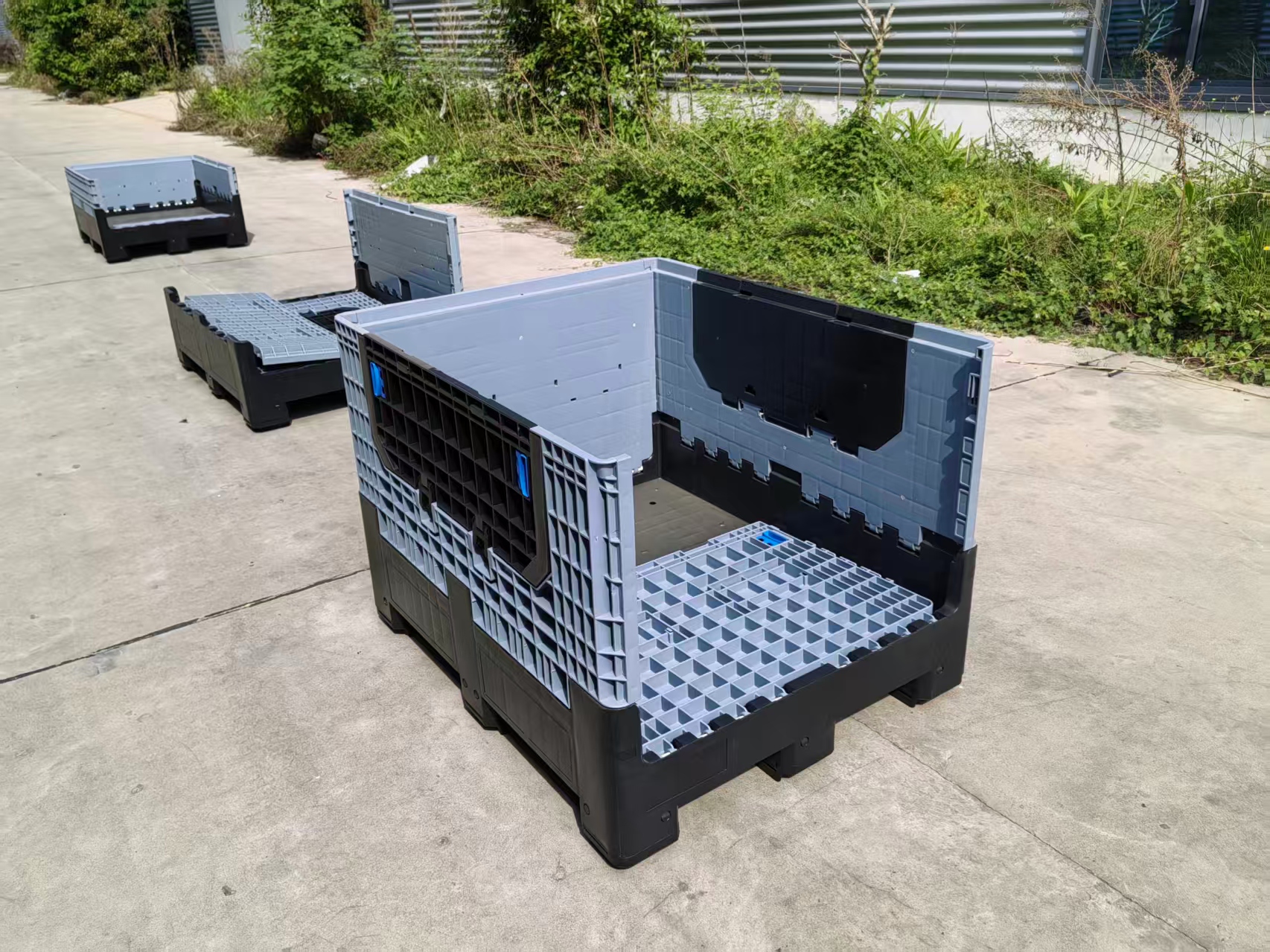

If load-bearing capacity and modularity determine how practical a pallet box is, then its foldability directly determines how cost-effective it is. With an unfolded height of 980 mm and a folded height of 390 mm, the volume compression ratio reaches 2.5:1—a feature that generates a tremendous multiplier effect in reverse logistics and empty container management.
Suppose a company generates 1,000 empty crates to be returned each month. If traditional rigid crates were used, they would occupy approximately 1,180 m³ of storage space; however, using these foldable crates would require only 468 m³, resulting in a savings of 712 m³. Just in terms of empty crate storage alone, this yields significant monthly savings. For large conglomerates with multiple production sites that need to transfer empty crates across regions, these savings are sufficient to cover the procurement costs of hundreds of new crates.
Returning empty containers to the factory represents a “sunk cost” in logistics expenses. A 9.6-meter box truck can carry a maximum of 200 rigid empty containers, whereas it can carry more than 500 folded pallet boxes, increasing transport capacity by 150% per trip. This means that a return trip that previously required five truckloads can now be completed in just two. In today’s environment of increasingly stringent carbon emissions regulations, reducing the frequency of transport is equivalent to reducing the carbon footprint, thereby earning companies a “green premium.”
The folding process itself has also been carefully designed. Typically, the short sides are folded first, followed by the long sides; a single person can complete the process in under 30 seconds without any tools. When folded, the crates have uniform dimensions and a flat surface, allowing them to be stacked as a single unit, which facilitates inventory checks and cleaning. Compared to rigid crates—which tend to pile up haphazardly, are difficult to manage, and easily accumulate dirt and grime—folding crates bring order to empty crate management and enhance on-site 5S standards. Additionally, the folded state facilitates cleaning and maintenance; the crates can be placed whole into a washing machine for spray rinsing, resulting in faster drying and higher hygiene standards.
Thanks to these comprehensive advantages, this pallet box has found widespread use in many key sectors of the national economy and has become a standard tool for upgrading logistics systems across various industries.
Throughout the entire new energy vehicle supply chain—from lithium mining and the production of anode and cathode materials, to cell winding, module and pack assembly, vehicle final assembly, and after-sales spare parts supply—folding pallet boxes are used at every stage. Their anti-static versions protect sensitive battery cells, while the four-door design accommodates mixed-line production of multiple battery pack variants. The folding feature addresses the significant seasonal fluctuations in the power battery industry and the reverse logistics involved in recycling end-of-life batteries. Leading companies such as Tesla, BYD, and CATL have all adopted reusable packaging of similar specifications on a large scale to replace single-use cardboard and wooden boxes.
Precision Machinery and Aerospace: Precision parts such as bearings, gears, and hydraulic valves have extremely high requirements for rust prevention, shock resistance, and cleanliness. Plastic materials do not rust or shed particles; when paired with EVA foam liners or thermoformed trays, they enable “zero-damage” handling of parts. A static load capacity of 4.5 metric tons supports multi-layer stacking of heavy castings and forgings. The folding feature quickly frees up valuable space in temperature- and humidity-controlled warehouses after parts have been delivered.
Fresh Agricultural Products and Food & Pharmaceuticals: Fruits, vegetables, seafood, meat, pharmaceuticals, and other products are sensitive to hygiene and temperature control. Plastic crates are corrosion-resistant, easy to disinfect, and comply with food safety standards. Their breathable design promotes cold air circulation, extending shelf life; the foldable feature allows for quick clearance of cold storage space after the harvest season, reducing operating costs during the off-season. In the pharmaceutical distribution sector, they can also be equipped with slots for temperature loggers to ensure a seamless cold chain throughout the entire process.
E-commerce Retail and Third-Party Logistics: As standardized unit loads, these containers—equipped with swivel casters—enable flexible movement between retail stores and forward distribution centers, serving both storage and display functions. Currently, major logistics companies in China have incorporated them into their reusable packaging systems to promote the development of green e-commerce.
With such a wide variety of similar products on the market, how can you choose the right one and ensure long-term value? Here are a few suggestions for your consideration:
Prioritize core requirements: If static storage is the primary use, focus on static load capacity and stacking stability; if dynamic handling is the primary use, prioritize dynamic load capacity, impact resistance, and wheel quality; if reverse logistics costs are high, the folding ratio is a key metric. Avoid blindly pursuing a “one-size-fits-all” solution; instead, weigh the pros and cons based on the actual use case.
Verification of Supplier Qualifications and Test Reports: We require complete test reports issued by third-party testing agencies covering load-bearing capacity, weather resistance, environmental compliance, and other relevant factors, rather than relying solely on verbal assurances. We conduct on-site inspections of the factory’s production lines to assess the tonnage of injection molding equipment, mold precision, and quality control processes to ensure consistency in mass production.
Establish a full lifecycle management system: Introduce RFID or QR code labeling to enable end-to-end digital tracking of the crates—from initial use, through circulation and maintenance, to disposal. Develop standardized operating procedures and train employees on proper folding, stacking, and cleaning methods to prevent premature damage caused by rough handling. Conduct regular spot checks on the condition of the crates and promptly remove those posing safety hazards to ensure safety standards are met.
Consider ecological compatibility: Ensure that the selected pallet boxes are compatible with the company’s existing pallets, shelving, forklifts, conveyor lines, cleaning equipment, and other systems to avoid creating silos. If possible, negotiate with upstream and downstream partners to standardize packaging specifications, establish a cross-company recycling and sharing system, and maximize economies of scale.
Looking back at the entire article, this 1200×1000×980 foldable plastic pallet box has long transcended its simple definition. It embodies standardized thinking, serves as a tool for lean management, practices green development, and acts as the physical cornerstone of corporate digital transformation. Its robust specifications—a static load capacity of 4.5 metric tons and a dynamic load capacity of 1.5 metric tons—reflect an unwavering commitment to safety and efficiency; its flexible configurations—including two-door and four-door options, as well as top-mounted swivel casters—demonstrate a deep understanding of user needs; and the ingenious design featuring a folded height of 390 mm embodies meticulous attention to cost and space optimization.
Choosing a product like this not only solves immediate logistics challenges but also instills in a company a forward-looking operational mindset—one that is more efficient, more flexible, and more sustainable. In an era of growing uncertainty, this foundational capability—which provides a sense of certainty—may well be the key to a company’s ability to weather economic cycles and gain a competitive edge.
