As the automotive industry ventures into the uncharted waters of its transition toward electrification and intelligent systems, every link in the supply chain is undergoing an unprecedented restructuring. While automakers and Tier 1 suppliers focus their attention on battery energy density, chip computing power, or vehicle drag coefficients, a seemingly traditional yet crucial field—logistics packaging—is quietly undergoing a silent revolution. As a mainstay among reusable logistics containers, the pallet box is no longer merely a carrier of goods. Through deeply customized inner liner designs and flexible layer planning, it is evolving into a high-density mobile warehouse and precision manufacturing equipment. This article will delve into how customized inner liner technology can maximize the space utilization of pallet boxes, thereby unlocking significant hidden profits in the storage and transportation of automotive parts.
For a long time, automotive parts logistics has faced the fourfold challenge of “high variety, small batches, high value, and susceptibility to damage.” Traditional packaging approaches often present a dilemma: While generic cardboard boxes or standard returnable containers have low procurement costs, they result in up to 40% or more of unused space inside the box when handling irregularly shaped parts (such as headlight assemblies, wiring harnesses, and exhaust manifolds), leading to significant space waste. On the other hand, fully customized specialized racks, while offering excellent protection, require a massive initial investment, incur high costs for returning empty containers, and become scrap metal once a vehicle model is discontinued, lacking flexibility.
With the explosive growth in the variety of new energy vehicle components, this dilemma has been further magnified. High-value components such as battery modules, electronic control units, and lidar sensors require extremely high levels of protection, while also featuring complex and varied geometric shapes. Companies urgently need a solution that offers the ultimate protection and space utilization of a dedicated rack while maintaining the versatility and reusability of a standard container. Panel-sided containers paired with customized liners are the key to resolving this dilemma. They perfectly decouple and deeply integrate standardized containers with customized fittings, boosting space utilization from an experience-driven 60% to a data-driven 95% or higher.
To achieve a qualitative leap in space utilization, custom interior design is by no means simply a matter of digging holes and filling grooves; rather, it is a systematic process of three-dimensional spatial reconstruction.

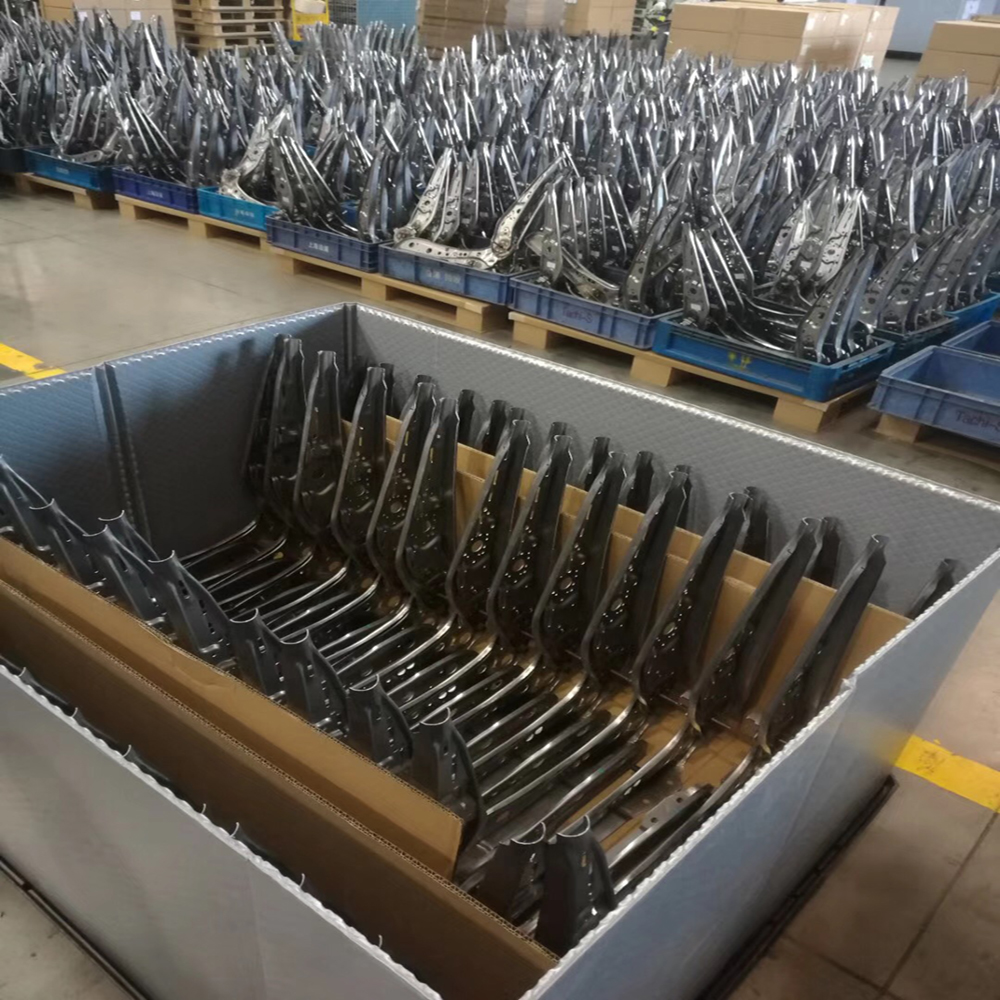

The primary objective of custom interior liners is to “define space based on parts.” Through processes such as EVA sculpting, EPE foam molding, thick-sheet thermoforming, or injection molding, the liner cavities can replicate the outer contours of parts with millimeter-level precision. For irregular castings or stamped parts, this means that previously unused corner areas are fully utilized. For example, when transporting aluminum alloy steering knuckles, a certain automaker increased the loading capacity per box from 24 to 36 units by switching from a flat-lay design to a staggered, nested insert design. This improved space utilization by 50% and directly reduced the number of transport trips by one-third.

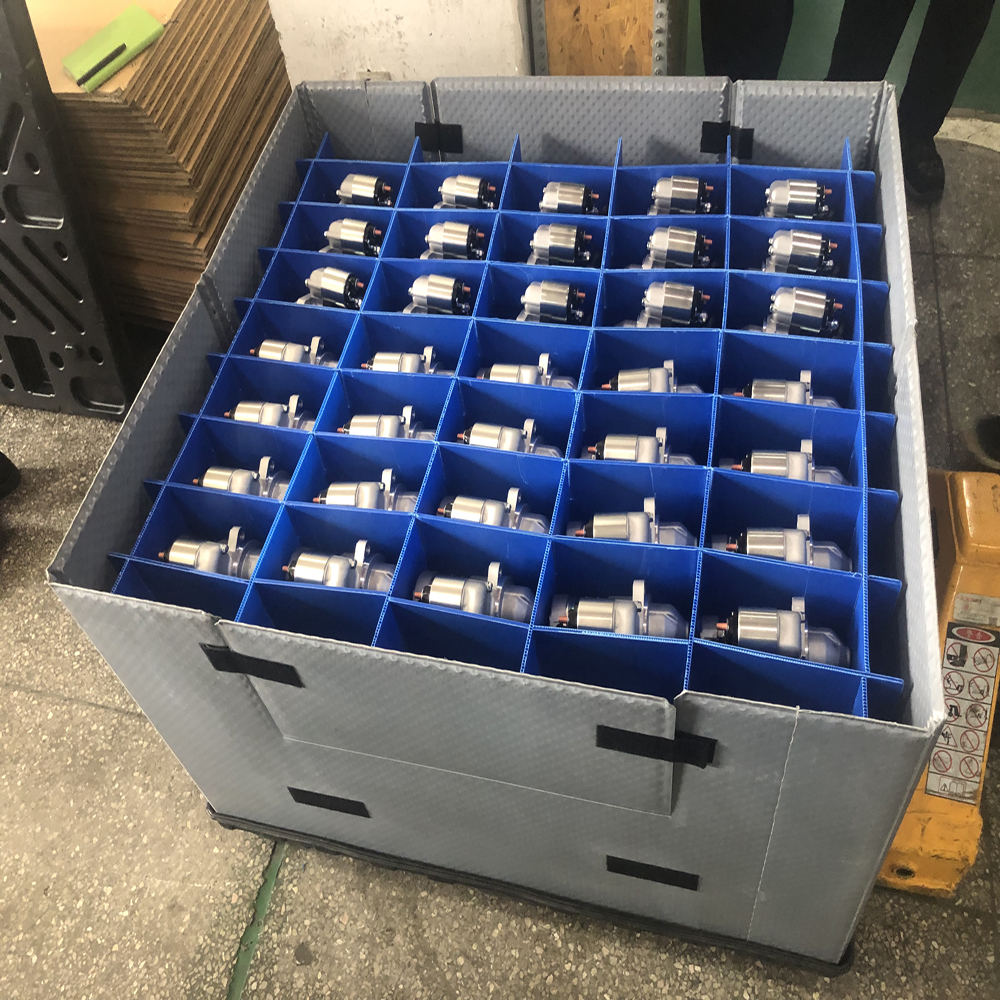

If the contoured fit solves the problem of whether items will fit, then the adjustable number of layers strikes a balance between maximizing capacity and ensuring safety. Modern bulkhead box lining systems do away with fixed dividers and instead use a modular layered structure:

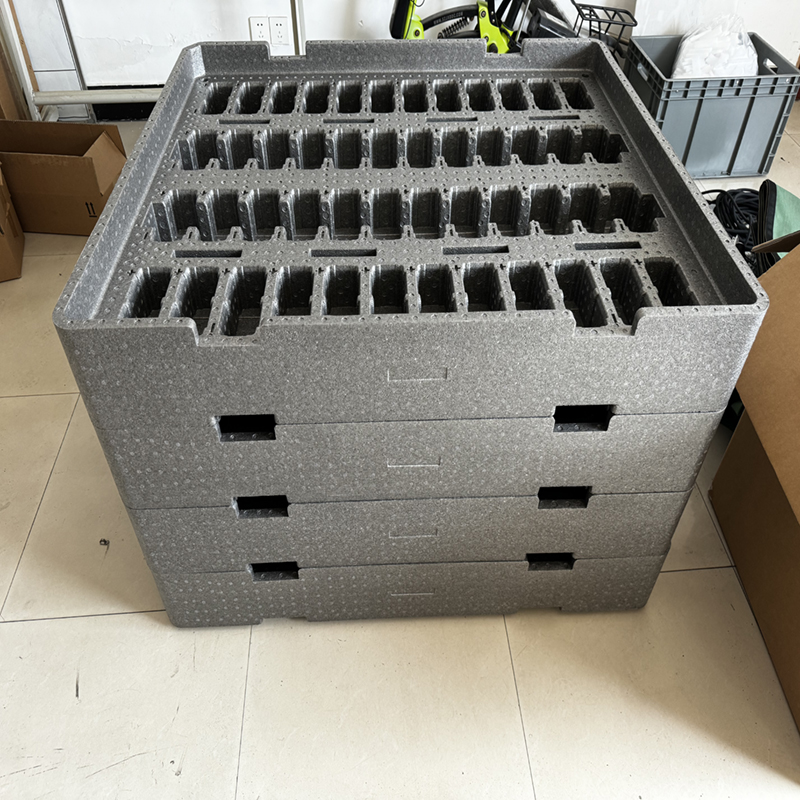

High-Density Stacking Mode: For lightweight, pressure-resistant standard components (such as sensors and relays), this method increases the number of layers and reduces the height of each layer, thereby doubling the loading capacity within the same enclosure volume. Some designs even incorporate the concept of nested trays, embedding micro-dividers between large layers to further maximize vertical space.
Buffer Isolation Mode: For precision electronic components or cosmetic parts, reduce the number of layers to allow for sufficient top buffer space and handling clearance. Floating dividers or air-cushion bags can be inserted between layers to ensure that, even when fully loaded, the weight of the upper layer is not transferred to the parts below.
Mixed-Load Compatibility Mode: Enables scientific load distribution within a single container, with heavy items placed at the bottom and light items on top. Heavy metal structural components are placed on the bottom layer, while lightweight plastic cover parts are stacked on the top layer using independent slots. This design not only maximizes vertical space but also optimizes the distribution of the center of gravity, enhancing transport stability.
High-end custom inserts have expanded their functionality beyond mere containment to include operational support. For example, anti-static materials are integrated into the inserts to protect electronic control units; ergonomically designed access angles and finger grips are incorporated to reduce fatigue among production line workers; pre-embedded RFID tags or QR codes enable digital traceability down to the component level; and cooling air ducts are even molded as an integral part of thermoformed inserts to meet the transportation requirements of specific temperature-controlled components. In this context, inserts are no longer mere consumables but an integral part of the production process.
Maximizing space utilization is merely a surface-level metric; the comprehensive benefits it unlocks are the core drivers of corporate decision-making.
Exponential Reduction in Logistics Costs: An increase in load factor directly translates to a higher number of items transported per vehicle. Suppose the original plan for a certain component was to pack 20 items per box, but after customization, 30 items can be packed—a 50% increase. With an annual demand of 100,000 units, the number of transport trips can be reduced from 5,000 to approximately 3,333, resulting in a 33% savings on trunk line transportation costs. When factoring in rental savings from reduced warehouse space requirements and the benefits of fewer empty container return trips, the overall reduction in logistics costs can reach 25%–40%.
A Dramatic Reduction in Quality Losses: The precise positioning and cushioning design of custom liners fundamentally eliminate collisions, friction, and compression during transit. After a Tier 1 supplier switched to custom EVA liners, the damage rate during transport of a certain precision valve body dropped from 0.8% to 0.02%, resulting in annual savings of over one million yuan in quality claims and rework costs. This ability to deliver zero-defect products has further earned the long-term trust of the original equipment manufacturer (OEM).
Significant Enhancement of Supply Chain Flexibility: The modular liner design enables a single standard pallet box to adapt to multiple vehicle models and product generations. When an older model is discontinued, only the liner modules for the corresponding layer need to be replaced, while the box itself remains in service. This not only reduces the full lifecycle cost of packaging assets but also shortens the packaging preparation cycle during new product introduction, thereby improving market responsiveness.
ESG and Sustainable Development in Practice: Higher load factors mean lower carbon emissions; reusable pallet boxes and replaceable liners reduce single-use packaging waste; and the use of lightweight materials further lowers energy consumption. Against the backdrop of increasingly stringent carbon tariffs and green supply chain requirements, these practices have become key pillars of corporate compliance and brand premium.
To truly unlock the potential of custom linings, we must move away from the traditional sequential development model of “sketching—prototyping—fitting—revision” and shift toward data-driven concurrent engineering.
Digital Simulation First: Using 3D CAD data of components, virtual simulations are conducted to verify space utilization, center of gravity, force distribution, and interference during loading and unloading before mold production begins, reducing the design iteration cycle from several weeks to just a few days.
End-to-End Validation Testing: Samples must pass transportation packaging test standards, including random vibration, drop, stacking compression, and real-world road profile testing. Particular attention must be paid to long-term reliability under maximum load conditions to prevent protection failures caused by an excessive focus on space optimization.
Balancing Standardization and Modularity: Prioritize the use of industry-standard pallet box base dimensions and snap-fit interior liners. While accommodating customization, this approach preserves the ability for cross-company and cross-scenario circulation, thereby avoiding the pitfalls of excessive non-standardization.
Supplier-Led Collaborative Development: Select a packaging service provider with integrated design, manufacturing, and testing capabilities. An excellent supplier not only executes design drawings but also leverages extensive project experience to offer optimization suggestions, helping customers identify areas of space waste they may not have noticed.
Looking ahead, customized inner liner technology for corrugated boxes will become deeply integrated with the Internet of Things (IoT) and new materials. Smart liners equipped with built-in sensors will be able to monitor temperature, humidity, impact, and location in real time, enabling visibility and early warnings throughout the transportation process; the use of bio-based, biodegradable materials will make packaging more environmentally friendly; and AI-driven generative design will automatically generate optimal inner liner topologies, bringing them even closer to theoretical spatial limits.
In an era of slim margins in the automotive industry, profits are often hidden in the overlooked details. The technology for custom-lined panel boxes may appear to be a simple improvement to packaging structure, but at its core, it represents the refined management and revaluation of logistics space assets. It transforms what was once underutilized and wasted space into a quantifiable, optimizable, and monetizable factor of productivity.
