As the automotive industry moves toward lean manufacturing and zero-defect delivery, logistics packaging is no longer merely a container but has become an extension of the production line and a critical link in quality control. As a functional interface that comes into direct contact with components, the material properties of bin liners directly determine the integrity rate of parts during storage, transportation, and assembly. This article systematically reviews the mainstream liner material systems, represented by EPP and PU. It provides an in-depth analysis of their logistics and chemical properties, molding processes, failure modes, and engineering selection criteria. By addressing the specific protection requirements for new energy vehicle components, it offers automotive supply chain professionals a comprehensive technical reference guide.
Modern automobiles consist of tens of thousands of parts, with supply chains spanning hundreds of kilometers or even the globe. In VDA 6.3 process audits and the logistics quality standards of major automakers, issues such as paint scratches, deformation of precision dimensions, and electrostatic discharge caused by inadequate packaging protection are classified as major quality risks. Traditional corrugated cardboard, standard EPS foam, and wooden dividers have gradually been phased out of the circulation system for core components due to inherent defects such as shedding, moisture absorption, and rapid loss of cushioning effectiveness.
Instead, high-performance polymer foam materials are being used. These materials must not only address the fundamental issue of damage prevention but also balance weight reduction to lower carbon emissions, oil resistance to withstand machining environments, antistatic properties to protect electronic components, and a long service life to spread out the cost per use. Understanding the underlying principles of these materials is a prerequisite for achieving the optimal packaging solution.

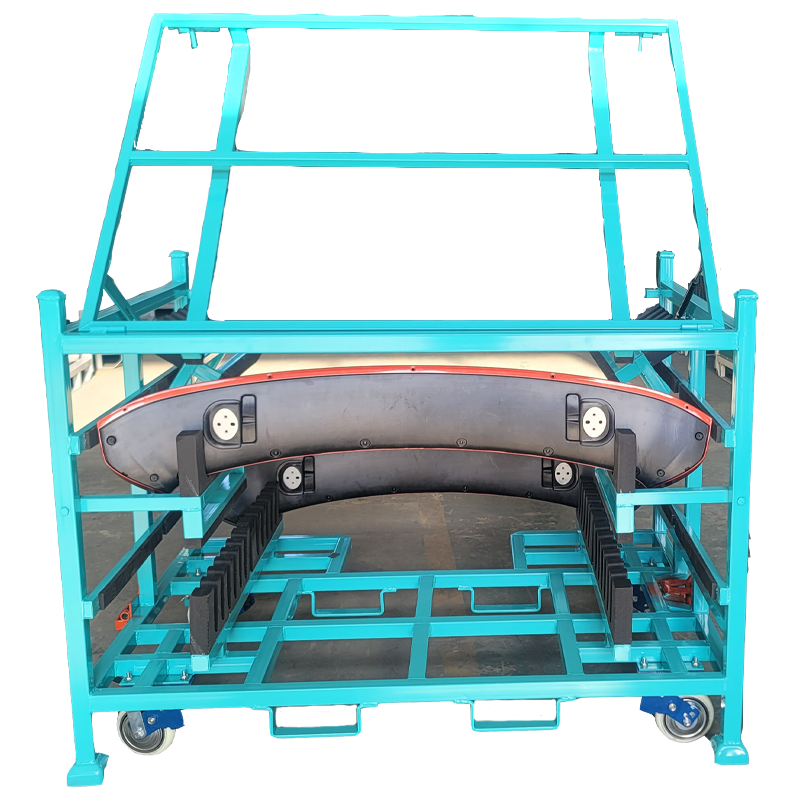

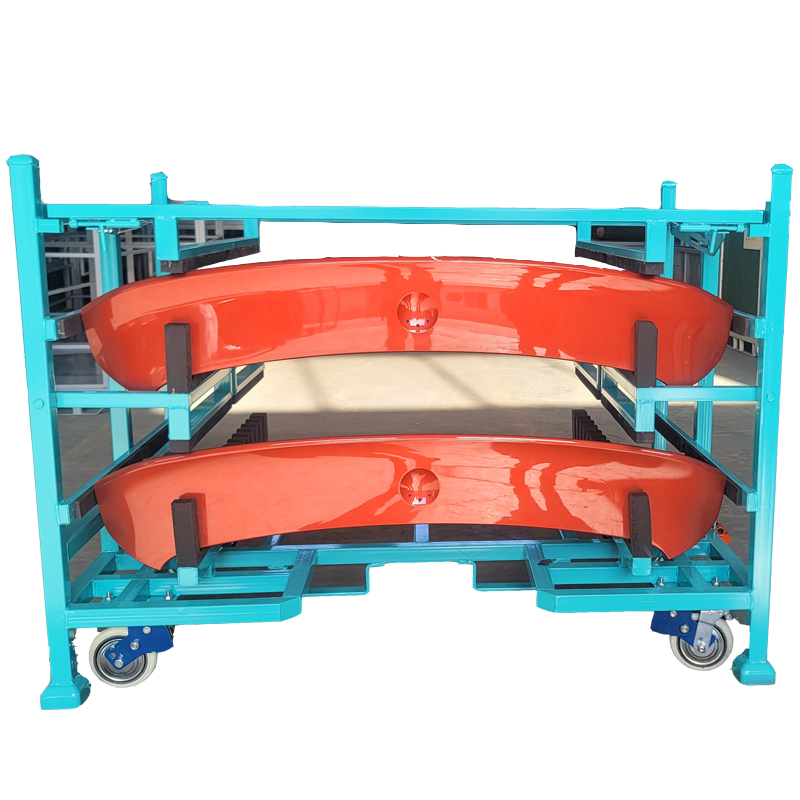

EPP is a semi-crystalline thermoplastic foam that, thanks to its unique bead-cell structure, currently holds the highest market share in the automotive material rack lining market.
Microstructure and Mechanical Behavior: EPP consists of countless closed micrometer-scale bubbles; this closed-cell structure gives it excellent energy absorption capabilities. Upon impact, the bubble walls undergo elastic buckling rather than rupture, and recover more than 90% of their deformation once the load is removed. In contrast, EPS undergoes brittle fracture under the same impact, resulting in permanent loss of cushioning performance.
Chemical Resistance and Cleanliness: The nonpolar molecular chains of polypropylene make it naturally inert to engine oil, cutting fluids, rust-preventive oils, and weak acids and alkalis. When used in the handling of oil-contaminated parts such as engine blocks and transmission housings, EPP does not swell, chalk, or leach low-molecular-weight substances, making it fully compliant with the VDA19 cleanliness standard.
Thermal Performance and Dimensional Stability: EPP typically has an operating temperature range of -40°C to 120°C, enabling it to withstand extreme temperature fluctuations—from outdoor storage in northern regions during winter to vehicle cargo compartments exposed to intense summer heat in southern regions. Additionally, its low coefficient of linear expansion ensures the dimensional accuracy of precision positioning slots.
Process Limitations and Solutions: EPP must be formed using steam molding, which involves high mold costs. Therefore, it is better suited for projects with stable annual demand and high turnover rates. For small-batch vehicle models, a design approach using a “generic EPP substrate with localized inserts” can be adopted to spread the mold investment.

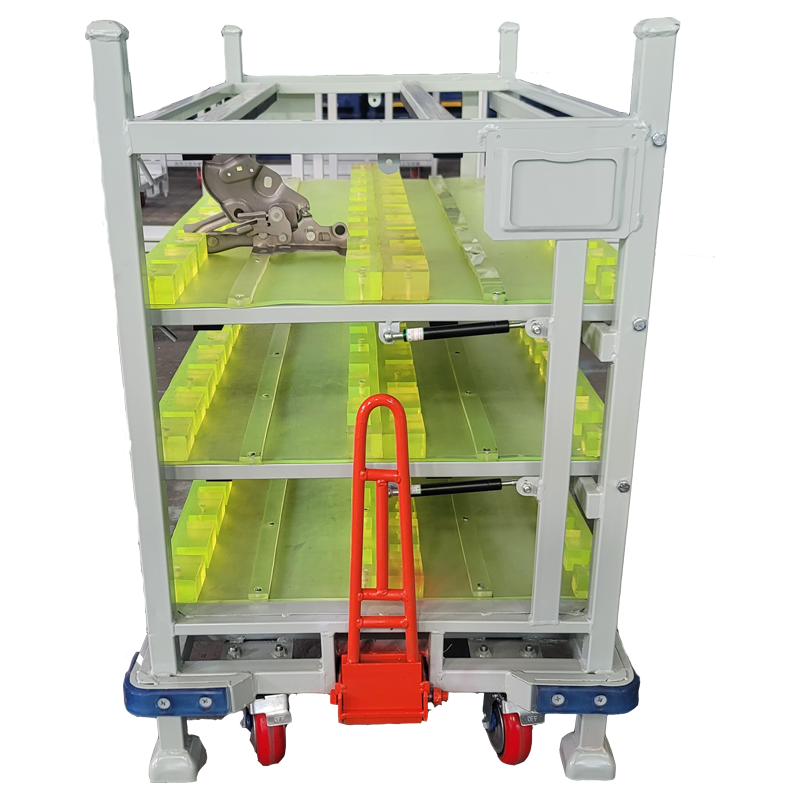

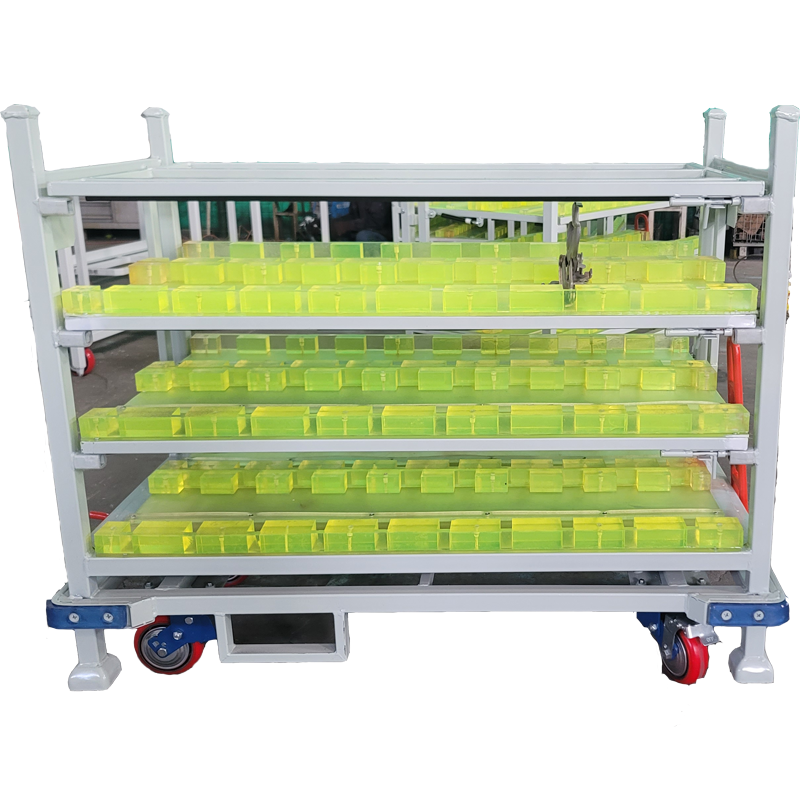

PU is a vast family of materials; in applications for shelf liners, it is primarily divided into three major categories: molded rigid foam, flexible foam, and on-site foaming.
Molded Microcellular Elastomers: This type of PU combines the elasticity of rubber with the strength of plastic, featuring a dense, smooth surface and a porous interior that absorbs energy. Its wear resistance is significantly superior to that of EPP, making it particularly suitable for the long-term handling of heavy cast iron components. By adjusting the ratio of isocyanate to polyol, the hardness (Shore A 30–90) can be precisely controlled, enabling customization for parts of varying weights.
On-site foaming technology: A two-component liquid is injected into the grooves of a film-lined mold, where it expands and cures within tens of seconds, perfectly replicating the part’s contours. This technology requires no molds and has a development cycle of just 3–5 days, making it a lifesaver for prototype vehicles, aftermarket parts, and models produced in extremely low volumes. However, it is important to note that on-site foaming is sensitive to ambient temperature and humidity; strict monitoring of process parameters is required to prevent uneven density or an excessively thin surface layer.
Soft PU Skin: For Class A surfaces such as high-gloss panels and piano-lacquered parts, a 3–5 mm-thick layer of soft PU skin is often laminated onto an EPP or ABS substrate. This layer provides an extremely low coefficient of friction and a soft tactile feel, completely eliminating the risk of microscopic scratches that could be caused by rigid foam.
EVA: It has a fine texture and is easy to CNC machine and thermoform. It is commonly used for interior trim components and liners for electronic modules. Its advantages include processing flexibility and no tooling costs; its disadvantages include significant compression set, making it unsuitable for heavy loads or high-frequency cycling.
TPE: Combines the tactile feel of rubber with the processability of plastic and can be injection-molded directly into a single piece with the frame. It is suitable for functional structures such as latching points and stop blocks that require extremely high dimensional accuracy and wear resistance; however, due to its higher cost, it is typically used only for critical contact points.
Selecting a lining material is by no means a simple matter of judging “good” or “bad”; rather, it is a multi-objective optimization process. We recommend using the following four-dimensional evaluation model:
Part Sensitivity Analysis: Distinguish between appearance-sensitive, dimensional-sensitive, function-sensitive, and weight-sensitive parts. For example, molds for new energy batteries must simultaneously meet anti-static, fire-retardant, and high-strength support requirements; standard EPP cannot meet these needs, so modified conductive EPP or flame-retardant PU must be selected.
Full Life Cycle Cost Calculation: Avoid focusing solely on the unit purchase price. Formula: Cost per use = (Material cost + Mold amortization + Maintenance cost) / Estimated number of uses. Although EPP has a higher unit price, over 300 uses, the cost per use may be only one-tenth that of a cardboard box.
Logistics Environment Compatibility: Evaluate transportation modes (truck/rail/sea), stacking levels, temperature and humidity ranges, and loading/unloading methods (manual/robotic). Automated storage-and-retrieval systems (AS/RS) impose far stricter requirements on the dimensional tolerances of storage racks and the wear resistance of their liners than traditional warehouses.
Compliance and Sustainability: Verify that materials meet IMDS reporting requirements, the ELV Directive, and customer-specific lists of prohibited and restricted substances. Prioritize the use of foam materials containing recycled content or bio-based raw materials, and build a data asset for carbon footprint calculations.
Even if the right materials are selected, improper design or manufacturing can still lead to a failure in protection. The following are typical lessons learned in the industry:
Tear Caused by Stress Concentration: The sharp corners of the inner lining lacked rounded transitions, resulting in cracks at the base after repeated insertion and removal. Countermeasure: Ensure all corner radii are ≥3 mm, and add reinforcing ribs or embed metal/nylon inserts in stress-bearing areas.
Loosening caused by compression creep: Prolonged stacking pressure causes permanent indentation in the inner lining of the part, affecting its positioning function. Countermeasure: Conduct a 72-hour high-temperature compression set test and allow for a 5–10% interference fit to compensate for creep loss.
Dust Adsorption Due to Static Electricity Build-up: The high surface resistance of standard EPP makes it prone to attracting dust, which can contaminate parts. Solution: Add conductive carbon powder or carbon fibers to control surface resistance, and periodically monitor the rate of resistance decay.

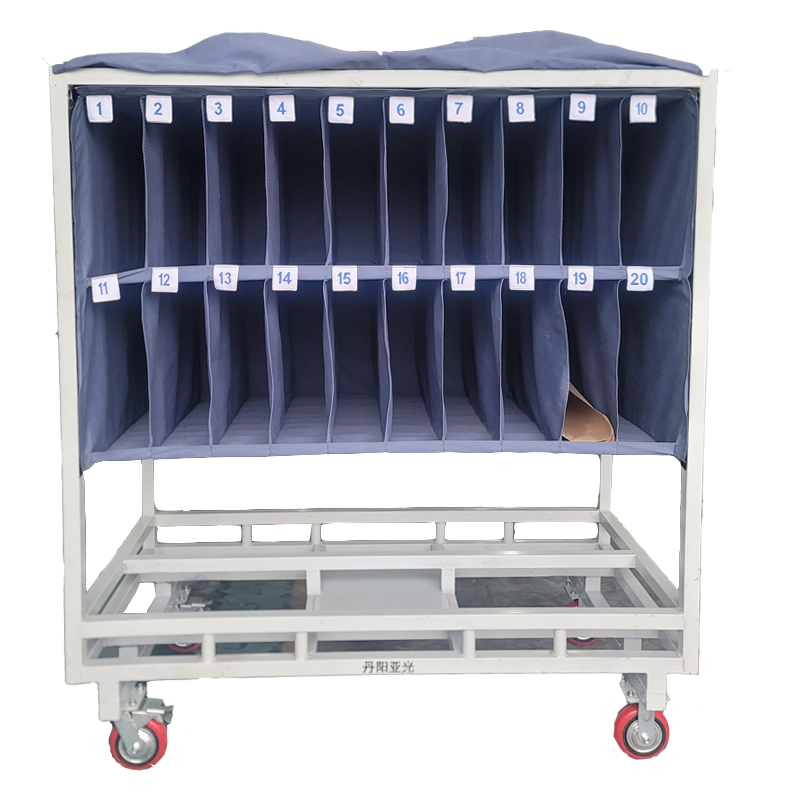

Delamination: The composite fabric is not firmly bonded to the substrate. Solution: Prioritize using a hot-melt adhesive film and hot-pressing process instead of spray adhesive, or achieve integrated co-curing during the molding stage.
As the automotive industry undergoes transformation, interior trim materials are also continuing to evolve:
Functional Integration: Liners are no longer merely passive protective elements; they are now incorporating slots for RFID tags, mounting points for sensors, and even temperature-controlled phase-change materials, marking a transition toward “smart packaging.”
Low-carbon materials: Green materials such as bio-based EPP and chemically recycled PU are moving from the laboratory to mass production, helping automakers address regulatory pressures such as the EU’s Carbon Border Adjustment Mechanism.
Digital Design: By combining CT-scan-based inverse modeling with finite element simulation, it is possible to accurately predict the cushioning performance and service life of the lining before mold production, reducing trial-and-error costs by more than 80%.
Selecting liners for automotive parts racks is a systematic process that integrates materials science, mechanical engineering, and logistics management. EPP has set the industry standard with its balanced performance, while PU meets specialized needs with its flexibility. The continuous emergence of new materials and processes, meanwhile, opens up possibilities for even more advanced protection.
For packaging engineers, only by gaining a deep understanding of each material and repeatedly testing it in specific business scenarios can they create exceptional packaging solutions that both safeguard product quality and align with business objectives. On the path to high-quality development, this unassuming, invisible armor will ultimately demonstrate its irreplaceable value.
