Automotive air conditioning evaporators are aluminum fin-tube heat exchangers. The selection of containers for their storage phase should not be based solely on loading efficiency and logistics costs, but rather on an analysis of component failure modes and storage cycles. The primary quality risks associated with evaporators during storage fall into three categories: particulate contamination of the interior and surfaces, mechanical damage to the fins, and corrosion of the aluminum surface. The container design must effectively mitigate each of these risks while striking a balance among cleanliness, structural support, and microenvironment control.
Evaporators have specific control requirements for particulate matter and residual media. The industry-standard VDA 19.1/ISO 16232 system establishes a testing framework for particulate cleanliness of components, while some original equipment manufacturers (OEMs) have additional specific specifications, such as VW PV3336, which define the methods and limits for measuring residual particles. In terms of engineering specifications, residual water content in the interior cavity is typically controlled at the 30 mg level, surface oil residue does not exceed 20 mg/m³, and particulate matter is controlled to the 15 μm range. If the inner surfaces of the container that come into direct contact with parts exhibit flaking, dust accumulation, or oil residue, this will directly lead to a deterioration in cleanliness metrics. Therefore, the container material’s resistance to flaking, the cleanliness level of its inner surfaces, and its cleanability after repeated use should be considered primary technical criteria for selection, rather than secondary considerations.
Aluminum fins are thin and have low rigidity; when subjected to pressure, they are prone to buckling or permanent deformation, which in turn affects heat transfer efficiency. The container structure should provide contoured supports or cushioning positioning so that the evaporator’s weight is borne by the main structure or dedicated support points during stacking, transportation, and handling, thereby preventing direct contact between the fins and the container floor, side walls, or adjacent components. If a general-purpose reusable container lacks a contoured liner, it should not be used as a storage surface that comes into direct contact with the evaporator. Handling clearances, stacking heights, and container rigidity should also be evaluated to minimize the risk of scraping and crushing during operations.
Aluminum inherently possesses a certain degree of corrosion resistance, and the surface of evaporators is typically coated with a hydrophilic coating or an anodized layer to serve as a protective barrier. However, fluctuations in humidity within the storage environment, condensation, and poor ventilation inside the packaging can weaken the effectiveness of this surface protection. Simple shipping films and sealing materials should be removed before storage to allow any potential condensation to dissipate rather than being trapped on the part surfaces. Container design should prevent the formation of a stagnant microenvironment characterized by prolonged high humidity and low air exchange. For medium- to long-term storage or inter-plant transportation, vapor-phase corrosion protection measures may be applied in addition to physical containers, provided that the part surfaces are clean and dry, and the packaging space is relatively airtight.
Vacuum-formed trays are molded from thermoplastic sheets such as PP, PS, and PET. Their support surfaces can be contoured to match the shape of the evaporator, ensuring stable part positioning and preventing the fins from bearing direct loads. They are suitable for in-plant handling and short-distance transport of small- to medium-sized precision components. Thick-walled PP trays are resistant to high and low temperatures, impact-resistant, and produce minimal debris, providing a solid foundation for cleanliness control. However, the effectiveness of thermoformed trays is highly dependent on proper cleaning management: new trays may contain residual release agents, while reused trays may accumulate dust and fingerprints. Unless they undergo ultrasonic cleaning with pure water followed by thorough drying, the cleanliness level of their inner surfaces will not meet the cleanliness targets for evaporators. Therefore, thermoformed tray solutions should be accompanied by clear cleaning, drying, and clean packaging procedures, with particulate testing requirements established in accordance with the VDA 19.1/ISO 16232 framework.

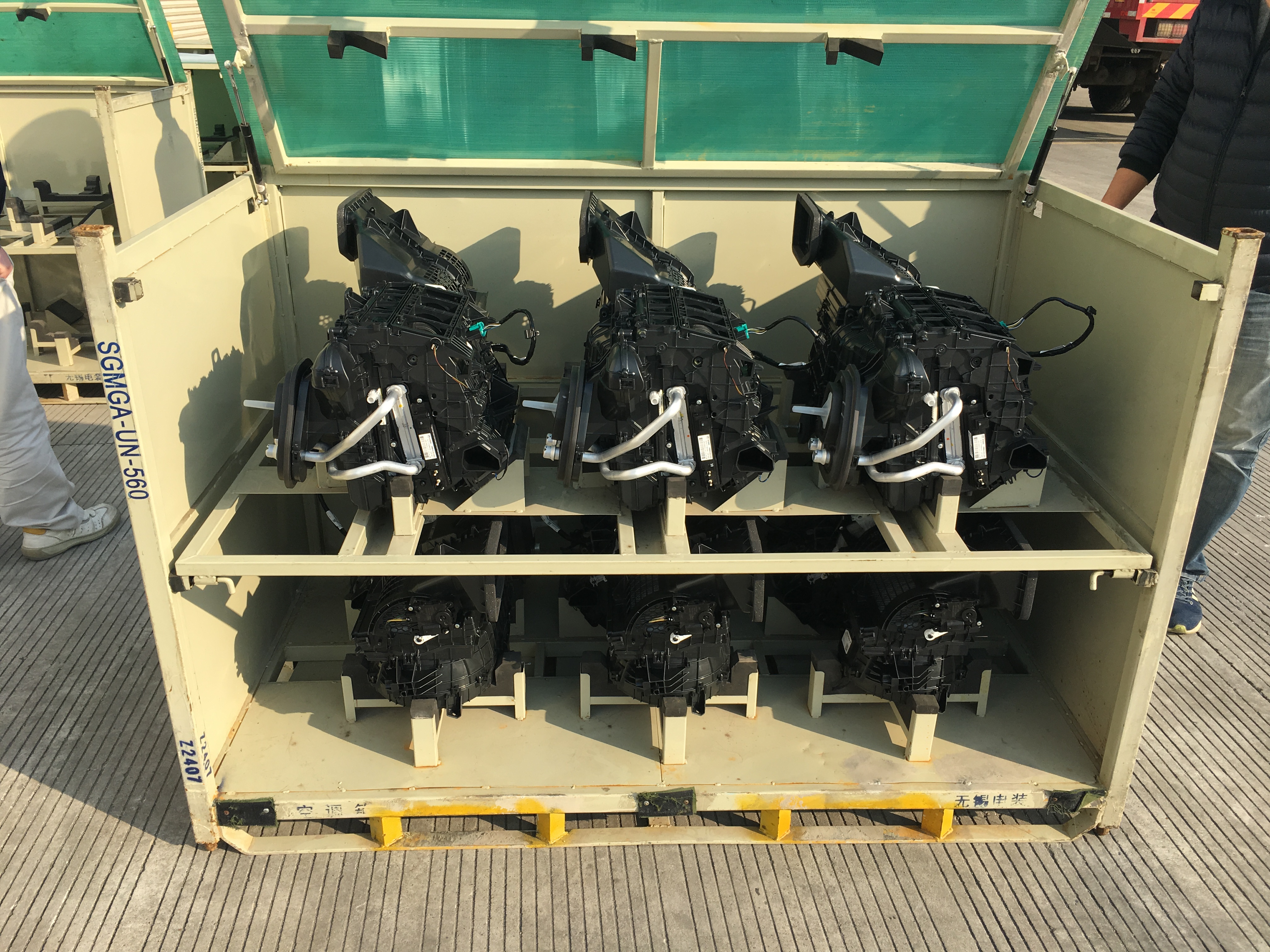

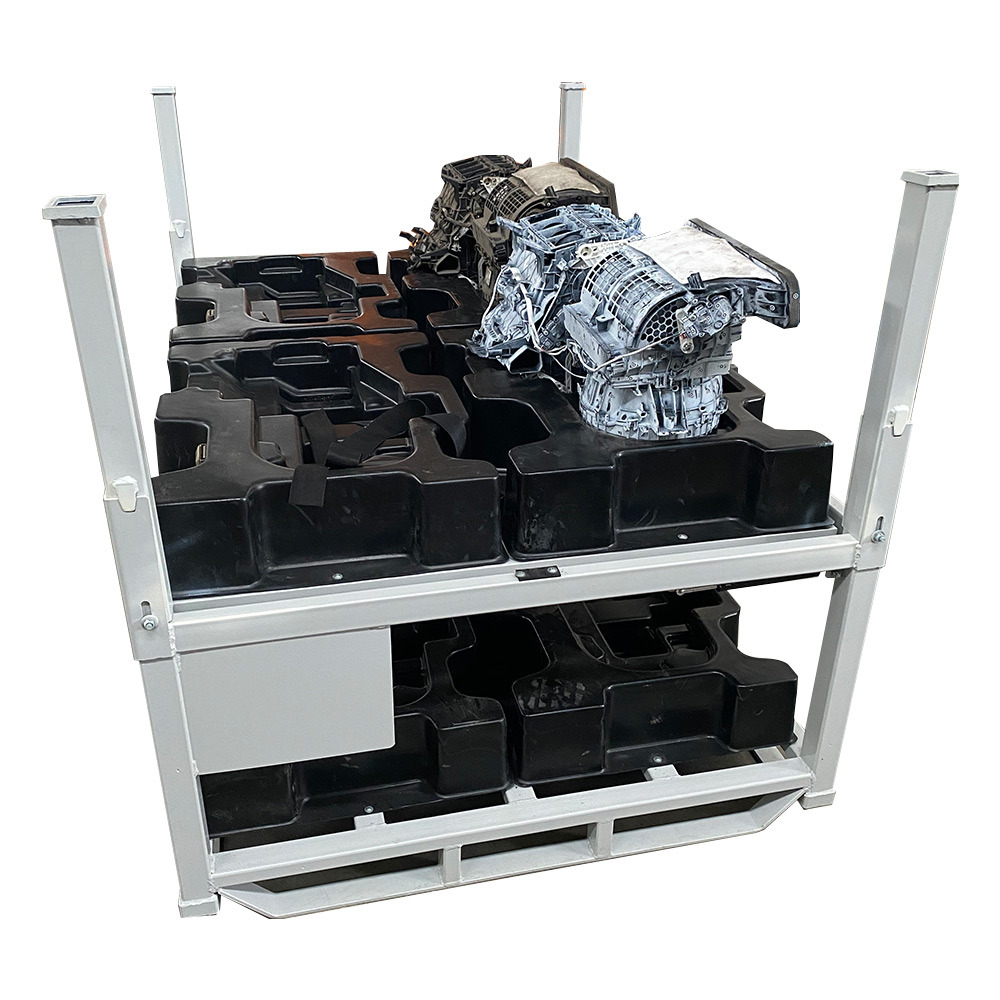

The advantages of plastic returnable containers lie in their loading capacity, stacking stability, and recycling efficiency, making them suitable for in-plant inter-process transfers or short-distance transportation. The inner walls of standard returnable containers typically do not feature a fin-shaped contour; therefore, if evaporators are to be loaded directly, liners or dividers must be installed to provide support and cushioning. Cleanliness control generally follows ISO 14644-9 or SCP CLASS 8 standards, with a focus on ensuring the absence of oil, dust, and machining debris. Based on this, returnable containers are better suited for use as outer or intermediate layers, with vacuum-formed trays or specialized liners inside to provide direct protection for the evaporator unit itself; they should not serve as the sole point of contact.
VCI film or rust-preventive paper releases corrosion inhibitor molecules in a relatively sealed space, forming an adsorbed protective layer on the aluminum surface that provides rust protection for up to two years or more. This solution addresses the risk of corrosion during storage but does not provide mechanical support nor does it replace physical containers. Prerequisites for its use include: parts must be clean and dry, and the packaging space must be relatively sealed to maintain the concentration of the corrosion inhibitor. The material must be explicitly labeled as suitable for aluminum and non-ferrous metals, rather than a generic product intended solely for steel. If parts still have shipping film on them or their plugs have not been removed, applying VCI packaging directly may trap moisture on the part surfaces, thereby reducing the protective effect.
Blister trays and returnable containers are both reusable items, and each cycle may introduce new particulate matter and oil contamination. Their cleaning should not be regarded as a secondary process but should be specified as an integral part of the storage plan, including the cleaning medium, cleaning method, number of ultrasonic cleaning cycles, drying conditions, and clean storage requirements. Container inspection standards should be clearly defined in procurement agreements or circulation management agreements, specifying criteria for particulate matter, oil contamination, and visual appearance to avoid relying solely on visual inspection. For cleanliness-sensitive components such as evaporators, the level of container cleanliness management directly determines the effectiveness of the storage plan.
When selecting storage containers for automotive air conditioning evaporators, the process should begin by analyzing component failure modes. Cleanliness control, mechanical protection of fins, and corrosion protection for aluminum materials should be translated into functional requirements for the containers. The optimal container configuration should then be determined by considering storage duration, handling frequency, and environmental conditions. Thermoformed trays are suitable for high-precision contouring and clean-contact applications; returnable containers should serve as the outer logistics unit; and VCI packaging should be used for corrosion protection over time. While the containers themselves do not introduce quality issues, improper selection or inadequate cleanliness management will cause the quality state achieved through prior cleaning and surface treatment to deteriorate during the storage phase. Therefore, container selection should be treated as an integral part of evaporator storage quality control, rather than a simple procurement decision for logistics equipment.
