What Are The Advantages of Using PP Honeycomb Panels As Vehicle Liner?

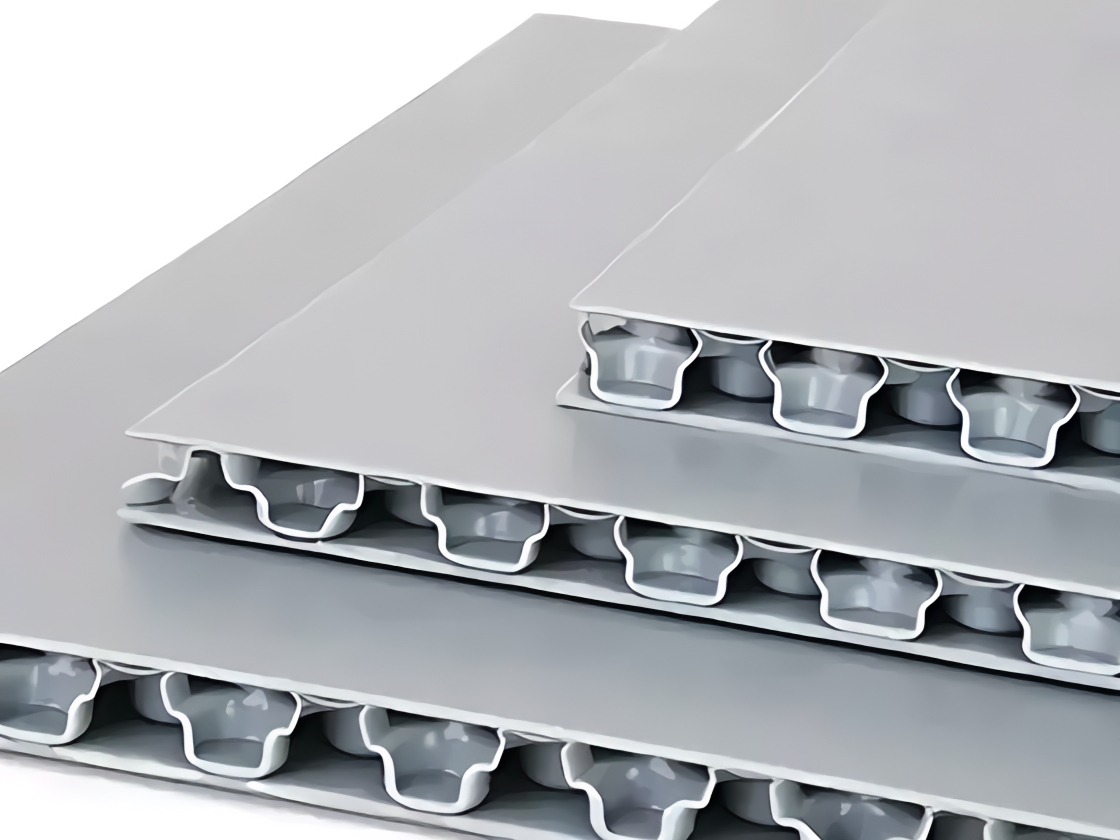

PP Honeycomb Board or PP Foam Board features a unique three-layer structure, with a honeycomb core layer and one or two sides coated with bubble or flat surfaces. This material is known for its high strength, durability, and lightweight properties, making it an ideal choice for vehicle lining applications.

What are the advantages of using PP honeycomb panels as vehicle liner?

1. Lightweight

PP honeycomb panels utilize a hollow structural design to significantly reduce material weight. For instance, commonly used padding specifications—4mm and 5mm thick PP honeycomb panels—achieve a minimum areal density of 1.5 kg/m². In contrast, a 4mm solid PP sheet has an areal density of 3.64 kg/m², which is over 2.4 times that of the honeycomb panel. Even for thicker 8mm or 10mm honeycomb panels, the minimum areal density remains as low as 2.5 kg/m². Consequently, using PP honeycomb panels as vehicle interior liners effectively reduces body weight, leading to a significant annual reduction in fuel consumption costs for drivers.

PP honeycomb panels also offer enhanced thermal insulation and acoustic damping properties compared to solid sheets, further improving vehicle comfort while maintaining structural integrity. These additional benefits, combined with weight reduction, make them an ideal solution for sustainable automotive design.

2. High Impact Resistance

While hollow structures generally reduce weight at the expense of mechanical strength, PP honeycomb panels overcome this limitation through an innovative design. Unlike corrugated panels, which exhibit relatively weak structural stability, PP honeycomb panels feature a regular array of hexagonal cells that are tightly interconnected to form a robust three-dimensional network. This design leverages a fundamental principle of structural mechanics: a regular hexagon is composed of six equilateral triangles, which are the most stable geometric units in terms of load distribution. Consequently, when subjected to external impacts, PP honeycomb panels effectively distribute the applied load throughout the entire structure, demonstrating excellent impact resistance and maintaining structural integrity without cracking, collapsing, or bending.

Additionally, the hexagonal honeycomb structure provides superior energy absorption during impact events, as the cells progressively collapse in a controlled manner, dissipating kinetic energy. This mechanism not only enhances passenger safety but also reduces repair costs after minor collisions. For automotive applications, this translates to a 20-25% improvement in crashworthiness compared to conventional corrugated liners.

3. Durable

PP honeycomb panels integrate waterproof, scratch-resistant, corrosion-resistant, and easy-to-clean properties into an ideal solution for vehicle interior liners. Their hydrophobic surface effectively repels water—as a non-absorbent plastic material, even when rinsed with water, droplets remain only on the surface without penetrating the internal structure. For natural drying, placing the panel in a ventilated area allows surface droplets to evaporate completely; to entirely eliminate water residue concerns, we offer edge-sealed PP honeycomb panels that achieve IP67-level protection through thermal fusion processes that hermetically seal the lateral micro-pores. Notably, matte-finished PP honeycomb panels exhibit significantly enhanced scratch resistance: their micro-rough surface structure (surface roughness Ra≈3-5μm) effectively disperses localized stress, reducing scratch formation. In truck wall liner applications, this feature can lower the risk of accidental body scratches during cargo loading and unloading by 40-50%. Routine maintenance is highly efficient: common dirt can be removed with a damp cloth (cleaning efficiency exceeding 95%); stubborn stains can be thoroughly cleaned using a neutral detergent without damaging the panel surface. Field data demonstrates that using PP honeycomb panels as vehicle interior liners reduces annual maintenance costs by 30-35% while significantly extending the vehicle's service life.

Additionally, the matte surface treatment provides superior anti-glare properties (reducing light reflectance to below 15%), which enhances driver visibility and safety in bright conditions. This feature, combined with the panel's excellent thermal stability (operating temperature range from -40°C to +85°C), makes it particularly suitable for commercial vehicles operating in extreme climates.

4. Surface Type Optional

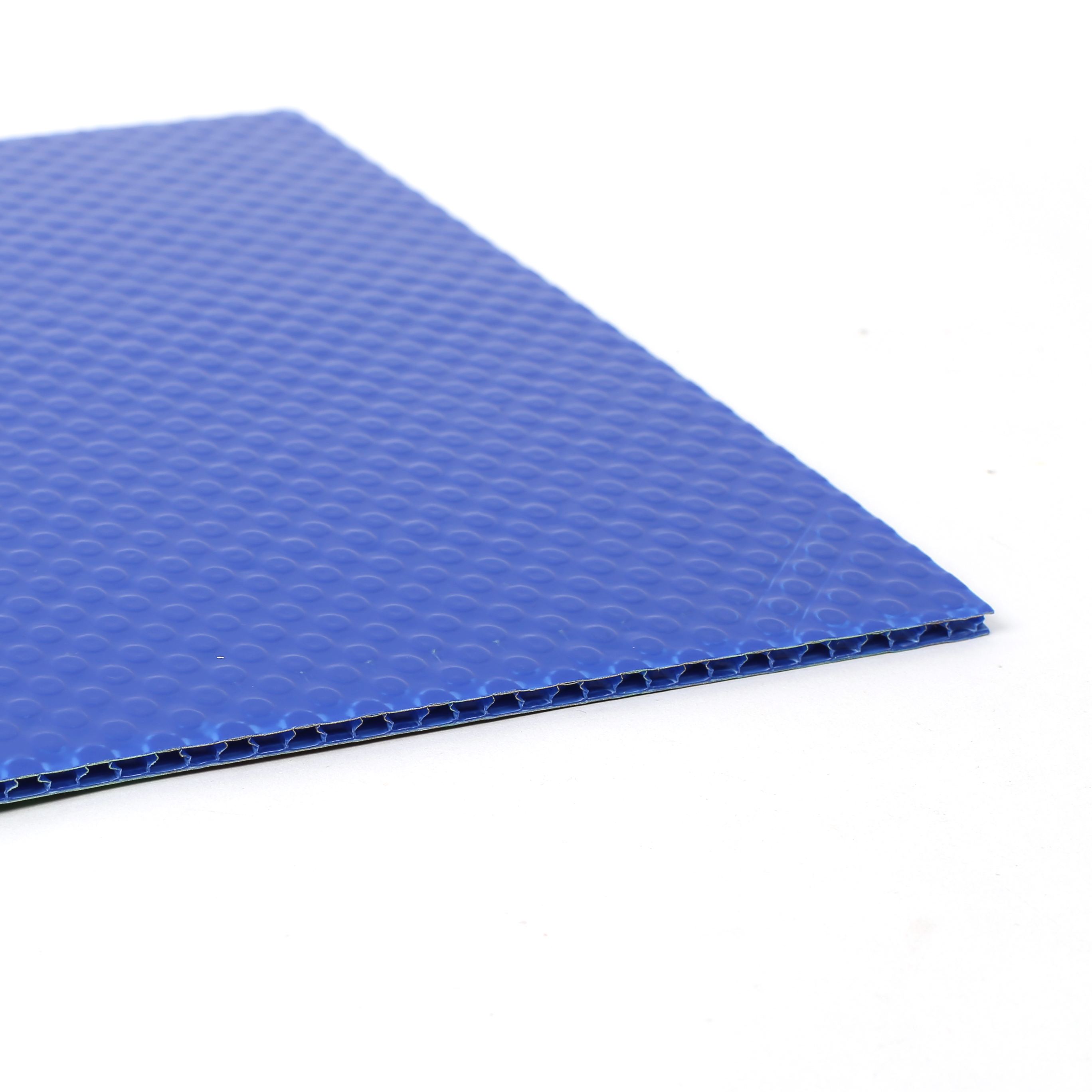

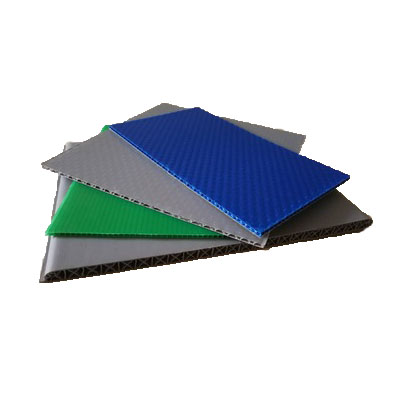

The PP honeycomb panels we provide can have multiple surface types, including matte surface, rough matte surface, and bubble texture. Please feel free to contact us for detailed surface combinations.

5. Composite Surface Optional

PP honeycomb panels can be surface-laminated with various functional materials through thermal fusion lamination to customize performance for specific applications. In safety-critical applications, an anti-slip thermoplastic elastomer (TPE) top layer provides a high coefficient of friction (CoF) of 0.8-1.2 under dry conditions, significantly enhancing pedestrian safety. Even in wet or oil-contaminated environments, the CoF remains above 0.6, effectively preventing slips and falls. For comfort-focused applications, lamination with polypropylene (PP) or polyester (PET) non-woven fabrics of varying grammage offers tailored solutions: 80g/㎡ ultra-thin for lightweight protection, 150g/㎡ standard for balanced durability and comfort, and 250g/㎡ high-density for superior cushioning and premium texture. Testing shows that panels laminated with 250g/㎡ non-woven fabric achieve a wear resistance of over 5000 cycles (Taber test method), significantly exceeding industry averages, while effectively absorbing impact energy to enhance passenger comfort. These composite panels are ideal for automotive trunk liners and truck floor mats, reducing cargo slippage risk by 60-70% and protecting vehicle bodies from impact and abrasion. Fleet testing demonstrates a 50% reduction in mat maintenance frequency and a 2-3x extension of service life compared to conventional materials.

6. Safe, Non-toxic and Formaldehyde-free

Last but not least, PP honeycomb panels with or without non-woven fabrics are safe, non-toxic and formaldehyde-free. PP honeycomb panel is RoHS and REACH compliant, safe material for direct skin contact.
