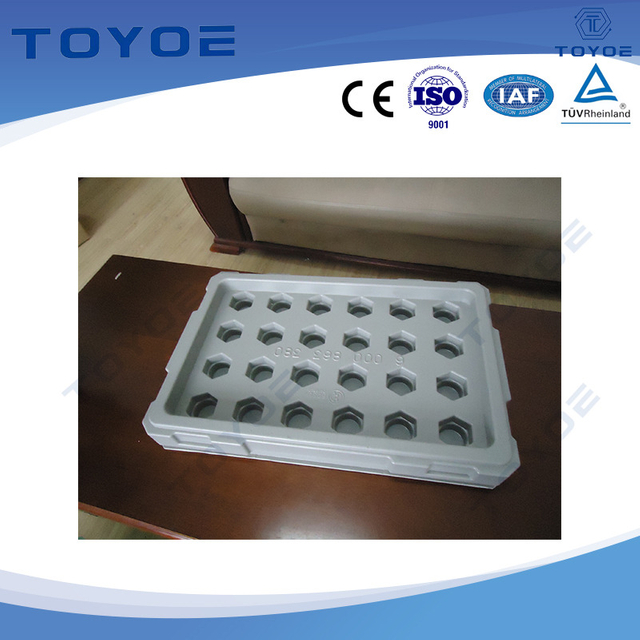

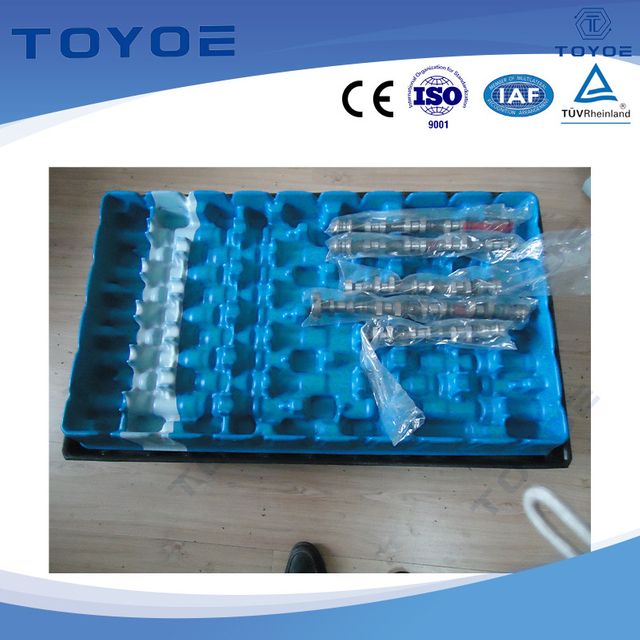

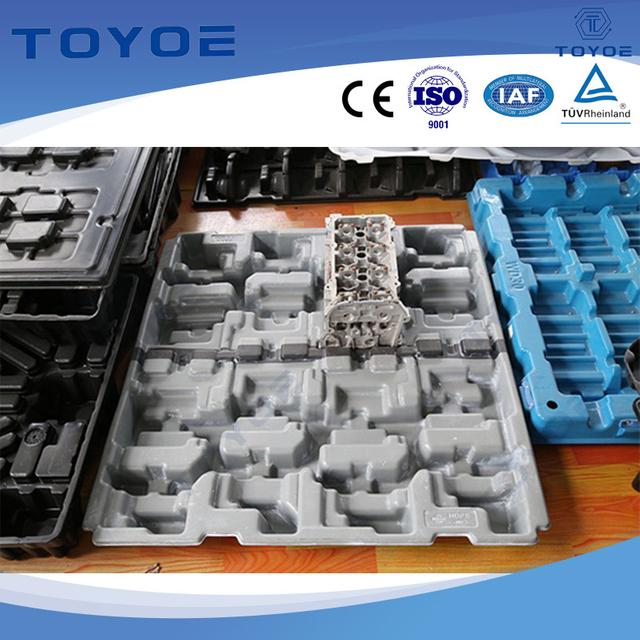

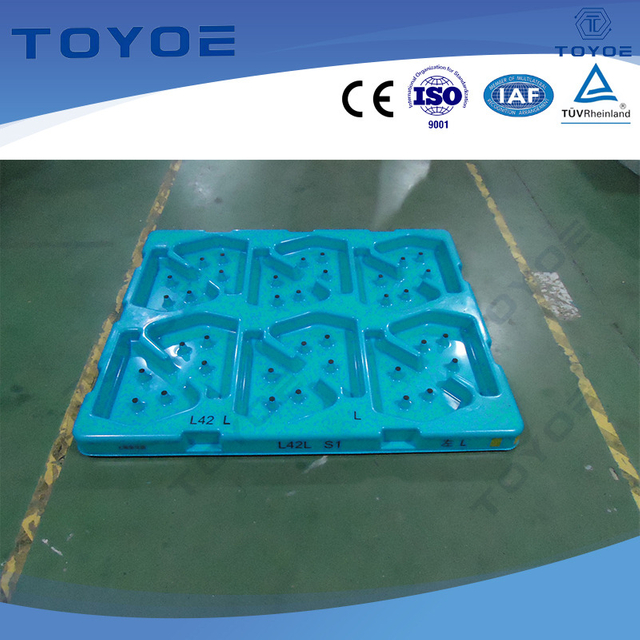

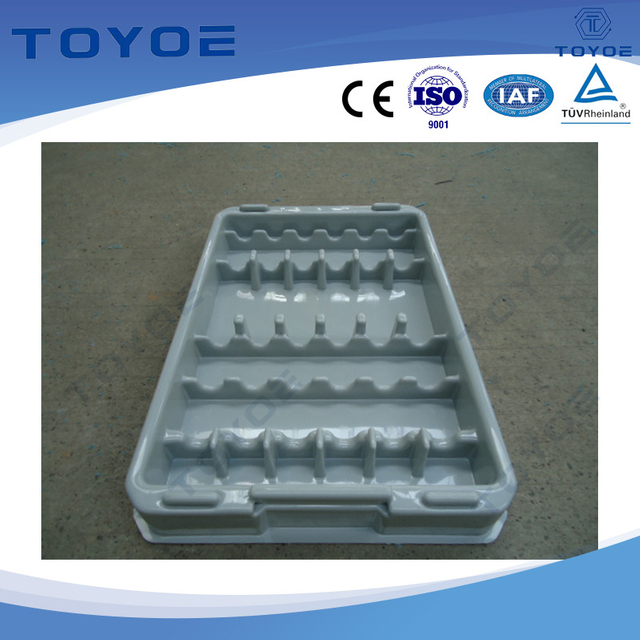

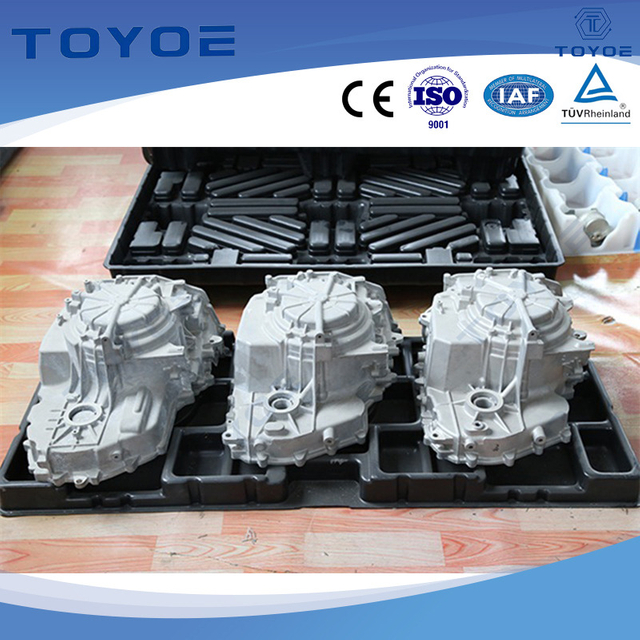

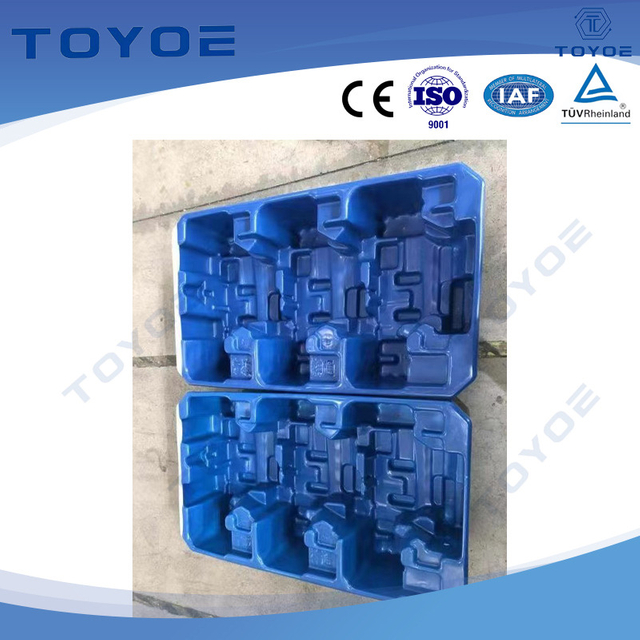

Vacuum-formed inserts are customized internal packaging components manufactured from thermoplastic sheets (such as PET, PS, PP, PVC, etc.) using a vacuum forming process. They are not standalone containers but rather serve as “liners” for returnable crates, cardboard boxes, or pallets, precisely conforming to the contours of the products they hold to provide a four-in-one solution of positioning, separation, cushioning, and protection. In industries such as automotive parts, consumer electronics, medical devices, and precision instruments, thermoformed inserts serve as the critical interface between standardized outer packaging and non-standardized products. They not only ensure physical safety during logistics but also support automated picking on production lines and efficient manual operations, making them indispensable “invisible guardians” in modern lean packaging systems.
Perfect Contour Matching and Wobble-Free Positioning: Through 3D modeling and CNC tooling, the inner liner cavities precisely replicate the product’s surfaces, grooves, and bosses on a 1:1 scale, ensuring each part remains securely in place during transport and completely eliminating the risk of collisions and friction. The multi-cavity design supports quantity control, facilitating inventory counting and error prevention.
Optimal Lightweight Design and Space Efficiency: Compared to EVA-carved or injection-molded dividers, thermoformed liners have a wall thickness of just 0.5–2 mm and are extremely lightweight; their nested structure reduces stacking height by over 70% when empty, significantly saving on warehousing and return shipping costs.
Customizable Material Properties: Base materials can be selected from anti-static (ESD), conductive, flame-retardant, food-grade, or biodegradable formulations; surfaces can be flocked, sandblasted, or given a matte finish to prevent scratching of high-gloss components; colors can be used to distinguish process stages or product lines, enhancing on-site visibility.
Rapid Response and Low-Cost Tooling Modifications: Mold costs are only 1/5–1/10 of those for injection molds, with lead times of 7–15 days; after small-batch prototyping and validation, mass production can begin quickly, making them ideal for new product launches, engineering changes, or mixed-product line production scenarios.
Automotive Electronics and Sensors: Anti-static transit liners for ECUs, camera modules, and radar units, featuring integrated shielding bag slots and label windows to meet ESD protection and traceability requirements.
Consumer Electronics Assembly: Dust-proof and shock-resistant inner trays for smartphone mid-frames, TWS earbuds, and lens assemblies, designed to work with automatic labeling machines and vision inspection systems to improve post-SMT yield rates.
Medical Device Sterilization Packaging: Sterile barrier liners for surgical instruments and implants, made from medical-grade PETG, resistant to ETO and gamma sterilization, and compliant with ISO 11607 standards.
New Energy Battery Modules: Insulating and isolating liners for battery cells and busbars, balancing electrical safety with heat dissipation channel design, and compatible with automated loading robots on PACK production lines.
After-Sales Spare Parts Distribution: Individual protective liners for high-value repair parts (such as control modules and precision valve bodies), embedded in standard HP boxes or KLT bins to enable precise “one item per box” delivery.
